Ethernet Cables Mercury

Economy U/UTP Network Cable 305m GreySolid conductor twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. Suitable for high speed data transmission such as Gigabit Ethernet applications.Passes Cat5e fluke test 100m at 100MHzSolid copper clad aluminium conductorSupplied in an easy-pull dispensing box

Cat6 U/UTP Outdoor Network CableCat6 oxygen free copper twisted pair data cable with LDPE sheath, supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoors environment.DetailsConductor Solid OFCStrands 8 x 0.53mmØ ±2%Cable : diameter 6.0±0.05mmInsulation HDPE 0.93±0.05mmSheath LDPE 0.55±0.05mm thicknessDC resistance @ 20°C 20.1dB @ 100MHzAttenuation >19.8dB @ 100MHzNEXT >44.3dB @ 100MHzPhase delay >537.60ns @ 100MHzPSNEXT >42.3dB @ 100MHzELFEXT >27.8dB @ 100MHzPSELFEXT >24.8dB @ 100MHzCable colour Black

Cat6 U/UTP Network Cable 305m GreyCat6 oxygen free copper twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.Oxygen free solid copper conductorSupplied in an easy-pull dispensing boxPasses Cat6 fluke test 100m at 250MHzComplies to TIA/EIA-568 Cat6 standardHDBaseT Compliant

Cat6 U/UTP Outdoor Network CableCat6 oxygen free copper twisted pair data cable with LDPE sheath, supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoors environment.DetailsConductor Solid OFCStrands 8 x 0.53mmØ ±2%Cable : diameter 6.0±0.05mmInsulation HDPE 0.93±0.05mmSheath LDPE 0.55±0.05mm thicknessDC resistance @ 20°C 20.1dB @ 100MHzAttenuation >19.8dB @ 100MHzNEXT >44.3dB @ 100MHzPhase delay >537.60ns @ 100MHzPSNEXT >42.3dB @ 100MHzELFEXT >27.8dB @ 100MHzPSELFEXT >24.8dB @ 100MHzCable colour Black

Cat5e U/UTP Outdoor-305m P/Box BlackCat5e oxygen free copper 4x twisted pair data cable with LDPE sheath. Supplied in dispensing box and marked at 1 metre intervals, this cable is designed for high speed data transmission such as Gigabit Ethernet applications.LDPE sheath and UV resistant properties make this cable ideal for outdoor installationsAWG 24 oxygen free solid copper conductorSupplied in an easy-pull dispensing box and marked at 1m intervalsComplies to TIA/EIA-568-C.2 Cat5e standard

Cat5e U/UTP LSZH Network Cable 305m LilacCat5e oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fireAWG 24 oxygen free solid copper conductorSupplied in an easy-pull dispensing boxPasses Cat5e fluke test 100m at 100MHzComplies to TIA/EIA-568 Cat5e standardHDBaseT Compliant

Cat5e F/UTP Network Cable 305m GreyCat5e oxygen free copper twisted pair data cable with overall aluminium foil screen. supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.AWG 24 oxygen free solid copper conductorSupplied in an easy-pull dispensing boxPasses Cat5e fluke test 100m at 100MHzComplies to TIA/EIA-568 Cat5e standard

Cat6 U/UTP Network CableCat6 oxygen free copper twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.DetailsStrands 8 x 1/0.54mmØ ±2%Conductor CSA 8 x 0.229mm²Cable : diameter 5.8mmØInsulation HDPE 0.195mm thicknessSheath PVC 0.55mm thicknessCapacitance 5.2nF/100mDC resistance @ 20°C 17.3dB @100mAttenuation 38.3dBPSNEXT >36.3dBELFEXT >19.8dBPSELFEXT >16.8dBPhase delay

Cat6 U/UTP Network CableCat6 oxygen free copper twisted pair data cable supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.DetailsStrands 8 x 1/0.54mmØ ±2%Conductor CSA 8 x 0.229mm²Cable : diameter 5.8mmØInsulation HDPE 0.195mm thicknessSheath PVC 0.55mm thicknessCapacitance 5.2nF/100mDC resistance @ 20°C 17.3dB @100mAttenuation 38.3dBPSNEXT >36.3dBELFEXT >19.8dBPSELFEXT >16.8dBPhase delay

Cat5e U/UTP LDPE Gel Filled Network Cable 305m BlackCat5e oxygen free copper twisted pair data cable with LDPE sheath and gel filled structure. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.LDPE sheath with UV resistant properties and gel filled inner structure makes this cable ideal for outdoor installationAWG 24 oxygen free solid copper conductorSupplied in an easy-pull dispensing boxPasses Cat5e fluke test 100m at 100MHzComplies to TIA/EIA-568 Cat5e standard

Cat6 F/UTP Network Cable 305m GreyCat6 oxygen free copper twisted pair data cable with overall aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applicationsAWG 23 oxygen free solid copper conductorSupplied on a sturdy wooden drum reelPasses Cat6 fluke test 100m at 250MHzComplies to TIA/EIA-568 Cat6 standard

Cat6 U/UTP LDPE Gel Filled Network Cable 305m BlackCat6 oxygen free copper twisted pair data cable with LDPE sheath and gel filled structure. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.LDPE sheath with UV resistant properties and gel filled inner structure makes this cable ideal for outdoor installationAWG 23 oxygen free solid copper conductorPasses Cat6 fluke test 100m at 250MHzComplies to TIA/EIA-568 Cat6 standardSupplied on a sturdy wooden drum reel

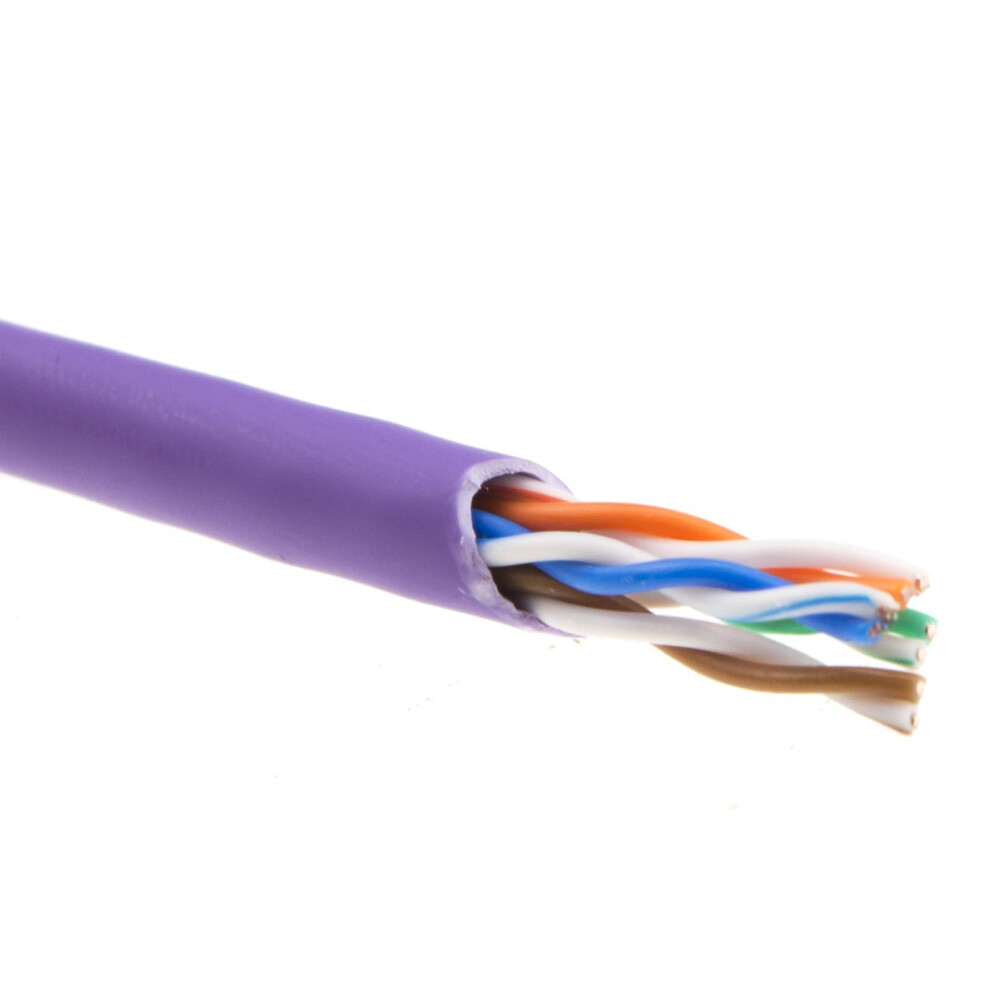

Cat6a U/FTP LSZH Network Cable 305m LilacCat6a oxygen free copper twisted pair data cable with low smoke zero halogen sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.AWG 23 oxygen free solid copper conductorSupplied on a sturdy wooden drum reelPasses Cat6a fluke test 100m at 500MHzComplies to TIA/EIA-568 Cat6a standardLow smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fireHDBaseT Compliant

Cat6a S/FTP LSZH Network Cable 305m LilacCat6a oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Individual pair aluminium foil screen and overall braided aluminium screen provide protection from any pair or alien crosstalk. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications within noisy environments.Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fireAWG 23 oxygen free solid copper conductorSupplied on a sturdy wooden drum reelPasses Cat6a fluke test 100m at 500MHzComplies …
