Pliers KNIPEX

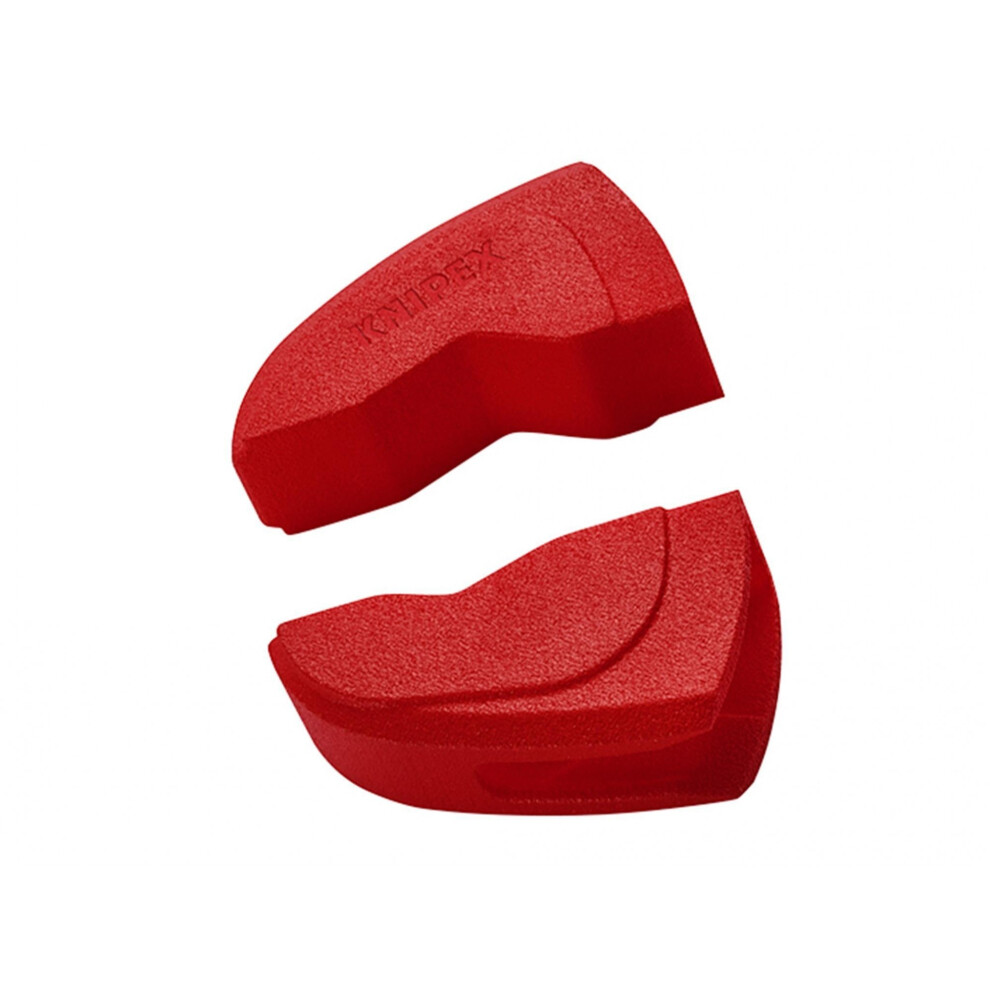

Knipex 86 09 250 V01 Protective Jaw Covers for 8609250 V01 (3 Pairs) Protective Jaw Covers for the revised pliers wrench (model from 2018) in the 250 mm length. These give damage-free gripping, holding and compressing of softer fixings and surfaces. Features: The perfect choice for designer fittings and other highly sensitive materials thanks to the soft, smooth gripping surface Allows the pliers to be used on chrome if the jaws of the pliers wrench have been damaged due to improper or rough use Easy to attach by hand and reliable fixing on the jaws by means of an internal latching hook Set consisting of 3 pairs of protective jaws made of plastic Specification: Pack of 6

Side Cutters / Ergonomic / 200 mm Length

The Knipex 02 01 Series High Leverage Combination Pliers with dipped PVC handles. They offer a 35% saving in effort compared with conventional pliers due to improved lever action. Made from high-grade special tool steel, forged, multi stage oil-hardened. With gripping zones for flat and round material, suitable for versatile use. They also feature cutting edges for soft and hard wire and long cutting edges for thicker cables. These cutting edges have been additionally induction-hardened, hardness approx. 60 HRC. Precise, minimal light gap between the gripping jaws ensures optimal function of the cutting edges. These Knipex High Leverage Combination Pliers have the following specification Length …

70 01 140 SB Diagonal CutterThe indispensable diagonal cutter for all-round use. High-quality material and precise workmanship for long service life. Precision cutting edges for soft and hard wire. Clean cutting of thin copper wires, also at the cutting edge tips. Cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC. Narrow head style for use in confined areas. The next generation of the KNIPEX classic, with even better features. Optimised power transmission for 20 % higher cutting performance than the previous model. self-service card/blister. Cutting capacities soft wire (diameter): Ø 4.0 mmCutting capacities medium hard wire (diameter): Ø 2.5 mmCutting capacities ha…

Knipex Wire Stripping tool for Coax & Data Cables Universal stripping tool for Coax cables RG 59, RG 6, RG 7, RG 11 For stripping outer sheath, shield and insulation in a single process Adjustable stripping blade for data cable Two stripping blades for cutting and stripping telephone ribbon cable (4P/6P/8P) in a single operation Integrated blade for cutting data cables Housing: plastic, impact-proof Length: 125 mm

To twist and cut wire in one operation, then the Knipex 99 01 250 Concreter's nippers are the ones for you. They are fast, reliable and economical and will make light work of the toughest of job applications. The 99 01 250 nippers are precision made to give a long service life, making these the most widely purchased Concreter's Nippers in the world. The cutting edges, with hardness to approx 61 HRC, will help make light work on soft and annealed tie wire used on reinforced rods or large braided reinforced concrete mesh. Knipex 99 01 250 Concreter's nippers are made up from high-grade special tool steel, forged and then oil-hardened for reliability and durability. They have plastic moulded handles …

Concretor's Nippers / 280 mm Length

68 01 160 SB End Cutting NipperThe head shape provides optimised movement when tightening steel mesh knots during reinforced concrete work. With cutting edges for soft and hard wire. Also suitable for twisting and cutting binding wire. Cutting edges additionally hardened; cutting edge hardness approx. 61 HRC. self-service card/blister. Cutting capacities soft wire (diameter): Ø 4.0 mmCutting capacities medium hard wire (diameter): Ø 2.8 mmCutting capacities hard wire (diameter): Ø 2.3 mmCutting edge length mm (C): 25 mm

The head shape provides optimised movement when tightening steel mesh knots during reinforced concrete work
With cutting edges for soft and hard wire
Also suitable for twisting and cutting binding wire
Cutting edges additionally hardened
Cutting edge hardness approx. 61 HRC

Concretor's Nippers / 220 mm Length

Knipex 2201160 Round Nose Pliers 160mm
The Knipex 2201160 Round nose pliers measure 160mm in length with 30mm long jaws. They have plastic coated handles for a comfortable grip and are intended for use bending wire loops.Features:
- For bending wire loops

- Round, short jaws; finely ground

- Smooth tips
Specification:

- Part Number: 2201160
- Pliers: black atramentized

- Head: polished

- Handles: plastic coated

- Weight: 135 g

- Dimensions: 160 x 50 x 13 mm

- Standard: DIN ISO 5745

- REACH compliant: does not contain SVHC

- RoHS compliant: not applicable

- Jaw thickness (joint) (T1): 9.5 mm

- Tips thickness (T2): 3.0 mm

- Jaw length (L3): 30.0 mm
<…

Side Cutters / ESD (electrically conductive) / 125 mm Length

Knipex 70 01 Series Diagonal Cutters are made from vanadium electric steel, forged, multi stage oil-hardened. The cutting edges are additionally induction-hardened, cutting edge hardness approx. 62 HRC. Fitted with ergonomically PVC coated styled handles for added grip and comfort. They have a narrow head style for use in confined areas. Ideal for clean cutting of thin copper wires, soft and hard wire. The indispensable diagonal cutter for all-round use. Utilises high-quality materials and precise workmanship for long service life. These Knipex Diagonal Cutters have the following specification Length 160mm Cutting Capacity (mm) Hard 2.0, Medium 2.8, Soft 4.0

High quality handheld crimping tool for bootlace ferrule. Made from chrome vanadium electric steel and designed to automatically adjust to the size of the bootlace ferrule to make sure accurate work is performed with each crimp. A well designed transmission ratio which is hand friendly providing a comfortable grip and allowing the user to crimp easily with the perfect end result. Features and Benefits 97 53 04 Square compression now for end sleeves (ferrules) up to 16 mm Square compression for ideal contact surfaces in the clamp connection Suitable in particular for all twin end sleeves (ferrules) up to 2 x 6 mm or 2 x AWG 8 Repetitive, high crimping quality due to integral lock (self-releasing …

The Knipex 02 01 Series High Leverage Combination Pliers with dipped PVC handles. They offer a 35% saving in effort compared with conventional pliers due to improved lever action. Made from high-grade special tool steel, forged, multi stage oil-hardened. With gripping zones for flat and round material, suitable for versatile use. They also feature cutting edges for soft and hard wire and long cutting edges for thicker cables. These cutting edges have been additionally induction-hardened, hardness approx. 60 HRC. Precise, minimal light gap between the gripping jaws ensures optimal function of the cutting edges. These Knipex High Leverage Combination Pliers have the following specification Length …

The Knipex 11 06 Series VDE Insulation Strippers are fitted with multi-component grips, VDE tested up to 10,000V and safe for work up to 1,000V. They conform to DIN EN / IEC 60900. Made from special tool steel, forged, oil-hardened. Chrome plated finish. Easy adjustment to the required diameter of solid or stranded wire with knurled screw and lock nut. For stripping single, multiple and fine stranded conductors with plastic or rubber insulation up to 5.0mm dia. or 10mm cable cross-section. Specification Stripping Capacity Diameter 5mm/10mm AWG 7 Length 160mm

Knipex have used special tool steel construction with PVC dipped handles for added comfort, durability and most important added grip. The Knipex 46 31 series of external bent circlip pliers are constructed from chrome vanadium solid style forged top quality steel with precision non-slip tips for added strength and durability. They have 45 bent tips. Like most of the Knipex range of pliers, all components are oil hardened with polished heads. These circlip pliers have PVC dipped handles for added comfort, durability and, most importantly, added grip. Size 130mm Shaft size 10-25mm

70 01 125 SB Diagonal CutterThe indispensable diagonal cutter for all-round use. High-quality material and precise workmanship for long service life. Precision cutting edges for soft and hard wire. Clean cutting of thin copper wires, also at the cutting edge tips. Cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC. Narrow head style for use in confined areas. self-service card/blister. Cutting capacities soft wire (diameter): Ø 3.0 mmCutting capacities medium hard wire (diameter): Ø 2.3 mmCutting capacities hard wire (diameter): Ø 1.5 mm

74 01 140 SB High Leverage Diagonal CutterFor very tough, continuous use. High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio. Precision cutting edges additionally induction-hardened (cutting edge hardness approx. 64 HRC), for all sorts of wire including piano wire. self-service card/blister. Cutting capacities medium hard wire (diameter): Ø 3.1 mmCutting capacities hard wire (diameter): Ø 2.0 mmCutting capacities piano wire (diameter): Ø 1.5 mm

Knipex have used special tool steel construction with PVC dipped handles for added comfort, durability and most important added grip. The Knipex 46 31 series of external bent circlip pliers are constructed from chrome vanadium solid style forged top quality steel with precision non-slip tips for added strength and durability. They have 45 bent tips. Like most of the Knipex range of pliers, all components are oil hardened with polished heads. These circlip pliers have PVC dipped handles for added comfort, durability and, most importantly, added grip. Size 130mm Shaft size 3-10mm

Circlip Pliers / 140 mm Length

To twist and cut wire in one operation, then the Knipex 99 01 250 Concreter's nippers are the ones for you. They are fast, reliable and economical and will make light work of the toughest of job applications. The 99 01 250 nippers are precision made to give a long service life, making these the most widely purchased Concreter's Nippers in the world. The cutting edges, with hardness to approx 61 HRC, will help make light work on soft and annealed tie wire used on reinforced rods or large braided reinforced concrete mesh. Knipex 99 01 250 Concreter's nippers are made up from high-grade special tool steel, forged and then oil-hardened for reliability and durability. They have plastic moulded handles …

Knipex 70 02 160 SB Diagonal Cutter 160mm The Knipex 7002160SB is the indispensable diagonal cutter for all-round use. It features a polished head with elongated cutting edges and handles with multi-component grips. Features:
- High-quality material and precise workmanship for long service life
- Precision cutting edges for soft and hard wire
- Clean cutting of thin copper wires, also at the cutting-edge tips
- Cutting edges additionally induction hardened, cutting edge hardness approx. 62 HRC
- Narrow head style for use in confined areas
- Vanadium electric steel, forged, multi stage oil-hardened Specification:
- Part number: 70 02 160
- Head: polished
- Handles: with multi-component …

Knipex 70 01 Series Diagonal Cutters are made from vanadium electric steel, forged, multi stage oil-hardened. The cutting edges are additionally induction-hardened, cutting edge hardness approx. 62 HRC. Fitted with ergonomically PVC coated styled handles for added grip and comfort. They have a narrow head style for use in confined areas. Ideal for clean cutting of thin copper wires, soft and hard wire. The indispensable diagonal cutter for all-round use. Utilises high-quality materials and precise workmanship for long service life. These Knipex Diagonal Cutters have the following specification Length 180mm Cutting Capacity (mm) Hard 2.5, Medium 3.0, Soft 4.0
