Crown CT26010HX
Diamond Core Bits & Milling Cutters1908
 |
Ideal for fast chamfering. Popular in the sign making trades. For chamfering edges of plastic material. Specifications • Shank Diameter: 1/4 • Dia Metric: 25 • Cut Length Metric: 1 more→0 • Overall Length Metric: 53.5 • Angle: 45
 |
A lip and spur drill for use in a plunge router in conjunction with the Craft Dovetail jigs with doweling attachment. The drill is tungsten carbide tipped for use on natural timbers and manmade boar more→ds. This drill is used for shelf supports. The speed range is 1000 to 22000 rpm. For drilling machines or routers. Specifications • Shank Diameter: 1/4 • Dia Metric: 4 • Cut Length Metric: 30 • Overall Length Metric: 57
 |
Crafted from solid carbide, it offers exceptional hardness and wear resistance, making it suitable for milling a wide range of materials including stainless steel, cast steel, cast aluminium, and copp more→er. The TiALN (Titanium Aluminium Nitride) coating enhances the end mill's performance by reducing friction and heat, allowing for faster cutting speeds and extended tool life. The Weldon shank design provides increased stability and secure grip in tool holders, ensuring precise and efficient milling operations. Product Operations • Shallow shoulder milling • Deep shoulder milling • Plunge milling • Shallow slot milling • Ramping • Progressive Plunging Features & Benefits …
 |
Profiler with shank mounted bearing guides. For use with router mounted above or below a table when following a template. For profiling and rebating applications only. Not for plunge cutting/groo more→ving. A 3mm maximum overlap should be left before trimming. They are ideal for template making. Specifications • Shank Diameter: 1/4 • Dia Metric: 9.5 • Dia Imperial: 3/8 • Cut Length Metric: 32 • Overall Length Metric: 74 • Bearing Dia Metric: 9.5
 |
Combination shank for hand brace or power drill. Speed range 200 rpm when cutting holes above 90mm diameter increasing to 800rpm for 40mm diameter holes. The cutter has an easy to use adjustment nut, more→graduated beam and hardened pilot point. For wood and plastics, maximum cutting depth 30mm. Features and Benefits • Combination shank for hand brace or power drill • For wood and plastics, maximum cutting depth 30mm • Speed range: 200 rpm for 90mm diameter increasing to 800rpm for 40mm diameter holes • Easy to use adjustment nut, graduated beam and hardened pilot point Contents 1 x Hole Cutter for Wood or Plastic, 40 - 120mm
 |
Shank mounted bearing profilers are ideal for template guidance. Use for rebating and trimming edges only. Extra care must be taken to avoid cutter breakage. Specifications • Shank Diameter: more→1/2 • Dia Metric: 18.2 • Dia Imperial: 23/32 • Cut Length Metric: 50 • Cut Length Imperial: 2 • Overall Length Metric: 103 • Bearing Dia Metric: 18.2 • Bearing Dia Imperial: 23/32 • Angle: 90
 |
Clarkson 01PM/03PM standard series multi flute end mills. Made from M42 High Speed Steel with 8% cobalt. Sizes 2.0mm - 20.0mm: Four Flutes Sizes 21.0mm - 38.0mm: Six Flutes Sizes 40.0mm - 50.00mm: Eig more→ht Flutes BS 122/4. Specifications • Milling Diameter: 14mm • Shank Diameter: 12mm • Length of Cut: 28.5mm • Overall Length: 73.5mm • Square End Helix Angle: 30° Features and Benefits • Premium grade M24 High Speed Steel with 8% cobalt (HSS Co8) • Screwed shank to BS122/4 • Multidirectiona
 |

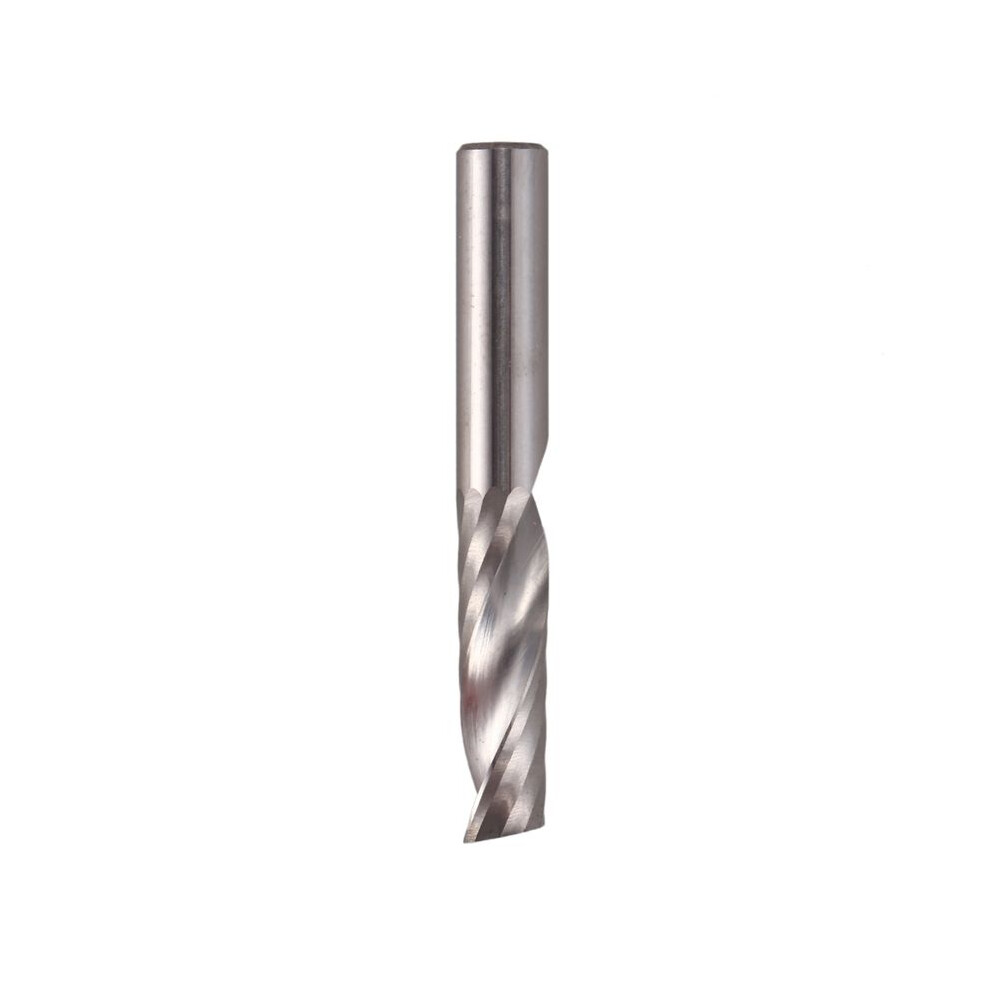

Tungsten Carbide Tipped. Two flute cutter with a positive shear angle (down-cut) for fast cutting and fine finish. Ideal for grooving & trimming veneer finishes & laminated boards. Down cut feature more→stops break out on top edge. Has a 4 degree shear. Specifications • Shank Diameter: 1/2 • Dia Metric: 9.5 • Dia Imperial: 3/8 • Cut Length Metric: 25 • Overall Length Metric: 70
Important!
Compatibility with specific models Routers & Trimmers should be confirmed with the online store manager directly before purchase.
Compatibility with specific models Routers & Trimmers should be confirmed with the online store manager directly before purchase.
