TrippLite Tripp Lite SRW9U SmartRack 9U Low-Profile Switch-Depth Wall-Mount Mini Rack Enclosure

The SRW9U SmartRack 9U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets retail locations classrooms back offices and other areas with limited floor space where you need equipment to be secure organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish the cabinet has a maximum load capacity of 90 kgs.

The side panels and front door lock securely to help prevent damage tampering or theft. The front top bottom and removable side panels are vented which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180 before mounting. Convenient top and bottom ports allow easy cable routing.

The SRW9U comes fully assembled and ready to mount to the wall or use Tripp Lites optional SRCASTER rolling caster kit to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep such as network switches and patch panels.

Saves Valuable Workspace

Perfect for network wiring closets retail locations classrooms back offices and other areas with limited floor space where you need equipment to be secure organized and out of the way
Houses EIA-standard 19 in. rack equipment in 9U of space
Maximum load capacity of 90 kgs

Keeps Important Equipment Secure

Side panels and front door lock securely to help prevent damage tampering or theft
Vented panels allow generous airflow that keeps equipment cool
Rotate cabinet 180 before mounting to open reversible front door left or right
Convenient ports with removable covers allow cable routing through top and bottom

Easy Enclosure and Equipment Installation

Ships fully assembled for quick installation
Mounts to wall or rolls on floor with Tripp Lites optional SRCASTER caster kit
Wall-mounting holes spaced 16 in. apart for standard wall stud placement
Vertical mounting rails adjust in 7/8 in. increments to accommodate equipment up to 16.5 in. deep such as network switches and patch panels
Rails support square-hole or 12-24 threaded-hole mounting
Rack spaces numbered for easy reference

Meets Payment Card Industry Standards

Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance

Maximum load capacity of 90 kgs
Locking steel cabinet vented at sides front top and bottom
Flow-through ventilation keeps equipment cool
Secures 9U of 19 in. rack equipment up to 16.5 in. deep
Mounts to wall or rolls on floor (with optional SRCASTER)

Package Includes

SRW9U SmartRack 9U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet

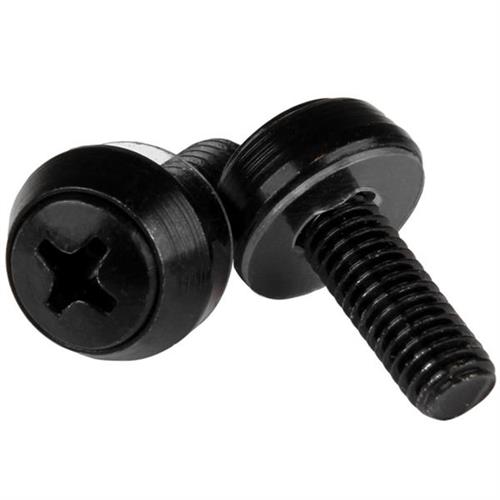

(12) M6 screws
(12) M6 cage nuts
(12) M6 cup washers
(12) 12-24 screws
Removable mounting plate
