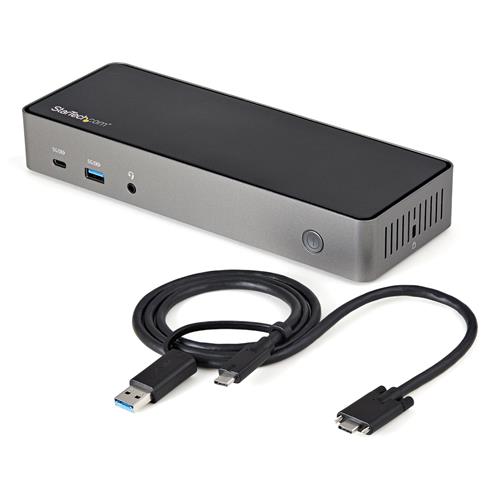

Startech.com Thunderbolt 3 Dock w/ USB-C Host Compatibility - Dual 4K 60Hz

Dual DP 4K 60Hz or Dual HDMI 2.0 Monitors | macOS & Windows| 5x USB 3.0 Ports | 96W PD | 0.8 m Cable

A high-performance Thunderbolt 3 Certified docking station with USB Type-C compatibility featuring dual monitor 4K 60Hz DSC support from either Dual or dual HDMI 2.0 video outputs 96W Power Delivery (100W peak power) 5x USB 3.2 Hub with 2x BC 1.2 fast charging ports gigabit Ethernet & headset ports.

Flexible Dual Display Outputs

This universal docking station features both dual DisplayPort 1.4 (Single 8K30 on HBR3 host) and dual HDMI video outputs that can be configured in three different ways:

DisplayPort + DisplayPort

HDMI + HDMI

DisplayPort + HDMI

Resolutions and video outputs are host-dependent.

Host Output

DCS Status

Single Video

Dual Video

Thunderbolt with DP 1.4 (nVidia Graphics)

Off

8K (7680 x 4320) @ 30Hz (DP Only)

n/a

Thunderbolt with DP 1.4 (nVidia Graphics)

Off

n/a

2x 4K (3840x2160) @ 60Hz

Thunderbolt with DP 1.4 (nVidia Graphics)

On

4K (3840x2160) @144Hz

n/a

Thunderbolt with DP 1.4 (nVidia Graphics)

On

n/a

2x 4K (3840x2160) @ 60Hz

Thunderbolt with DP 1.4 (Intel Graphics)

n/a

5K (5120x2880) @ 60Hz (DP Only)

n/a

Thunderbolt with DP 1.4 (Intel Graphics)

n/a

n/a

2x 4K (3840x2160) @ 60Hz

Thunderbolt with DP 1.2

n/a

4K (3840x2160) @ 60Hz

n/a

Thunderbolt with DP 1.2

n/a

n/a

2x 4K (3840x2160) @ 60Hz

USB Type-C DP Alternate Mode DP 1.4

Off

4K (3840x2160) @ 30Hz

n/a

USB Type-C DP Alternate Mode DP 1.4

Off

n/a

2x QHD (2560x1440)

USB Type-C DP Alternate Mode DP 1.4

On

5K (5120x2880) @ 60Hz (DP Only)

n/a

USB Type-C DP Alternate Mode DP 1.4

On

n/a

2x 4K (3840x2160) @ 60Hz

USB Type-C DP Alternate Mode DP 1.2

n/a

4K (3840x2160) @ 30Hz

n/a

USB Type-C DP Alternate Mode DP 1.2

n/a

n/a

2x 1080p (1920x1080) @ 60Hz

More Downstream USB Ports

Featuring an integrated USB 3.2 hub this docking station has 5 downstream USB ports:

Front Facing:

1x USB 3.2 Gen 2 Type-C (10 Gbps) with 15W (3A 5V) Charging

1x USB 3.2 Gen 2 Type-A (10 Gbps) with B.C. 1.2 Fast-Charging

Back Facing:

2x USB 3.2 Gen 1 Type-A (5 Gbps)

1x USB 3.2 Gen 2 Type-C (10 Gbps)

Easy to Set Up & Manage

This universal Thunderbolt 3 / USB-C Dock has an automatic driver setup and includes a longer 0.8 meter (2.6 ft) Thunderbolt 3 host cable front-facing TB3/USB-C host port front-facing LED indicator mounting holes for the optional bracket k-slot for security lock & MAC address changer utility.

Connected Device Transparency with the StarTech.com MAC Address Changer Utility

The TB3CDK2DHUE includes a free Windows application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock the computer's MAC address is typically not broadcast to the network as your network only sees the MAC address
