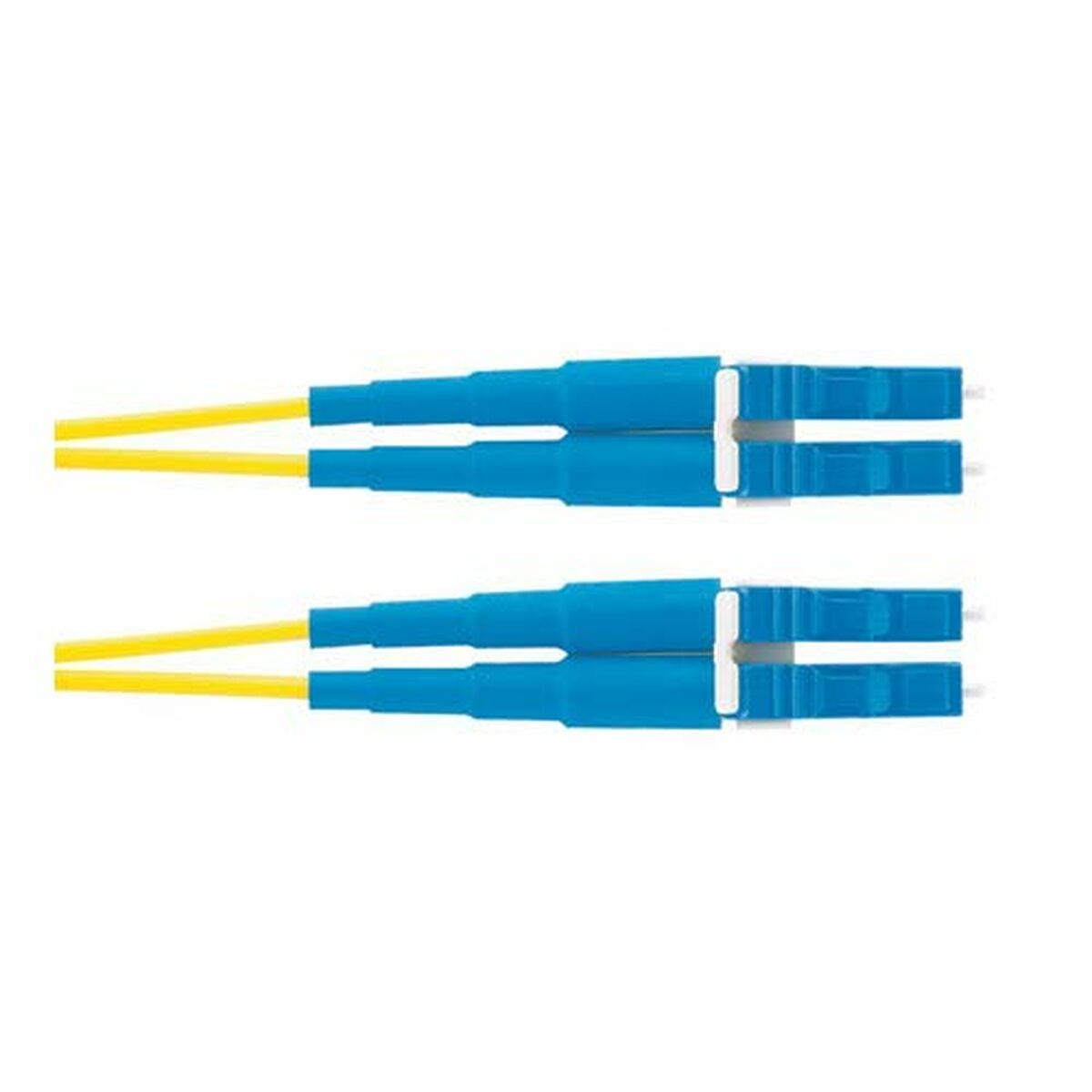

Panduit F92ELLNLNSNM001

The duplex fiber patch cord is OS2 with a 1.6mm cable jacket. It is Low Smoke Zero Halogen (LSZH), features LC Duplex to LC Duplex connectors, has standard insertion loss and is 1 meter in length.Specifications:- Number of Fibers: 2- Connector 1 Type: LC Duplex- Connector 2 Type: LC Duplex- Flammability Rating: LSZH- Maximum Connector Insertion Loss (dB): 0.35- Minimum Connector Return Loss (dB): 55- Overall Length (ft.): 3.28- Overall Length (m): 1- Fiber Diameter (µm): 9- Outer Diameter (In.): 0.06- Outer Diameter (mm): 1.6- Maximum Operating Temperature (°C): 60- Maximum Operating Temperature (°F): 140- Minimum Operating Temperature (°C): -10- Minimum Operating Temperature (°F): 14- Maximum Installation Temperature (°C): 60- Maximum Installation Temperature (°F): 140- Minimum Installation Temperature (°C): -10- Minimum Installation Temperature (°F): 14- Resistance Properties: Flame-Resistant- Standards Met: RoHS Compliant, Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10)- Application: Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated cassettes in main distribution, horizontal distribution, and equipment distribution areas- Body Style: Duplex- Product Type: LC Patch Cord- Sub Brand: Opti-Core®
