Middle Atlantic Products Stand-Alone Enclosures 20" 18U Freestanding

An economical standalone rack with solid sides the ERK series can also be ganged to create partitioned multi-bay installations for thermal management control future growth or other purposes. Seismic certified to protect your components.

• Fully welded construction for strength
• Enclosure sides include top and bottom venting

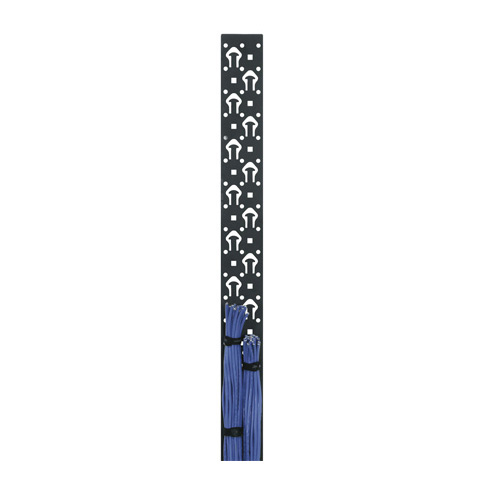

• Convenient lacing points and slotted rail brackets for cable management
• Standard front adjustable 10-32 threaded rackrail with numbered spaces
• Includes standard configurable rear door

GENERAL INFO

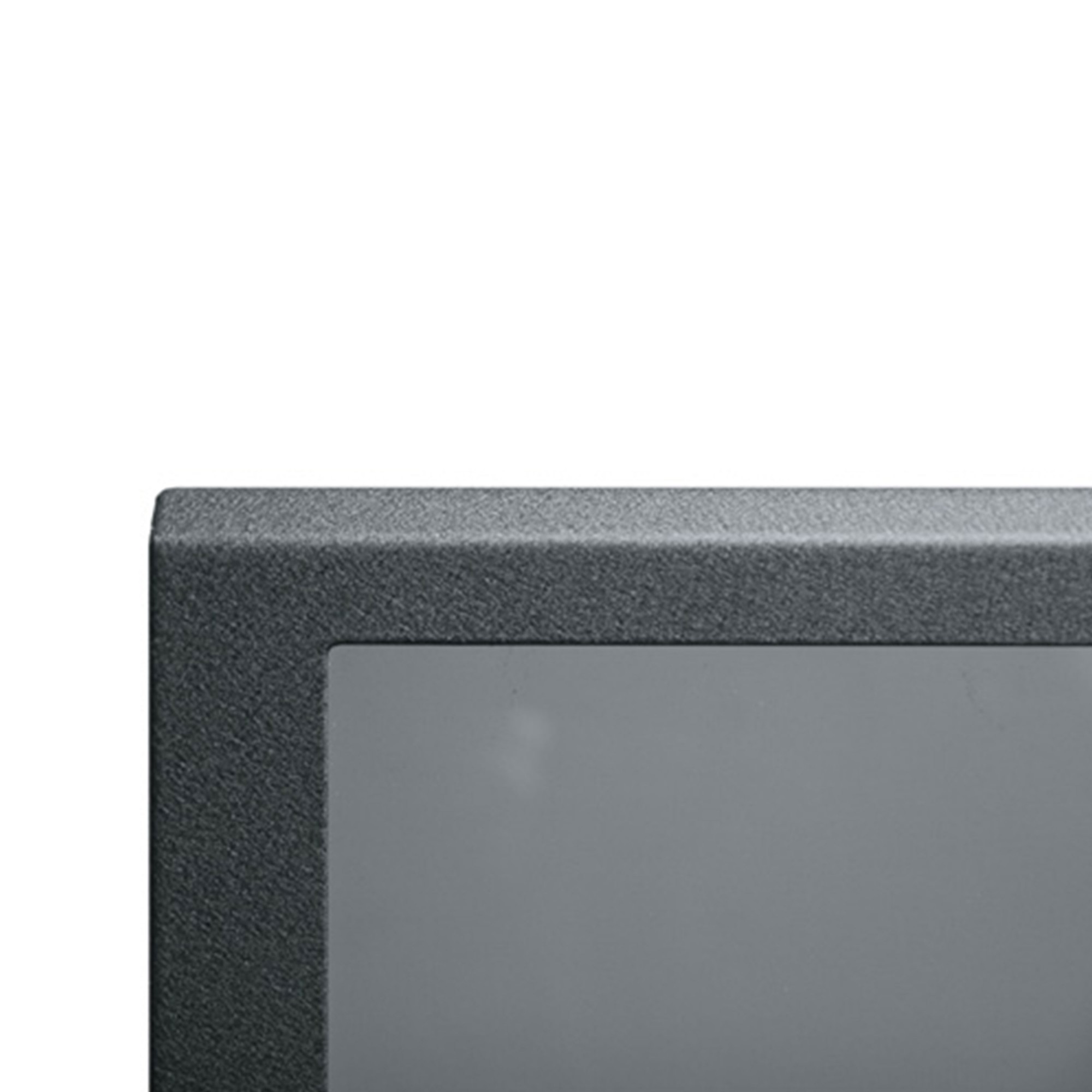

Finish: Textured Black Powder Coat
UL Standards Tested: UL2416

LISTING AGENCIES/THIRD PARTY CERTIFICATIONS

ASCE: 7-10
RoHS: Yes
Greenguard: Yes
UL Listing No: E173107

DIMENSIONS

Usable Depth: 18.47
Usable Height: 31.625
Panel Width: 19
Capacity Weight (US): 10000
Depth (US): 20
Height (US): 35.625
Width (US): 22
Rack Units: 18

TECHNICAL INFORMATION

Rackrail Type: 10-32
Seismic Load Capacity: 600
Static Load Capacity: 10000
UL Load Capacity: 2500
Material: Steel
Mounting: Horizontal
Seismic Rating: Yes

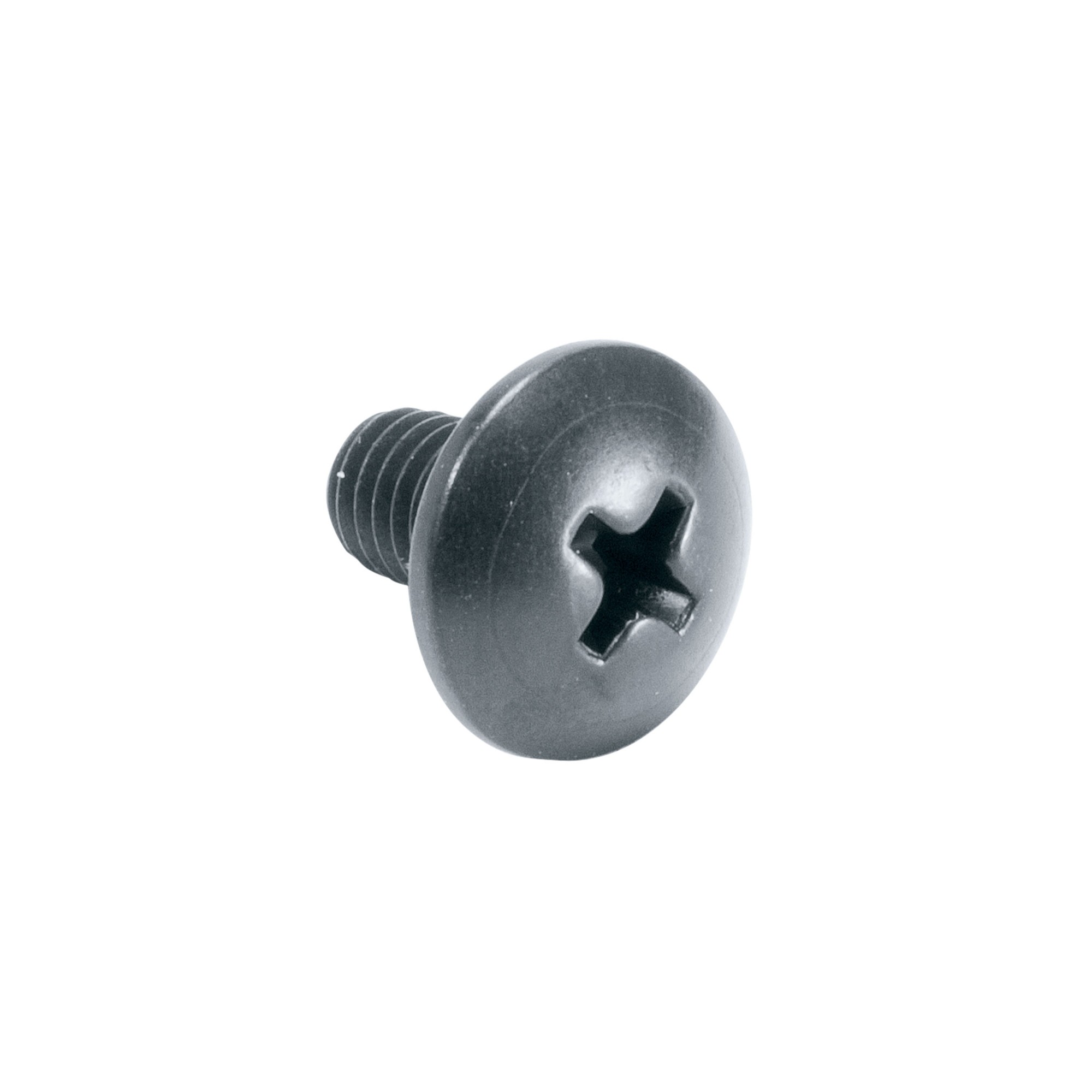

Please Note - RACKS DO NOT COME WITH SCREWS THESE WILL NEED TO BE ADDED SEPARATELY
- Features
- Rack Type Floor Standing
- Model Type ERK
- Rack Size 18U
- Rack Height 36.0
- Depth 18.5
- Width () 22.0
- Max Weight Capacity 1133 Kg
- Mounting Orientation Horizontal
- Finish Textured Black Powder Coat
