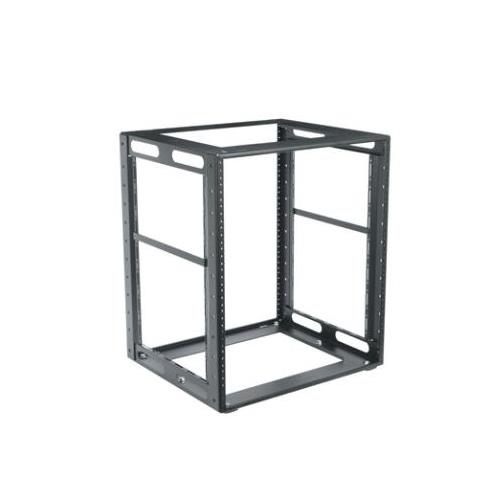

Middle Atlantic Products CFR-9-16 rack cabinet 9U Freestanding rack Black

CFR series low profile design maximizes usable rackspace in entertainment systems cabinets and similar spaces. Strong welded steel frame construction allows for pre-loading equipment and transportation to the installation site.

• Low profile design maximizes useable rackspace
• Strong welded frame allows for in-shop integration and on-site installation
• Includes two front-to-rear lacing bars for cable dressing
• Uprights feature offset cable tie areas

GENERAL INFO

Finish: Black Powder Coat
UL Standards Tested: UL1678

LISTING AGENCIES/THIRD PARTY CERTIFICATIONS

RoHS: Yes
Greenguard: Yes
UL Listing No: E173107

DIMENSIONS

Usable Depth: 16
Usable Height: 15.75
Depth (US): 16
Height (US): 16.69
Width (US): 19.25
Rack Units: 9

TECHNICAL INFORMATION

Rackrail Type: 10-32
UL Load Capacity: 250
Material: Steel
Mounting: Horizontal

Please Note - RACKS DO NOT COME WITH SCREWS THESE WILL NEED TO BE ADDED SEPARATELY
- Features
- Rack Type In Cabinet
- Model Type CFR
- Rack Size 9U
- Rack Height 16.69
- Depth 406 mm
- Width 488.95 mm
- Width () 19.25
- Max Weight Capacity 113 Kg
- Mounting Orientation Horizontal
- Finish Black Powder Coat
