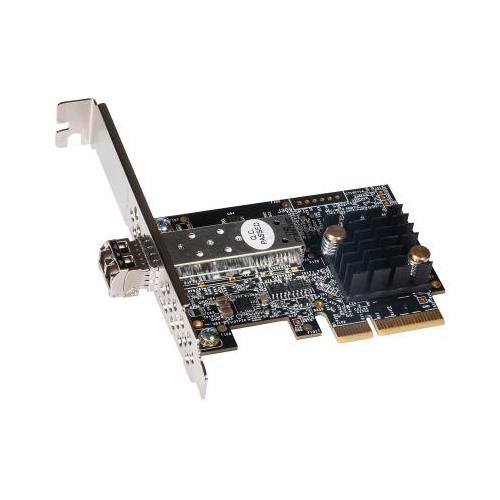

Sonnet Technologies Sonnet G10E-SFP-1X-E3 Internal Fiber 10000 Mbit/s

Solo10G SFP PCIe Card
• Adds 10GbE Connectivity to Mac Pro Towers Windows PCs or Linux Servers - Powerfully simple way to add high-performance 10GbE connectivity via optical cable to your computer with PCIe slots
• Cost-Effective - Includes 10GBASE-SR (short-range) SFP+ transceiver and supports connection up to 300 meters to 10GbE infrastructure via LC multi-mode fiber optic cable (sold separately)
• Easy Setup - Configure using your computer’s operating system network device configuration tools
• Optimized for Thunderbolt™ - Ideal for use in Sonnet’s Echo™ Express and xMac™ Thunderbolt-to-PCIe card expansion systems

COMPUTER COMPATIBILITY
• Mac Pro? (Mid 2010 or newer) PC desktop or server with full-height or low-profile PCIe slots

OS COMPATIBILITY
• macOS? High Sierra (10.13.6+); macOS Mojave compatible; macOS Catalina Compatible
• Windows? 10 8 7; Server 2016 2012
• Linux?

THUNDERBOLT COMPATIBILITY
• Mac via a Thunderbolt 2 or Thunderbolt 3 to PCIe card expansion system
• Windows computer running Windows 10 Build 1809 or newer (64-bit edition) via a Thunderbolt 3 to PCIe card expansion system

BLAZING-FAST 10GBE CONNECTIVITY OVER OPTICAL CABLES
Made possible by advances in technology—plus cheaper gear—more content than ever is captured and outputted at 4K and higher resolutions. The resulting files are larger than ever. For post-production shared storage workgroups and other bandwidth-intensive workflows 10 Gigabit Ethernet (10GbE) has become the new data transfer standard.

While very affordable 10GbE switches have helped to significantly reduce the expense of setting up 10GbE infrastructure the price of adding client connectivity—especially fiber optic connections—has remained a barrier for some. Now there is an equally affordable 10GbE interface for your desktop and workstation computers—Sonnet’s Solo10G™ SFP+ PCIe? Card a powerfully simple solution for adding blazing-fast fiber optic 10GbE network connectivity to Mac? Windows? and Linux? computers at a price that’s sure to please.

10X THE PERFORMANCE OF GIGABIT ETHERNET
The Solo10G SFP+ PCIe Card includes a 10GBASE-SR (short-range) SFP+ transceiver (the most commonly-used optical transceiver) enabling you to connect your computer to 10GbE infrastructure via LC optical cable (optical cables sold separately) at distances up to 300 meters.

ADVANCED FEATURE SUPPORT
The Solo10G SFP+ PCIe Card’s high throughput performance and low host-CPU utilization are attained through functions such as flow control 64-bit address support for systems using more than 4GB of physical memory; and stateless offloads such as TCP UDP and IPv4 checksum offloading. These processes enable your computer to perform better while large files transfers or high I/O operations take place.

ADDITIONAL SFP+ TRANSCEIVER CHOICES
Sonnet includes a
