Twisted pair cables

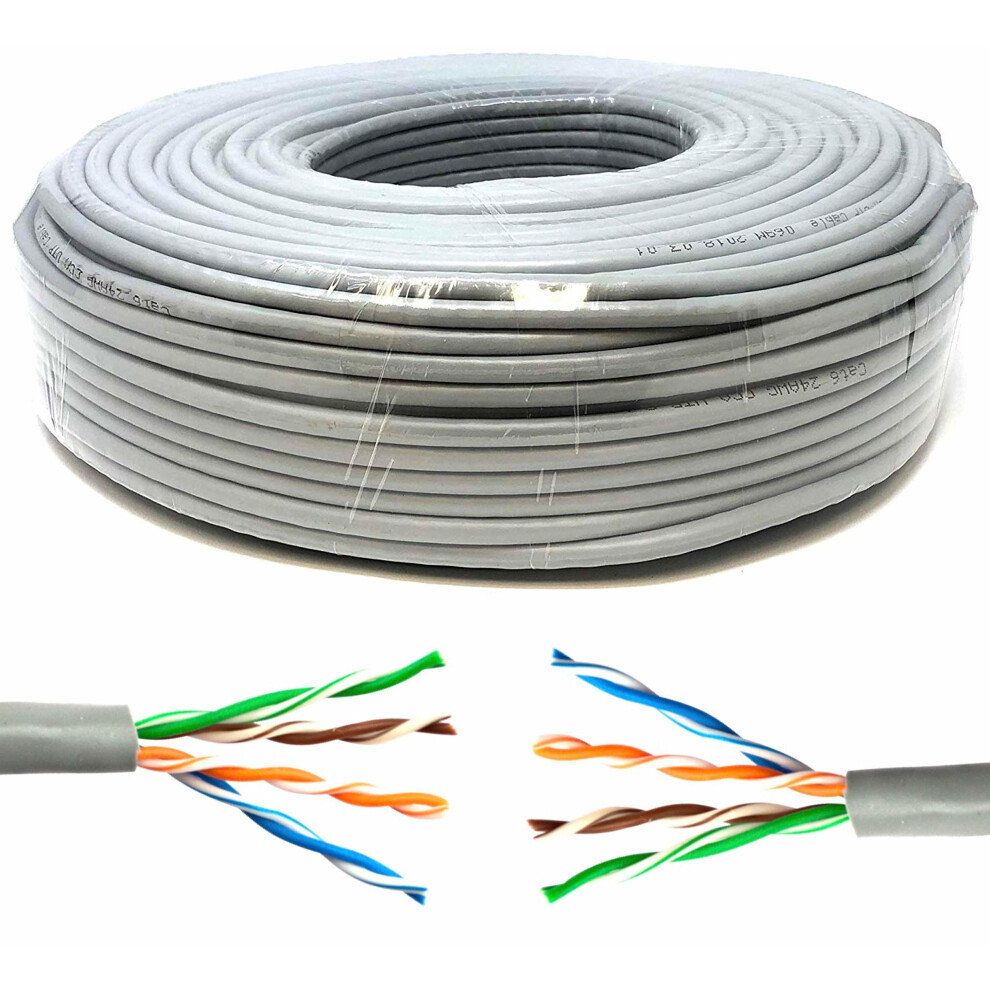

Features:- Utp Unshielded Lan Cable With Solid Wires- High Quality Cca Conductors- Category 6Specifications:- Unshielded Twisted Pair (Utp) Lan Cable- Category 6- Conductor Material: Awg24 Solid Cca (30%)- Length: 100 M (328 Ft)- Conductor Resistance (Max): 250 Ohm/1000m- Insulation Resistance (Min): 5m Ohm/Km- Pair-To-Ground Capacitance: < 330pf / 100m- Characteristic Impedance: < 100om (+/- 15)- Transport And Storage Temperature: 0 - 60 Degrees- Operating Temperature: -20 - 70 Degrees- Working Distance:

Installation Cable / Length 40 m / Specification CAT 5E

LogiLink CPV0039. Cable length: 100 m, Cable standard: Cat6, Cable shielding: S/FTP (S-STP),

Installation Cable / Specification CAT 5E

Digitus Cat.6 U/UTP installation cable, 100 m, simplex, Eca

Installation Cable / Specification CAT 7

LogiLink CPV0060 networking cable Orange 100 m Cat7 S/FTP (S-STP)

Installation Cable / Length 300 m / Specification CAT 5E

LogiLink CPV0061 networking cable Orange 200 m Cat7 S/FTP (S-STP)

Installation Cable / Length 305 m / Specification CAT 6

Installation Cable / Length 305 m / Specification CAT 5E

Digitus Cat.6A U/FTP installation cable, 305 m, simplex, Eca

The equip® Installation Cable is made of preeminent materials and thoroughly examined to meet or surpass industrial standards defined by the EIA / TIA, ISO and EN standard bodies. The performance is guaranteed via a comprehensive test including attenuation, return loss, NEXT (Next End Crosstalk) and FEXT (Far End Crosstalk) up to 500 MHz and hence the equip® Installation Cable serves well in the most demanding networking environments.Features:- 23AWG- Solid bare copper conductor- Low Smoke Zero Halogen (LSZH/LSOH)- RoHS compliant- CPR Certified, Class Eca- 500MHz - PoE Power over Ethernet support- Package: Wooden DrumSpecifications:- Approval and compliance: RoHS- Conductor material: Copper- Co…

Installation Cable / Length 500 m / Specification CAT 7

Installation Cable / Length 100 m / Specification CAT 5E

Specifications:Physical Properties:- Conductor: Bare Annealed Copper, Solid Awg 23/1- Insulation: Sfs-Pe (Foam-Skin Polyethylene)- Total Number Of Insulated Conductors: 8, Twisted In 4 Pairs- Color Code: Blue-White, Orange-White, Green-White, Brown-White- Individual Pair Shielding: Aluminum Foil, Providing 100 % Coverage- Overall Shielding: Copper Braid- Outer Sheath: Eca To B2ca Acc. To En 50575, Lszh- Outer Sheath Diameter (Nominal): 0,50 Mm (Eca), 0,52 Mm (Dca), 0,60 Mm (Cca), 0,60 (B2ca)- Color: Orange (Ral 2000)Mechanical Properties:- Tensile Loading: 150n Max.- Dynamic Bending Radius: 8x Ad Mm Min.- Static Bending Radius: 4x Ad Mm Min.- Shipping- And Storage Temperature Range: -20 °C U…

Specifications: - Cable Length: 305m- Standard Wire: Cat6a- Cable Shield: U/Utp (Utp)- Awg Wire Gauge: 1/23- Frequency: 500 mhzEnvironmental Conditions: - Operating Temperature Range: 0 - 50°C- Storage Temperature Range: -20 - 60°C

Specifications: Physical properties:- Conductor: Bare annealed copper, solid AWG 23/1- Insulation: SFS-PE (Foam-Skin Polyethylene)- Total number of insulated conductors: 8, twisted in 4 pairs- Color code: Blue-white, orange-white, green-white, brown-white- Individual pair shielding: Aluminum foil, providing 100 % coverage- Overall shielding: Copper braid- Outer sheath: Eca to B2ca acc. to EN 50575, LSZH- Outer sheath diameter (nominal): 0,50 mm (Eca), 0,52 mm (Dca), 0,60 mm (Cca), 0,60 (B2ca)- Color: Orange (RAL 2000)Mechanical properties:- Tensile loading: 150N max.- Dynamic bending radius: 8x AD mm min.- Static bending radius: 4x AD mm min.- Shipping- and storage temperature range: -20 °C u…

The WIRC5ECMR Cat5e 350MHz Solid UTP Cable (Blue) is CMR rated for use in walls conduit ceilings etc. and is packaged as a 1000-foot bulk roll. The cable features a blue PVC jacket which provides both flexibility and durability while making it easier to color code network cable connections.

Backed by StarTech.com's Lifetime Warranty.

The StarTech.com Advantage
- Enjoy the low cost savings of buying bulk
- Rated to 350Mhz which exceeds Cat 5e standards
- Convenient measurement of cable runs

The WIRC5ECMRGRY Cat5e 350MHz Solid UTP Cable (Gray) is CMR rated for use in walls conduit ceilings etc. and is packaged as a 1000-foot bulk roll. The cable features a gray PVC jacket which provides both flexibility and durability while making it easier to color code network cable connections.

Backed by StarTech.com's Lifetime Warranty.

The StarTech.com Advantage
- Rated to 350Mhz which exceeds Cat 5e standards
- Enjoy the low cost savings of buying bulk
- Convenient measurement of cable runs

The WIR5ECMRWH 1000 ft Cat5e Riser Bulk Cable meets or exceeds all Cat 5e specifications to ensure reliable Ethernet network connections and features a durable white PVC jacket that enables you to color code your network cable drops as needed for a more organized installation. Bulk packaging is perfect for custom length runs and allows you to cover the exact distance required for your installations.

Constructed of only top quality materials the WIR5ECMRWH delivers reliable performance and is backed by our Lifetime Warranty.

Riser Rated
This Category 5e cable has been tested for CMR riser installations and is ideal for in-wall between floor and elevator shaft cable runs where CMR fire &hellip;

The WIR6CMRBL 1000 ft Cat6 Riser Bulk Cable roll (blue) meets or exceeds all Category 6 specifications to ensure reliable Gigabit network connections and features a foot-marked jacket that makes it easy to tell how much cable is left on the roll and enables you to measure your cable runs to your exact installation requirements.

Constructed of only top quality materials the WIR6CMRBL delivers reliable performance and is backed by our Lifetime Warranty.

Riser Rated
This Category 6 cable has been tested for CMR riser installations and is ideal for in-wall between floor and elevator shaft cable runs where CMR fire rating is required.

100% Copper - a better value
StarTech.com Cat6 cables …

The WIR6CMRGR 1000 ft Cat6 Riser Bulk Cable roll (gray) meets or exceeds all Category 6 specifications to ensure reliable Gigabit network connections and features a foot-marked jacket that makes it easy to tell how much cable is left on the roll and enables you to measure your cable runs to your exact installation requirements.

Constructed of only top quality materials the WIR6CMRGR delivers reliable performance and is backed by our Lifetime Warranty.

Riser Rated
This Category 6 cable has been tested for CMR riser installations and is ideal for in-wall between floor and elevator shaft cable runs where CMR fire rating is required.

100% Copper - a better value
StarTech.com Cat6 cables …
