LAN cables for external installation

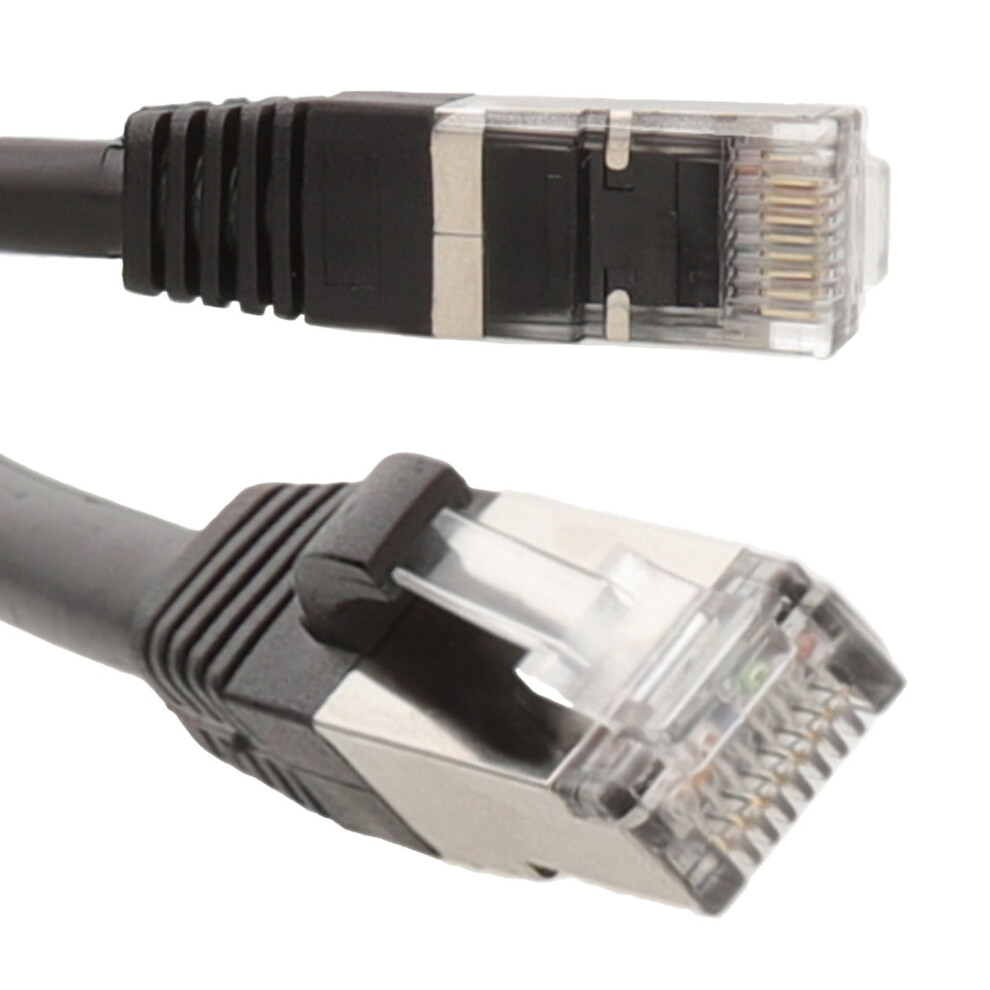

Patch Cable / Specification CAT 6A / Connector Type RJ45/RJ45

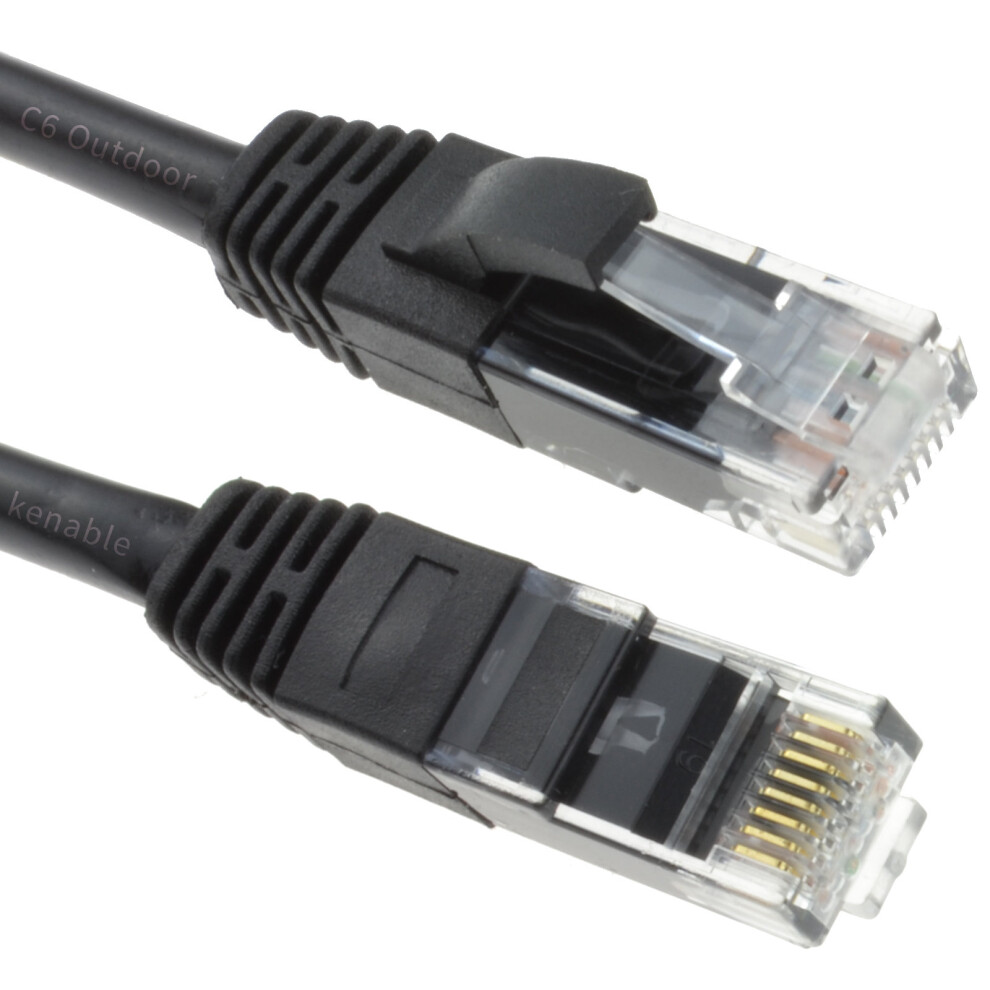

Patch Cable / Length 40 m / Specification CAT 6

Patch Cable / Length 30 m / Specification CAT 6

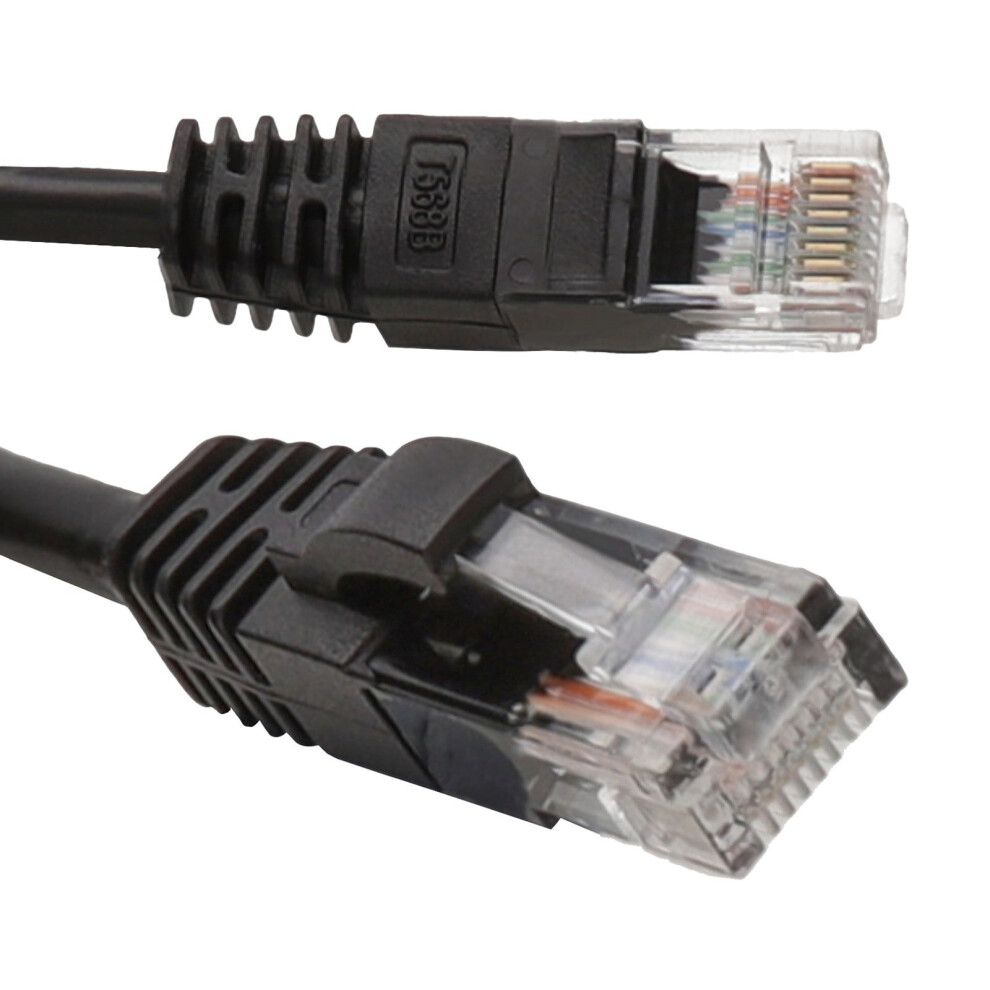

Patch Cable / Length 20 m / Specification CAT 6A / Connector Type RJ45/RJ45

Patch Cable / Length 25 m / Specification CAT 6A / Connector Type RJ45/RJ45

Patch Cable / Length 100 m / Specification CAT 6 / Connector Type RJ45/RJ45

Patch Cable / Length 60 m / Specification CAT 6A / Connector Type RJ45/RJ45

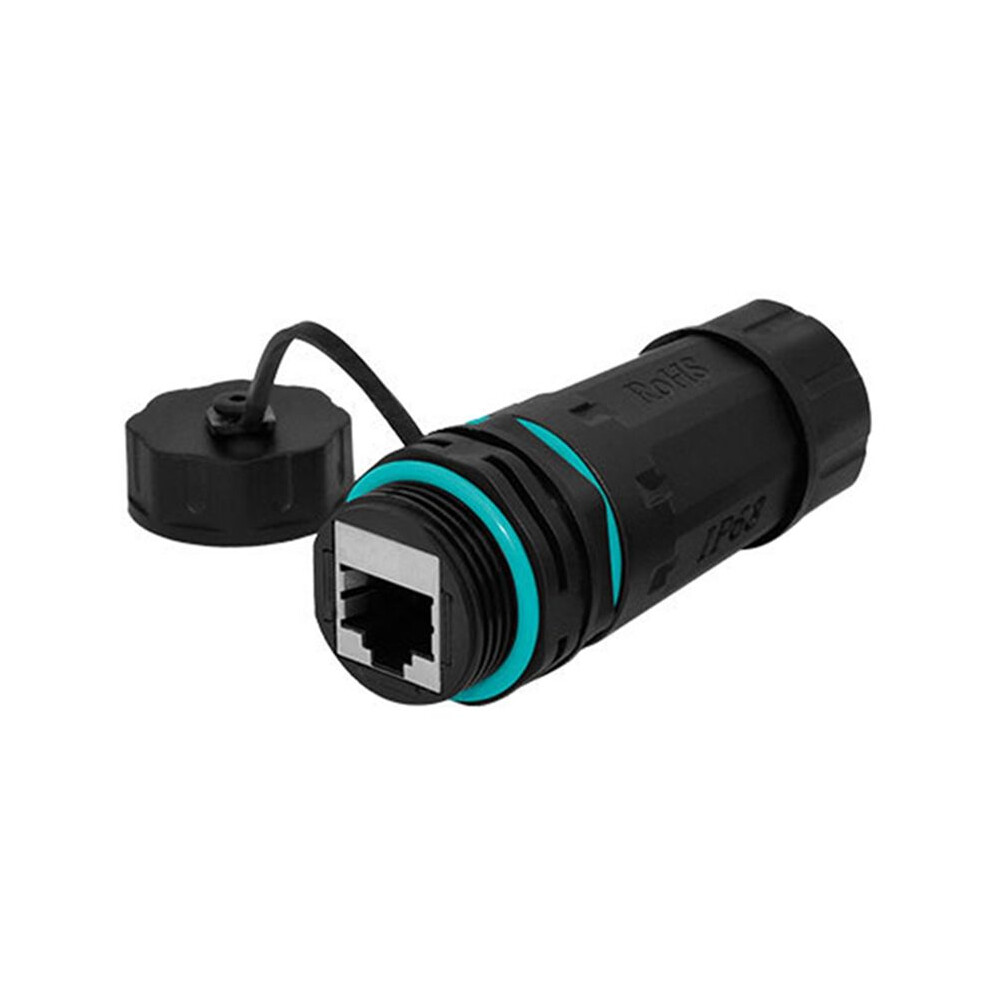

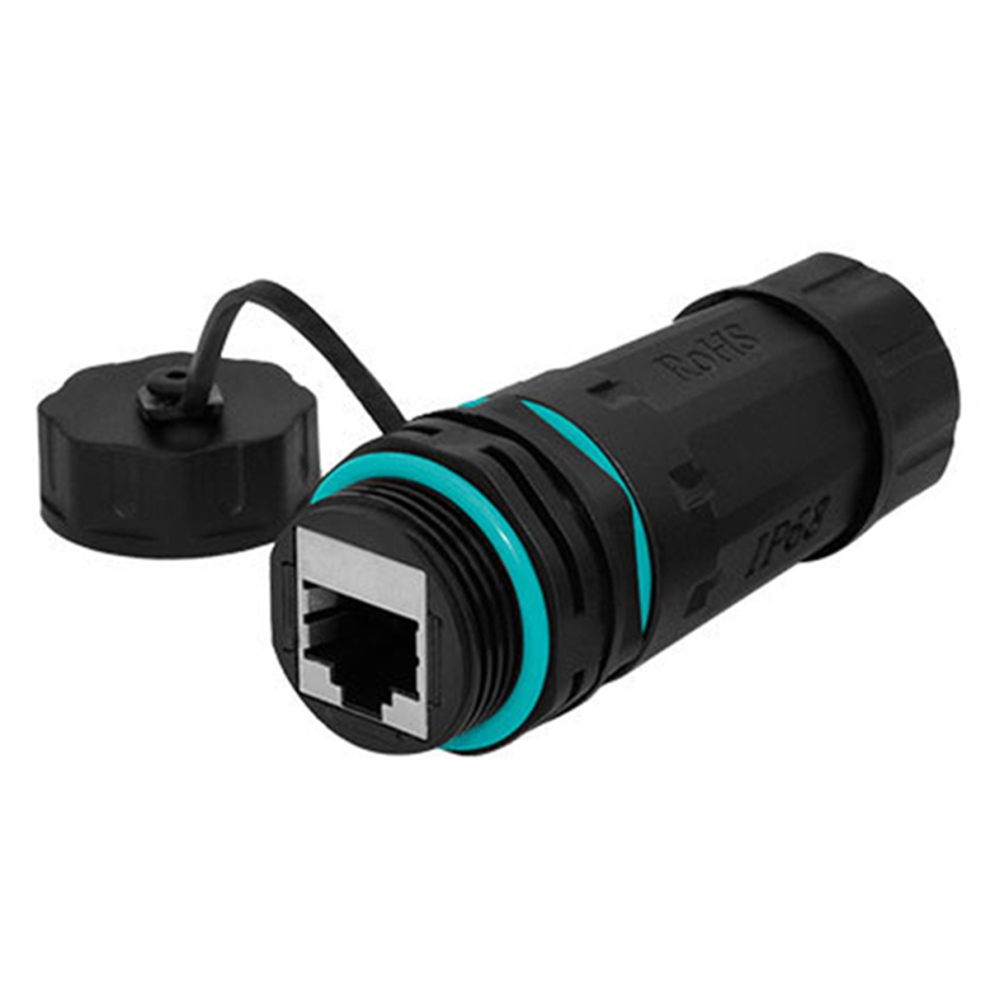

Network Coupler | Outdoor | CAT6 | Shielded | RJ45 Female | RJ45 Female | Straight | PVC | BoxCAT6 RJ45 outdoor inline coupler, dust- and waterproofThis connector makes it easy to connect or extend your patch cables outdoors and protect them for weather influences all year long.Details• IP68 dustproof and waterproof cable gland• For outdoor/industrial applications• Offers increased protection for the connection against moisture and soiling• Quick and easy installation• 2x shielded RJ45 port• For cable diameters of 3–8 mm• suitable for U/FTP and S/FTP Colour Black Connector plating Nickel Plated Adapter design Straight Material Nylon Connector …

Brand Name : Techage Origin : Mainland China Size : 20M/30M/50M available Plug Type : None Item Type : Cables Model Number : YN-CP20 Use for 1 : 12V IP Camera Use for 2 : 48V POE Camera Use for 3 : DVR / NVR Use for 4 : Home Router Use for 5 : Computer / Laptop Interface type : RJ45 connector Cable Type : Cat5 Suit for Outdoor : Waterproof Note: the Wireles Camera System Cannot Change Setting Parameters. If there is no problem with the product, please do not update at will, thanks. Note: Black color cable : 20M/30M/50M Package Include 1X RJ45 internet cable for poe ip camera (20M/30M/50M For optional)

Economy Cat5e Outdoor U/UTP Network CableSolid conductor twisted pair data cable with PE sheath supplied in dispensing box and marked at 1 metre intervals. Suitable for high speed data transmission such as Gigabit Ethernet outdoor applications.DetailsConductor Solid CCAStrand 8 x 1/0.51mmØ ±2%CSA 8 x 0.204mm²Cable : diameter 5mmØInsulation HDPE 0.19mm thicknessSheath PE 0.5mm thicknessImpedance 100 Ohms (±15)DC resistance @ 20°C 20dB @ 100mNEXT >40dB @ 100mPSNEXT >38dB @ 100mCable colour BlackLength 305mWeight 5.5kg

Cat6 U/UTP Outdoor Network CableCat6 oxygen free copper twisted pair data cable with LDPE sheath, supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoors environment.DetailsConductor Solid OFCStrands 8 x 0.53mmØ ±2%Cable : diameter 6.0±0.05mmInsulation HDPE 0.93±0.05mmSheath LDPE 0.55±0.05mm thicknessDC resistance @ 20°C 20.1dB @ 100MHzAttenuation >19.8dB @ 100MHzNEXT >44.3dB @ 100MHzPhase delay >537.60ns @ 100MHzPSNEXT >42.3dB @ 100MHzELFEXT >27.8dB @ 100MHzPSELFEXT >24.8dB @ 100MHzCable colour Black

Economy Cat6 Outdoor U/UTP Network CableCat6 solid conductor twisted pair data cable with PE sheath supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoor environment.DetailsConductor Solid CCAStrands 8 x 1/0.57mmØ ±2%CSA 8 x 0.26mm²Cable : diameter 6mmØInsulation HDPE 0.23mm thicknessSheath PE 0.5mm thicknessImpedance 100 Ohms (±15)DC resistance @ 20°C 20dB @ 100m (from 1Mhz to 100Mhz)NEXT >40dB @ 100mPSNEXT >38dB @ 100mCable colour BlackLength 305mWeight 7kg

Cat5e U/UTP Outdoor-305m P/Box BlackCat5e oxygen free copper 4x twisted pair data cable with LDPE sheath. Supplied in dispensing box and marked at 1 metre intervals, this cable is designed for high speed data transmission such as Gigabit Ethernet applications.LDPE sheath and UV resistant properties make this cable ideal for outdoor installationsAWG 24 oxygen free solid copper conductorSupplied in an easy-pull dispensing box and marked at 1m intervalsComplies to TIA/EIA-568-C.2 Cat5e standard

Cat6 U/UTP Outdoor Network CableCat6 oxygen free copper twisted pair data cable with LDPE sheath, supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications in an outdoors environment.DetailsConductor Solid OFCStrands 8 x 0.53mmØ ±2%Cable : diameter 6.0±0.05mmInsulation HDPE 0.93±0.05mmSheath LDPE 0.55±0.05mm thicknessDC resistance @ 20°C 20.1dB @ 100MHzAttenuation >19.8dB @ 100MHzNEXT >44.3dB @ 100MHzPhase delay >537.60ns @ 100MHzPSNEXT >42.3dB @ 100MHzELFEXT >27.8dB @ 100MHzPSELFEXT >24.8dB @ 100MHzCable colour Black

Cat6 U/UTP LDPE Gel Filled Network Cable 305m BlackCat6 oxygen free copper twisted pair data cable with LDPE sheath and gel filled structure. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.LDPE sheath with UV resistant properties and gel filled inner structure makes this cable ideal for outdoor installationAWG 23 oxygen free solid copper conductorPasses Cat6 fluke test 100m at 250MHzComplies to TIA/EIA-568 Cat6 standardSupplied on a sturdy wooden drum reel
