Crimpers & Strippers KNIPEX

90 22 10 E01 Spare blades for 90 22 10 BK

16 60 06 SB Wire Stripping Tool for coax and data cableUniversal stripping tool for Coax cables RG 59, RG 6, RG 7, RG 11. For stripping outer sheath, shield and insulation in a single process. Adjustable stripping blade for data cable. Two stripping blades for cutting and stripping telephone ribbon cable (4P/6P/8P) in a single operation. Integrated blade for cutting data cables. Cable type: RG 59. RG 6. RG 7. RG 11

90 22 10 BK KNIPEX BiX®Clever pipe cutter: Cuts pipes without shavings and fits comfortably in the hand. Can cut high-temperature plastic drain pipes and electrical conduits in next to no time. Can be used to cut sealing sleeves during final assembly – close to the wall, standard-compliant. Cuts unreinforced plastic pipes from Ø 20 to 50 mm with a wall thickness of up to 2.4 mm. Cuts pipes quickly, cleanly and without shavings. Cuts sealing sleeves approx. 2-3 mm from the wall. Rotatable knife block for cutting plastic pipes (blade in the middle) and sealing sleeves (blade outside). With locking mechanism for safe transport. Two spare blades integrated in the tool. : Ø 20 – 50 mm: Ø 20 – 50 …

16 20 28 SB Dismantling ToolFor stripping all common round cables. Self-tightening holding lever. With adjusting screw for cutting depth adjustment. Turnable blade for circular and longitudinal cutting. Spare blade inside the handle. Secure grip due to soft component material on handle and holding lever to avoid slipping. Stripping capacities (diameter): Ø 8.0 — 28.0 mm

16 64 125 SB Stripping Tool for flat and round cableFor flat cables up to 12 mm in width. For stripping all common round and damp-proof installation cables Ø 4.0 to 13.0 mm (e.g. NYM cable 3 x 1.5 mm² up to 5 x 2.5 mm²). Stripping device for cross-sections 0.8 / 1.5 / 2.5 mm² (AWG 20 / 16 / 14). With opening spring and locking device. For use in confined and difficult to access work areas. Also for use in conduit and distribution boxes. Stripping capacities in square millimetres: 0.8 — 2.5 mm²Stripping capacities (diameter): Ø 4 – 13 mmCable type: flat cable 12 mm / round cable Ø 4 - 13 mm

16 95 02 SB KNIPEX ErgoStrip®for fast and precise stripping of all common round and damp-proof installation cables (e.g. NYM cable 3 x 1.5 mm² up to 5 x 2,5 mm²), data cables (e.g. twisted pair) and coax cables. innovative, ergonomic pistol grip design for easy cutting, stripping and longitudinal cut of the sheath. Conical, slimmed down tool ends for better access in confined areas. Stripping device for cross-sections 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4 mm². Simplified insertion of single wires for stripping using location ridges. With opening spring and locking device. Easy insertion of coax and data cable thanks to opening aid. Multi-component design with a soft plastic zone for comfortable use …

12 62 180 SB Automatic Insulation StripperStrips cables with standard materials without any need for manual adjustment. Fine adjustable zero correction of the blade setting to special material requirements, e.g. due to large temperature differences. Compact, handy and lightweight tool for common cable cross-sections and insulating materials. For single, multiple and fine stranded cables of 0.2 up to 6 mm² with standard insulation. Narrow head style for use in confined areas. With wire cutter for copper and aluminium wires up to 2.5 mm². With adjustable length stop from 6.0 - 18.0 mm for constant stripping lengths. self-service card/blister. Stripping capacities in square millimetres: 0.2 — 6.0 …

The Knipex TubiX® S Pipe Cutter has been designed for pipe cutting in the tightest spaces. It has a very small cutting circle and a QuickLock one-hand locking mechanism for independent holding and clamping on the pipe. Fits in your pocket and cuts stainless steel. Cuts pipes with Ø 3 – 30mm (1/8 – 1 1/8in) with wall thicknesses up to 2mm. The cutting wheel made of high-grade ball-bearing steel. Both the cutting wheel and guide rollers feature high-quality needle bearings. Pipe diameter can be preset with the scale and clipped on to the pipe by spring-loaded cutting wheel. Its optimised turning knob with textured thumb recess provides 20 % higher torque and prevents slipping …

14 26 160 SB Diagonal Insulation Stripperwith long cutter. high cutting capacity due to high leverage joint. Precision stripping holes for single conductors of 1.5 and 2.5 mm². Convenient cutting of NYM cables up to 5 x 2.5 mm². Long tips for ultra fine cutting work also in confined areas. Induction-hardened precision blades, cutting edge hardness approx. 60 HRC. self-service card/blister. Cutting capacities soft wire (diameter): Ø 2.5 mmCutting capacities medium hard wire (diameter): Ø 1.5 mmStripping capacities in square millimetres: 1.5 / 2.5 mm²AWG: 16 / 14 VDE tested: yes

16 95 01 SB KNIPEX ErgoStrip®for fast and precise stripping of all common round and damp-proof installation cables (e.g. NYM cable 3 x 1.5 mm² up to 5 x 2,5 mm²), data cables (e.g. twisted pair) and coax cables. innovative, ergonomic pistol grip design for easy cutting, stripping and longitudinal cut of the sheath. Conical, slimmed down tool ends for better access in confined areas. Stripping device for cross-sections 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4 mm². Simplified insertion of single wires for stripping using location ridges. With opening spring and locking device. Easy insertion of coax and data cable thanks to opening aid. Multi-component design with a soft plastic zone for comfortable use …

This Knipex 1630135 Dismantling Tool is used for stripping round cable sheaths made of PVC rubber silicone or PTFE. It has a knurled nut for cutting depth adjustment and a self-tightening holding lever.The tool can be changed from circular to longitudinal cutting by turning the tool body it has spiral cutting for removing intermediate pieces. The body of the tool is made from shock resistant plastic is impact proof and the blade is changeable.Specifications: Stripping capacities (diameter): 6 – 29 mm.Weight: 120g.Size: 135 x 85 x 36 mm.PTDKPX1630135

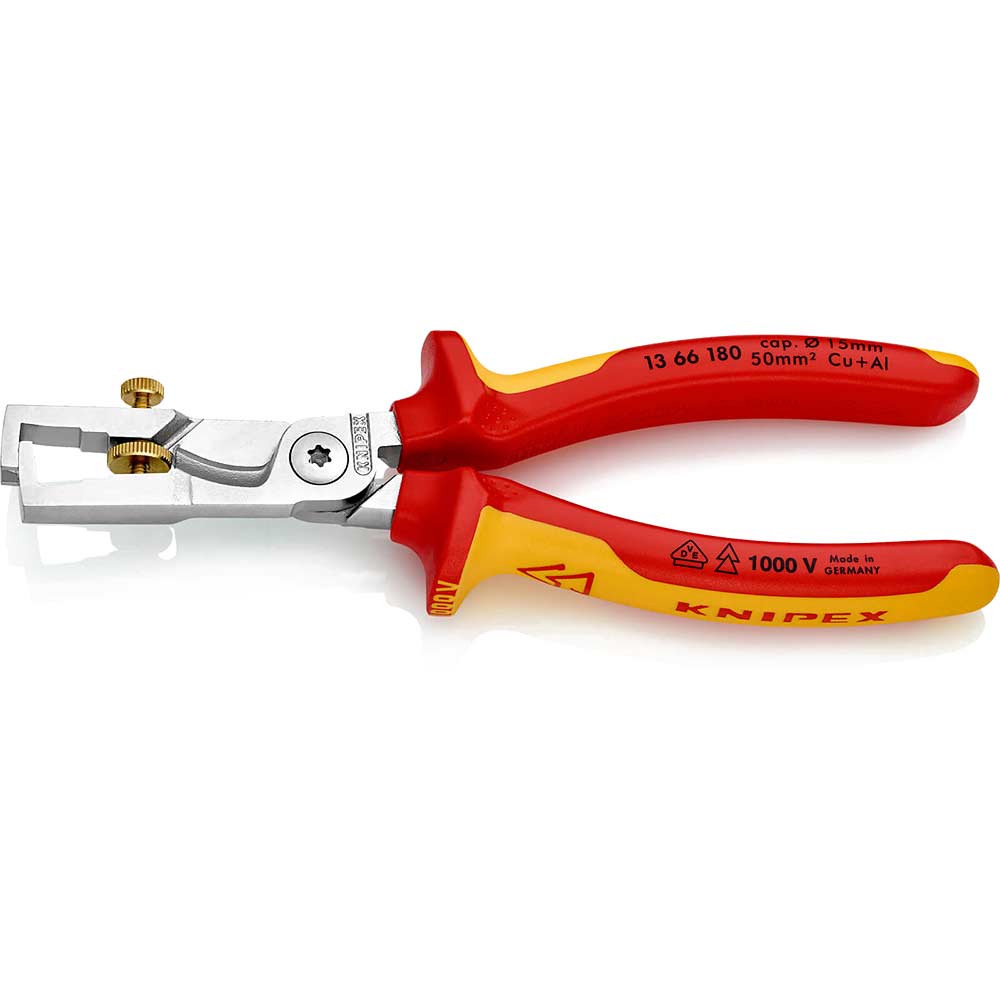

The Knipex 13-6 Series StriX Insulation Stripper with multi-component grips, VDE tested up to 10,000V and safe for work up to 1,000V. They conform to DIN EN / IEC 60900. Made from high-grade tool steel that has been forged and oil-hardened, multiple times. Chrome plated finish. The knurled screw and lock nut provide easy adjustment to the required diameter of solid or stranded wire. Also fitted with a shear blade for cutting copper cable up to 15mm (5 x 2.5mm²) and a bolted joint for precise operation with zero backlash. The pliers have a slim design for easy access. Ideal for single, multiple and fine stranded conductors with plastic or rubber insulation, max 5.0mm or resp. 10mm² …

12 64 180 Automatic Insulation Stripper for flat cableFor PVC insulated flat cables up to a max. 12 mm width and 0.75 to 2.5 mm². Adapts automatically to various conductor heights; prevents damage to the conductor. Long stripping lengths possible. Blade replaceable. Smoothly operating mechanism. Low weight. Stripping capacities in square millimetres: 0.75 — 2.5 mm²AWG: 18 — 14

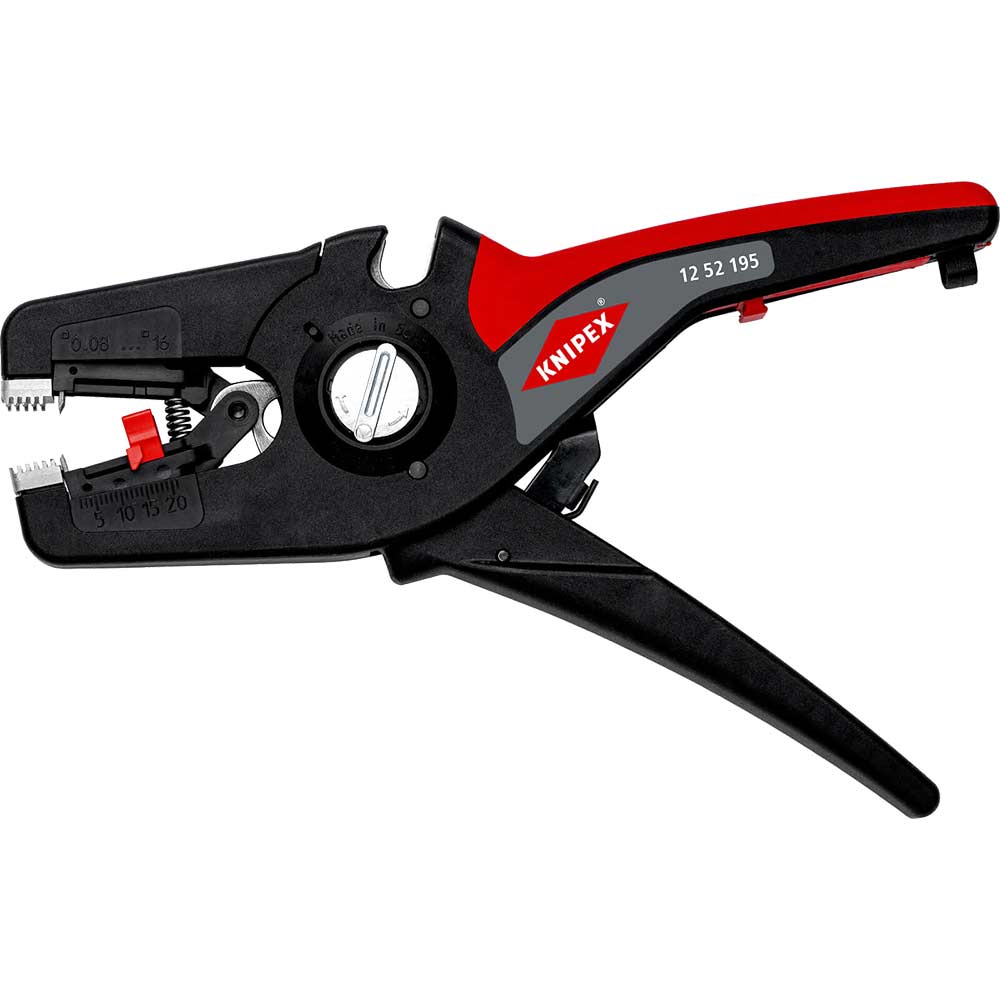

12 52 195 SB KNIPEX PreciStrip16Simple, precise stripping of fine wires and solid round cables with a wide capacity range from 0.08 to 16 mm² with only one pair of pliers. Good grip provided by semi-circular grooved metal holding clamps; exact cut thanks to parabolic stripping blade. A patented automatism regulates the depth of the cut; the neutral point of the automatism can be adjusted in fine steps in special operating conditions (insulation material, temperature). With adjustable length stop for precision work repeated accurately each time. Inscription area for customisation. Comfortable operation with ergonomic dual-component handle. With tether attachment point, suitable for KNIPEX Tethered T…

The Knipex 97 52 36 PreciForce® Crimping Pliers offer good repetitive high crimping quality due to precision dies and integral lock (self-releasing mechanism). The crimping pressure has been set precisely (calibrated) in the factory and offers optimum transmission of force thanks to toggle lever for fatigue-reduced operation. The pliers have good handling thanks to their favourable handle position low weight compact design and ergonomically shaped handles. Made from special quality oil hardened chrome vanadium electric steel. Applications: Insulated terminals and plug connectors.Capacity: 0.5-6.0mm² AWG: 20-10.PTDKPX975236

The Knipex Nexstrip is a 3-in-1 plier specifically for electricians, with precise stripping these automatically adapt to the respective cable diameter and ensures consistent stripping lengths with the adjustable length stop especially with repetitive work. With the Knipex Nexstrip you will get fast and even square crimping for individual wire ferrules, the ratchet crimping mechanism guarantees the required crimping pressure. The multi-component grips ensure non-slip and comfortable handling and has three functions - stripping wire up to 10mm², crimping capacity of 4mm² or 2 x 2.5mm² and cutting capacity of 10mm² . Features & Benefits • Perfect crimping • Precise …
