Groove cutters

1/4" Groove 12.7mm x 90° TCT Router Bit Contents 1 x TCT Router Bit, 1/4" Groove, 12.7mm x 90°

This versatile cutter is used for bevelling, chamfering and producing channel grooves when working on MDF, softwoods, hardwoods and plywood. Shank: 1/4in. Features: For bevelling, chamfering and produ more→cing channel grooves TCT cutting edges TCT cutting edges 45° angle Specifications: Dimensions: H:15.0 x W:1.5 x D:5.5 cm Colour: Multi Guarantee:5 years Material: Tungsten Carbide Model Number: FAIRB51

1/4" Groove 19mm x 90° TCT Router Bit Contents 1 x TCT Router Bit, 1/4" Groove 19mm x 90°

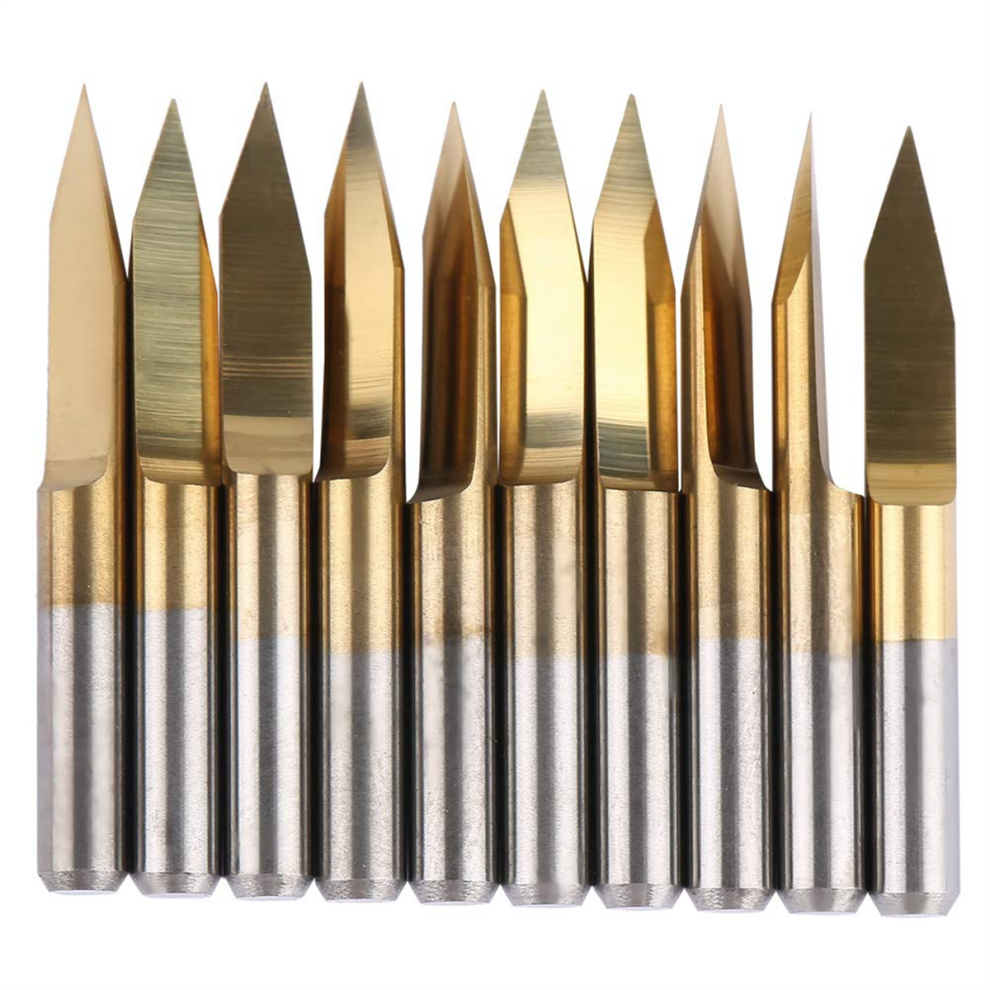

Range of small diameter shank cutters for Mini CNC router carving machines. For carving. Two flute v groove. Specifications • Shank Diameter: 4mm • Dia Metric: 6.3 • Dia Imperial: 1/ more→4 • Cut Length Metric: 5 • Overall Length Metric: 49 • Type or Grade: Inc 60 deg • Angle: 60

Range of small diameter shank cutters for Mini CNC router carving machines. For carving. Two flute v groove. Specifications • Shank Diameter: 4mm • Dia Metric: 6.3 • Dia Imperial: 1/ more→4 • Cut Length Metric: 3 • Overall Length Metric: 50 • Type or Grade: Inc 90 deg • Angle: 45

Slotters with M12x1.0 threaded bore enables flush recessing in the corner such as for weather proofing. Spacers are supplied to ensure the minimal threaded arbor protrudes below the slotter. Arbor 3 more→3/20 enables 12mm bore guide bearings to be fitted above slotter for self-guiding work. Specifications • Shank Diameter: 1/2 • Dia Metric: 18.5 • Overall Length Metric: 50 Contents: 1 x Arbor 1 x Spacer 2mm

Slotters with M12x1.0 threaded bore enables flush recessing in the corner such as for weather proofing. Spacers are supplied to ensure the minimal threaded arbor protrudes below the slotter. Arbor 3 more→3/20 enables 12mm bore guide bearings to be fitted above slotter for self-guiding work. Specifications • Shank Diameter: 1/2 • Dia Metric: 18.5 • Overall Length Metric: 71

For veining, panelling, 'V' grooving, bevelling & chamfering. Specifications • Shank Diameter: 1/4 • Dia Metric: 12.7 • Dia Imperial: 1/2 • Overall Length Metric: 56 • Bearin more→g Dia Metric: 12.7 • Angle: 60

For veining, panelling, 'V' grooving, bevelling & chamfering. Specifications • Shank Diameter: 1/4 • Dia Metric: 12.7 • Dia Imperial: 1/2 • Cut Length Metric: 12.7 • Cut Leng more→th Imperial: 1/2 • Overall Length Metric: 52.7 • Bearing Dia Metric: 12.7 • Angle: 45

Use for bevelling, chamfering and for producing mortar grooves. Approximately 1.0mm flat will be found on the nose. Specifications • Shank Diameter: 1/2 • Dia Metric: 12.7 • Dia Impe more→rial: 1/2 • Cut Length Metric: 6.5 • Overall Length Metric: 52.7 • Angle: 45

Use for bevelling, chamfering and for producing mortar grooves. Approximately 1.0mm flat will be found on the nose. Specifications • Shank Diameter: 1/2 • Dia Metric: 12.7 • Dia Impe more→rial: 1/2 • Cut Length Metric: 6.5 • Overall Length Metric: 54 • Angle: 45

Use for bevelling, chamfering and for producing mortar grooves. Approximately 1.0mm flat will be found on the nose. Specifications • Shank Diameter: 1/2 • Dia Metric: 17.5 • Cut Leng more→th Metric: 8 • Overall Length Metric: 52.7 • Angle: 45

Heavy duty arbor with spacers for 12mm bore slotters with or without bearings. Specifications • Shank Diameter: 1/2 • Dia Metric: 18.5 • Overall Length Metric: 84.5 Contents: 1 x Arb more→or 2 x Spacer 10 mm 1 x Spacer 1/4 inch 5 x Spacer 1 mm

Use for bevelling, chamfering and for producing mortar grooves. Approximately 1.0mm flat will be found on the nose. Specifications • Shank Diameter: 1/4 • Dia Metric: 17.5 • Cut Leng more→th Metric: 8 • Overall Length Metric: 52.7 • Angle: 45

Replacement blade for QUADX1/2TC. Specifications • Dia Metric: 47.6 • Dia Imperial: 1 7/8 • Rebate Metric: 13 • Saw Kerf Metric: 6.3 • Saw Teeth: 2

Two flute. For trimming of laminate and solid lipping. 1.6mm deep 'V' groove to hide glue line. Specifications • Shank Diameter: 1/4 • Dia Metric: 16 • Dia2 Metric: 12.7 • Cut more→Length Metric: 25.4 • Cut Length Imperial: 1 • Overall Length Metric: 67 • Bearing Dia Metric: 12.7 • Bearing Dia Imperial: 1/2

Use for bevelling, chamfering and for producing mortar grooves. Approximately 1.0mm flat will be found on the nose. Specifications • Shank Diameter: 1/2 • Dia Metric: 12.89 • Dia Imp more→erial: 1/2 • Cut Length Metric: 10.3 • Overall Length Metric: 60 • Angle: 60

Chamfer V-grooving cutters are used for bevelling, chamfering and producing mortar grooves. Due to design, an approx. 1.0 mm flat will be found on the nose. Typical trade applications include sign m more→aking, freehand engraving, cabinet making and decorative joinery.

Trend C306X1/2TC CraftPro 1/2" TCT 2.5mm Radius Flat Draining Groove Router Cutter, 16mm x 20mm
The Trend C306X1/2TC is a gently radiused, flat-bottomed cutter for producing sleek modern draini more→ng grooves with effective water disposal. Especially suited to compact laminate worktops.
Features:
- Gentle 2.5mm Radius produces flat bottomed draining grooves for sleek aesthetics and effective water disposal
- Extra Long 70mm shank for perfect depth adjustment when used with a drainer groove jig
- Tungsten Carbide Tipped 2.0mm micro-granular tips for extra-long cutter life
- Highly Ground Tip Face polished to 800-grit ensures accurate cutting, with a fine finish
- PTFE Non-Stick Coating reduces f…

Use for bevelling, chamfering and for producing mortar grooves. Approximately 1.0mm flat will be found on the nose. Is ideal for imitating 'V' jointed tongue and groove on man-made board. Specific more→ations • Shank Diameter: 1/2 • Dia Metric: 19.4 • Dia Imperial: 3/4 • Cut Length Metric: 9.2 • Overall Length Metric: 56 • Angle: 45

Use for bevelling, chamfering and for producing mortar grooves. Approximately 1.0mm flat will be found on the nose. Is ideal for imitating 'V' jointed tongue and groove on man-made board. Specific more→ations • Shank Diameter: 8 mm • Dia Metric: 19.4 • Dia Imperial: 3/4 • Cut Length Metric: 9.2 • Overall Length Metric: 56 • Angle: 45

Use for bevelling, chamfering and for producing mortar grooves. Approximately 1.0mm flat will be found on the nose. Specifications • Shank Diameter: 1/2 • Dia Metric: 11 • Cut Length more→Metric: 5 • Overall Length Metric: 54.5 • Angle: 45

Chamfer V-grooving cutters are used for bevelling, chamfering and producing mortar grooves. Due to design, an approx. 1.0 mm flat will be found on the nose. Typical trade applications include sign m more→aking, freehand engraving, cabinet making and decorative joinery.

Use for bevelling, chamfering and for producing mortar grooves. Approximately 1.0mm flat will be found on the nose. Specifications • Shank Diameter: 1/4 • Dia Metric: 11 • Cut Length more→Metric: 5 • Overall Length Metric: 52.5 • Angle: 45
