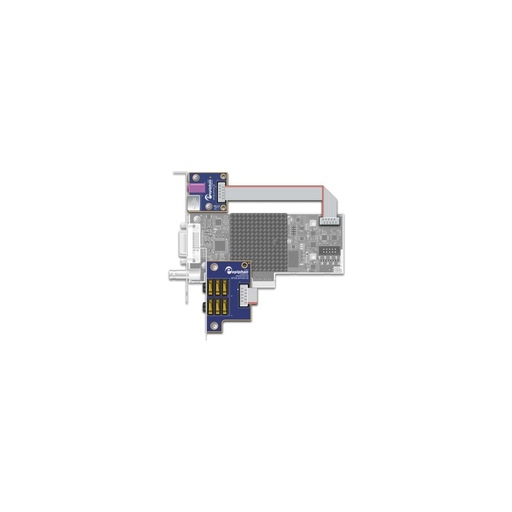

Extend the functionality of your DVI2PCIe and DVI2PCIe Duo internal capture card. The optional DVI2PCIe A/V kit makes it easy to increase the capture cards ability to handle more video and audio inputs. The kit includes two daughter boards.

Connecting the DVI2PCIe A/V Kit
All full height and low-profile brackets to accommodate any setup are included in the kit. Each daughter board is connected to the DVI2PCIe or DVI2PCIe Duo capture card using a ribbon cable (supplied). Daughter boards can be interchanged and connected simultaneously. Refer to the following for configuration options specific to your internal capture card:

Epiphan DVI2PCIe Duo PCIe x4 Video Capture Card with SDI and Dual-Link DVI Inputs
Internal DVI to PCIe Capture Card
Key Features
• Internal DVI to PCIe capture card
• Captures from screens or cameras at HD resolutions and higher (2560?1600 2048?2048)
• PCI Express 2.0; x4
• Supports multiple DVI2PCIe Duo cards in one system
• Supports 60 fps at full HD resolution in 24-bit color (4:4:4) even when capturing from both DVI and SDI channels simultaneously
• Supports third party applications that accept an external video source such as Adobe Premiere Windows Media Encoder and others

Epiphan’s highest performance dual input PCIe capture card capable of …
