Mixing Desks Adastra

LS26 Stereo/Mono Line Splitter Signal splitter with 2 line inputs which are buffered and divided across 6 outputs each. Can be used as a 6-way stereo splitter or can be switched as a mono system feeding all 12 outputs from input A. Applications include zone mixing, personal monitoring, effects patching and routing in complex recording setups. Features: Up to 12 outputs from 1 or 2 inputs Individual volume control for each output Input peak LEDs Specification: Power supply - 115/230Vac, 50/60Hz (IEC) Inputs - A & B, (6.3mm jack) Outputs - 1 - 6 & 7 - 12 (6.3mm jack) Input impedance - 20k Ohms Output impedance - 220 Ohms Frequency response - 20Hz - 20kHz, +0/-1dB Signal to noise ratio - >95dB …

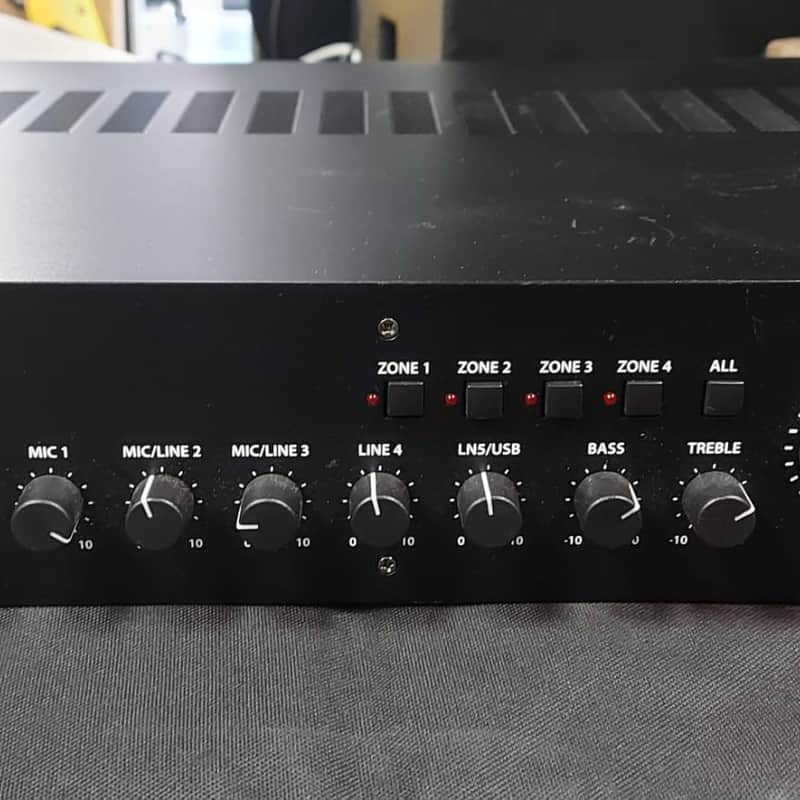

1U Mic/Line Rack Mixer Rack-mountable 1U mixer with 4 mic inputs and 3 auxiliary inputs. Mic channel 1 has 20V phantom power and adjustable voice-over muting of auxiliary channels. An additional priority input can be connected to a line level input or an external 100V line PA system for emergency paging. Output connections are stereo jack with master bass and treble tone controls. Designed as a master or extension mixer for installed sound systems. Features: 4 balanced microphone inputs +20V phantom power on priority mic input 3 stereo aux line inputs Can tap from an existing 100V PA system 24Vdc power option Specifiaction: Power supply - 100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals) Fuse …
