Concrete Vibrators Belle

38mm Poker head for use with universal hand held electric drive unit. Diameter: 36mm Interchangeable poker heads High frequency and big amplitude Weight 1.9kg

50mm Poker head for use with universal hand held electric drive unit. Diameter: 50mm Interchangeable poker heads High frequency and big amplitude Weight 3.6kg

57mm Poker head for use with universal hand held electric drive unit. Diameter: 57mm Interchangeable poker heads High frequency and big amplitude Weight 4.1kg

Watch Video High frequency air pokers. A range of pokers that includes special features to improve reliability and reduce downtime. Twist grip throttle provides easy operation. An In-line oiler removes moisture from compressed air systems and lubricates workings to prevent corrosion, adding reliability and durability. Easy servicing with removable nose cone and the only one wearing part (Tufnol Vane). Maintenance kits available for cost effective and easy servicing. High-frequency vibration gives high productivity and performance. Specifications Head Diameter: 47mm Head Length: 312mm Shaft Length: 4m Frequency: 283hz Amplitude: 1.7mm Centrifugal Force: 3500N Air Consumption: 26.1 cfm - …

Watch Video High frequency air pokers. A range of pokers that includes special features to improve reliability and reduce downtime. Twist grip throttle provides easy operation. An In-line oiler removes moisture from compressed air systems and lubricates workings to prevent corrosion, adding reliability and durability. Easy servicing with removable nose cone and the only one wearing part (Tufnol Vane). Maintenance kits available for cost effective and easy servicing. High-frequency vibration gives high productivity and performance. Specifications Head Diameter: 37mm Head Length: 288mm Shaft Length: 4m Frequency: 300hz Amplitude: 1.3mm Centrifugal Force 1924N Air Consumption: 21.2 cfm …

Watch Video High frequency air pokers. A range of pokers that includes special features to improve reliability and reduce downtime. Twist grip throttle provides easy operation. An In-line oiler removes moisture from compressed air systems and lubricates workings to prevent corrosion, adding reliability and durability. Easy servicing with removable nose cone and the only one wearing part (Tufnol Vane). Maintenance kits available for cost effective and easy servicing. High-frequency vibration gives high productivity and performance. Specifications Head Diameter: 54mm Head Length: 331mm Shaft Length: 4m Frequency: 283hz Amplitude: 1.7mm Centrifugal Force: 6050N Air Consumption: 29 cfm - 0.82 …

Watch Video High frequency air pokers. A range of pokers that includes special features to improve reliability and reduce downtime. Twist grip throttle provides easy operation. An In-line oiler removes moisture from compressed air systems and lubricates workings to prevent corrosion, adding reliability and durability. Easy servicing with removable nose cone and the only one wearing part (Tufnol Vane). Maintenance kits available for cost effective and easy servicing. High-frequency vibration gives high productivity and performance. Specifications Head Diameter: 65mm Head Length: 352mm Shaft Length: 4m Frequency: 300hz Amplitude: 2mm Centrifugal Force: 9301N Air Consumption: 36 cfm - 1.02 …

Watch Video High frequency air pokers. A range of pokers that includes special features to improve reliability and reduce downtime. Twist grip throttle provides easy operation. An In-line oiler removes moisture from compressed air systems and lubricates workings to prevent corrosion, adding reliability and durability. Easy servicing with removable nose cone and the only one wearing part (Tufnol Vane). Maintenance kits available for cost effective and easy servicing. High-frequency vibration gives high productivity and performance. Specifications Head Diameter: 75mm Head Length: 391mm Shaft Length: 4m Frequency: 300hz Amplitude: 1.8mm Centrifugal Force: 14851N Air Consumption: 43 cfm - 1.…

Watch Video High frequency air pokers. A range of pokers that includes special features to improve reliability and reduce downtime. Twist grip throttle provides easy operation. An In-line oiler removes moisture from compressed air systems and lubricates workings to prevent corrosion, adding reliability and durability. Easy servicing with removable nose cone and the only one wearing part (Tufnol Vane). Maintenance kits available for cost effective and easy servicing. High-frequency vibration gives high productivity and performance. Specifications Head Diameter: 87mm Head Length: 430mm Shaft Length: 4m Frequency: 283hz Amplitude: 2mm Centrifugal Force: 27730N Air Consumption: 56.5 cfm - 1.…

A portable, robust and compact drive system designed for heavy site and rental use, providing effective air removal from concrete from a portable independent power source. The price shown is for the poker and 5m shaft . Petrol or diesel engine sold separately. Sealed heads with pre greased bearings 5 metre heavy duty flexible shaft Diameter 25mm Head length 295mm Frequency 187hz Amplitude 0.8mm Weight 9.5kg Operators manual

Watch Video High frequency air pokers. A range of pokers that includes special features to improve reliability and reduce downtime. Twist grip throttle provides easy operation. An In-line oiler removes moisture from compressed air systems and lubricates workings to prevent corrosion, adding reliability and durability. Easy servicing with removable nose cone and the only one wearing part (Tufnol Vane). Maintenance kits available for cost effective and easy servicing. High-frequency vibration gives high productivity and performance. Specifications Head Diameter: 28mm Head Length: 235mm Shaft Length: 4m Frequency: 300Hz Amplitude: 1mm Centrifugal Force: 1440N Air Consumption: 17.6cfm - 0.5m3/min …

A portable, robust and compact drive system designed for heavy site and rental use, providing effective air removal from concrete from a portable independent power source. The price shown is for the poker and 5m shaft . Petrol or diesel engine sold separately. Sealed heads with pre greased bearings 5 metre heavy duty flexible shaft Diameter 35mm Head length 330mm Frequency 187hz Amplitude 1.2mm Weight 14.5kg Operators manual

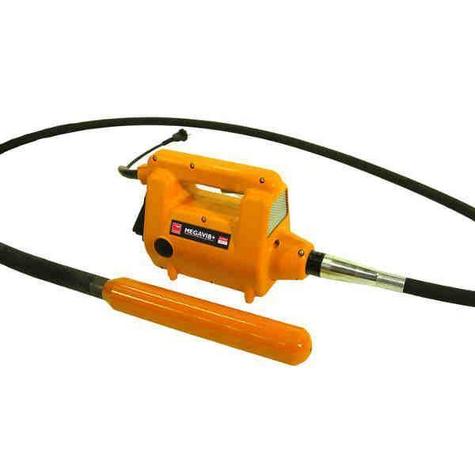

A universal hand held poker system comprising fully interchangeable drives, flexible shaft and poker heads. Lightweight power drive High impact motor housing Double insulated Carrying handle for ease of use 240volt - 2300 watt motor The price shown is for the Electric Drive Unit only. Shafts and pokers are sold separately. Operators manual

A universal hand held poker system comprising fully interchangeable drives, flexible shaft and poker heads. Lightweight power drive High impact motor housing Double insulated Carrying handle for ease of use 110volt - 1600 watt motor The price shown is for the Electric Drive Unit only. Shafts and pokers are sold separately. Operators manual

A portable, robust and compact drive system designed for heavy site and rental use, providing effective air removal from concrete from a portable independent power source. The price shown is for the poker and 5m shaft . Petrol or diesel engine sold separately. Sealed heads with pre greased bearings 5 metre heavy duty flexible shaft Diameter 45mm Head length 375mm Frequency 187hz Amplitude 1.2mm Weight 18kg Operators manual

A portable, robust and compact drive system designed for heavy site and rental use, providing effective air removal from concrete from a portable independent power source. The price shown is for the poker and 5m shaft . Petrol or diesel engine sold separately. Sealed heads with pre greased bearings 5 metre heavy duty flexible shaft Diameter 55mm Head length 390mm Frequency 187hz Amplitude 1.2mm Weight 19kg Operators manual

A portable, robust and compact drive system designed for heavy site and rental use, providing effective air removal from concrete from a portable independent power source. The price shown is for the poker and 5m shaft . Petrol or diesel engine sold separately. Sealed heads with pre greased bearings 5 metre heavy duty flexible shaft Diameter 68mm Head length 410mm Frequency 187hz Amplitude 1.0mm Weight 24kg Operators manual

Powered by a Loncin Engine specially designed and built to the high specifications demanded by Belle. Drive Unit only for flexible shaft pokers - pokers are sold separately. Part No. 165.9.090 New Loncin engine 2800 rpm 420mm wide x 520mm high x 445mm long Weight 24kg Operators manual

The price shown is for the 230volt Electric Drive Unit, a 3 metre Shaft and the 36mm Poker. Operators manual

The price shown is for the 110volt Electric Drive Unit, a 3 metre Shaft and the 36mm Poker. Operators manual

The price shown is for the 110volt Electric Drive Unit, a 3 metre Shaft and the 50mm Poker. Operators manual

The price shown is for the 230volt Electric Drive Unit, a 3 metre Shaft and the 50mm Poker. Operators manual

Hatz diesel engine drive unit for flexible shaft pokers - pokers are sold separately 5.4 hp Hatz diesel engine 2800 rpm 430mm wide x 630mm high x 500mm long Weight 43kg Operators manual
