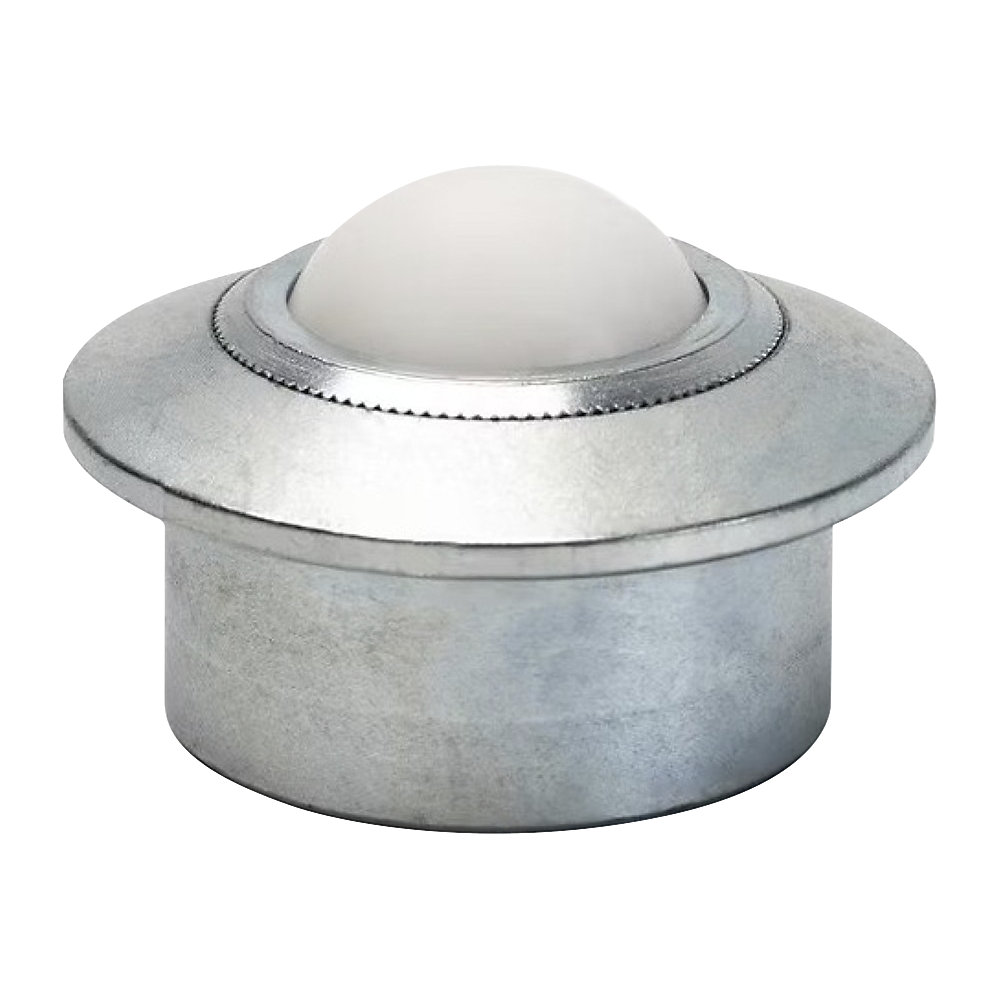

Ball unit, flange, solid, plastic, load bearing ball Ø 15 mm. Supplied = assembled. Design of ball rollers = flange, solid. Ball diameter = 15 mm. Effective load = 25 kg. Roller material = plastic (POM). Housing material = sheet steel, electrolytically zinc plated. Overall height = 21 mm. Housing diameter = 24 mm. Ball protrusion above table plane = 4.5 mm. Max. speed = 0.5 m/s. Flange diameter = 31 mm. Installation height = 9.5 mm. Product type = ball units. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 0.186 kg. Weight = 0.061 kg. For easy movement, rotation and positioning of loads with minimal effort. Run smoothly with precise rolling characteristics. …

Ball unit, flange, solid, plastic, load bearing ball Ø 22 mm. Supplied = assembled. Design of ball rollers = flange, solid. Ball diameter = 22 mm. Effective load = 50 kg. Roller material = plastic (POM). Housing material = sheet steel, electrolytically zinc plated. Overall height = 30.5 mm. Housing diameter = 36 mm. Ball protrusion above table plane = 4.5 mm. Max. speed = 0.5 m/s. Flange diameter = 45 mm. Installation height = 10 mm. Product type = ball units. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 0.272 kg. Weight = 0.147 kg. For easy movement, rotation and positioning of loads with minimal effort. Run smoothly with precise rolling characteristics. …

Ball unit, flange, solid, stainless steel, load bearing ball Ø 15 mm. Supplied = assembled. Design of ball rollers = flange, solid. Ball diameter = 15 mm. Effective load = 100 kg. Roller material = stainless steel (1.4430). Housing material = sheet steel, electrolytically zinc plated. Overall height = 21 mm. Housing diameter = 24 mm. Ball protrusion above table plane = 4.5 mm. Max. speed = 2 m/s. Flange diameter = 31 mm. Installation height = 9.5 mm. Product type = ball units. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 0.186 kg. Weight = 0.061 kg. For easy movement, rotation and positioning of loads with minimal effort. Run smoothly with precise r…

Ball unit, flange, solid, stainless steel, load bearing ball Ø 22 mm. Supplied = assembled. Design of ball rollers = flange, solid. Ball diameter = 22 mm. Effective load = 240 kg. Roller material = stainless steel (1.4430). Housing material = sheet steel, electrolytically zinc plated. Overall height = 30.5 mm. Housing diameter = 36 mm. Ball protrusion above table plane = 4.5 mm. Max. speed = 2 m/s. Flange diameter = 45 mm. Installation height = 10 mm. Product type = ball units. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 0.31 kg. Weight = 0.185 kg. For easy movement, rotation and positioning of loads with minimal effort. Run smoothly with precise r…

Ball unit, flange, solid, stainless steel, load bearing ball Ø 30 mm. Supplied = assembled. Design of ball rollers = flange, solid. Ball diameter = 30 mm. Effective load = 350 kg. Roller material = stainless steel (1.4430). Housing material = sheet steel, electrolytically zinc plated. Overall height = 37 mm. Housing diameter = 45 mm. Ball protrusion above table plane = 5.5 mm. Max. speed = 2 m/s. Flange diameter = 55 mm. Installation height = 14 mm. Product type = ball units. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 0.425 kg. Weight = 0.3 kg. For easy movement, rotation and positioning of loads with minimal effort. Run smoothly with precise r…

Ball unit rail, length 1000 mm, width 30 mm, division 50 mm. Supplied = assembled. Overall height = 30 mm. Track width = 30 mm. Length = 1000 mm. Spacing = 50 mm. Ball diameter = 15 mm. Width = 30 mm. Effective load per ball = 25 kg. Worktop material = steel, zinc plated. Product type = ball unit tables. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 2.151 kg. Weight = 2.151 kg. For moving and aligning goods with hard surfaces. Optimises and facilitates material flow in the company. Can be customised to suit your needs. Ball unit rails are used for the transport of flat and stable loads in all directions. Products cut to order may exhibit dimensional …

Ball unit rail, length 1000 mm, width 30 mm, division 75 mm. Supplied = assembled. Overall height = 30 mm. Track width = 30 mm. Length = 1000 mm. Spacing = 75 mm. Ball diameter = 15 mm. Width = 30 mm. Effective load per ball = 25 kg. Worktop material = steel, zinc plated. Product type = ball unit tables. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 1.91 kg. Weight = 1.91 kg. For moving and aligning goods with hard surfaces. Optimises and facilitates material flow in the company. Can be customised to suit your needs. Ball unit rails are used for the transport of flat and stable loads in all directions. Products cut to order may exhibit dimensional …

Ball unit rail, length 1000 mm, width 30 mm, division 100 mm. Supplied = assembled. Overall height = 30 mm. Track width = 30 mm. Length = 1000 mm. Spacing = 100 mm. Ball diameter = 15 mm. Width = 30 mm. Effective load per ball = 25 kg. Worktop material = steel, zinc plated. Product type = ball unit tables. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 1.8 kg. Weight = 1.8 kg. For moving and aligning goods with hard surfaces. Optimises and facilitates material flow in the company. Can be customised to suit your needs. Ball unit rails are used for the transport of flat and stable loads in all directions. Products cut to order may exhibit dimensional …

Ball unit rail, length 1000 mm, width 50 mm, division 50 mm. Supplied = assembled. Overall height = 50 mm. Track width = 50 mm. Length = 1000 mm. Spacing = 50 mm. Ball diameter = 22 mm. Width = 50 mm. Effective load per ball = 25 kg. Worktop material = steel, zinc plated. Product type = ball unit tables. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 6.02 kg. Weight = 6.02 kg. For moving and aligning goods with hard surfaces. Optimises and facilitates material flow in the company. Can be customised to suit your needs. Ball unit rails are used for the transport of flat and stable loads in all directions. Products cut to order may exhibit dimensional …

Ball unit rail, length 1000 mm, width 50 mm, division 75 mm. Supplied = assembled. Overall height = 50 mm. Track width = 50 mm. Length = 1000 mm. Spacing = 75 mm. Ball diameter = 22 mm. Width = 50 mm. Effective load per ball = 25 kg. Worktop material = steel, zinc plated. Product type = ball unit tables. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 5.24 kg. Weight = 5.24 kg. For moving and aligning goods with hard surfaces. Optimises and facilitates material flow in the company. Can be customised to suit your needs. Ball unit rails are used for the transport of flat and stable loads in all directions. Products cut to order may exhibit dimensional …

Ball unit rail, length 1000 mm, width 50 mm, division 100 mm. Supplied = assembled. Overall height = 50 mm. Track width = 50 mm. Length = 1000 mm. Spacing = 100 mm. Ball diameter = 22 mm. Width = 50 mm. Effective load per ball = 25 kg. Worktop material = steel, zinc plated. Product type = ball unit tables. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 4.85 kg. Weight = 4.85 kg. For moving and aligning goods with hard surfaces. Optimises and facilitates material flow in the company. Can be customised to suit your needs. Ball unit rails are used for the transport of flat and stable loads in all directions. Products cut to order may exhibit dimensional …

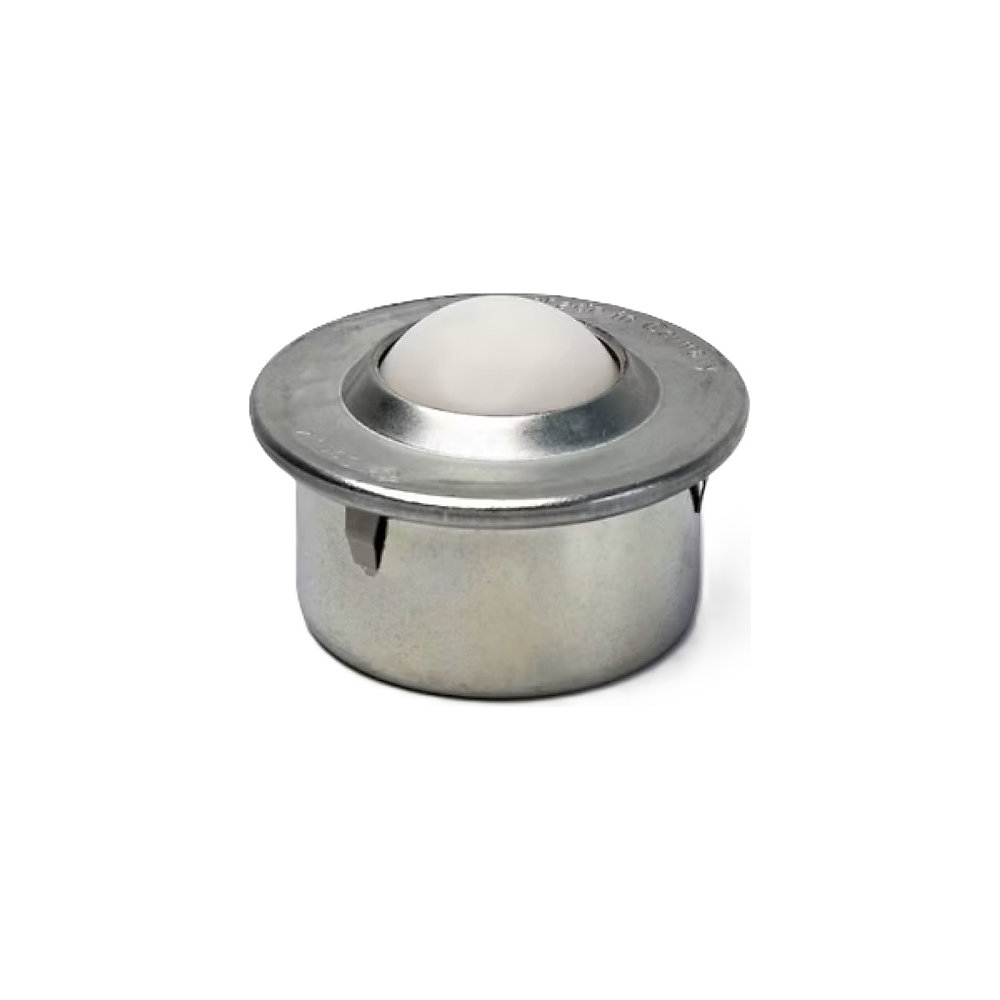

Ball unit with flange and clip, plastic ball, ball Ø 15.88 mm, payload 25 kg, 20+ items. Supplied = assembled. Design of ball rollers = flange. Ball diameter = 15.88 mm. Effective load = 25 kg. Roller material = plastic. Housing material = cold rolled, non-alloy steel 1.0330. Overall height = 21 mm. Housing diameter = 24.8 - 26 mm. Ball protrusion above table plane = 6.5 mm. Flange diameter = 31 mm. Installation height = 9.5 mm. Product type = ball units. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 0.366 kg. Weight = 0.026 kg. Integrated fastening clip. Clip compensates play in the mounting hole. High quality workmanship. These high quality ball u…

Ball unit with flange and clip, plastic ball, ball Ø 22.23 mm, payload 50 kg, 20+ items. Supplied = assembled. Design of ball rollers = flange. Ball diameter = 22.23 mm. Effective load = 50 kg. Roller material = plastic. Housing material = cold rolled, non-alloy steel 1.0330. Overall height = 30.5 mm. Housing diameter = 36.8 - 38 mm. Ball protrusion above table plane = 7.3 mm. Flange diameter = 45 mm. Installation height = 10 mm. Product type = ball units. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 0.47 kg. Weight = 0.13 kg. Integrated fastening clip. Clip compensates play in the mounting hole. High quality workmanship. These high quality ball u…

Ball unit with flange and clip, plastic ball, ball Ø 30 mm, payload 100 kg, 10+ items. Supplied = assembled. Design of ball rollers = flange. Ball diameter = 30 mm. Effective load = 100 kg. Roller material = plastic. Housing material = cold rolled, non-alloy steel 1.0330. Overall height = 37 mm. Housing diameter = 45.8 - 47 mm. Ball protrusion above table plane = 10.3 mm. Flange diameter = 55 mm. Installation height = 14 mm. Product type = ball units. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 0.456 kg. Weight = 0.266 kg. Integrated fastening clip. Clip compensates play in the mounting hole. High quality workmanship. These high quality ball units a…

Ball unit, recessed, steel, load bearing ball Ø 15 mm. Supplied = assembled. Design of ball rollers = recessed. Ball diameter = 15 mm. Effective load = 12 kg. Roller material = steel (100Cr6). Housing material = sheet steel, electrolytically zinc plated. Overall height = 18.5 mm. Housing diameter = 22.2 mm. Max. speed = 2 m/s. Circle of holes diameter = 30 mm. Flange diameter = 41.3 mm. Bore hole diameter = 3.5 mm. Installation height = 10.2 mm. Fastening drill holes = 2. Product type = ball units. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 0.17 kg. Weight = 0.045 kg. For easy movement, rotation and positioning of loads with minimal effort. Run s…

Ball unit, recessed, steel, load bearing ball Ø 19 mm. Supplied = assembled. Design of ball rollers = recessed. Ball diameter = 19 mm. Effective load = 25 kg. Roller material = steel (100Cr6). Housing material = sheet steel, electrolytically zinc plated. Overall height = 22 mm. Housing diameter = 29 mm. Max. speed = 2 m/s. Circle of holes diameter = 35 mm. Flange diameter = 49 mm. Bore hole diameter = 5.1 mm. Installation height = 10 mm. Fastening drill holes = 2. Product type = ball units. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 0.256 kg. Weight = 0.066 kg. For easy movement, rotation and positioning of loads with minimal effort. Run smoothly w…

Ball unit, recessed, steel, load bearing ball Ø 25 mm. Supplied = assembled. Design of ball rollers = recessed. Ball diameter = 25 mm. Effective load = 55 kg. Roller material = steel (100Cr6). Housing material = sheet steel, electrolytically zinc plated. Overall height = 30 mm. Housing diameter = 38.1 mm. Max. speed = 2 m/s. Circle of holes diameter = 55.6 mm. Flange diameter = 73 mm. Bore hole diameter = 5.1 mm. Installation height = 14.2 mm. Fastening drill holes = 3. Product type = ball units. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 0.36 kg. Weight = 0.17 kg. For easy movement, rotation and positioning of loads with minimal effort. Run smoothly w…

Ball unit, recessed, steel, load bearing ball Ø 32 mm. Supplied = assembled. Design of ball rollers = recessed. Ball diameter = 32 mm. Effective load = 125 kg. Roller material = steel (100Cr6). Housing material = sheet steel, electrolytically zinc plated. Overall height = 36 mm. Housing diameter = 45.5 mm. Ball protrusion above table plane = 5.5 mm. Max. speed = 2 m/s. Circle of holes diameter = 58.7 mm. Flange diameter = 73.8 mm. Bore hole diameter = 5.1 mm. Installation height = 16.2 mm. Fastening drill holes = 3. Product type = ball units. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 0.46 kg. Weight = 0.27 kg. For easy movement, rotation and p…

Ball unit, recessed, steel, load bearing ball Ø 40 mm. Supplied = assembled. Design of ball rollers = recessed. Ball diameter = 40 mm. Effective load = 225 kg. Roller material = steel (100Cr6). Housing material = sheet steel, electrolytically zinc plated. Overall height = 48.5 mm. Housing diameter = 63 mm. Max. speed = 2 m/s. Circle of holes diameter = 70.2 mm. Flange diameter = 94.6 mm. Bore hole diameter = 7 mm. Installation height = 21.2 mm. Fastening drill holes = 3. Product type = ball units. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 0.822 kg. Weight = 0.632 kg. For easy movement, rotation and positioning of loads with minimal effort. Run s…

Ball unit, recessed, plastic, load bearing ball Ø 15 mm. Supplied = assembled. Design of ball rollers = recessed. Ball diameter = 15 mm. Effective load = 10 kg. Roller material = plastic (POM). Housing material = sheet steel, electrolytically zinc plated. Overall height = 18.5 mm. Housing diameter = 22.2 mm. Max. speed = 0.5 m/s. Circle of holes diameter = 30 mm. Flange diameter = 41.3 mm. Bore hole diameter = 3.5 mm. Installation height = 10.2 mm. Fastening drill holes = 2. Product type = ball units. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 0.17 kg. Weight = 0.045 kg. For easy movement, rotation and positioning of loads with minimal effort. …

Ball unit, recessed, plastic, load bearing ball Ø 19 mm. Supplied = assembled. Design of ball rollers = recessed. Ball diameter = 19 mm. Effective load = 20 kg. Roller material = plastic (POM). Housing material = sheet steel, electrolytically zinc plated. Overall height = 22 mm. Housing diameter = 29 mm. Max. speed = 0.5 m/s. Circle of holes diameter = 35 mm. Flange diameter = 49 mm. Bore hole diameter = 5.1 mm. Installation height = 10 mm. Fastening drill holes = 2. Product type = ball units. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 0.256 kg. Weight = 0.066 kg. For easy movement, rotation and positioning of loads with minimal effort. Run smoothly w…

Ball unit, recessed, plastic, load bearing ball Ø 25 mm. Supplied = assembled. Design of ball rollers = recessed. Ball diameter = 25 mm. Effective load = 40 kg. Roller material = plastic (POM). Housing material = sheet steel, electrolytically zinc plated. Overall height = 30 mm. Housing diameter = 38.1 mm. Max. speed = 0.5 m/s. Circle of holes diameter = 55.6 mm. Flange diameter = 73 mm. Bore hole diameter = 5.1 mm. Installation height = 14.2 mm. Fastening drill holes = 3. Product type = ball units. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 0.365 kg. Weight = 0.175 kg. For easy movement, rotation and positioning of loads with minimal effort. R…

Ball unit, recessed, plastic, load bearing ball Ø 32 mm. Supplied = assembled. Design of ball rollers = recessed. Ball diameter = 32 mm. Effective load = 90 kg. Roller material = plastic (POM). Housing material = sheet steel, electrolytically zinc plated. Overall height = 36 mm. Housing diameter = 45.5 mm. Max. speed = 0.5 m/s. Circle of holes diameter = 58.7 mm. Flange diameter = 73.8 mm. Bore hole diameter = 5.1 mm. Installation height = 16.2 mm. Fastening drill holes = 3. Product type = ball units. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 0.46 kg. Weight = 0.27 kg. For easy movement, rotation and positioning of loads with minimal effort. R…

Ball unit, recessed, plastic, load bearing ball Ø 40 mm. Supplied = assembled. Design of ball rollers = recessed. Ball diameter = 40 mm. Effective load = 140 kg. Roller material = plastic (POM). Housing material = sheet steel, electrolytically zinc plated. Overall height = 48.5 mm. Housing diameter = 63 mm. Max. speed = 0.5 m/s. Circle of holes diameter = 70.2 mm. Flange diameter = 94.6 mm. Bore hole diameter = 7 mm. Installation height = 21.2 mm. Fastening drill holes = 3. Product type = ball units. Colour = silver. Customs tariff number = 84829190. Country of origin = DEU. Gross weight = 0.705 kg. Weight = 0.515 kg. For easy movement, rotation and positioning of loads with minimal effort. …
