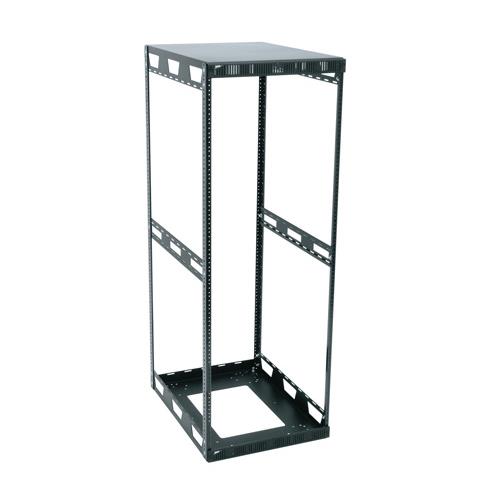

Middle Atlantic Products 5-43-26 rack cabinet 43U Freestanding rack Black

Our popular Slim 5 Series rack frame system meets a wide range of project requirements. Available in 12 standard sizes and any height from 8 to 43 spaces the Slim 5 series ships ready-to-assemble. Strong steel construction with wide open access for easy integration.

• Lightweight open design is easy to work with
• Bolt-together design allows for flat shipment via UPS
• Unique interlocking corner joint for exceptional strength and easy assembly
• Accepts optional removable steel side panels for security and control airflow
• Accepts optional attractive thermolaminate top and side panels
• Top includes two laser knockout locations to mount cooling fans
• Standard front and rear fixed 10-32 threaded rackrail with marked spaces

GENERAL INFO

Gangable: Yes
Finish: Black Powder Coat
UL Standards Tested: UL2416

ASSEMBLY/INSTALLATION INFORMATION

Assembly Required: Yes

LISTING AGENCIES/THIRD PARTY CERTIFICATIONS

RoHS: Yes
Greenguard: Yes
UL Listing No: E313734

DIMENSIONS

Usable Depth: 26
Usable Height: 75.25
Panel Width: 19
Depth (US): 26
Height (US): 79
Width (US): 19.125
Rack Units: 43

TECHNICAL INFORMATION

Rackrail Type: 10-32
Static Load Capacity: 1000
UL Load Capacity: 400
Material: Steel
Mounting: Horizontal

Please Note - RACKS DO NOT COME WITH SCREWS THESE WILL NEED TO BE ADDED SEPARATELY
- Features
- Rack Type Floor Standing
- Model Type Slim 5
- Rack Size 43U
- Rack Height 78
- Depth 660 mm
- Width 486 mm
- Max Weight Capacity 181 Kg
- Finish Black Powder Coat
