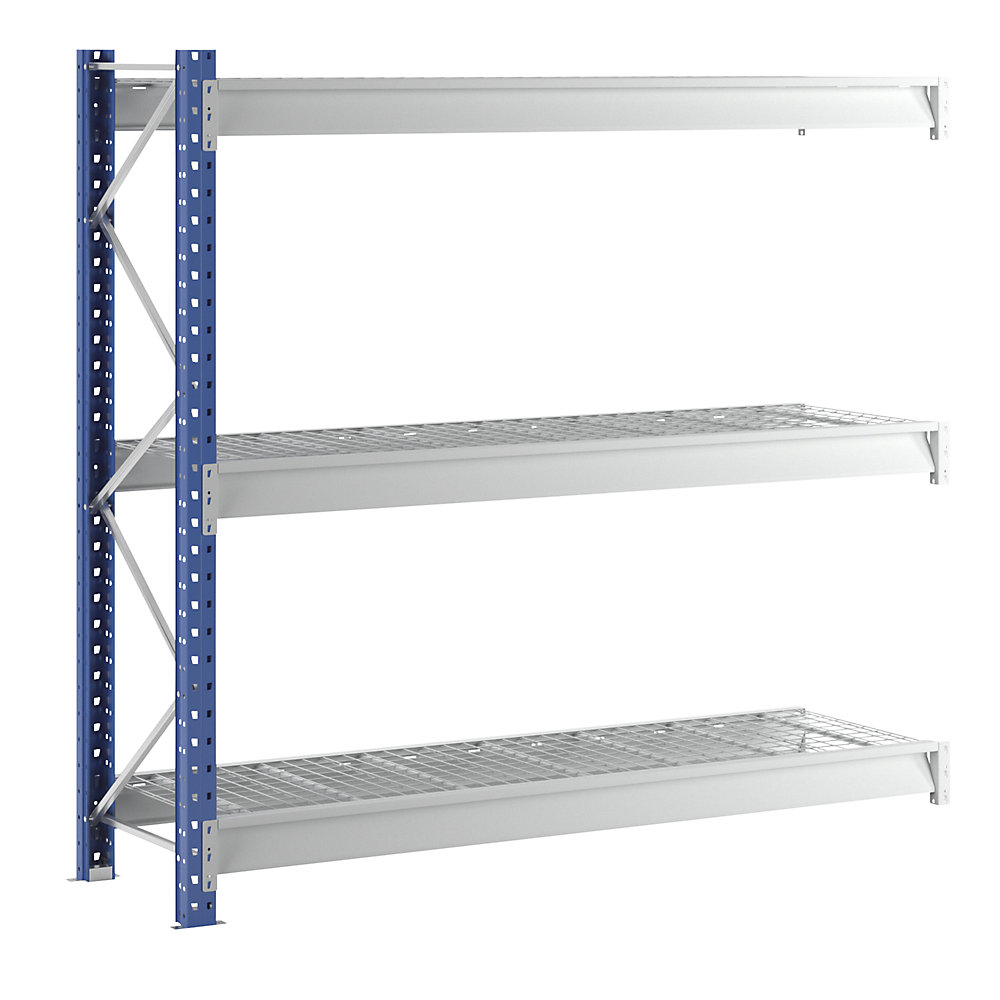

Manorga frame colour blue, frame colour blue, HxWxD 1996 x 2330 x 800 mm, extension shelf unit

Heavy duty wide span shelving with mesh panel modules, frame colour blue, HxWxD 1996 x 2330 x 800 mm, extension shelf unit. Supplied = flat pack. Shelf unit type = extension unit. Shelf unit height = 1996 mm. Shelf width = 2250 mm. Shelf depth = 800 mm. Colour of uprights = gentian blue RAL 5010. Width = 2330 mm. Depth = 810 mm. Width of upright profile = 25 mm. Depth of upright profile = 15 mm. Shelf clearance width = 2245 mm. Max. bay load = 4500 kg. Max. shelf load = 810 kg. Adjustment grid = 50 mm. Number of shelf levels = 2 pcs. Material = steel. Material of uprights = steel, plastic coated. Cross beam material = steel, zinc plated. Shelf material = wire mesh, plastic coated. Cross beam colour = light grey RAL 7035. Shelf colour = grey. Customs tariff number = 73089098. Country of origin = FRA. Gross weight = 78.215 kg. Weight = 58.065 kg. Sustainability = CO 2 footprint calculated. For the manual storage of bulky and heavy goods. Boltless installation and adjustment of support beams. Manufactured in accordance with the guidelines and regulations of European FEM 10.2.06 as well as Eurocode III. Upright frame 2 steel posts, 1.5 mm thick, plastic coated blue RAL 5010. Contoured profile, 50 x 50 mm. Upright cross beams and diagonals are made of zinc plated C-profile, 25 x 15 mm, and are bolted to the posts. Zinc plated base plates for floor anchoring, 3 mm in height. Bolts and plugs not included. 50 mm shelf adjustment grid. Shelves Support beams with Z profile, plastic coated light grey RAL 7035. 3 suspension hooks with securing pins for mounting the support beams. Wire mesh panel modules, plastic coated light grey RAL 7035. External dimensions Standard shelf unit width - without footplates: shelf width + 100 mm. - with footplates: shelf width + 160 mm. Extension shelf unit width - without footplates: shelf width + 50 mm. - with footplates: shelf width + 80 mm. Shelf unit depth incl. foot plates Shelf depth + 10 mm. The specified max. load values are applicable with uniform load distribution. Additional shelf levels may be used if the specified max. bay load is observed.
