Micrometers & Calipers Mitutoyo

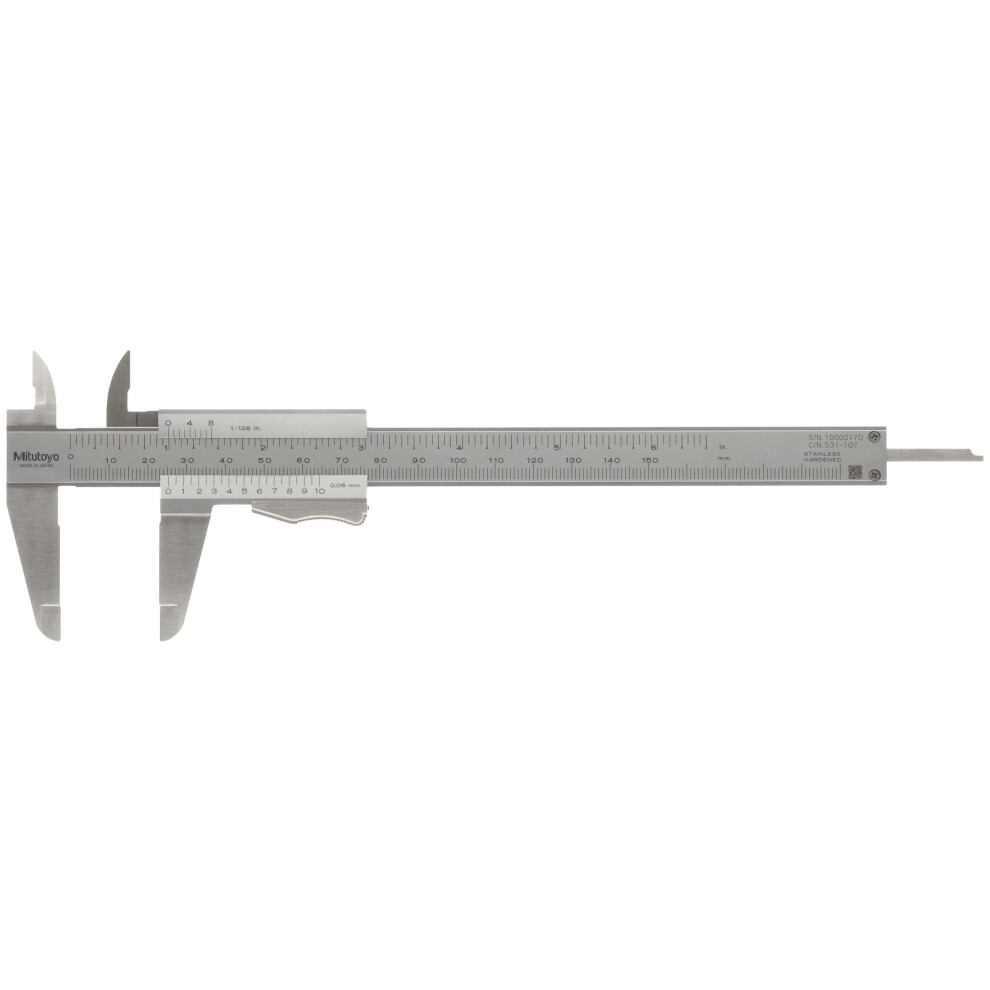

Spring loaded thumb clamp type caliper with 14° measuring angle for easy reading. Incorporates quadri feature, allowing 4 ways of measuring. Range: 150mm (6in).Vernier Reading: 0.02mm (0.001in).Instr Error: +-0.03mm (+-0.0015in).

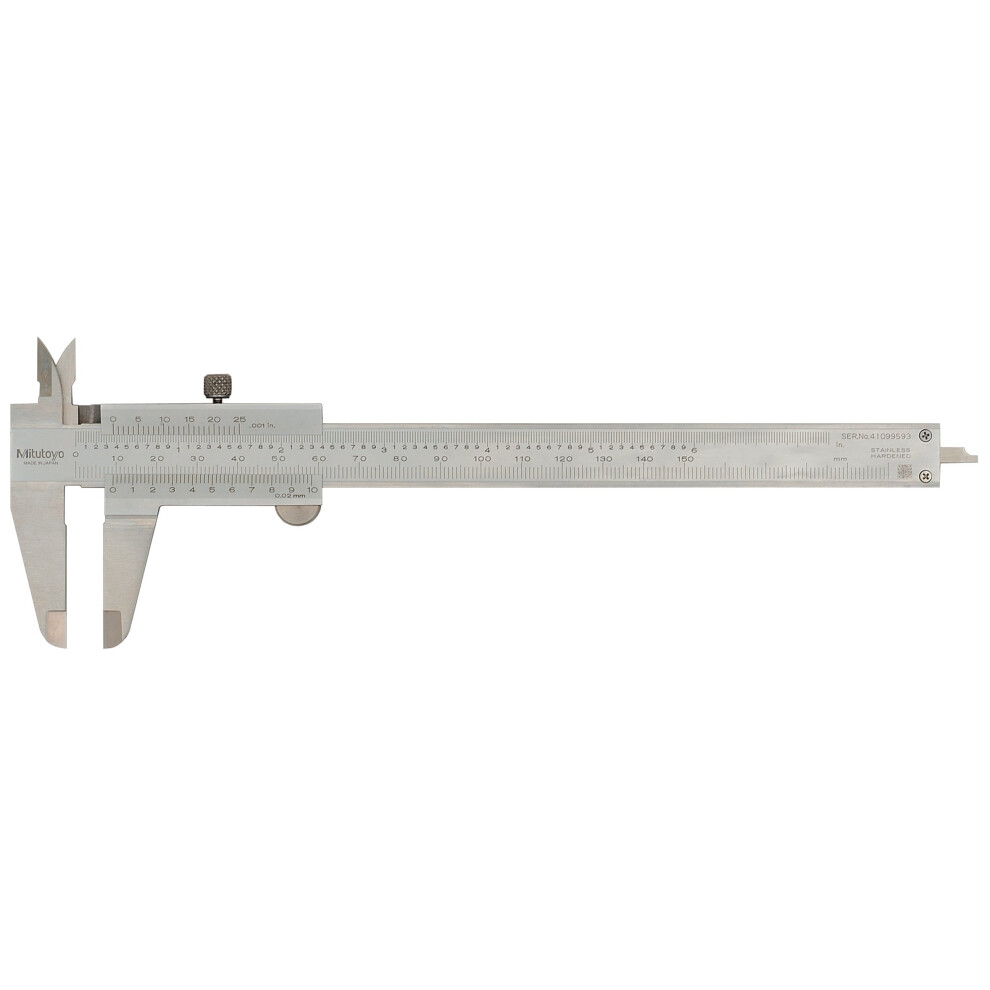

Standard caliper with 14° measuring angle for easy reading with clear graduations on a satin chrome finish.Incorporates quadri feature, allowing 4 ways of measuring with a locking screw fitted to slider. Range: 150mm (6in).Vernier Reading: 0.02mm (0.001in).Inst. Error: +-0.03mm (+-0.0015in).

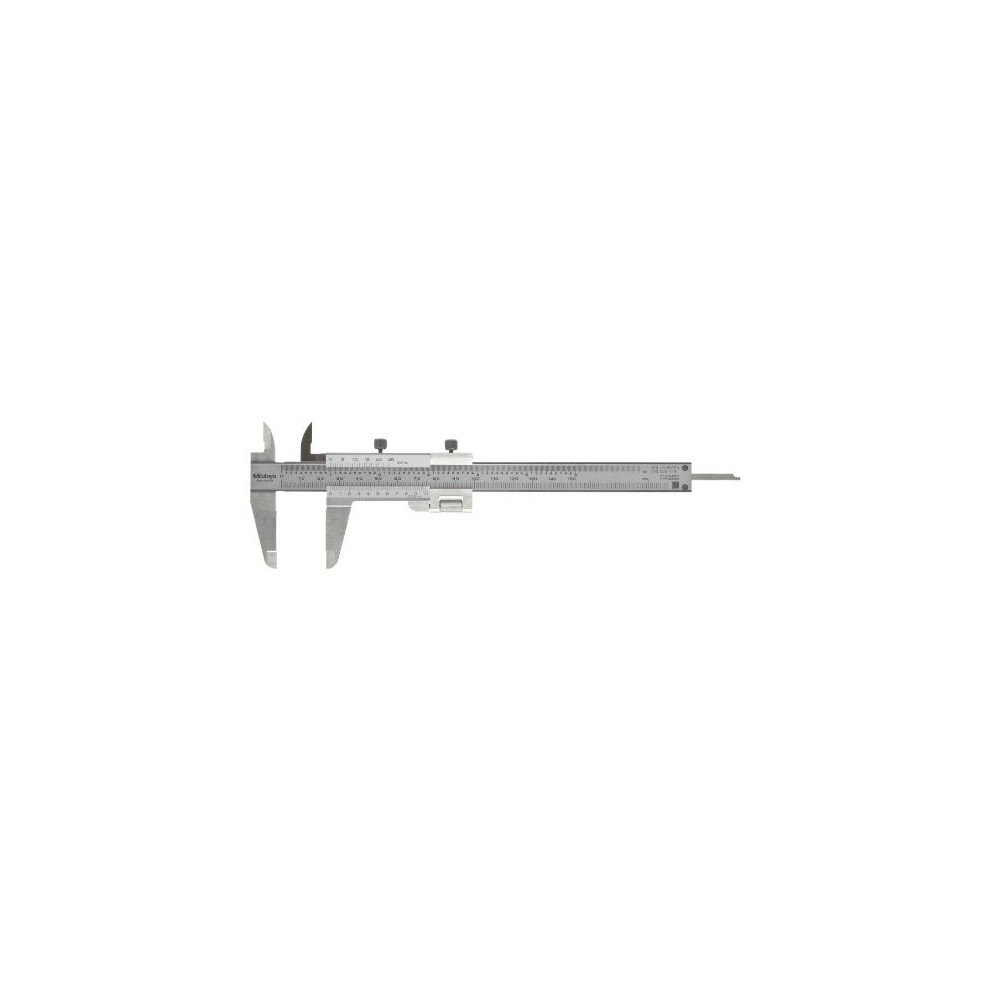

14° Vernier face angle for easy reading on a satin chrome finish. Incorporates quadri feature, allowing 4 ways of measuring with fine adjustment. Inst. Error: +-0.03mm (+-0.0015in).532 119 Range: 130mm (5in) Vernier Reading: 0.02mm (0.001in).532 120 Range: 180mm (7in) Vernier Reading: 0.02mm (0.001in).Range. 130mm (5 in).Vernier Reading. 0.02mm (0.001 in)

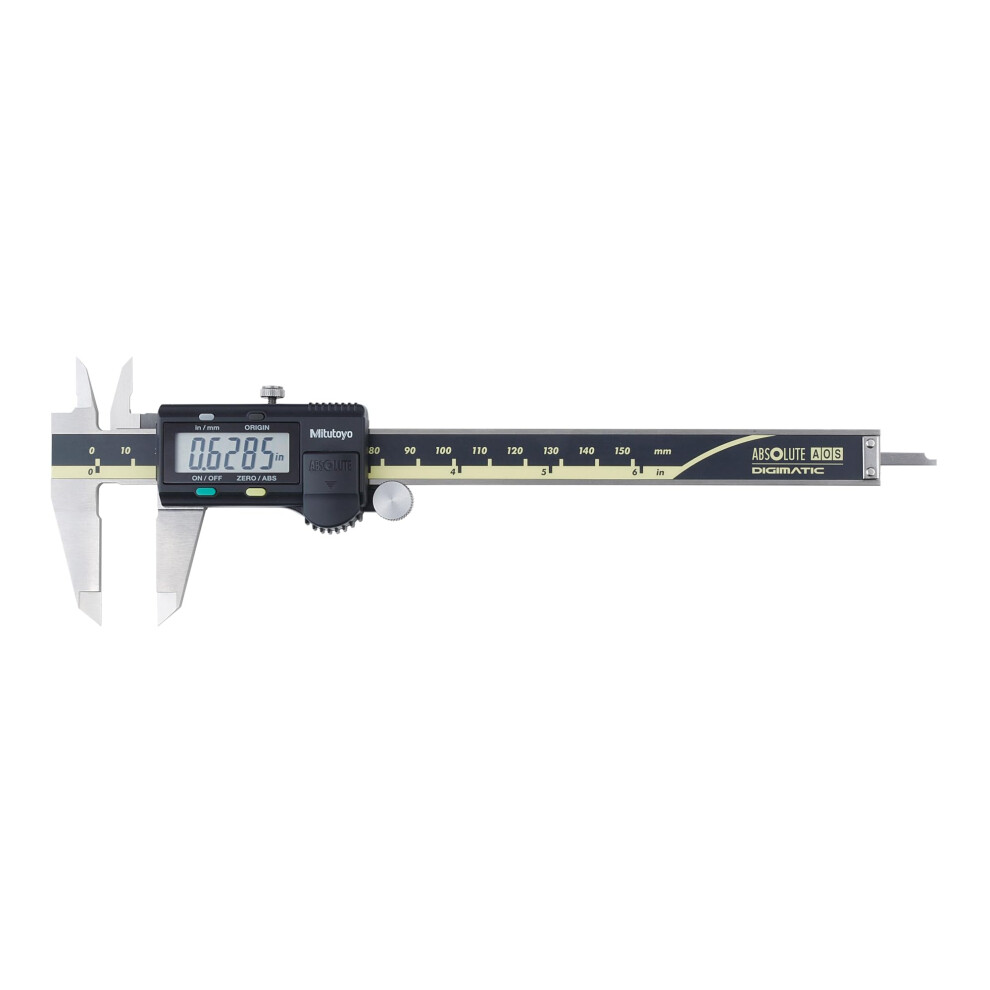

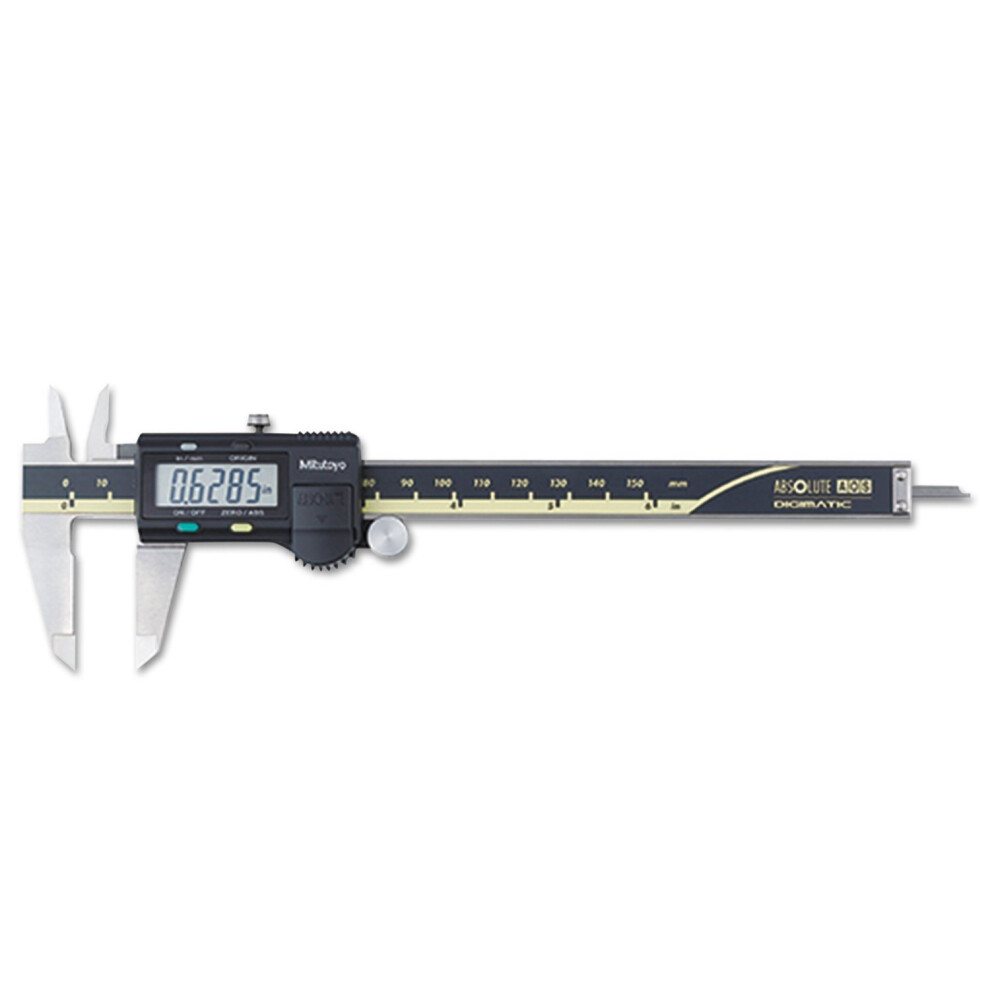

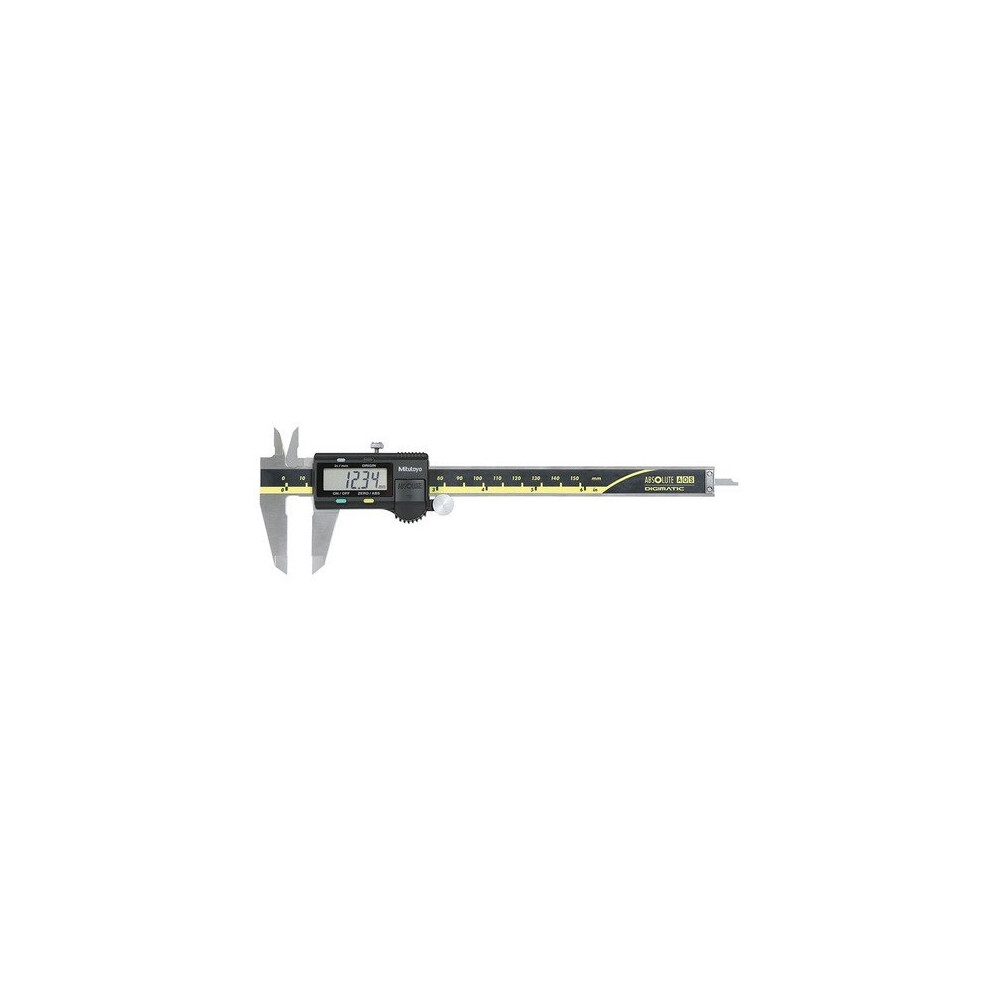

A digital caliper equipped with standard outside and inside jaws. Hardened stainless steel construction and equipped with the latest electromagnetic ABSOLUTE AOS System scale for error free, high-speed measurement.Features• Large and clear LCD readout.• The ZERO/ABS button allows the display to be Zero-Set at any slider position along the scale for comparison measurements. This button also allows return to the absolute (ABS) mode for displaying the true position from the origin (usually the jaws-closed point).ABSOLUTE Digimatic MeasurementAbsolutely safe, absolutely ingenious: The ABSOLUTE system. All Mitutoyo measuring instruments with this logo incorporate the ingenious ABSOLUTE …

14° Vernier face angle for easy reading on a satin chrome finish. Incorporates quadri feature, allowing 4 ways of measuring with fine adjustment. Inst. Error: +-0.03mm (+-0.0015in).532 119 Range: 130mm (5in) Vernier Reading: 0.02mm (0.001in).532 120 Range: 180mm (7in) Vernier Reading: 0.02mm (0.001in).Range. 180mm (7 in).Vernier Reading. 0.02mm (0.001 in).

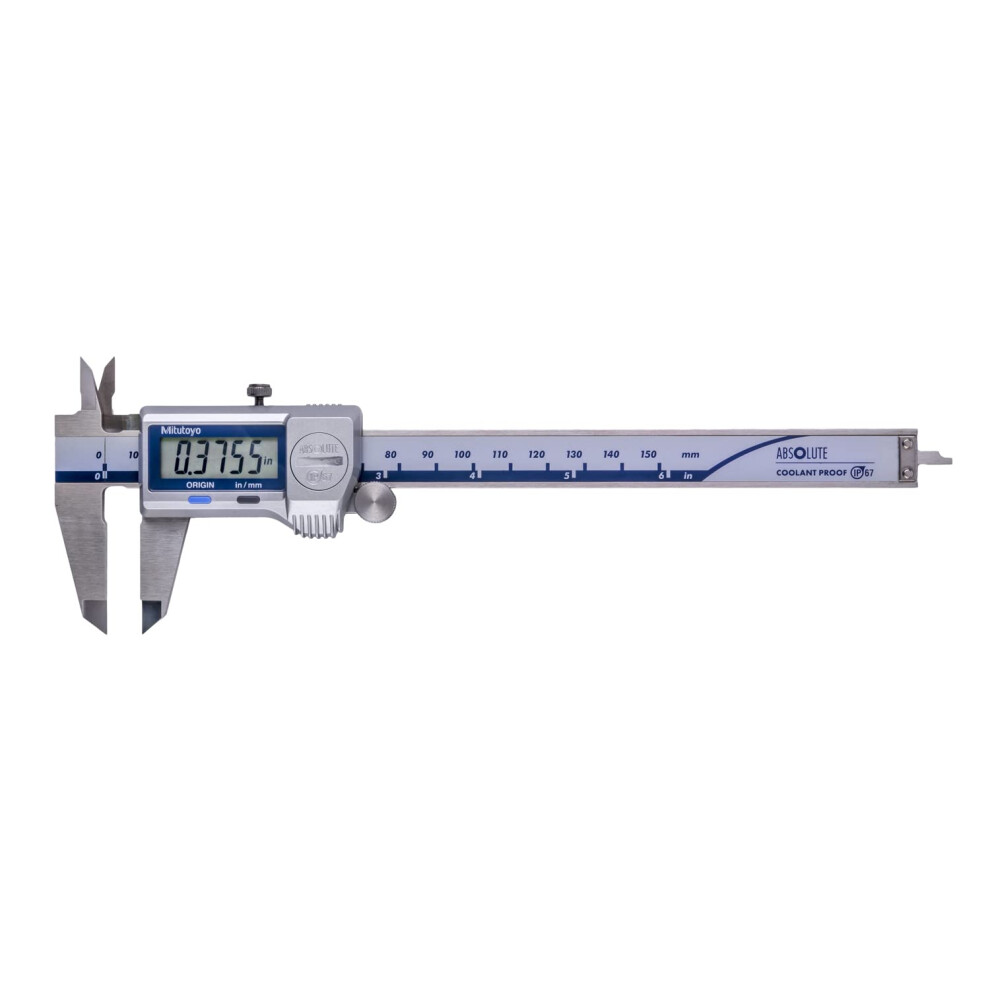

Superb resistance to Water, Oil, Dust and Coolant, making it ideal for tough workshop applicationsFeatures:- Water, Oil, Dust, Coolant and Submersion resistance (on IP67 model)- Imperial/Metric conversion- Large LCD Display- Origin Setting- ABSolute feature- Error free with no overspeed error- Auto power on/off- Incorporates Quadri Feature - Lock Nut- Thumb Roller Accuracy:± 0.02mm/± 0.001"

This model is as the economy caliper with the added feature of Digimatic output to down load data to a printer or computer system.-Large LCD display-Imperial/Metric conversion-Origin Setting-Zero setting/ABSolute feature-Error free with no overspeed error-Data hold available (optional switch required)-Data output-Incorporates Quadri feature-Lock nut0-200mm ± 0.02mm, 0-300mm ± 0.03mm

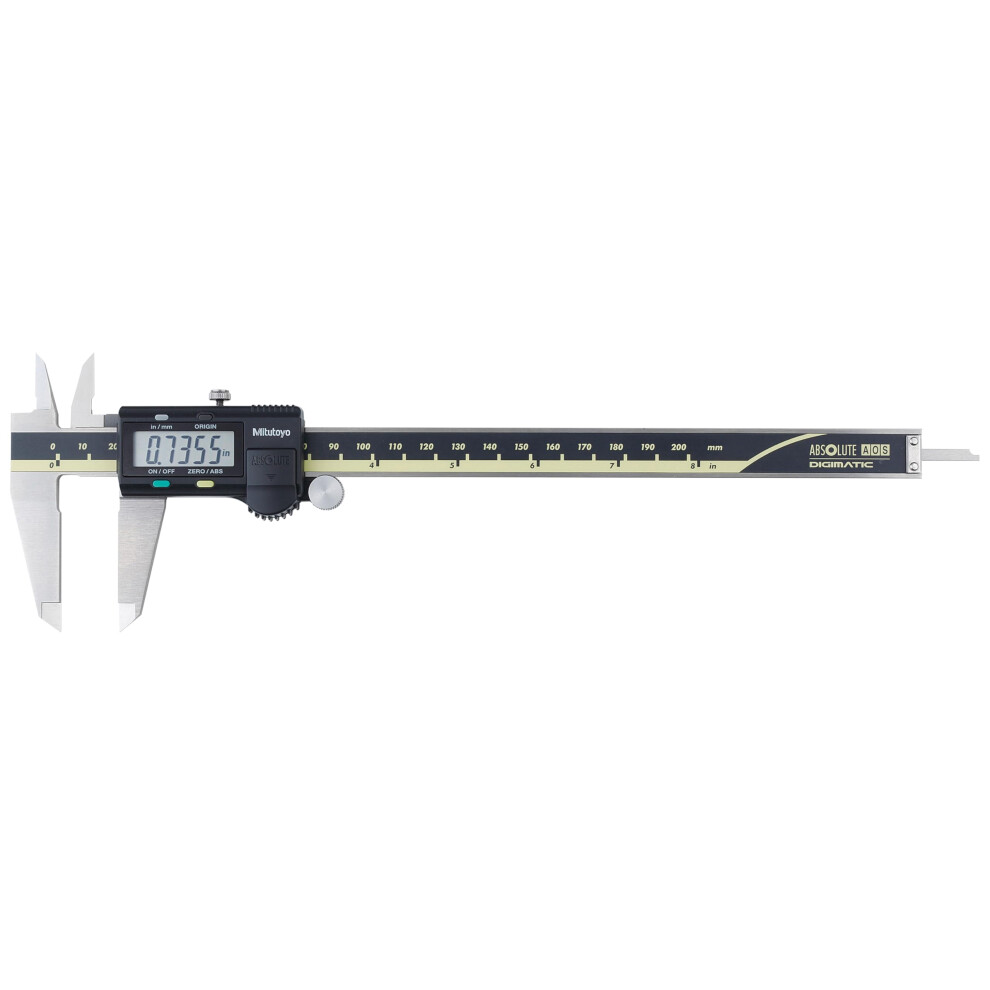

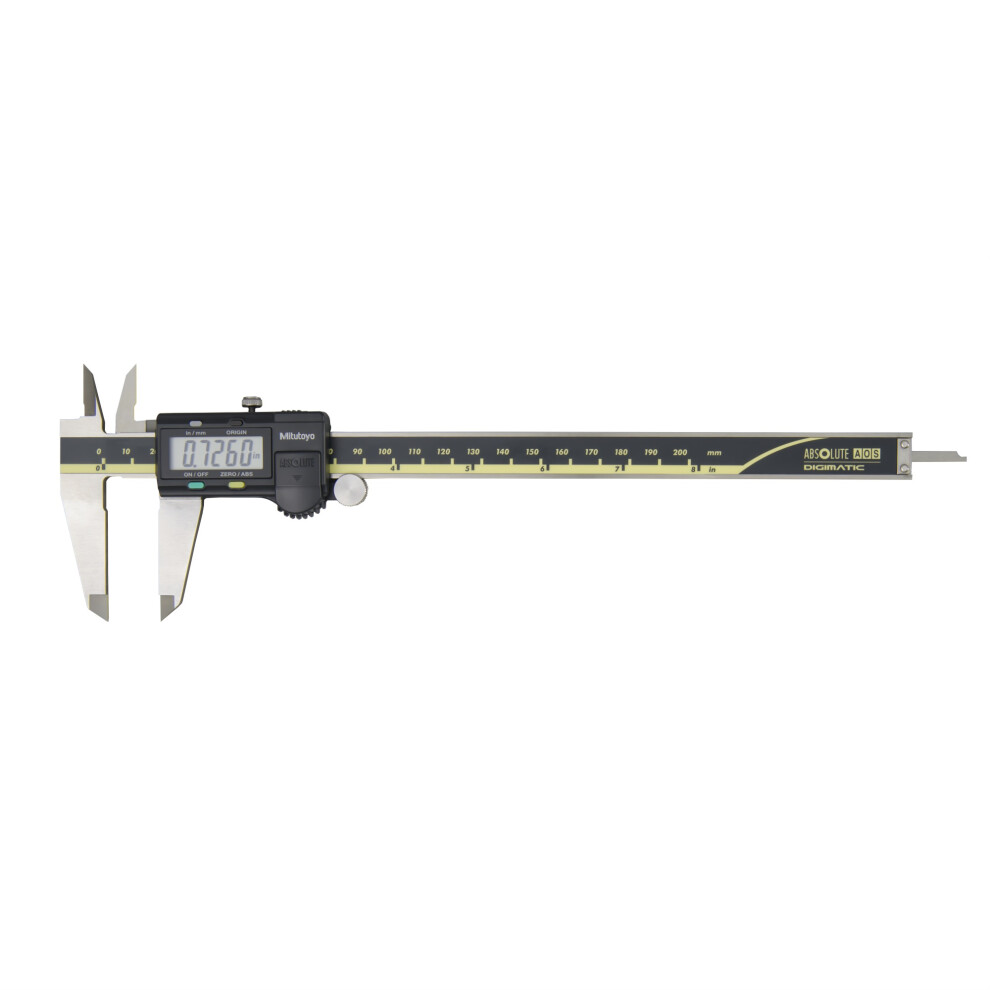

Digimatic electronic caliper featuring a built in absolute measuring scale. Large display digits easy to read, quadri design, rustless hardened and lapped measuring faces, bevelled jaws (inside and outside) for measuring small grooves and bores. With thumb wheel and depth bar.Range 200mm (8 in)Resolution 0.01mm (0.0005 in)Accuracy +- 0.02mm (+ - 0.001 in).

Easy to read dial caliper, thumb wheel and locknut manufactured from stainless steel. Slider displacements are amplified by a rack and pinion mechanism and indicated on the dial.Sharp jaw edges provide easy access to positions that standard calipers cannot measure.Incorporates quadri feature, allowing 4 ways of measuring.Range: 300mm.Graduation. 0.02mm.Range/Per Revolution: 2mm.

The digimatic caliper is the absolute type which allows the caliper to retain the origin point even when switched off. The caliper features large LCD display. It has a depth measurement bar, inch, metric conversion and with no overspeed error. Range: 300mm (12in).Resolution: 0.01mm (0.0005in).Accuracy: +- 0.03mm (+- 0.0015in).

Clear graduations on satin chrome finish, thumb wheel and locknut.heavy-duty Caliper with fine adjustment round measuring faces for accurate internal measurement.Range. 600mm/24in.Vernier Reading. .001in./0.02mmInstr. Error. +- 0.05mm.Min ID (mm) 12.7.
