KVM Switches Comnet

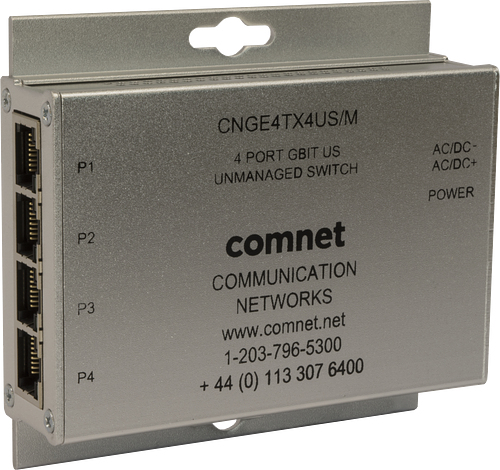

ComNet CNGE4TX4US/M network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Desktop/Wall-Mounting Silver Unmanaged mini switch with 4 × 10/100/1000Base-TX RJ-45 ports. Compact design for space-limited applications.

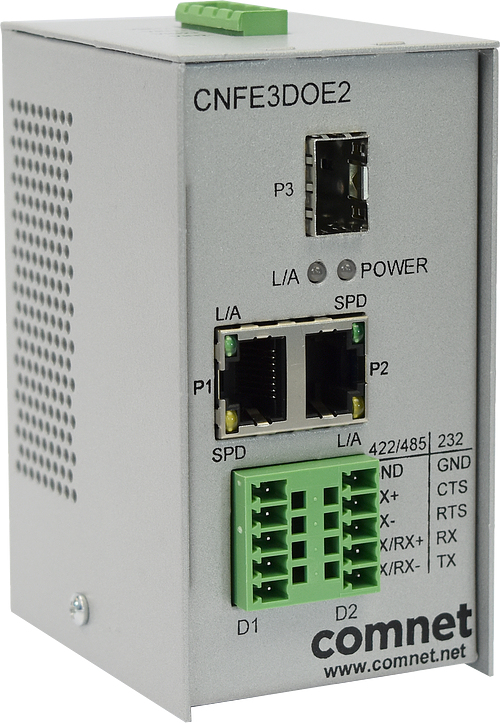

ComNet CNFE3DOE2/M network switch Managed Silver The Comnet CNFE3DOE2/M is a versatile 2-channel serial-over-Ethernet terminal server supporting RS-232. RS-422. and RS-485 protocols. It is equipped with two RJ-45 copper ports and one 100FX SFP port for optical connectivity (SFP sold separately). Designed for industrial applications. it provides reliable serial data transmission over Ethernet networks and is powered by an external PSU (purchased separately).

ComNet CNFE3FX1TX2C8RX/M network switch Managed Fast Ethernet (10/100) Desktop/Wall-Mounting Silver The Comnet CNFE3FX1TX2C[/M] series is an industrially hardened three-port intelligent switch with light management functionality and an integrated contact closure server. The 100BASE-FX port supports copper or optical transmission media through the selection of the appropriate Comnet SFP module. A summary fault alarm provides indication via a Form C relay in the event of optical link loss or power failure. The 10/100BASE-TX ports feature auto-negotiation and auto MDI/MDI-X crossover for full or half-duplex operation. eliminating the need for manual switching. The integrated contact closure server …

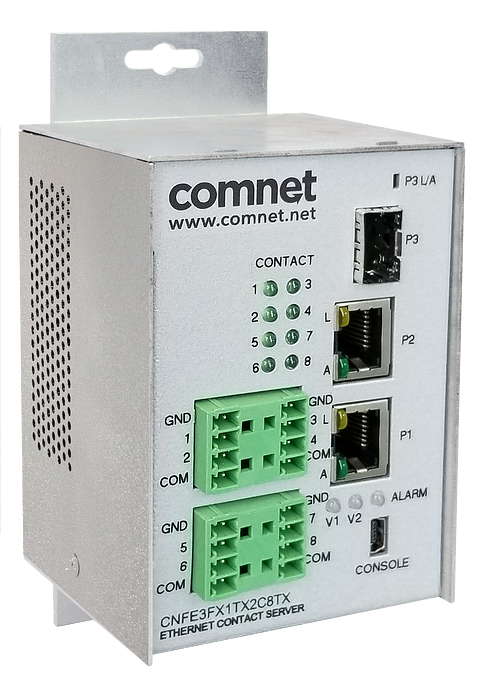

ComNet CNFE3FX1TX2C8TX/M network switch Managed Fast Ethernet (10/100) Desktop/Wall-Mounting Silver The Comnet CNFE3FX1TX2C[/M] series is an industrially hardened three-port intelligent switch with light management functionality and an integrated contact closure server. The 100BASE-FX port supports copper or optical transmission media through the selection of the appropriate Comnet SFP module. A summary fault alarm provides indication via a Form C relay in the event of optical link loss or power failure. The 10/100BASE-TX ports feature auto-negotiation and auto MDI/MDI-X crossover for full or half-duplex operation. eliminating the need for manual switching. The integrated contact closure server …

ComNet CNFE3FX1TX2C4DX/M network switch Managed Fast Ethernet (10/100) Desktop/Wall-Mounting Silver The Comnet CNFE3FX1TX2C[/M] series is an industrially hardened three-port intelligent switch with light management functionality and an integrated contact closure server. The 100BASE-FX port supports copper or optical transmission media through the selection of the appropriate Comnet SFP module. A summary fault alarm provides indication via a Form C relay in the event of optical link loss or power failure. The 10/100BASE-TX ports feature auto-negotiation and auto MDI/MDI-X crossover for full or half-duplex operation. eliminating the need for manual switching. The integrated contact closure server …

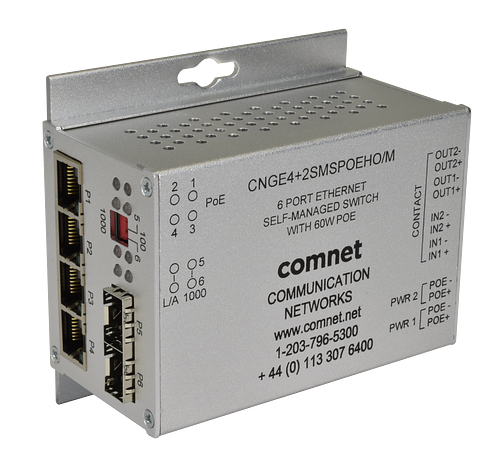

ComNet CNGE4+2SMSPOEHO/M network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 6-port intelligent switch with light management. Includes 4 × 10/100/1000Base-TX and 2 × 100/1000Base-FX SFP ports. Provides RSTP redundancy. IGMP snooping. Comnet Port Guardian. and up to 30W PoE per port.

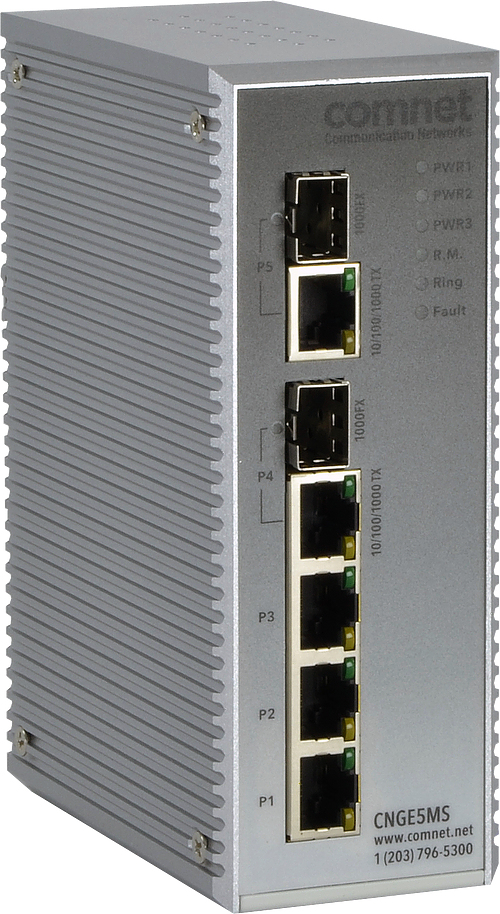

ComNet CNGE5MS network switch Managed L2+ Gigabit Ethernet (10/100/1000) Desktop/Wall-Mounting Black The Comnet CNGE5MS is a compact. industrial-grade five-port managed Ethernet switch designed for reliability in harsh environments. It includes three 10/100/1000BASE-TX ports and two gigabit combo ports. supporting Comnet SFP modules for flexible fiber options in both connector type and distance. Built for mission-critical applications. the CNGE5MS supports multiple Ethernet redundancy protocols—including C-Ring. ComRing. C-RSTP. and MSTP/RSTP/STP—ensuring continuous network availability with rapid recovery from interruptions. Management is simple and centralized with Comnet’s eConsole utilit…

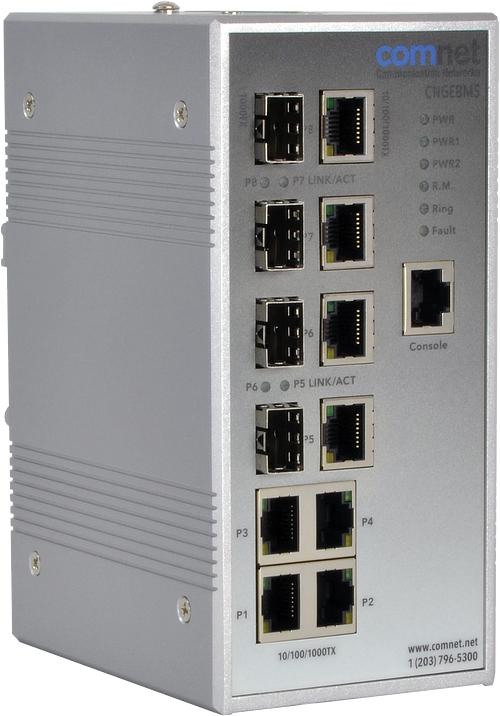

ComNet CNGE8MS network switch Managed L2+ Gigabit Ethernet (10/100/1000) Desktop/Wall-Mounting Black The Comnet CNGE8MS is a hardened. 8-port Managed Ethernet Switch built for reliable performance in demanding environments. It includes four 1000BASE-TX ports and four gigabit combo ports. Each combo port is configurable for 10/100/1000Mbps operation over Cat5/6 copper or multimode/singlemode fiber using optional Comnet SFP modules. Exclusive to Comnet. the CNGE8MS supports C-Ring fast recovery technology. protecting networks from interruptions with rapid failover. Legacy Ring support ensures seamless integration with existing Comnet X-Ring networks. To maximize uptime. the switch features redundant …

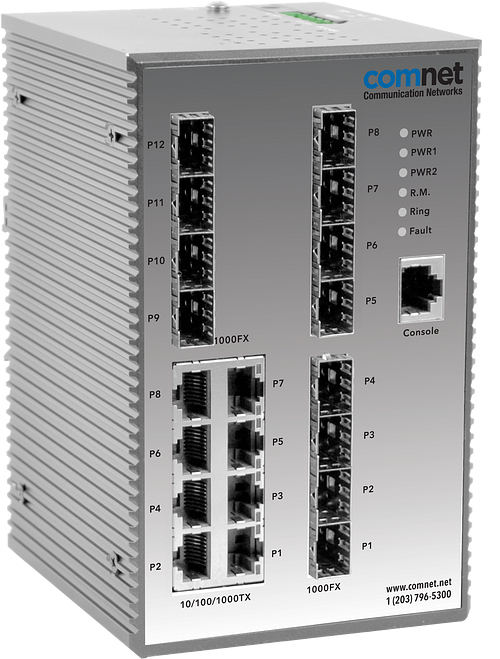

ComNet CNGE20MS network switch Managed L2+ Gigabit Ethernet (10/100/1000) DIN rail Silver The Comnet CNGE20MS is a 20-port Managed Ethernet Switch built to deliver reliable performance in harsh and environmentally challenging applications. It includes eight 10/100/1000BASE-TX ports and twelve 100/1000BASE-FX SFP* ports. configurable for multimode or single-mode fiber using Comnet SFPs. With exclusive Comnet C-Ring technology. the CNGE20MS provides fast recovery to keep networks online during interruptions. while Legacy Ring support ensures seamless integration into existing Comnet X-Ring deployments. Dual redundant DC power inputs offer added protection against outages. ensuring continuous operation.…
