Thunderbolt AVB Adapter
THE SINGLE-ADAPTER SOLUTION FOR CONNECTING TO PRO TOOLS CARBON
The Avid? Pro Tools Carbon audio interface for music production has been described as a creative game changer; its innovative use of eight onboard HDX processors and a custom FPGA enable you to track and monitor with near-zero latency when using AAX DSP plug-ins. Because Carbon connects to your Mac? over Ethernet using a proprietary version of AVB (Audio Video Bridging aka IEEE 802.1) you’ll have to use an AVB capable Thunderbolt™ Gigabit Ethernet adapter if your computer doesn’t have onboard Ethernet. The Avid Qualified Sonnet Thunderbolt AVB adapter is your single-adapter solution for …

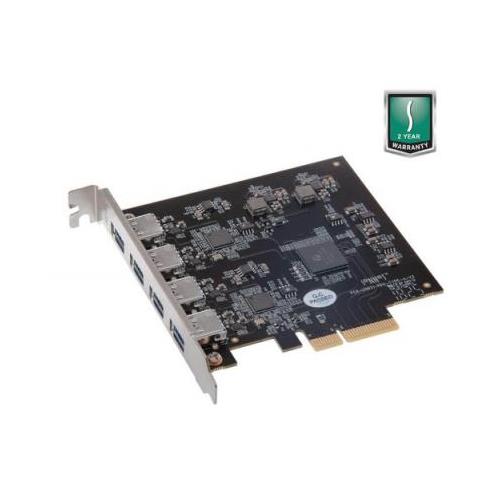

Allegro Pro USB3.1 PCIe
2X THE PERFORMANCE AS USB 3.0 AND USB 3.1 GEN 1 CONNECTIONS

The fastest SSD-based USB 3.1 Gen 2 drives now available can transfer data at 800 MB/s—many are bus-powered too. But most desktop computers (including many new models) feature old-generation USB interfaces that can’t support that performance and may not provide enough power to enable those bus-powered drives to function. Break through the bottleneck—install Sonnet’s Allegro™ Pro USB 3.1 PCIe card in your Mac Pro? tower Windows? PC or Linux(1) computer with PCIe slots; or Thunderbolt™ to PCIe card expansion system to support your fast USB drives at maximum performance.
…

Thunderbolt 3 Upgrade Card for xMac mini Server
UPGRADE INSTEAD OF ADAPTING
Why adapt when upgrading offers more? With the Thunderbolt 3 upgrade kit installed you get:

• Easy to Install 40Gbps Thunderbolt 3 Upgrade Card – Replaces Existing 20Gbps Thunderbolt 2 Interface Board
• Improves Performance with High-Bandwidth PCIe Cards – Provides 30% More Bandwidth (Up to 1750 MB/s)
• Two Thunderbolt 3 Ports
• 0.5-meter Thunderbolt 3 (40Gbps) cable
• ThunderLok 3 Thunderbolt Connector Retainer Clip
- Features
- Type PCIe Card Expansion Systems

Solo10G SFP PCIe Card
• Adds 10GbE Connectivity to Mac Pro Towers Windows PCs or Linux Servers - Powerfully simple way to add high-performance 10GbE connectivity via optical cable to your computer with PCIe slots
• Cost-Effective - Includes 10GBASE-SR (short-range) SFP+ transceiver and supports connection up to 300 meters to 10GbE infrastructure via LC multi-mode fiber optic cable (sold separately)
• Easy Setup - Configure using your computer’s operating system network device configuration tools
• Optimized for Thunderbolt™ - Ideal for use in Sonnet’s Echo™ Express and xMac™ Thunderbolt-to-PCIe card expansion systems

COMPUTER COMPATIBILITY …

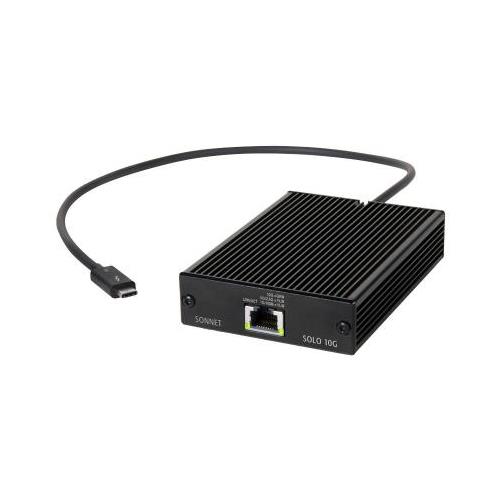

10GB Ethernet Thunderbolt 3 Adapter
BLAZING-FAST 10GBASE-SR CONNECTIVITY AT A BREAKTHROUGH PRICE
Technical advances plus cheaper gear have enabled creators to capture and output more content than ever at 4K and higher resolutions. The resulting files are larger too. When moving all that data between your computer and networked storage a simple Gigabit Ethernet connection can negatively impact your productivity. For post-production shared storage workgroups and other bandwidth-intensive workflows you need more speed—10 Gigabit Ethernet (10GbE) is the new data transfer standard. Affordable switches have lowered costs for setting up 10GbE infrastructure; however the price of adding fiber …

Install up to Four M.2 NVMe SSDs into a PCIe Card Slot Ultra-speed Data Transfers!

If you need to add internal storage to your computer and ultra high-speed data transfers are critical to your work you need an NVMe SSD-based upgrade. Individually M.2 NVMe PCIe SSDs offer tremendous performance but Sonnets M.2 4x4 PCIe Card enables you to mount up to four of them into a single x16 card slot.

Use the Sonnet card for instant-access media storage or as a high-performance scratch disk in your Mac Pro tower; Windows or Linux PC desktop or server; or Thunderbolt to PCIe card expansion system with an available x16 PCIe slot. Are you an Adobe After Effects user? Imagine being able to perform 4Kp60 …

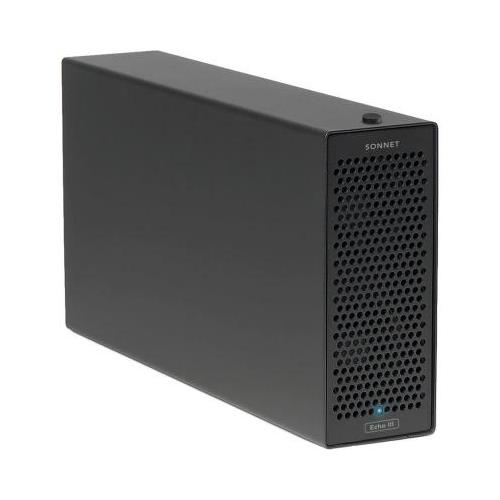

Thunderbolt 3 PCIe Card Expn System
CONNECT A FULL-HEIGHT HALF-LENGTH+ PCIE CARD TO COMPUTERS WITHOUT EXPANSION SLOTS
Are you in the market for a new computer? It’s amazing how much processing power the latest ultra-light notebooks small form factor computers and all-in-one desktop computers pack in such small and thin enclosures. But thinness comes with a cost—there’s nowhere for you to install PCIe cards for the additional connectivity and processing capabilities beyond what’s offered by a computer’s standard ports. Although thin Mac? and Windows? computers with Thunderbolt™ 3 ports offer processing power to spare for many such as pros in the creative …

Pro Power Graphics
Add a High-performance Video Card to Create Your Own Personal eGPU Workstation

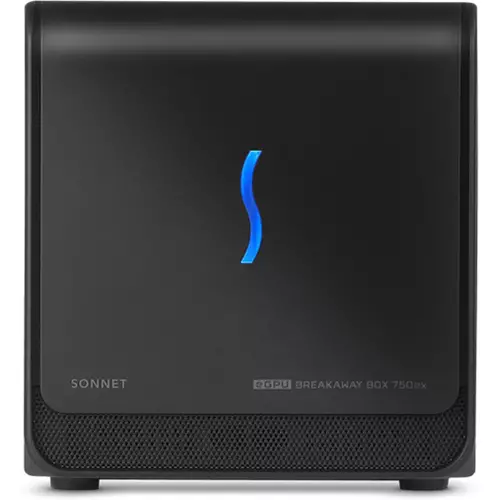

Thunderbolt to eGPU Card Expansion Systems
Transform Your Thunderbolt Computer Into a Graphics Workstation
Whether youre editing rendering color grading animating or creating special effects many of the pro applications you use rely on desktop and workstation graphics (GPU) cards to do the heavy lifting in processing data. Unfortunately many popular computers are equipped only with integrated graphics or low-power discrete GPUs that bottleneck performance when performing these tasks. Happily theres a simple path to greater productivityadd a Sonnet external GPU (eGPU). The eGPU Breakaway Box …

Allegro Pro USB-C 8-Port PCIe Card
PRO PORTS. MAX PERFORMANCE FROM EACH ONE.
FIRST PRO PCIE ADAPTER CARD WITH EIGHT EXTERNAL USB-C PORTS FOUR USB 3.2 CONTROLLERS AND AN X8 PCIE 3.0 BRIDGE CHIP

Even in computers with multiple expansion card slots every slot is valuable—there may not be space to install two 4-port adapter cards. Sonnet’s Allegro™ Pro USB-C? 8-Port PCIe Card is the first adapter card ever to feature eight high performance USB-C ports fitting them neatly on a standard full-height PCIe card bracket. Ports are spaced to enable connection of eight cables (and even USB-C male to USB-A female adapters).

Why Sonnet? Many multi-port USB cards split a single USB …

Sonnet Twin25G PCIe Card
INCREDIBLE 25GBE CONNECTIVITY
Many bandwidth-intensive workflows — including post-production shared storage workgroups — have reached a point where 10Gb Ethernet does not provide sufficient bandwidth and speed for optimum performance. Upgrading to 25Gb Ethernet is the smart choice — it offers greater performance and works with the same optical network infrastructure as 10GbE. Step up to the Sonnet Twin25G™ PCIe Card an affordable and powerful solution for adding incredibly-fast fiber optic 25GbE network connectivity.

AFFORDABLE 25GBE NETWORKING
Mac users need faster network speeds and increased bandwidth for postproduction workflows. Recently …

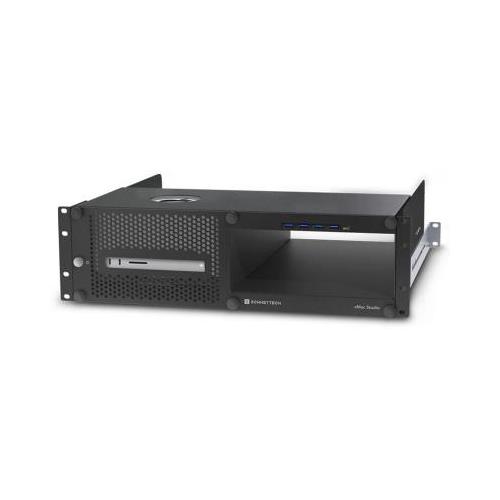

xMac Studio Pro 3U Rackmount Enclosure with Thunderbolt to PCIe Card Expansion System
A Mac Studio™ delivers phenomenal processing power outperforming computers multiple times its size and price — it also provide a lot of ports to connect things. But how do you incorporate a Mac Studio into off-the-desk professional workflows?

Sonnet’s xMac Studio integrates a Mac Studio into a compact rackmount enclosure with an optional PCIe card expansion module to support diverse audio and video application needs

EASY ACCESS TO MAC STUDIO AND PCIE CARD EXPANSION MODULE
xMac Studio is a rugged steel 3U rackmount enclosure for securing a Mac Studio with optional PCIe card expansion …

Sonnet M.2 8x4 Silent Gen4 PCIe Card
ULTRA-FAST GEN4 SSD DATA TRANSFERS
Speed or capacity? Not too long ago you had to make a choice between the two. The problem is for many professional workflows both are critical. Everyone knows M.2 NVMe PCIe SSDs offer great performance but limited capacity. Hard drives offer great capacity but very slow speeds by comparison. What if you could create increased SSD capacity? We make it possible — the Sonnet M.2 8x4 Silent Gen4 PCIe? Card enables you to mount up to eight NVMe SSDs into a single x16 PCIe card slot and combine their capabilities for ultra-performance. This card can transform your workflow.

GEN 4 PCIE SLOT RAID 0 PERFORMANCE
Install …

TRANSFORM A MAC MINI? WITH THUNDERBOLT 3 PORTS FROM A BASIC COMPUTER TO A WORKSTATION
For many applications a Mac mini with Thunderbolt 3 ports has all the processing power necessary to allow it to replace a full-sized desktop or workstation. But for pro audio and video users the mini’s compact size can limit its potential—there are no slots for PCIe expansion cards needed to provide additional connectivity and functionality and you need to securely rackmount the computer. Sonnet’s award-winning xMac mini Server™ addresses these issues and maximizes a Mac mini’s capabilities in a big way.

Inside its custom 1U enclosure the xMac mini Server Thunderbolt 3 Edition …

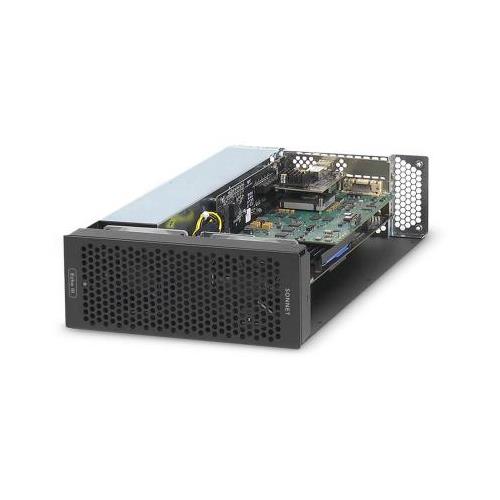

DuoModo Echo III Module
The DuoModo™ Echo™ III Module connects up to three PCIe cards to computers without card slots. The module supports three full-height full-length Thunderbolt™-compatible non-GPU PCIe cards; provides 400W of power for the most demanding of PCIe cards including qualification from Avid for Pro Tools HDX PCIe cards; features quiet dual temperature-controlled Noctua fans rated at 17 dbA; and connects through super fast 40Gbps Thunderbolt interface.

GRAPHICS WORKSTATION POWER
If your workflow includes video editing rendering color grading animating or creating special effects many of the pro applications you use rely on desktop and workstation graphics …

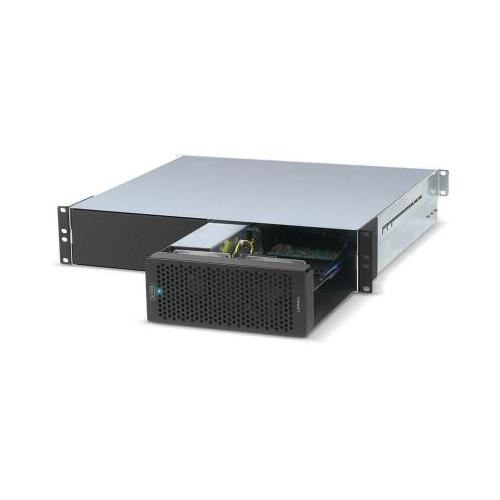

Echo III RM 3-Slot TB3 - PCIe Card Exp Sys
3-slot rackmount Thunderbolt 3 to PCIe card expansion system

Adds Connectivity & Capabilities
Connects up to three high-performance non-GPU PCIe cards via a Thunderbolt 3 cable to your computer lacking expansion slots.

Pro Tools HDX Compatible(1)
HDX compatibility mode enables use of up to three Pro Tools HDX PCIe cards with no additional parts needed.

Broad PCIe Card Compatibility
Every Thunderbolt 3 compatible non-GPU card supported regardless of length or height.

Three PCIe 3.0 Slots(1)
One x16 plus two x8 slots support three full-height single-width cards or one double-width card plus one single-width card.

Pro Power
Integrated …
