Power Saws EXCEL

S181G User-friendly safety switch according to IP54 with under voltage release and protective motor switch. Three blade speeds via gear shifting mechanism. Robust cast iron design. Lowering using hydraulic system with continuous adjustment. Coolant system supplied as standard. Ball bearing five point blade guide. Quick action vice. Automatic limit stop. Chip brush. Maximum capacity details: Cutting range at 0 (round): 180mm. Cutting range at 0 (square): 180 x 240mm/65 x 300mm. Cutting range at 45 (round): 110mm. Cutting range at 45 (square): 170 x 110mm. Blade speed: 39/66/82m/min. Blade size: 2362 x 19mm. Dimensions: 1275 x 450 x 1100mm. Motor power: 750W. Accessories Bi-metal blade.

S181G User-friendly safety switch according to IP54 with under voltage release and protective motor switch. Three blade speeds via gear shifting mechanism. Robust cast iron design. Lowering using hydraulic system with continuous adjustment. Coolant system supplied as standard. Ball bearing five point blade guide. Quick action vice. Automatic limit stop. Chip brush. Maximum capacity details: Cutting range at 0 (round): 180mm. Cutting range at 0 (square): 180 x 240mm/65 x 300mm. Cutting range at 45 (round): 110mm. Cutting range at 45 (square): 170 x 110mm. Blade speed: 39/66/82m/min. Blade size: 2362 x 19mm. Dimensions: 1275 x 450 x 1100mm. Motor power: 750W. Accessories Bi-metal blade.

Micro alignment of Blade through Ball Bearings & Carbide Blade Guides. Dovetail slide with take up gib. Rapid approach Vice. Adjustable Hydraulic Feed. Automatic Cut Off. Variable Speed. No Belt change. No time wasting. Speeds up production. Coolant Pump & Accessories.

Micro alignment of blade through ball bearings. Dovetail slide with take up gib. Rapid approach vice. Adjustable hydraulic feed. Automatic cut off. Variable speed: No belt change. No time wasting. Standard accessories: Coolant pump & accessories. Instructions. Optional accessories: Single roller stand 1-625-994 MSR4 4 roller adj. stand 0335-7610. Maximum capacity: @ 90: Round 250mm, Square 250 x 250mm, Rectangular (H x W) 250 x 415mm. @ 45: Round 190mm, Square 190 x 190mm, Rectangular (H x W) 250 x 190mm. Vice capacity: 450mm. Blade size: 3300 x 27 x 0.9mm. Blade speed - stepless: 25-75m/min. Mitre cut: 45. Motor: 2hp. Dimensions (L x W x H): 1750 x 575 x 1120mm.

KV Series - 230V/1ph 50Hz Heavy-duty suitable for continuous use. High quality electrics and limit switches to blade wheelcovers make safe to use and conform to CE. Air pipe keeps the visibility clear near the cutting edge. Standard accessories Saw blade butt welder with integrated annealing unit. Blade shear, grinder and built-in blade and tyre cleaning brush. Lo-volt light. Set of tools. Instruction manual and parts list. Rip fence for straight, repeated cutting and is easily adjustable for varied size. Mitre protractor for angular cutting.

KV Series - 230V/1ph 50Hz Heavy-duty suitable for continuous use. High quality electrics and limit switches to blade wheelcovers make safe to use and conform to CE. Air pipe keeps the visibility clear near the cutting edge. Standard accessories Saw blade butt welder with integrated annealing unit. Blade shear, grinder and built-in blade and tyre cleaning brush. Lo-volt light. Set of tools. Instruction manual and parts list. Rip fence for straight, repeated cutting and is easily adjustable for varied size. Mitre protractor for angular cutting.

KV Series - 230V/1ph 50Hz Heavy-duty suitable for continuous use. High quality electrics and limit switches to blade wheelcovers make safe to use and conform to CE. Air pipe keeps the visibility clear near the cutting edge. Standard accessories Saw blade butt welder with integrated annealing unit. Blade shear, grinder and built-in blade and tyre cleaning brush. Lo-volt light. Set of tools. Instruction manual and parts list. Rip fence for straight, repeated cutting and is easily adjustable for varied size. Mitre protractor for angular cutting.

KV Series - 230V/1ph 50Hz Heavy-duty suitable for continuous use. High quality electrics and limit switches to blade wheelcovers make safe to use and conform to CE. Air pipe keeps the visibility clear near the cutting edge. Standard accessories Saw blade butt welder with integrated annealing unit. Blade shear, grinder and built-in blade and tyre cleaning brush. Lo-volt light. Set of tools. Instruction manual and parts list. Rip fence for straight, repeated cutting and is easily adjustable for varied size. Mitre protractor for angular cutting.

Stand alone coolant system with high volume tank. Specially designed water way for better cooling effect. Adjustable setting with scales for better cutting length measurement. Heavy duty design for spindle and worm gear box. Swift clamping handle design for easy work piece loading. Shock proof design for control panel. Miter design for cutting angle adjustment 45 on the right and left respectively.

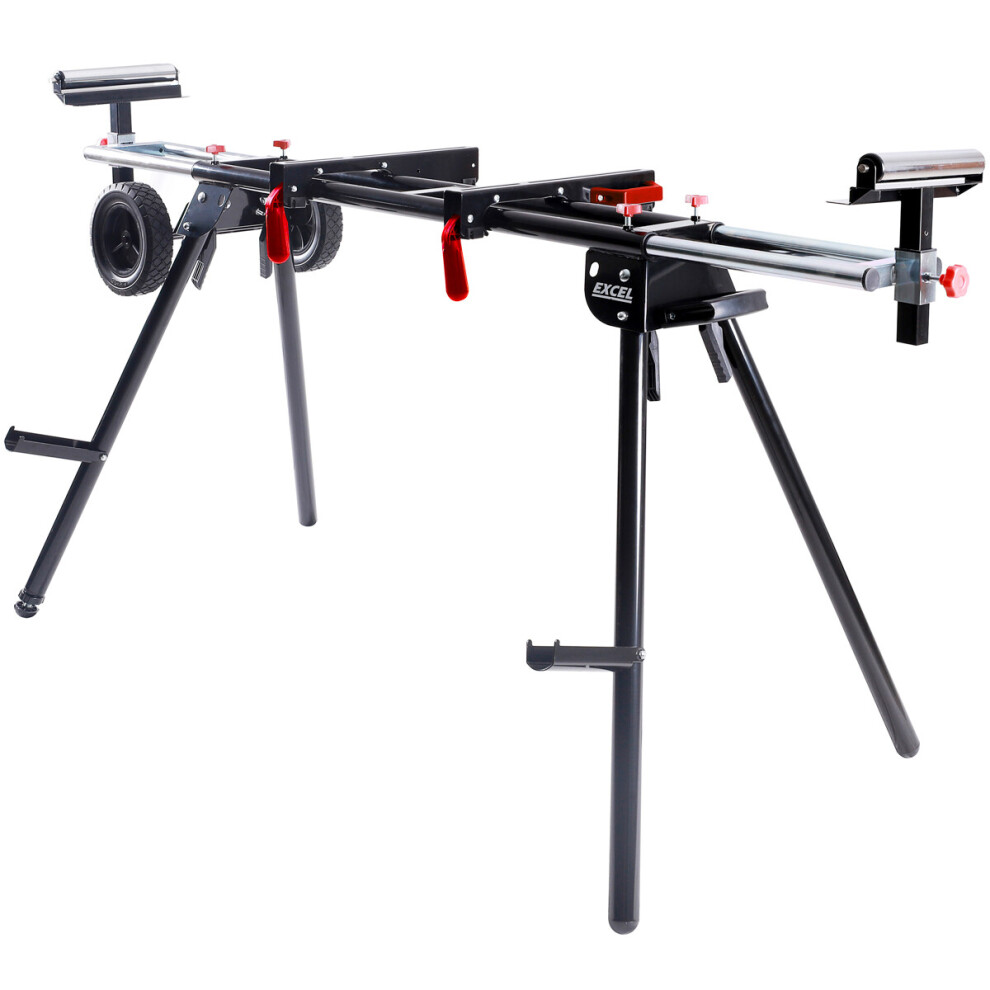

The Excel 7475 Universal Mitre Saw Stand with Wheels is the ultimate portable saw workstation. The Excel 7475 will fit most 10 and 12 Inch Mitre Saws. The stand is constructed with steel tubing and locking steel legs which provides a weight capacity up to 150 kgs. Miter saws, and other bench top saws and planers can be easily secured and removed with quick-dash release universal mounts. Two adjustable steel rollers support your workpiece along the stand length smoothly and accurately. Useful flip- down supports for lumber or material storage offer easy accessibility to work materials. For stability, the leveling feet are adjustable for uneven surfaces. For ease of mobility, this stand comes …
