Other Sound & Hi-Fi Digitus

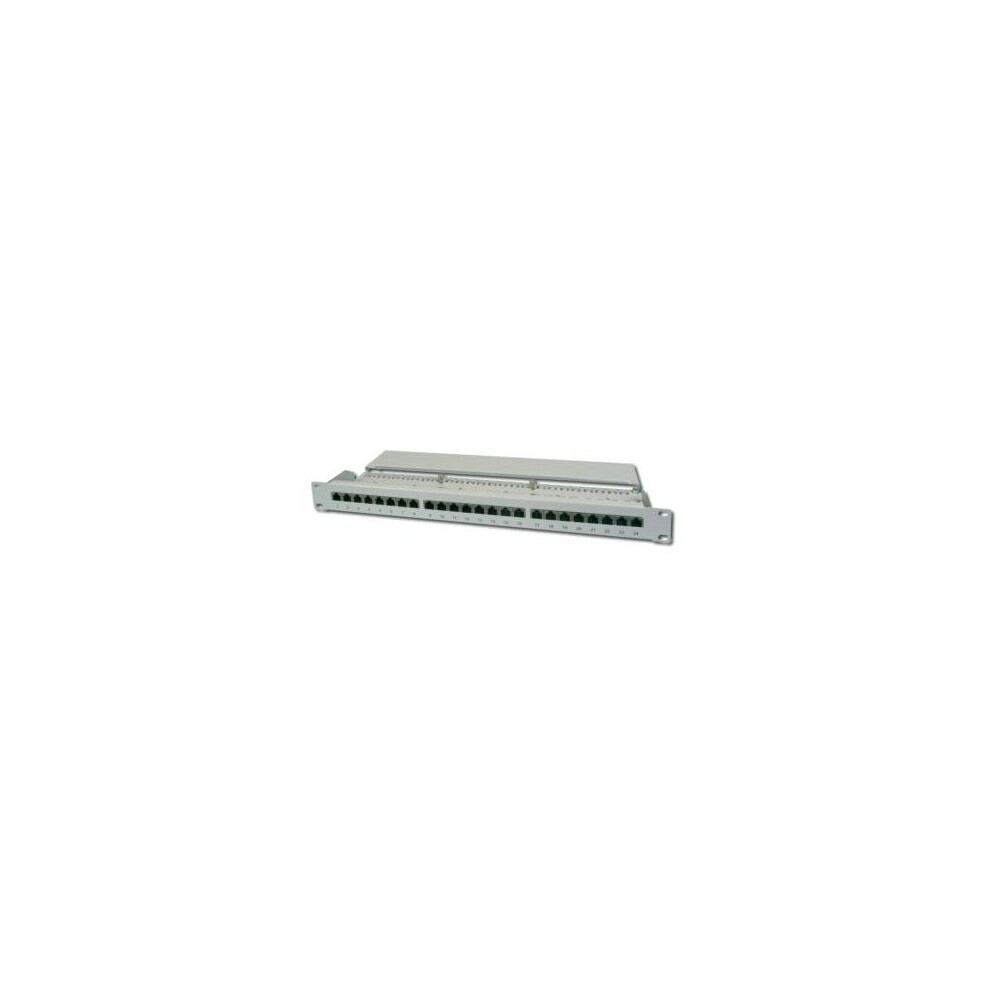

- Housing of 1.2mm sheet steel - Color grey RAL 7035 - Unshielded RJ 45 Jacks 8P4C - 1U - Cable installation via LSA strips - Suitable for 483mm...

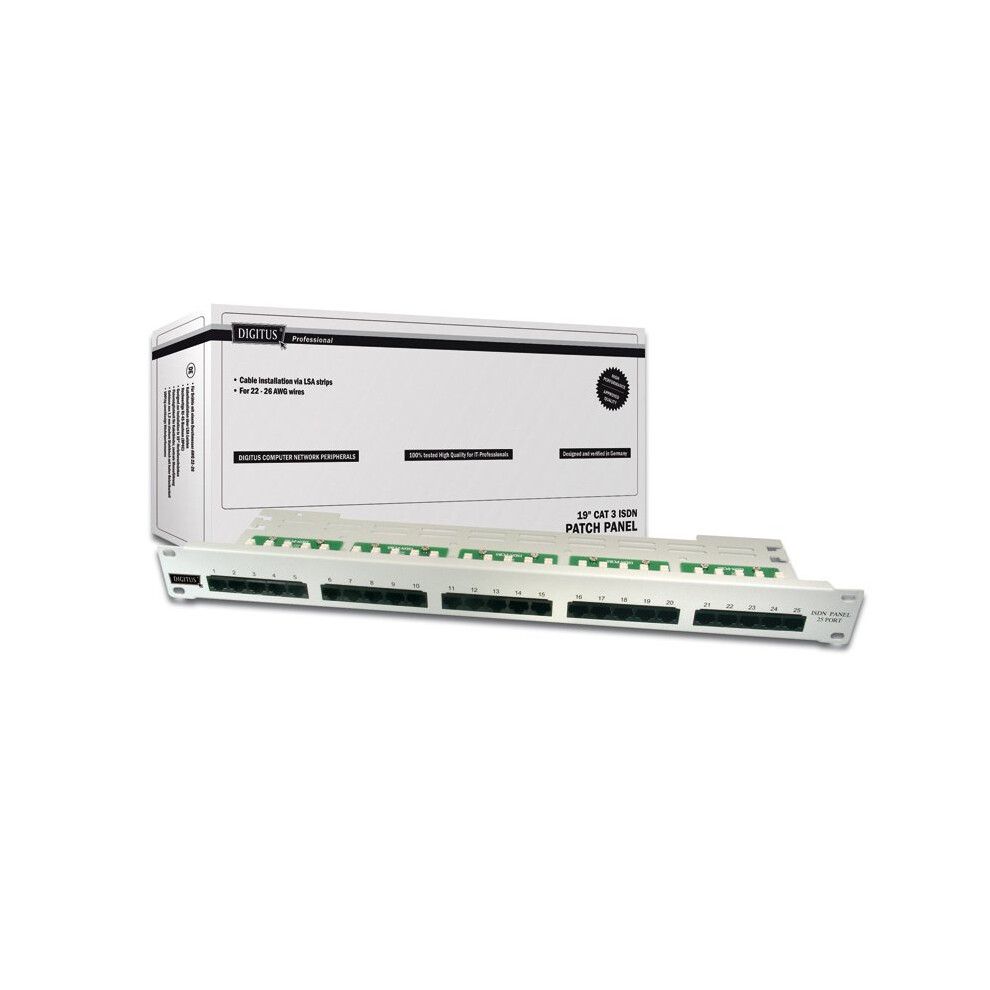

- ISO/IEC 11801 and EN 50173 - RJ45 jacks - Cable installation via LSA strips, color codes based on EIA/TIA568 A & B - Fixing option for cable...

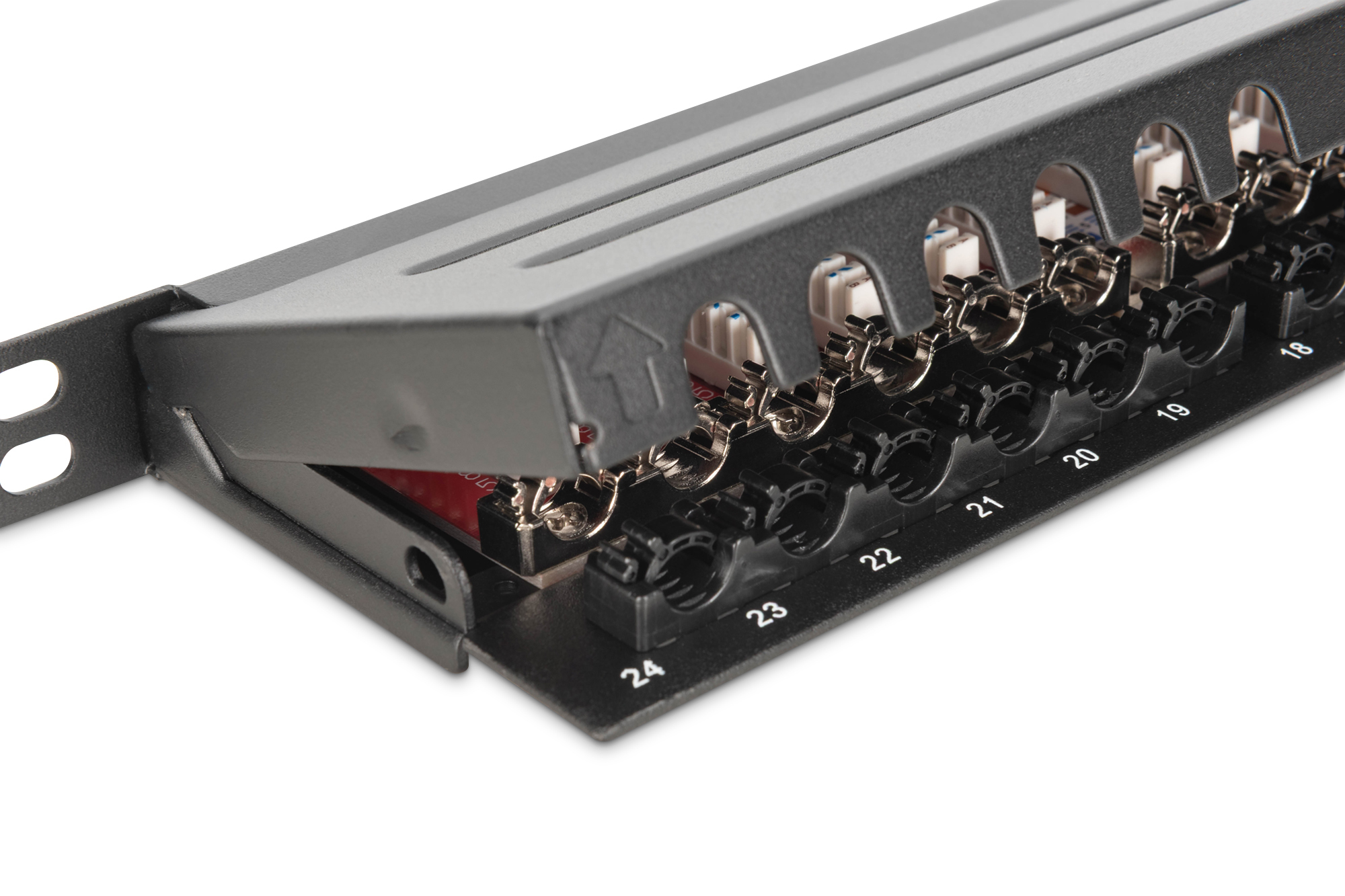

Very space-saving (only 0.5U) - With dust protection caps - Future-oriented standards and high-end quality for your network- Slim installation height of only 0.5 U- Up to 48 ports per U possible (2 x 24 port panels)- Dust protection flaps on the RJ45 sockets- 360° shield contacting- Cable clamp for fixing and routing. reclosable- Quick-release fastener to secure the housing coverThe DIGITUS® 24-port patch panel offers a very high packing density with only 0.5 U. This means that up to 48 ports can be implemented on 1 U with two 0.5 U panels. The patch panel is shielded and equipped with dust protection caps on the RJ45 sockets. The 360° shield contact of the cables ensures the best performance cha…

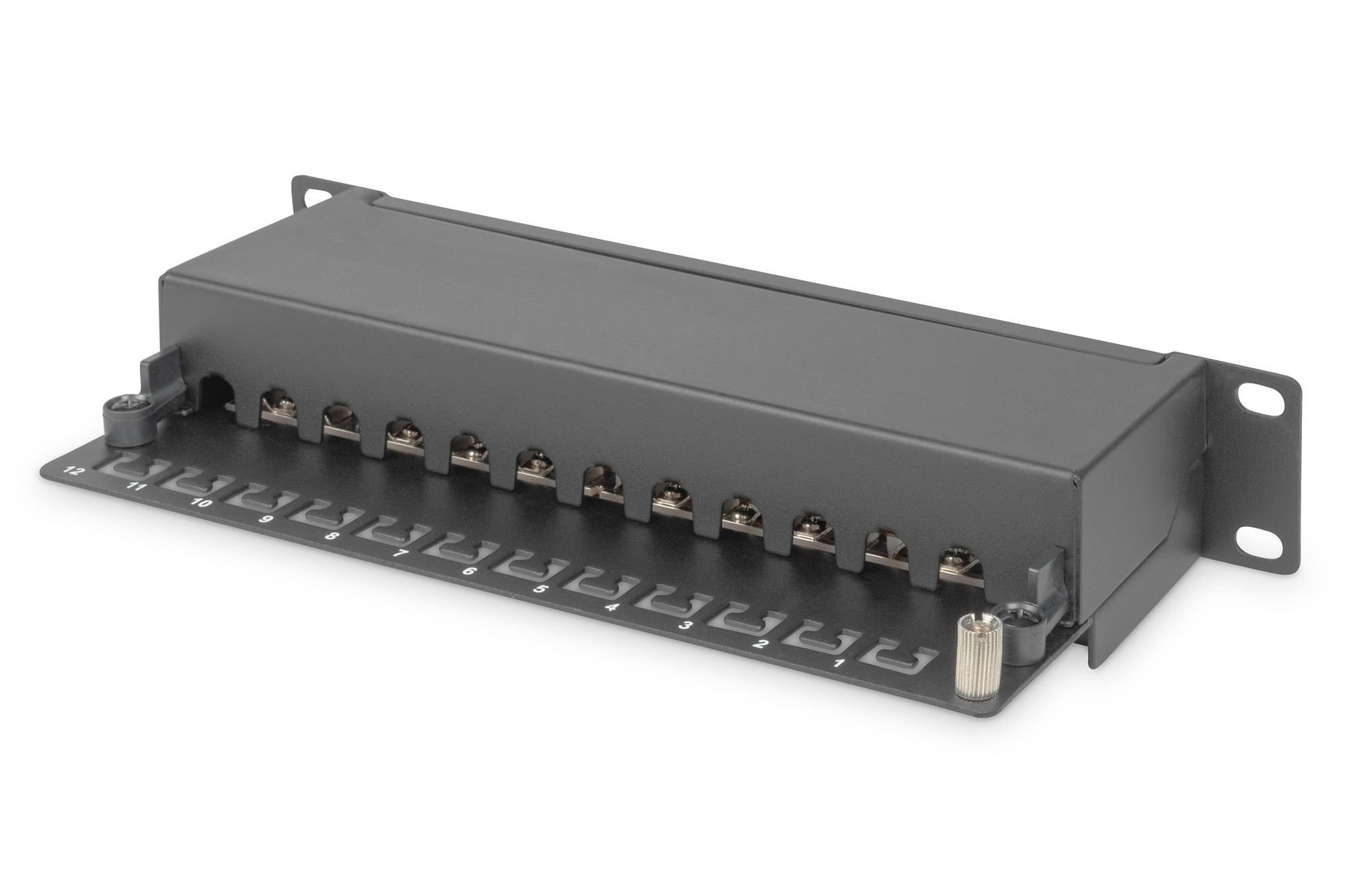

Future-orientated standards and high-end quality for your network.- Sturdy patch panel with metal housing- Complete shielding of housing and shield contact- Cable installation by IDC-strips- Central grounding connector- Dielectric strength up to 1500VDCThe CAT 6A patch panel is available in this 12 port version. It offers sturdy design by its 1.5mm galvanic cold rolled steel. Perfect for 10" cabinet mounting. The fully shielded RJ45 sockets provide an optimal stability for your cables with best performances. The patch panel applies to 802.3at/af PoE standard. It is shielded electromagnetically and offers lost and interruption free forwarding of your data in your network. The 360 degree shielding …

EU Plug.Features:- Transmission properties:Category 6.- Area of application:Up to 250 MHz, 1GBase-T.- Norms:ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C.- General properties:- Suitable for 483 mm (19´´) cabinet mounting.- RJ45 female, 8P8C.- Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B.- Cable fixing with smart cable ties.- Central ground connection.- 360° shield coverage.- Mechanical properties:- Housing material:1.5 mm galvanic cold rolled steel, acc.to EN1.4301, UNS S30400, AISI 304 and LMSAD110.- RJ45 female material:ABS UL 94V-0.- RJ45 female contact:Tinned phosphor bronze, 0.5 μ gold-plated contact.- RJ45 shielding:Tinned bronze.- LSA termination clam…

EU Plug.Features:- Transmission properties:Category 6.- Area of application:Up to 250 MHz, 1GBase-T.- Norms:ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C.- General properties:- Suitable for 483 mm (19´´) cabinet mounting.- RJ45 female, 8P8C.- Cable installation via LSA strips.- Cable fixing with smart cable ties.- Central ground connection.- 360° shield coverage.- Mechanical properties:- Housing material:1.5 mm galvanic cold rolled steel, acc.to EN1.4301, UNS S30400, AISI 304 and LMSAD110.- RJ45 female material:ABS UL 94V-0.- RJ45 female contact:Tinned phosphor bronze, 0.5 μ gold-plated contact.- RJ45 shielding:Tinned bronze.- LSA termination clamp:Krone LSA+, UL 94V-0, zinc plated phosphor bron…

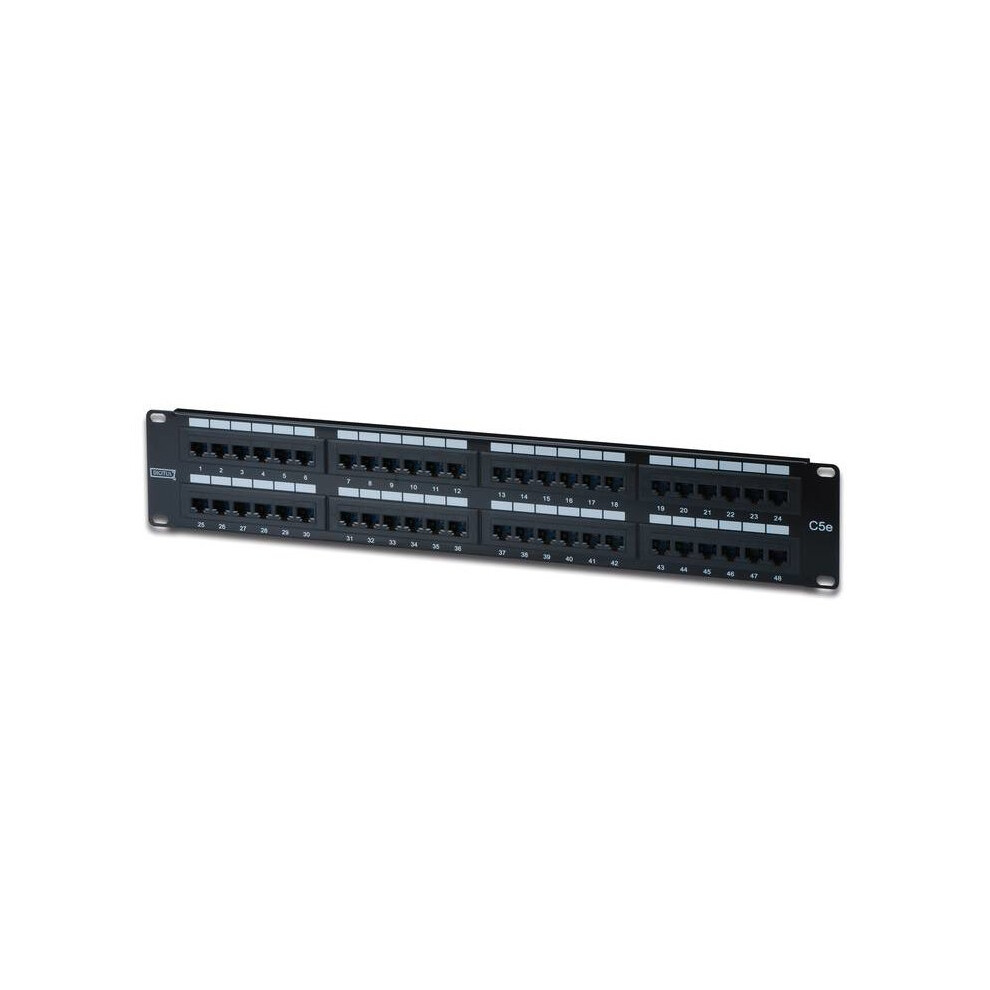

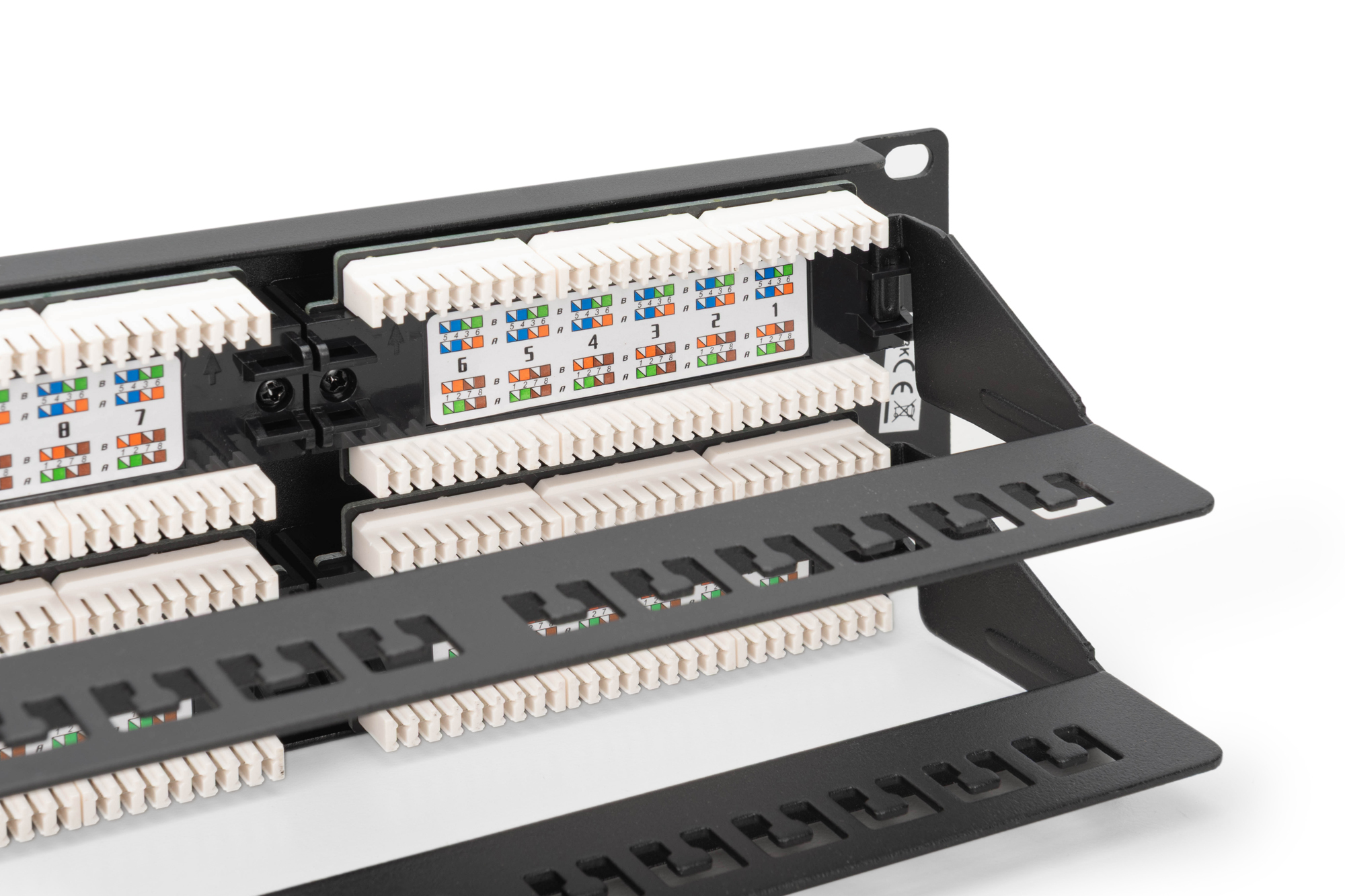

Future-oriented standards and high-end quality for your network.The unshielded CAT 6 Patch Panel from DIGITUS® is available as 16- or 24-port (1 Hight unit) or 48-port version (2 Hight units). It is manufactured acc. to Link Performance Class E. for up to 250 MHz. EN 50173 and ISO/IEC 11801. It is UL certified. The housing is made of 1.5 mm galvanized cold-rolled steel is is therefore perfectly suitable for19" rack mounting. Digitus CAT 6. Class E Patch Panel

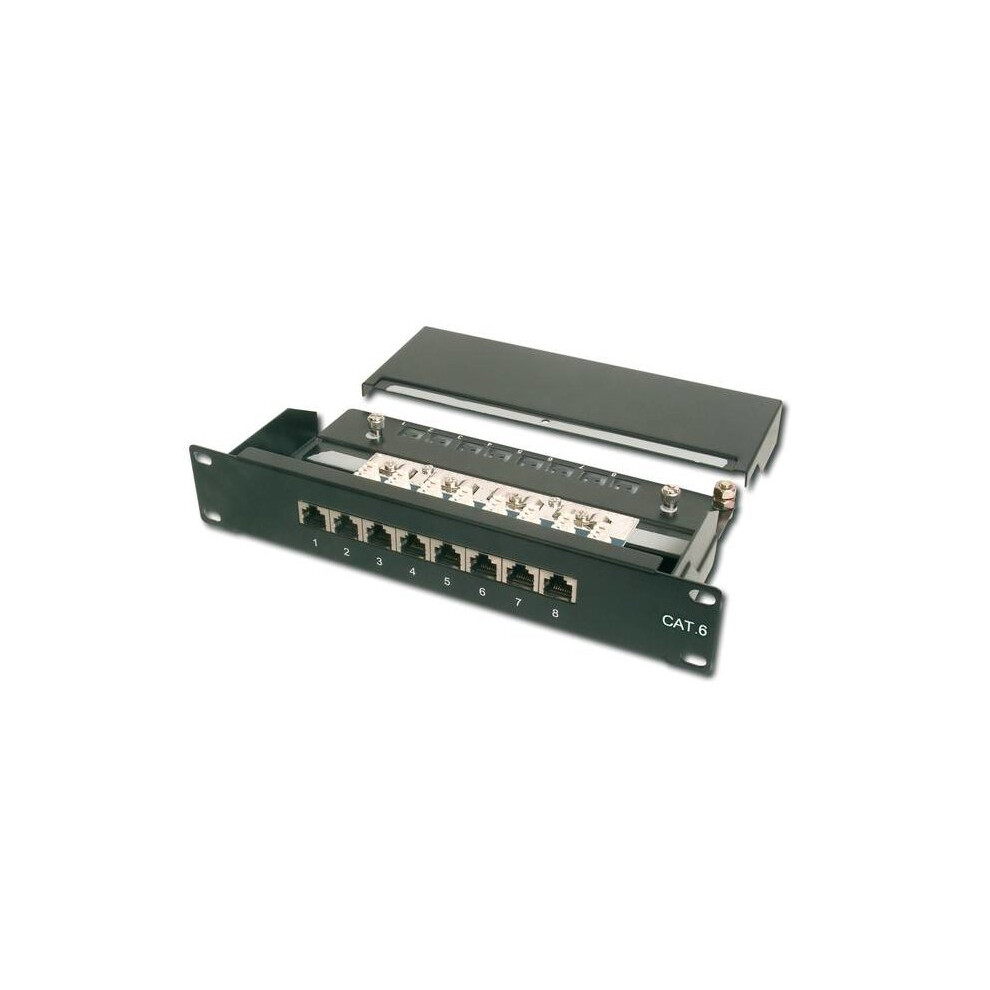

Future-oriented standards and high-end quality for your network.- Easy wire installation possible due to color coded LSA strips- Shielding provides optimized performances- Compact 10" design with 8x RJ45 portsThe CAT 6 Patch Panels for 254 mm (10") rack mount from DIGITUS® are manufactured with Link Performance Class E. for up to 250 MHz. ISO/IEC 11801 and EN 50173. Cable installation takes place via LSA strips which are color coded acc. EIA/TIA 568B. The housing consists of galvanized. cold-rolled steel. acc. EN1.4301. UNS S30400. AISI 304 and LMSAD110. Digitus CAT 6. Class E Patch Panel. shielded. black

- Tested according to Link Performance Class E, for up to 250MHz - UL certified - Housing of steel sheet - Shielded RJ45 femalesockets, 8P8C - 1U -...

Future-oriented standards and high-end quality for your network.The "DN-93603" from DIGITUS® is an unshielded keystone module with tool-free mounting connection. which offers you excellent performance and connection quality for your network. Its compact design allows 24 units to be installed in series in 483 mm (19") 1U panels. Digitus CAT 6 Keystone module. unshielded

EU Plug.Features:- Transmission properties:Category 6.- Area of application:Up to 250 MHz, 1GBase-T.- Norms:ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C.- General properties:- Suitable for 483 mm (19´´) cabinet mounting.- Cable installation via Lsa strips, color coded according to EIA/TIA 568 A & B.- Cable fixing with smart cable ties.- Central ground connection.- 360° shield coverage.- Integrated dust cover.- Mechanical properties:- Housing material:1.5 mm galvanic cold rolled steel, acc.to EN1.4301, UNS S30400, AISI 304 and LMSAD110.- Rj45 female material:ABS UL 94V-0.- Rj45 female contact:Tinned phosphor bronze, 0.5 μ gold-plated contact.- Rj45 shielding:Tinned bronze.- Lsa termination clam…

Future-oriented standards and high-end quality for your network.

- Robust patch panel with sturdy metal housing
- Complete shielding of housing and shield contacting
- Cable installation via LSA strips
- Central earthing connection
- Dielectric strength up to 1500 VDC (contact / ground)
- Metal-coated (electrically conductive) cable fixation for earthing the cable shielding

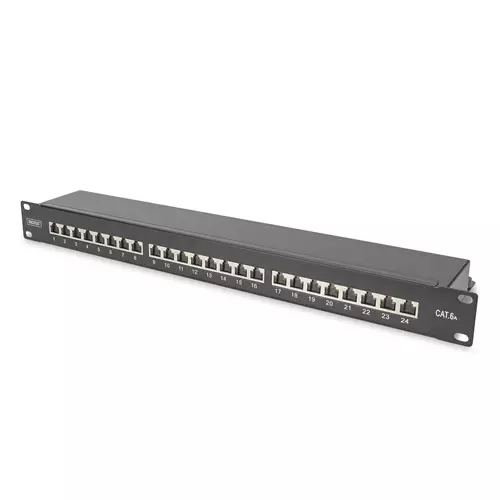

The DIGITUS "DN-91624S-EA" CAT 6A patch panel is available in a 24-port version and with its 1.5 mm galvanized cold-rolled steel is a robust patch panel for 19" rack mounting. It complies with the 802.3at PoE+ and 802.3af PoE standard and is equipped with dust protection flaps.…

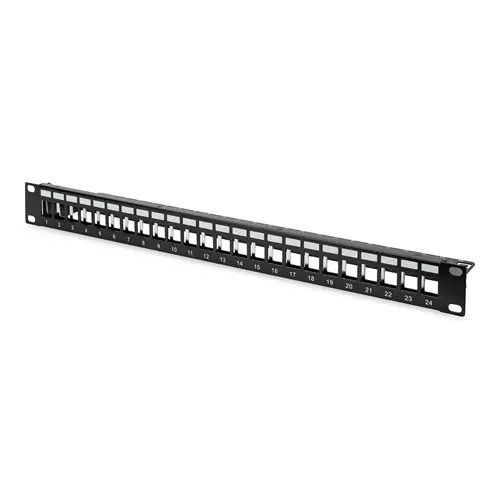

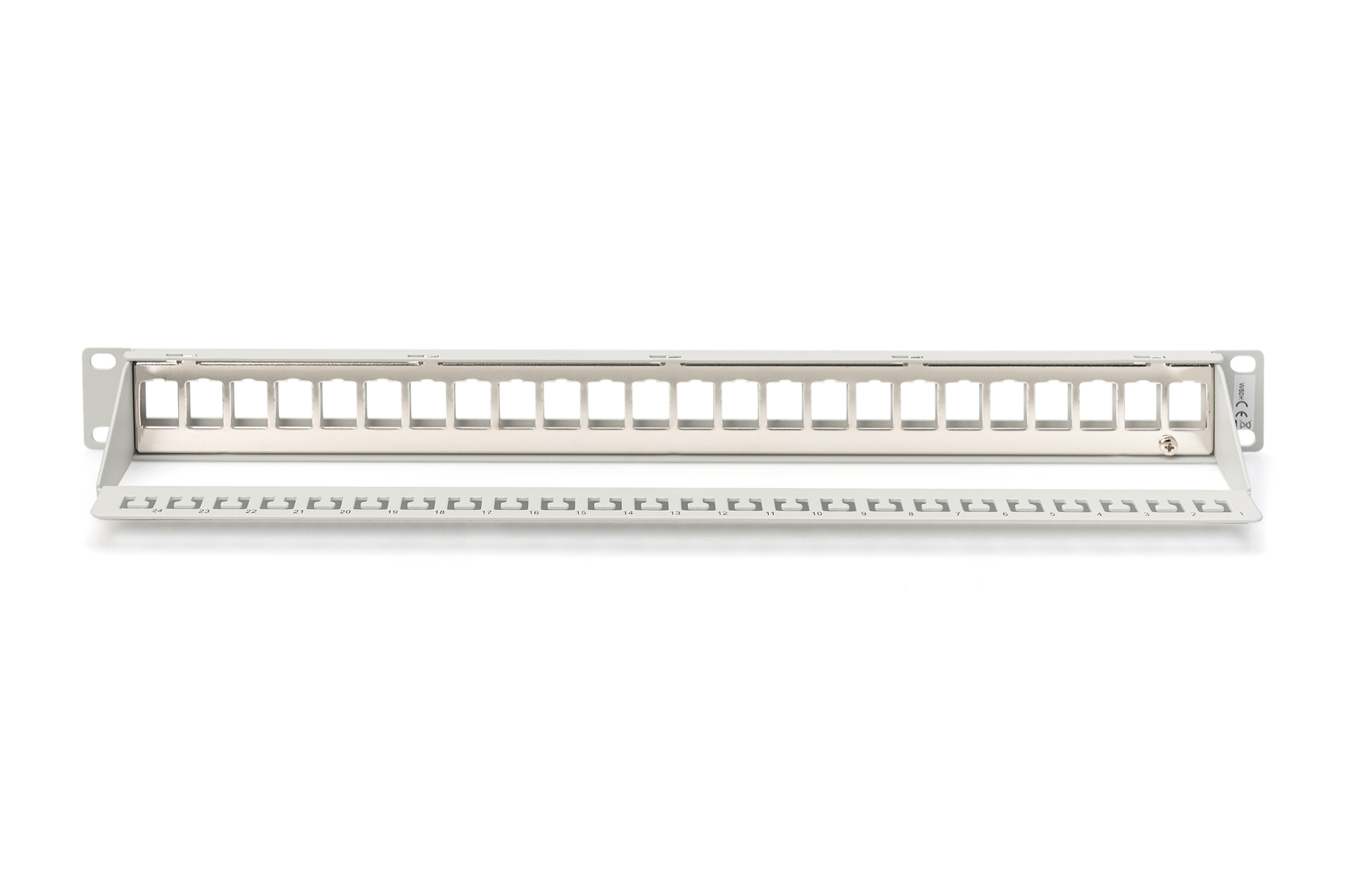

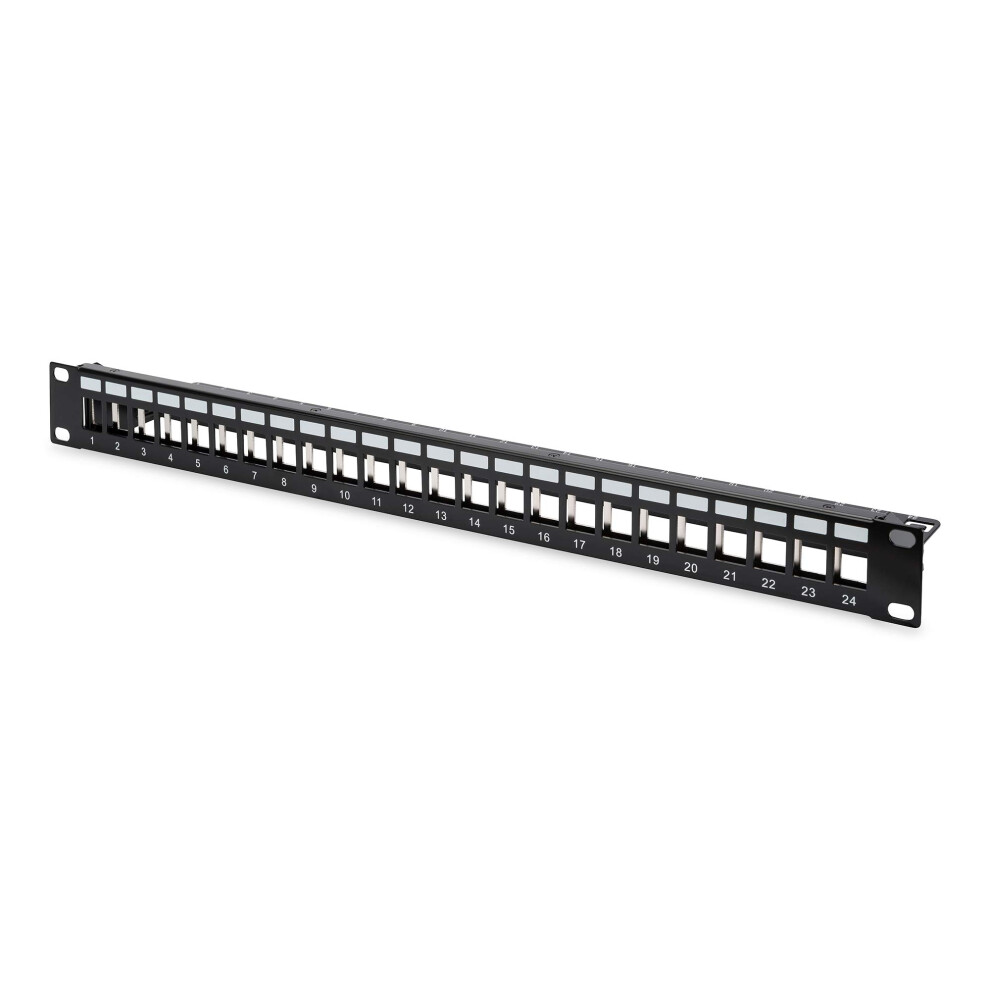

The Modular Patch Panel from DIGITUS is available as 16- or 24-port version. The 1.5 mm cold rolled c-steel provides the best storage of your Keystone Modules.

DIGITUS DN-91612SD-EA RJ45 Shielded Patch Panel, 12-Port, 10G, Cat.6AElevate your network infrastructure with the DIGITUS DN-91612SD-EA, a professional-grade 12-port RJ45 patch panel designed for superior performance and reliability in modern network environments. This compact and robust unit is the central connection point for your structured cabling, providing a clean, organized, and high-speed hub for your small office, home office (SOHO), or home lab setup. Engineered to meet the demanding Class EA standard, this patch panel is fully equipped to handle 10 Gigabit Ethernet, ensuring your network is future-proof and ready for high-bandwidth applications.Experience Uncompromised Performance …

DIGITUS DN-91624S-EA CAT 6A Shielded Patch Panel, 24-Port, 1U Rack MountElevate your network infrastructure to the next level with the DIGITUS DN-91624S-EA CAT 6A Patch Panel. This 24-port panel serves as the central hub for your high-performance network, providing a professional, organized, and reliable solution for terminating your structured cabling. Designed for 10 Gigabit Ethernet (10GbE) applications, it ensures your network is future-proof and capable of handling the most demanding data transfer requirements, from large file transfers and video streaming to complex data center operations and advanced home labs. Its robust construction and adherence to the highest industry standards make …

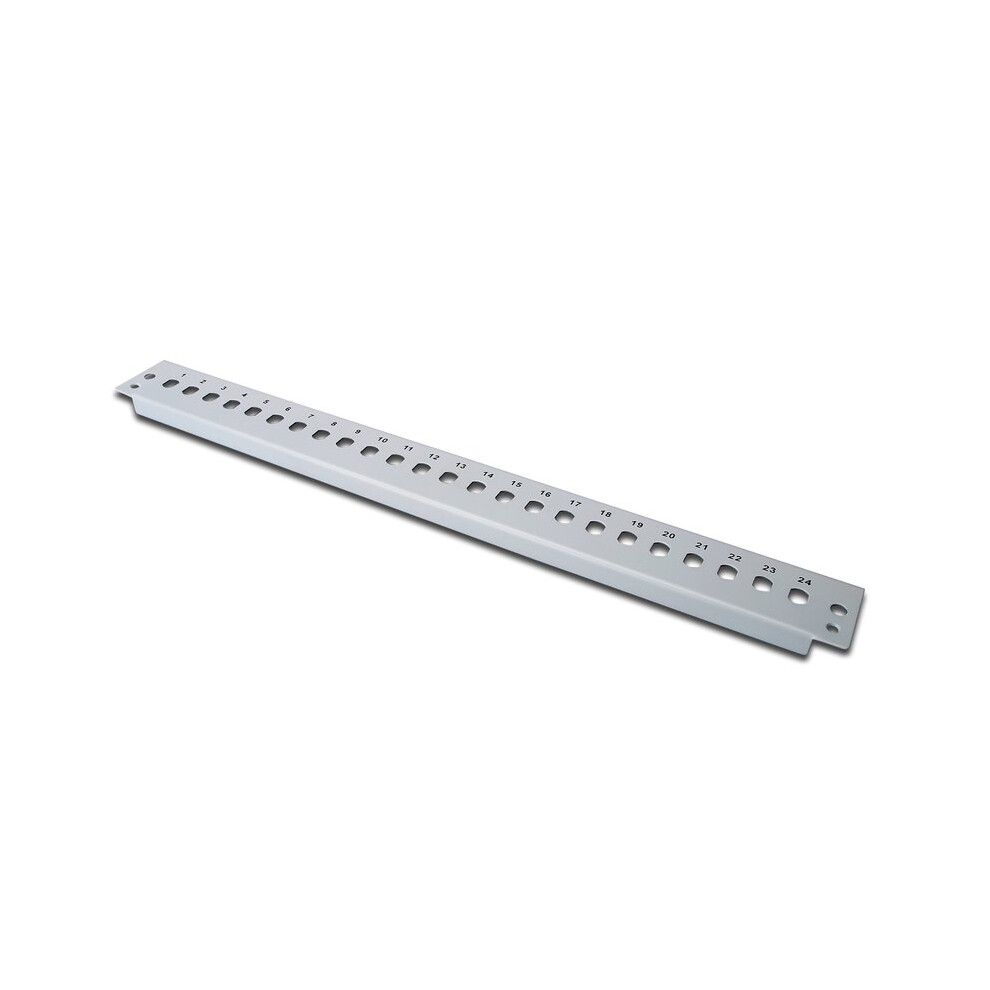

The DIGITUS® front panel was designed for the basic housingDN-96200. You can easily install the front panel with the fixingmaterial...

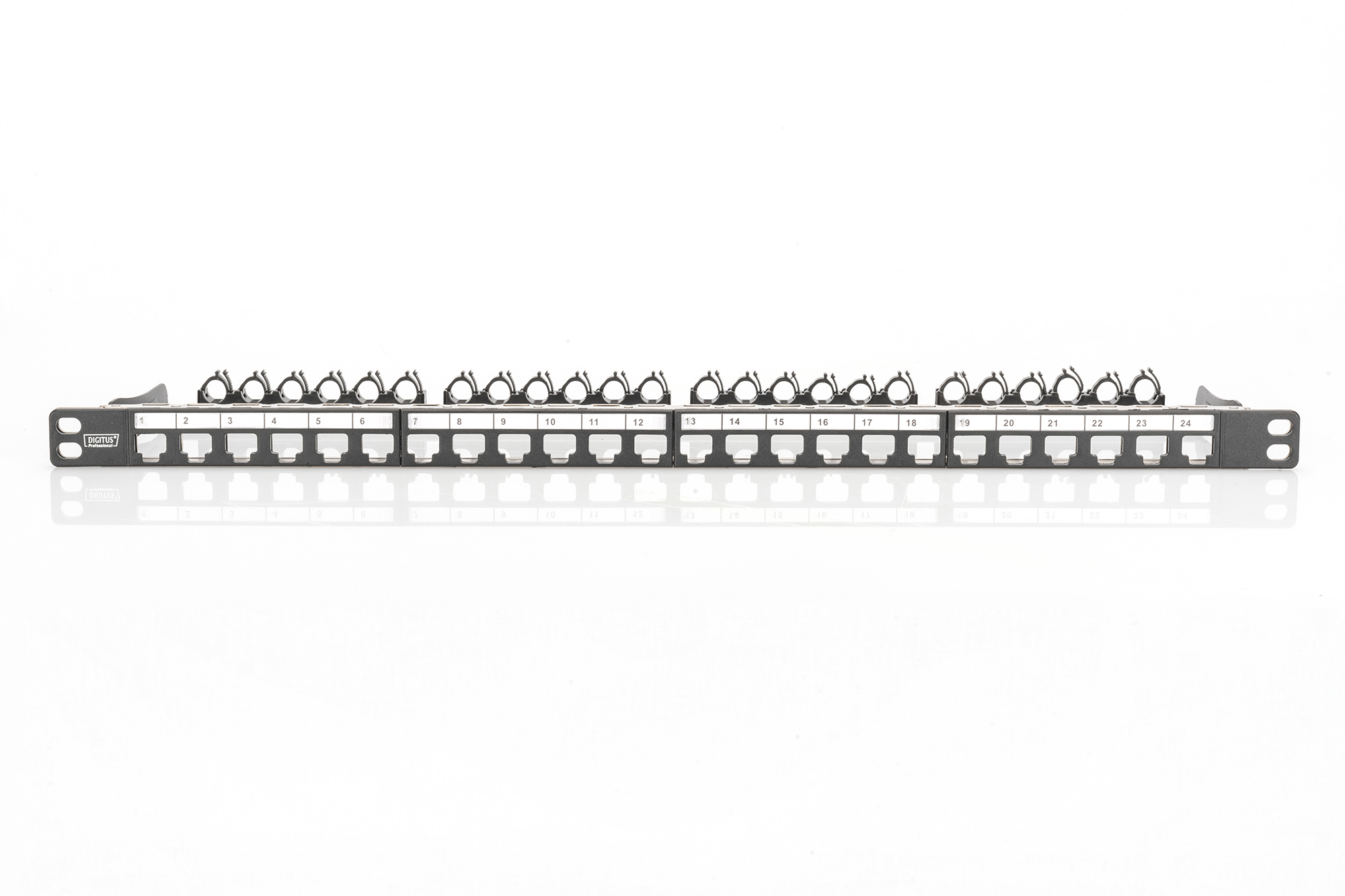

The DIGITUS® 24-port 0.5U patch panel offers you a high packing density. As the panel is only 0.5U high. 48 ports (2 panels with 24 ports each) can be installed on 1U. Digitus Modular High Density Patch Panel. shielded

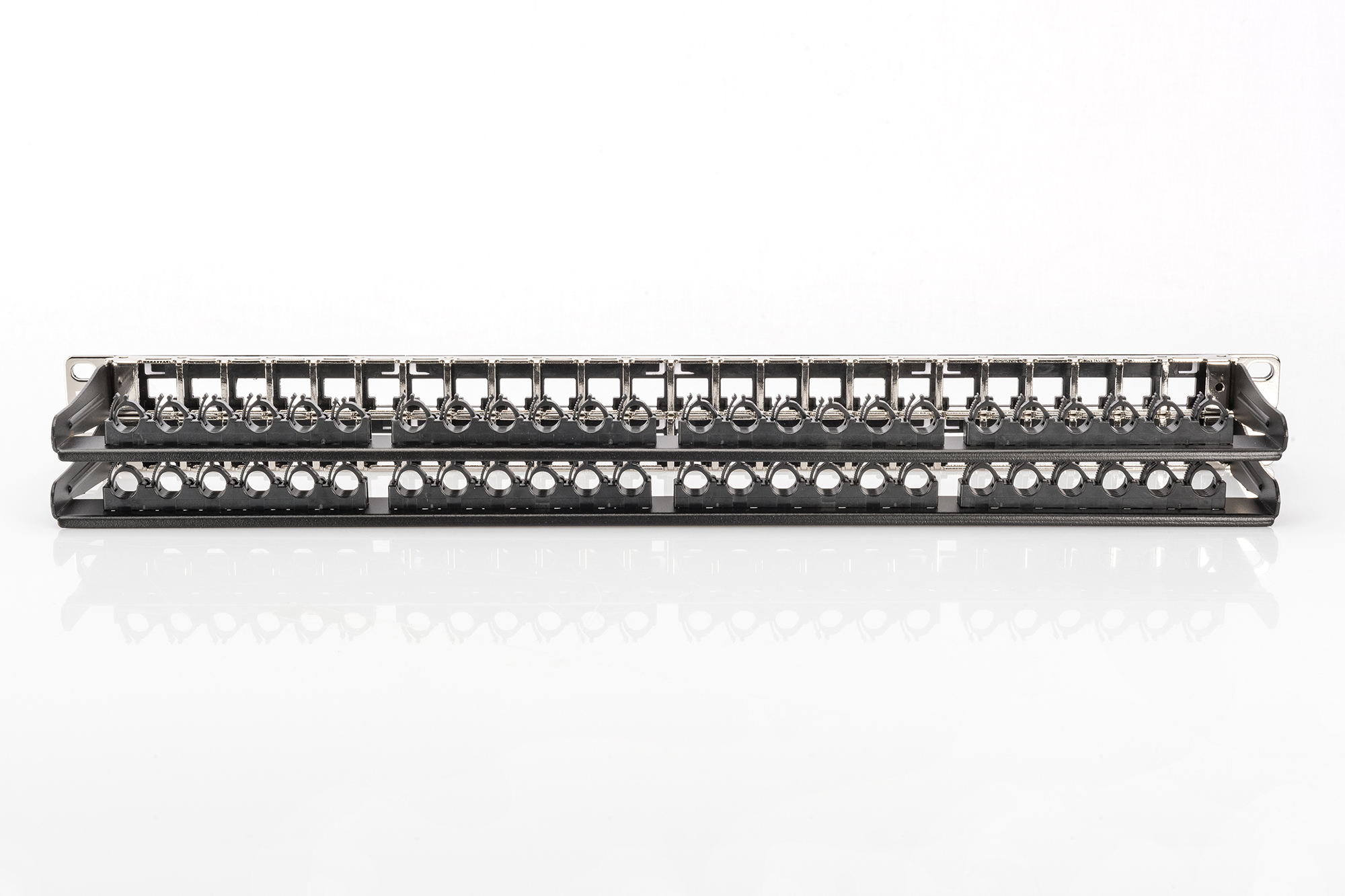

The DIGITUS® 48 Port 1U Modular Patch Panel ensures a High Density with the benefit of 48 Keystone Jacks in just one height unit. Digitus Modular High Density Patch Panel. shielded

Suitable for shielded and unshielded DIGITUS Keystone Modules and Couplers

- Robust steel housing
- Additional cable fixation on mounting rail possible

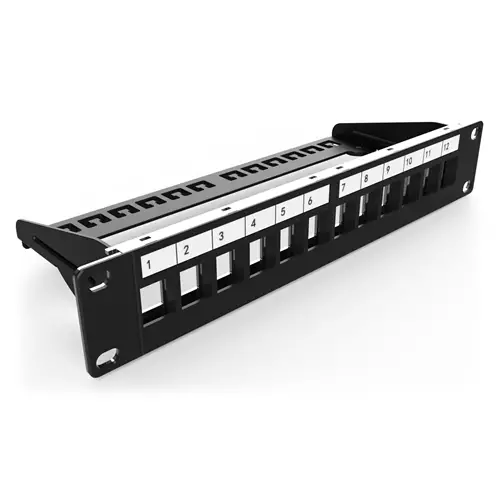

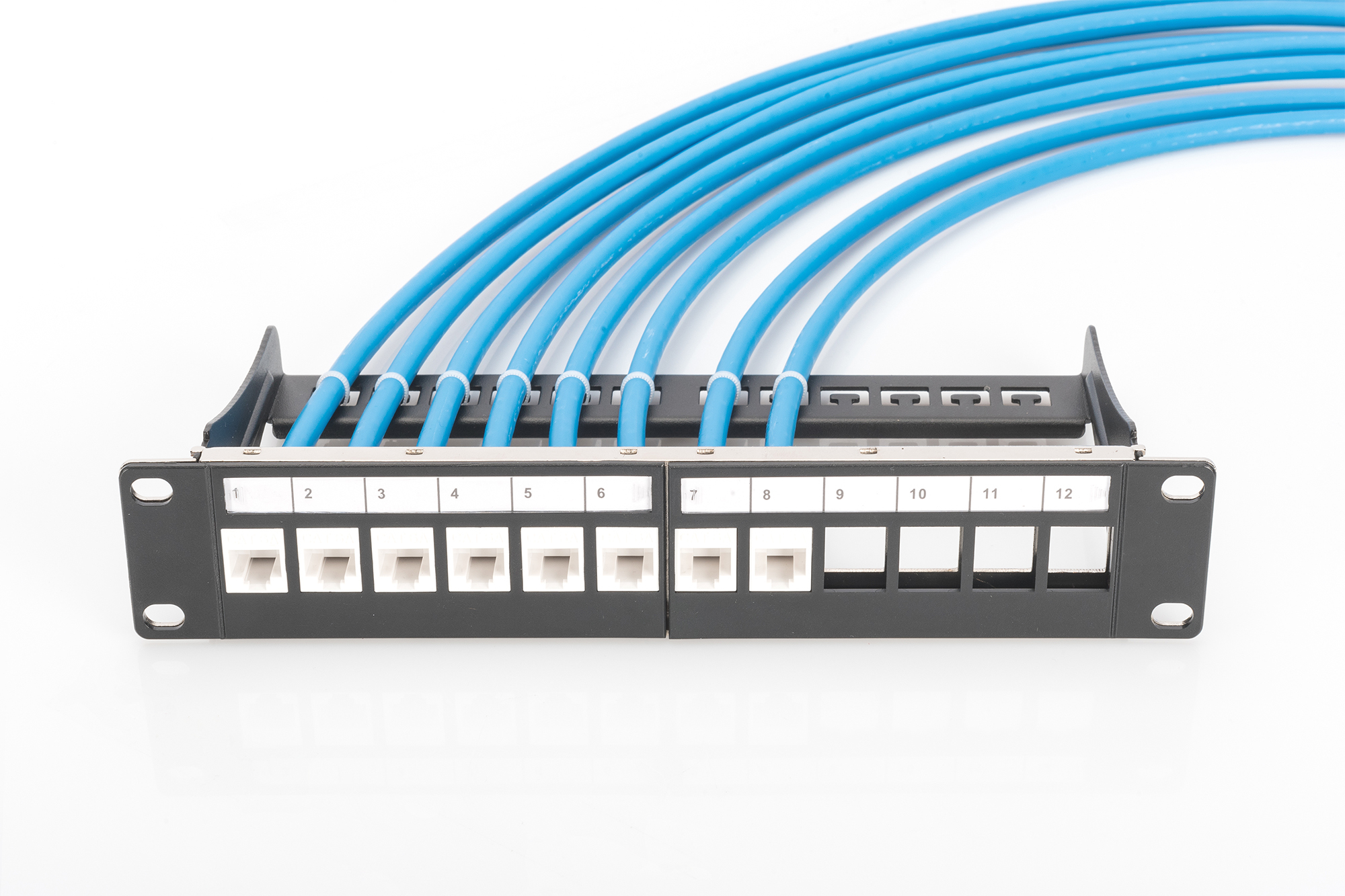

The DIGITUS 12 port patch panel is suitable for installation in 10 inch wall housings or cabinets and can accommodate shielded or unshielded keystone modules. The network cables can also be fixed on the rear rail using cable ties. The patch panel is made of robust cold-rolled steel and is supplied in black (RAL 9005). In addition the patch panel can be connected to the existing protective earth conductor (PE) using an earth cable (not included in the package content).

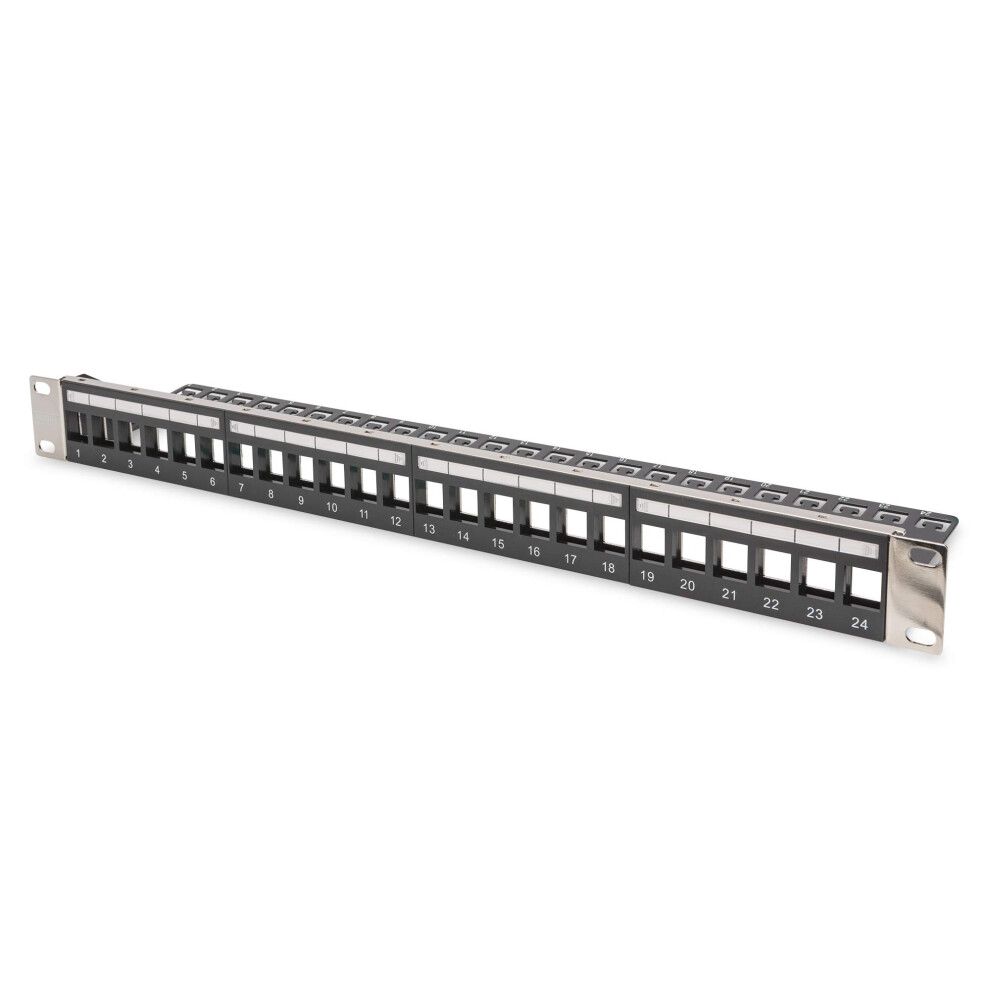

The Modular Patch Panel from DIGITUS® is available as 16- or 24-port version. The 1.5 mm cold rolled c-steel provides the best storage of your Keystone Modules. Digitus Modular Patch Panel. 24-port

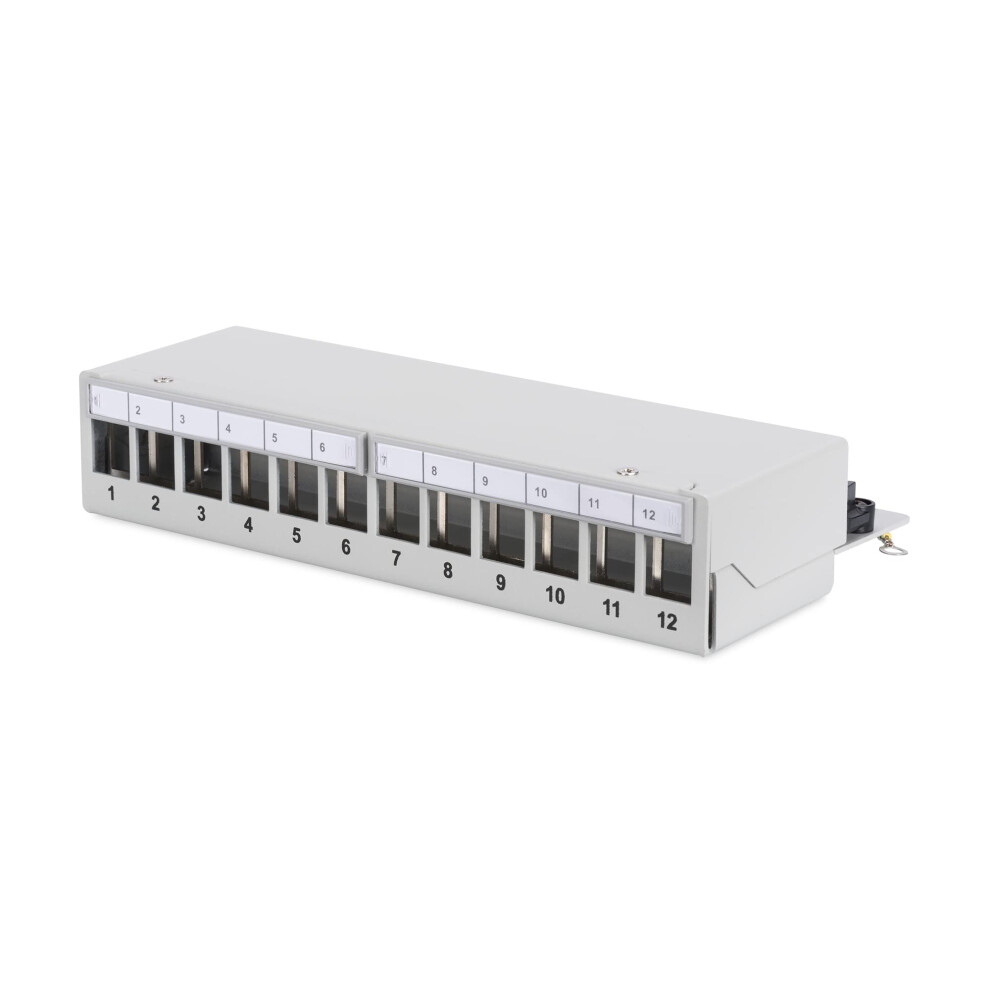

ZUB Digitus Patch Panel Desktop Modular The ZUB Digitus Patch Panel Desktop Modular is a versatile and efficient solution for organizing and...
