SFP Transceivers INTELLINET

Media Converter / SC Interfaces / Transmission Coverage 2,000 m / Cable Mode Fibre multimode

Features:- Compatible with switches and routers from HPE (Hewlett Packard Enterprise)- Data transfer rate: 1000 Mbps- One 1000Base-SX multi-mode fiber LC duplex port- Distance support: up to 550 m (50/125 µm cable) or 220 m (62.5/125 µm cable)- Wavelength: 850 nm- Equivalent to the HPE J4858A / J4858B / J4858C / J4858D transceiver- SFP standard form factor- Low EMI due to fully metallic housing- Supports hot-plugging- Fully NDAA-compliantSFP Module – HP® / HPE® compatible, affordable premium performance:- The Small Form Factor Pluggable (SFP) Transceiver from Intellinet Network Solutions provides a great combination of performance and affordability. Also known as a mini-Gigabit Interface Conver…

Specifications:Performance:- SFP transceiver type:Optical fiber.- Maximum data transfer range:10000 Mbit/s.- Interface type:SFP+.- Multi-mode fiber (MMF) supported:Yes.- Fiber optic connector:L.C.- Supported Cable Fiber Diameters:50/125,62.5/125µm.- SFP transceiver type:MR.- Maximum transfer distance:300m.- Wavelength:850nm.- Tx power (min):-6 dBmW.- Tx power (max.):-1 dBmW.- Quote link:4 dB.- Network standards:IEEE 802.3ae, IEEE 802.3z.- Copper ethernet cabling.Technology:10GBASE.- Digital Diagnostic Monitoring (DDM):Yes.- Housing material:Metal.- Hot-Plug Compatibility:Yes Power control:- Maximum voltage:3.3V.- Energy consumption:1W Environmental conditions:- Operating temperature range:0.-…

Intellinet Transceiver Module Optical, Gigabit Ethernet SFP Mini-GBIC, 1000Base-Sx (LC) Multi-Mode Port, 550m,MSA Compliant, Equivalent to Cisco GLC-SX-MM, Three Year Warranty

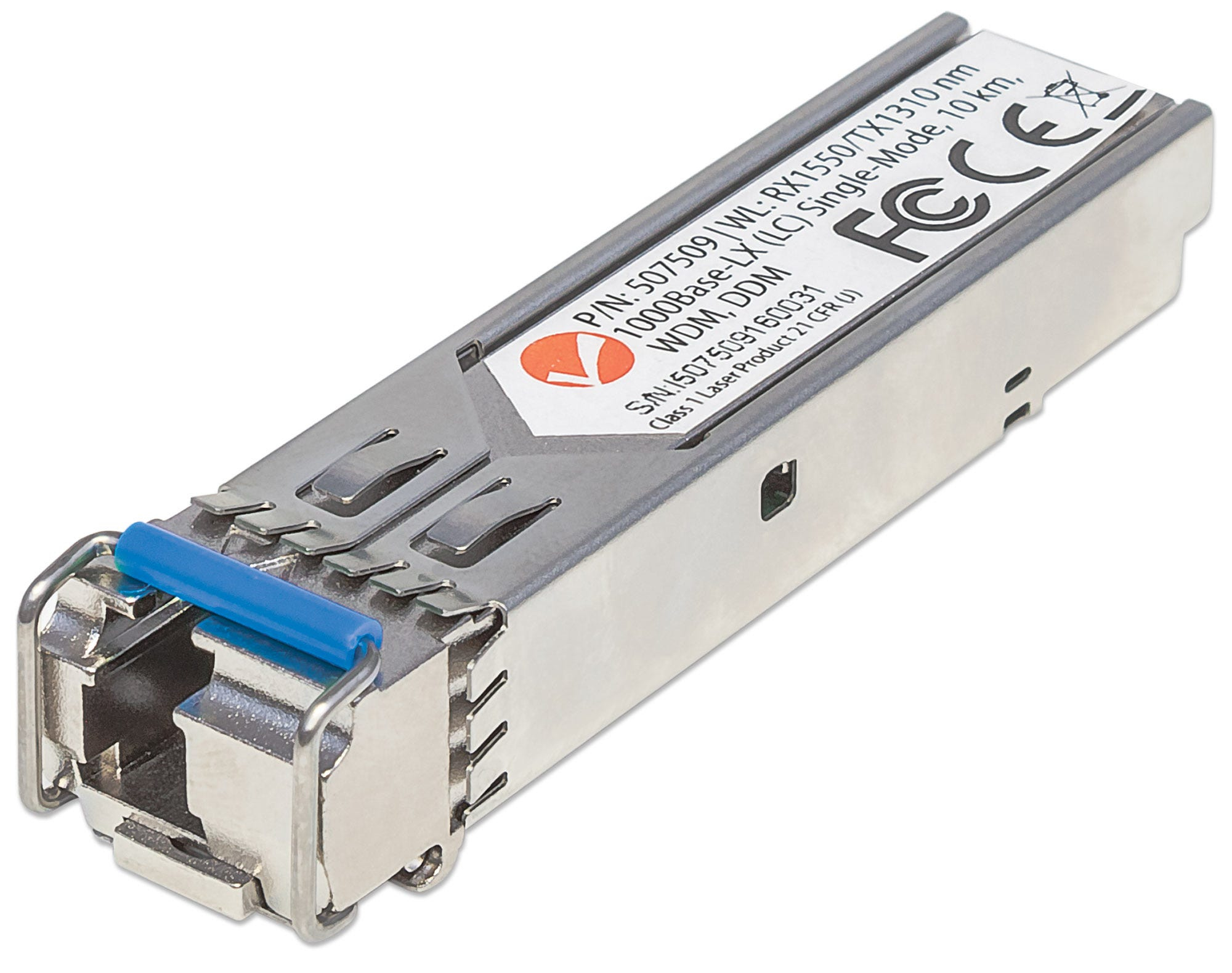

Intellinet Transceiver Module Optical, Gigabit Ethernet SFP Mini-GBIC, 1000Base-Lx (LC) Single-Mode Port, 20km, MSA Compliant, Equivalent to Cisco GLC-LH-SM, Three Year Warranty

Specifications:Performance:- SFP transceiver type:Optical fiber.- Maximum data transfer range:10000 Mbit/s.- Interface type:SFP+.- Single Mode Fiber (SMF) Compatible:Yes.- Fiber optic connector:L.C.- Supported Cable Fiber Diameters:9/125µm.- SFP transceiver type:L.R.- Maximum transfer distance:10000m.- Wavelength:1310nm.- Tx power (min):-6 dBmW.- Tx power (max.):-0.5 dBmW.- Quote link:9 dB.- Network standards:IEEE 802.3ae, IEEE 802.3z.- Ethernet cabling fiber.Technology:10GBASE.- Duplex system:Complete.- Digital Diagnostic Monitoring (DDM):Yes.- Housing material:Metal.- Hot-Plug Compatibility:Yes Power control:- Maximum voltage:3.3V.- Energy consumption:1W Environmental conditions:- Operating t…
