Audio Systems TOA

SC-610m Paging Horn Speaker • 10W Input • High-impedance (70V/100V lines). • Stainless steel brackets and hardware. • Shock resistant aluminium oval horn. • Unobtrusive off-white colour. • Compliance with IP-65. - Features - Type Horn - Single/ Pair Single - Weatherproof Yes

The PJ-304 projection style speakers are built within a bass-reflex HIPS resin enclosure 5 (12cm) cone-type projection speakers intended for ceiling and wall installation. The PJ-304 also includes a balanced dome tweeter. They have an outstandingly stylish design that is inspired by the finest lighting fixtures allowing them to be harmoniously installed with lighting equipment. They are ideally suited for such applications as BGM and announcements at airports subway stations art museums and shopping malls. The speakers are easy to repaint extending the range of design needs they can meet. A supplied swivel bracket accessory allows for flexible speaker angle adjustment. PJ-304 is driven

Pendant Speaker The PE-64 is a pendant speaker designed for ceiling suspension installations. Considered in architectural design it can blend in with lighting equipment. A directly-attached 5 m (16.4 ft) cable allows the speaker to be suspended from the high ceiling. The PE-64 is driven on high-impedance (100 V and 70 V) line. The input power (impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs. • Ideally suited for BGM and announcements • Stylish and outstanding design inspired by the finest lighting fixtures • Excellent sound quality • Sturdy cable extendable up to 5 meters

The PE-304 is a pendant speaker designed for ceiling suspension installations. Considered in architectural design it can blend in with lighting equipment. A directly-attached 5 m (16.4 ft) cable allows the speaker to be suspended from the high ceiling. The PE-304 is driven on both high-impedance (100 V and 70 V) and low-impedance (8 Ω) lines. The input power (impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs. - Features - Type Pendant - Single/ Pair Single - Ceiling Speaker Yes - Pendant Sphere Yes - Weight 2.1 Kg

Ultra lightweight for high-ceiling venues. These pendant speakers are ABS resin bass-reflex enclosure with a 12cm (5“) cone-type woofer and a balanced-dome tweeter. They are intended to be installed suspended from a ceiling – they are very lightweight with a stylish design inspired by modern lighting fixtures allowing them to harmoniously blend in with a room design. Features • Remarkably lightweight with stylish design inspired by modern lighting fixtures • Ideally suited for BGM & announcements • 8??? and 25V/70V/100V operation • Input impedance is easily changed with a rotary switch on the top of the speaker With speaker cable GRIPPLE? hanging

Introducing Brand New Ceiling Mount SpeakerDesigned For Simple Installation The Toa Pc-1868W-Eb Ceiling Mount Speaker Is Equipped With A Metal Grille An Abs Resin Baffle. The Finely Crafted Design With Thin Panel Does Not Detract From Venue Architecture Or Interior Decor. The Speaker Can Be Easily Installed Thanks To Its Spring Catch Method — This Saves Time And Money. It Is Ideal For Use In Any Kind Of Public Building Where Pagings And Bgm Are Broadcasted.FeaturesTypeLoudspeaker Single/ PairSingle Ceiling SpeakerYes

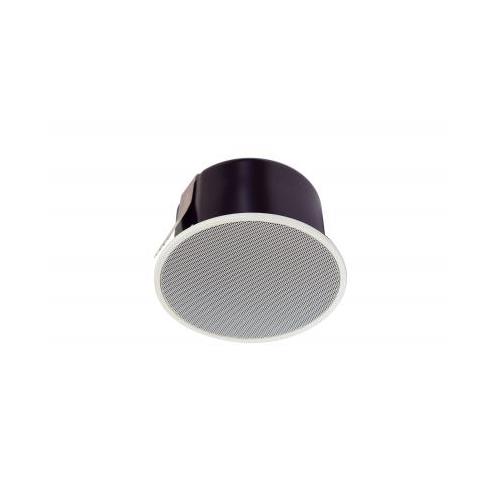

Ceiling Speaker White The ceiling speakers of the PC-series are suitable for announcements and BGM system use in high quality. The speaker’s design harmonizes with modern architecture and decor. The PC-1860BS is equipped with a fire dome to protect it from fire and to prevent fire from spreading through the ceiling. Thus the speaker is designed according to British Standard BS 5839-8: 2008 and EN54-24. • Flat front panel • Quick and easy installation • Fire dome made of steel • Ceramic screw terminal block and thermal fuse • 6 W rated input • 12 cm speaker

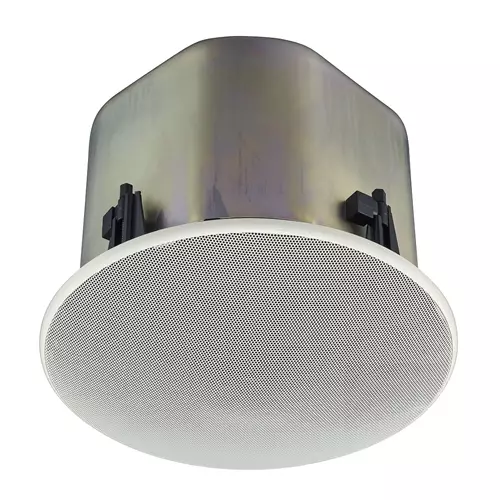

F-2852C Ceiling Speaker TOA introduces a new range of ceiling-mounted speakers that have been designed and engineered to overcome limiting factors that have been associated with conventional ceiling-mount speakers. Most noticeable has always been the high-frequency roll-off that resulted from limited speaker dispersion characteristics. TOA's new ceiling speaker range provides well-balanced audio reproduction without treble attenuation over an expanded listening area thanks to the extra-wide dispersion characteristics that are part of the overall speaker design. Perceived speaker directionality and beaming tendencies are minimized resulting in a natural well-balanced sound over a

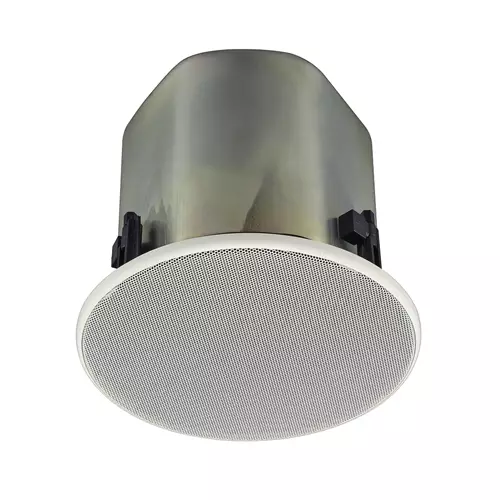

TOA introduces a new range of ceiling-mounted speakers that have been designed and engineered to overcome limiting factors that have been associated with conventional ceiling-mount speakers. Most noticeable has always been the high-frequency roll-off that resulted from limited speaker dispersion characteristics. TOA's new ceiling speaker range provides well-balanced audio reproduction without treble attenuation over an expanded listening area thanks to the extra-wide dispersion characteristics that are part of the overall speaker design. Perceived speaker directionality and beaming tendencies are minimized resulting in a natural well-balanced sound over a wide area at all levels.

The F-2000 Series Speaker are compact two-way speaker systems designed for high efficiency wide range and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application. The F-2000BTWP features a water-proof design (splash-proof type meeting IPX4 standard) so that it can be permanently installed outdoors. - Features - Type Wall - Single/ Pair Single - Dimensions W/O Stand (W x H x D) 244 x 373 x 235 mm - Weight 7.4 Kg

Pendant Speaker The PE-64 is a pendant speaker designed for ceiling suspension installations. Considered in architectural design it can blend in with lighting equipment. A directly-attached 5 m (16.4 ft) cable allows the speaker to be suspended from the high ceiling. The PE-64 is driven on high-impedance (100 V and 70 V) line. The input power (impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs. • Ideally suited for BGM and announcements • Stylish and outstanding design inspired by the finest lighting fixtures • Excellent sound quality • Sturdy cable extendable up to 5 meters

TOA's CS-64 CS-154 and CS-304 speakers are for outdoor-use they use wide-range horns that can provide background music or paging announcements which have high quality sound. They are designed to produce high output with an increase of the speaker acoustic conversion efficiency by the use of a horn in combination with a cone speaker. The CS-64 employs an exponential horn while the CS-154 and CS-304 use constant directivity horns (90 horizontal) to control sound directivity realizing uniform and clear sound dispersion over a wide area. • Exponential horn improves directivity characteristics and ensures uniform and clear sound dispersion. • Lightweight ABS resin enclosure

CS-304 • Constant directivity horn improves directivity characteristics and ensures uniform and clear sound dispersion. • Lightweight ABS resin enclosure that is mechanically strong and resistant to impact. • Weatherproof polyurethane resin paint permits the speaker to stand up to many years of outdoor installation. • Stainless steel hardware protects the speaker from corrosion. • The enclosure complies with IP-64 Standards for dust proof and waterproof characteristics. • Rotary impedance selector switch facilitates external changes in impedance during and after speaker installation. - Features - Type Horn - Single/ Pair Single -

The speaker shall be a wide-range weatherproof horn speaker suitable for paging background music and tone signaling distribution. The speaker component shall be a 12 cm (4.72") cone-type speaker treated for weather-resistance. Rated input shall be 15 W. The speaker shall include a transformer having multiple taps (5W 10W 15W at 100 V and 2.5W 5W 7.5W 15W at 70V). The sensitivity at a distance of 1m with a 1W input level applied shall be 97 dB. The speaker shall have a frequency response of 150 - 15 kHz. Horizontal and vertical dispersion at 6 dB below the on-axis reference at 2 kHz shall be 110 (H) x 85 (V). The speaker shall have a IEC 529 splash-proof rating of IP65. The speaker shall

The BS-678T is made of wood and be installed in a vertical or horizontal orientation. Either concealed in-wall wiring or exposed wiring can be used for speaker cable connection. The speaker structure that permits direct wall-mounting with screws prevents the speaker from falling easily even if an outward force is applied to. The input impedance can be easily changed by changing the tap position of the transformer. Two built-in 6-inch (16 cm) double cone speaker units deliver high quality sound. The push-in type input connector makes cable connections easy and allows bridge wiring. BS-678T have a built-in attenuator and can be connected to a 2-wire or 3-wire system Specifications •

The BS-678 is a double-cone type speaker with a wooden cabinet that has a stylish compact and unobtrusive design and that delivers highly cost effective performance. A push-in type input connector allows easy cable connections and bridge wiring. The selectable input impedance can be easily adjusted by changing the tap position of the unit’s transformer. 6 (16cm) double cone speaker unit ensures high-quality sound making the BS-678 ideal for BGM and announcement applications. It can be installed in either a horizontal or a vertical orientation. Its structure permits direct wall installation with screws making the speaker unit resistant to falling even if outward force is applied to

The BS-678 is a double-cone type speaker with a wooden cabinet that has a stylish compact and unobtrusive design and that delivers highly cost effective performance. A push-in type input connector allows easy cable connections and bridge wiring. The selectable input impedance can be easily adjusted by changing the tap position of the unit’s transformer. 6 (16cm) double cone speaker unit ensures high-quality sound making the BS-678 ideal for BGM and announcement applications. It can be installed in either a horizontal or a vertical orientation. Its structure permits direct wall installation with screws making the speaker unit resistant to falling even if outward force is applied to

The BS-634 can be installed easily on the wall with help of the plug-in speaker receptacle.
