Files & Rasps

Bahco ERGO™ Handled Engineering Flat File with a tapered shape for easier access into angles and corners. Fitted with a two-component handle for maximum comfort and an excellent grip Developed according to the scientific ERGO™ process. Suitable for general work on iron and steel. The surfaces have a double cut and the edge is single cut. Specification: Length: 200mmCut: BastardWidth: 20mmThickness: 5mmTeeth per cm: 10PTDBAH11081H

Feature: 1. Alloy Steel Material: Alloy steel has higher strength and toughness than carbon steel, wear resistant and durable, suitable for long term work. 2. Double Ended File: This file has a double ended design, making it flexible for engraving and milling work in narrow areas. 3. Quick Grinding: The double ended file can complete quick grinding, saving time and improving efficiency for users. 4. Wide Application: This file has a wide range of applications, in addition to grinding, polishing, peeling, de corrosion, and engraving. 5. Thoughtful Gift: This set of double ended files is very durable, and if you have family and friends who are woodworkers or love to carve, this will be the best …

Bahco ERGO™ Handled Double-Ended Saw File for sharpening saws with fine cross tooting. The surfaces and edges are single cut from both ends towards the centre. With triangular untanged edges tapering towards both ends. Fitted with a two-component handle for maximum comfort and an excellent grip Developed according to the scientific ERGO™ process.This Bahco ERGO™ Handled Double-Ended Saw File has the following specification: Length: 200mm (8in)File Width: 7mmTeeth per cm: 21PTDBAH1908S

For intricate work Manufactured from high carbon/chrome steel hardened and tempered to HRC 62 - 64 files. Sold in boxes of 12 files.PTDDRPDIR63391

For intricate work Manufactured from high carbon/chrome steel hardened and tempered to HRC 62 - 64 files. Sold in boxes of 12 files.PTDDRPDIR63395

Tapered half-round cross section allows use on convex and concave surfaces. Suitable for deburring work. The edges and surfaces are tapered towards the point. 4in and 6in files are fully pointed 8in and longer semi-pointed. Double cut.Size 100mm (4in)Cut: half-round second.Tanged.PTDBAHHRSC4

Bahco Warding Cut File is a small rectangular slender file with edges tapered to a point. Both faces are double cut for locksmithing and other precision work. Smooth Cut: approx.. 62 teeth per 25mm (Fine).Second Cut: approx.. 36 teeth per 25mm (Medium).Bastard Cut: approx.. 26 teeth per 25mm (Coarse).Size 200mm (8in)Cut: warding bastard.Tanged.PTDBAHWB8

For intricate work Manufactured from high carbon/chrome steel hardened and tempered to HRC 62 - 64 files. Sold in boxes of 12 files.PTDDRPDIR63392

Millsaw files have parallel surfaces with the edges tapering toward the point. Surfaces and edges are single cut - commonly referred to as mill bastard.This type of file is suitable both as an engineering file and a sharpening file. It is useful for filing where a smooth finish is important. Also good for polishing and deburring work in lathes. This file is also widely applicable for sharpening tools and implements such as spades shovels hoes scrapers etc. Bastard CutApprox. 16 teeth per 10mmSize 250mm (10in)TangedPTDBAHMB10

This 150mm (6 inch) Bahco Hand Warding File with second cut delivers approximately 36 teeth per 25mm, making it the ideal choice for medium-grade finishing work on locks and precision metalwork. The 6 inch length offers an excellent balance between reach and control, suitable for the majority of locksmithing and general precision filing applications. The second (medium) cut grade provides versatile performance, removing material efficiently whilst producing a smoother finish than coarser grades. Its small rectangular slender profile features edges tapered to a point, perfect for accessing narrow keyways and intricate details in lock mechanisms. Both faces are double cut for consistent, controlled …

Bahco Round files are used for filing circular openings or concave surfaces. Tapered towards the point 4in and 6in files are fully pointed whilst 8in and longer are semi-pointed. All double cut. Smooth Cut: approx. 62 teeth per 25mm (Fine).Second Cut: approx. 36 teeth per 25mm (Medium).Bastard Cut: approx. 26 teeth per 25mm (Coarse).Size 200mm (8in)Cut: round bastard.Tanged.PTDBAHRB8

The Bahco 250mm (10in) Round File with Bastard Cut delivers powerful material removal for larger circular openings and concave surfaces. This semi-pointed file is ideal for metalworking, automotive repair, and general fabrication where rapid stock removal is the priority before progressing to finer finishing grades. With approximately 26 teeth per 25mm, the coarse Bastard Cut efficiently tackles heavy-duty filing tasks on both ferrous and non-ferrous metals. The 10-inch length provides excellent reach and control for medium to large-scale work, whilst the double cut tooth pattern ensures smooth, controlled cutting action with reduced clogging. Features and Benefits: • 250mm (10in) length …

This set has been designed with moulded plastic handles for a secure and comfortable hold.

For intricate work Manufactured from high carbon/chrome steel hardened and tempered to HRC 62 - 64 files. Sold in boxes of 12 files.PTDDRPDIR63393

Bahco Three-Square Cut Files are used for filing internal acute angles and cleaning out square corners. Double cut teeth with sharp edges. Smooth Cut: approx. 62 teeth per 25mm (Fine).Second Cut: approx. 36 teeth per 25mm (Medium).Bastard Cut: approx. 26 teeth per 25mm (Coarse).Size 200mm (8in)Cut: three-square bastard.Tanged.PTDBAHTSB8

This Faithfull Half-Round Second Cut Engineers File is a very useful file combining the features of both round and flat files one side being rounded and the other flat. It can be used on flat concave and convex surfaces. It is tapered towards the point in width and thickness. It is double cut with a safe edge. It is fitted with a comfortable handle. Ideal for professional and frequent DIY use.The FAIFIHRSC12 half round engineers file has the following specifications:Length: 300mm (12in). Blade Width: 29mm (1.1/8in).PTDFAIFIHRSC12

For intricate work Manufactured from high carbon/chrome steel hardened and tempered to HRC 62 - 64 files. Sold in boxes of 12 files.PTDDRPDIR63394

This compact 100mm (4in) Bahco Half Round File with Bastard (Coarse) cut is perfect for detailed work and applications where space is limited. With approximately 26 teeth per 25mm, this coarse-grade file delivers efficient material removal despite its smaller size, making it ideal for precision deburring in confined areas. The 4-inch length features a fully pointed design, providing excellent access to tight spaces and intricate curves. The tapered half-round cross section allows you to work effectively on both convex and concave surfaces, whilst the double cut surface ensures productive metal removal. The tanged construction permits secure handle attachment, giving you precise control for detailed …

Hand Cut File for filing flat surfaces sharp corners and shoulders as well as for deburring. A double cut file should be used for work on high-alloy tool steels. Also useful for the sharpening of heavy implements. High removal rate. Double cut on both sides - with one safe edge (a safe edge permits work in corners). Parallel sides but slightly tapered in thickness. Smooth Cut: approx. 62 teeth per 25mm (Fine).Second Cut: approx. 36 teeth per 25mm (Medium).Bastard Cut: approx. 26 teeth per 25mm (Coarse).Size 300mm (12in)Cut: hand bastard.Tanged.PTDBAHHB12

Comprehensive set of diamond files with soft grip handles for comfort and control. Supplied in storage pouch. Features: • Comprehensive set of diamond files with soft grip handles • Length: 100mm • Supplied in storage pouch • Lifetime guarantee* Specifications: Guarantee:Life Model Number: S0896

Irwin extension rod for Bi-Metal holesaws 13mm - 300mm. Length: 300mm.Chuck size: 13mm.PTDIRW10507368

Bahco 2-303-16-2-0 square needle cut file with parallel surfaces which taper to a point. For fine filing and polishing jobs. Used by engravers precision engineers instrument makers watchmakers and goldsmiths. Surfaces are double cut. Size: 16cm.Cut: 2 (smooth).Type: square needle.File width: 2.4mm.Teeth per cm: 38.PTDBAHSN162

Bahco Flat files do the same jobs as hand files but are sometimes preferred because the tapered shape enables the user to reach into angles and corners more easily. Slightly tapered in width and thickness. Suitable for general work on iron and steel. Double cut on both sides and single cut on both edges. Smooth Cut: approx. 62 teeth per 25mm (Fine).Second Cut: approx. 36 teeth per 25mm (Medium).Bastard Cut: approx. 26 teeth per 25mm (Coarse).Size 250mm (10in)Cut: flat bastard.Tanged.PTDBAHFB10

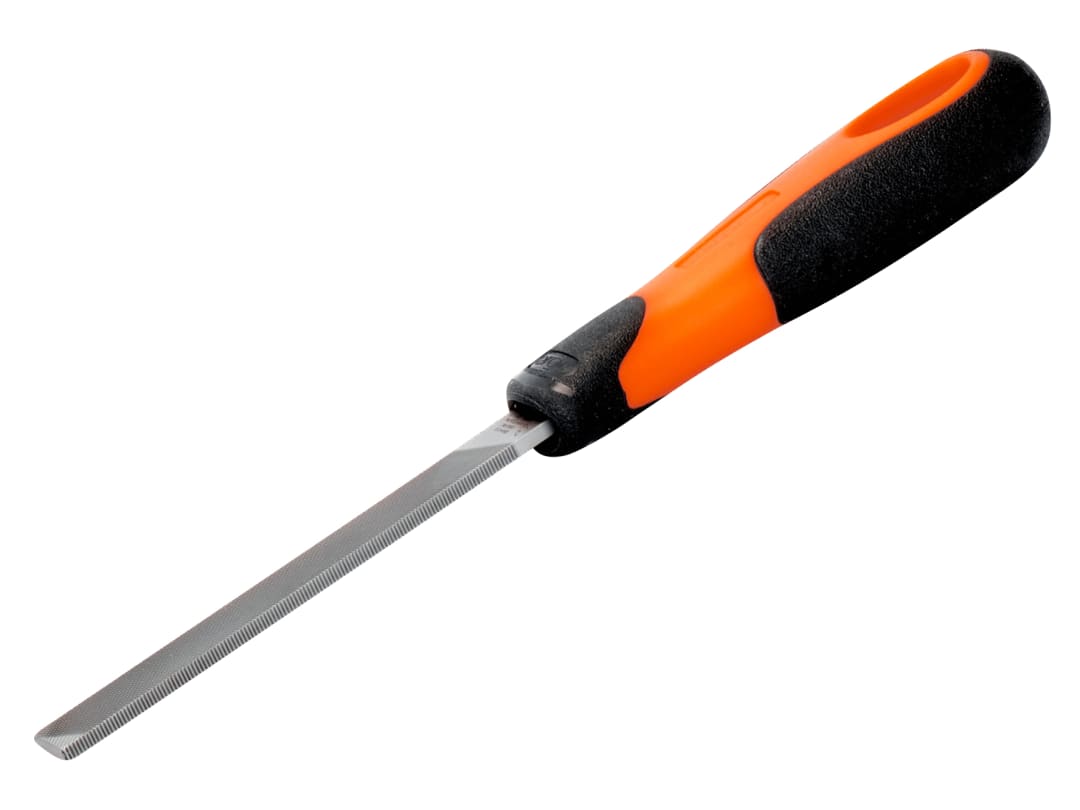

This compact 6" (150mm) Bahco ERGO™ Handled Flat File with Bastard (Coarse) cut is designed for applications where manoeuvrability and access are paramount. The shorter 150mm length makes this file ideal for working in confined spaces, on smaller workpieces, or where precise control is essential, whilst the coarse bastard cut still delivers efficient material removal on high-alloy tool steels. The compact size excels in situations where larger files would be unwieldy, making it perfect for detailed deburring work, filing sharp corners in tight areas, and working on smaller components. Despite its shorter length, the file maintains the same high-quality construction with parallel edges and su…
