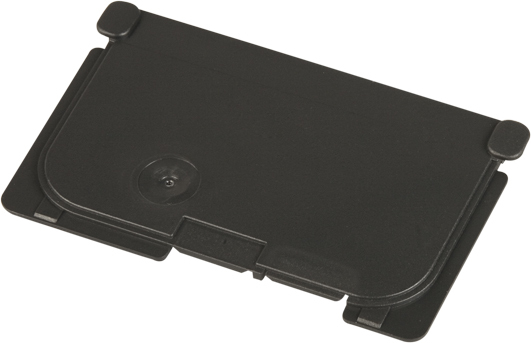

The ABB Haf Hafonorm insert is a plastic component designed for a gate opening of 65mm. It has dimensions of 3x65x40mm, is built straight in shape and features a blind design. It does not have any surface protection and remains untreated. ABB Haf Hafonorm inserts come in different variants, making them suitable for a variety of applications. This particular model is intended for a cabinet or desk setup.Contains 2 pieces

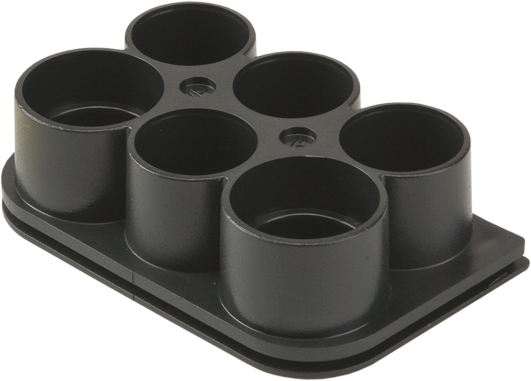

The ABB Haf Hafonorm insert with 6 pipe inlets is suitable for a port opening of 65mm. This plastic insert measures 25x65x40mm (depth by width by height) and features a straight tube design. It includes break-out ports, 6 connector holes, and 4 16mm pipe inlets along with 2 16/19mm pipe inlets. The insert does not have a surface treatment, leaving it untreated. Different variants of the ABB Haf Hafonorm insert are available.Contains 2 pieces

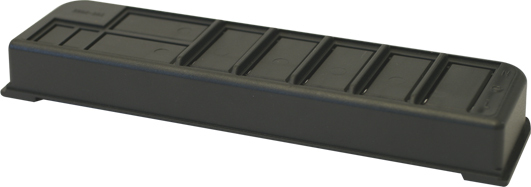

The Abb Hafonorm input plate is designed for cabinets and desks, and is made of plastic. Its dimensions are 25mm x 175mm x 40mm (DxWxH). The model features a straight type connector with 7 connector holes. The port opening of the plate is 175mm wide. It does not have any surface protection and is untreated.

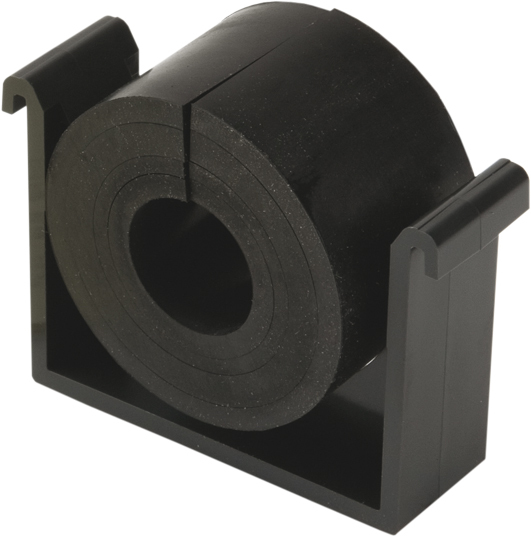

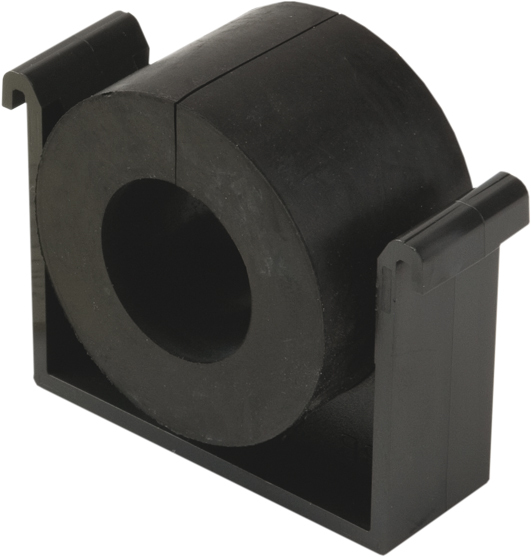

The ABB Hafonorm cable gland grommet, featuring a rubber construction, is black in color and compatible with cable diameters spanning 21-35mm. It requires a bore diameter of 35mm, and is suited for wall thicknesses ranging from 2-25mm. The protection grade is unspecified, and the grommet is in the CR (neoprene) quality class. It does not have any surface protection and is untreated. The application of this product is for cable end sealing and its total length is 45mm. Additionally, this neoprene sealing ring is suitable for use with an entry plate model 160-H3V and 160-H1V.

The ABB Hafonorm cable grommet is open-ended, made of black neoprene rubber of CR (neoprene) quality class. It is suitable for cables with a diameter of 17 - 35mm and requires a bore diameter of 35mm for installation. Applicable to wall thicknesses between 2 - 25mm, it offers unspecified ingress protection (IP). There is no surface protection as it remains untreated and its total length is 45mm. It is specifically designed for cable end sealing. It can be used with an entry plate 160-H3V and 160-H1V and is suitable for cables of 17, 23, 27, and 35mm.

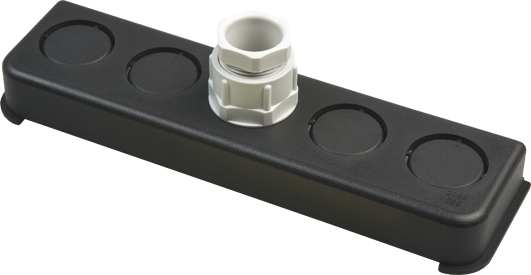

The ABB Hafonorm input plate is designed for cabinet or console installation and is made from plastic. The plate measures 50x175x40mm (wxdxh) and features a cable gland design, knockout ports, and a straight type with 5 connector holes. The plate opening is 175mm and is suitable for a wire size of metric or Pg 25. It also comprises 5 metric gland inputs. The surface protection of this plate is untreated. This particular ABB Haf insert comes with a single M25 packing gland and exhaust ports, apt for a maximum of five inputs. The ABB Haf Hafonorm inserts are available in different variants.

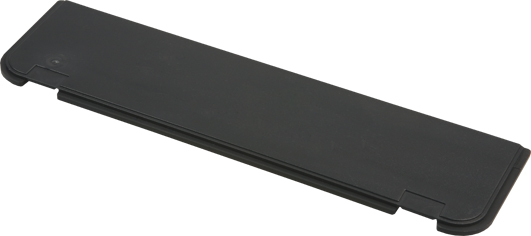

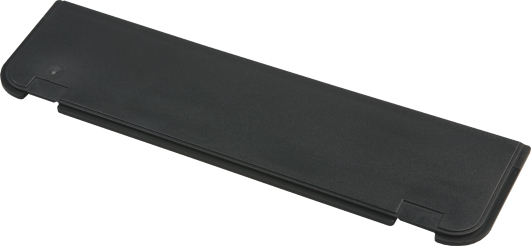

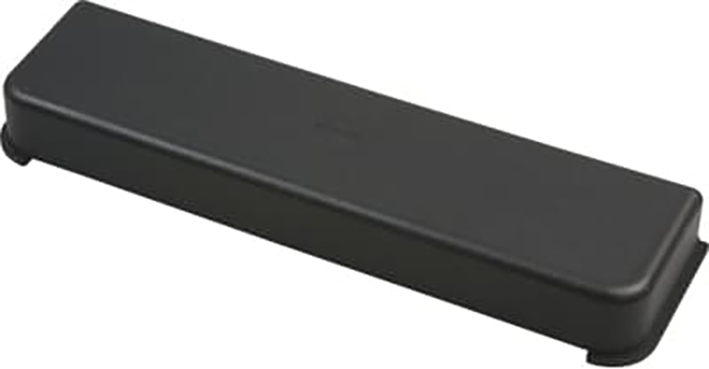

The ABB Haf Hafonorm insert panel is a plastic blind variant designed for the bottom of a cabinet or desk. With dimensions of 5x175x40mm (DxWxH), it perfectly fits a gate opening of 175mm. The panel offers no additional surface protection and remains untreated. This Hafonorm insert panel is available in several variants, each tailored for specific performance requirements.Contains 2 pieces

The ABB Hafonorm insert plate is tailored to cater to the side and is suitable for a gate aperture of 175mm. This plastic cabinet or desk component measures (wxdxh) 5x175x40mm. It features a straight shape, blind design, and comes in an untreated surface with no surface protection. The Hafonorm insert plates from ABB Haf are available in different versions.Contains 2 pieces

The ABB Hafonorm input plate is a blind insert suitable for a gate opening of 160mm. It is constructed from plastic, with dimensions of 3x160x15mm. Its design is straight and it doesn't have any surface protection, meaning it is untreated. The ABB Haf Hafonorm inserts are available in various styles.Contains 2 pieces

The Abb Hafonorm input plate cabinet/desk sparing is a high-quality and reliable component designed for effective utilization in both cabinets and desks. It is an integral part of the Abb Hafonorm range known for its durability and performance. Notably, the use of this input plate spares you the need for additional reinforcements or components which makes it a convenient choice for various technical setups. Its practical design ensures seamless integration without any compatibility issues.Contains 2 pieces

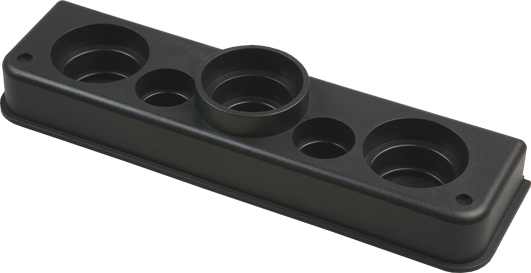

The ABB Hafonorm input plate for the cabinet/desk, made of plastic, has dimensions of 25x175x40mm. It has a tube design with breakaway ports, straight in type, five connector holes, and a port opening of 175mm. It includes two tube inputs of 16/19, one tube input of 19/25, two tube inputs of 25/32, and is suitable for metric wire size/Pg 16-32. This ABB Haf insertion is designed for the bottom and features five tube inputs. The ABB Haf Hafonorm inserts are available in different variants.Contains 2 pieces

The Abb Mistral 65 cable gland is a specialized piece of equipment, created with precision and reliability in mind. Designed with a specific 16mm diameter, it is optimized for secure and effective cable entry. This technical item ensures efficient protection and management of cables, making it an essential component in numerous electrical and industrial applications. Its distinct dimension and functional specification make it suitable to support a wide range of professional tasks.Contains 10 pieces

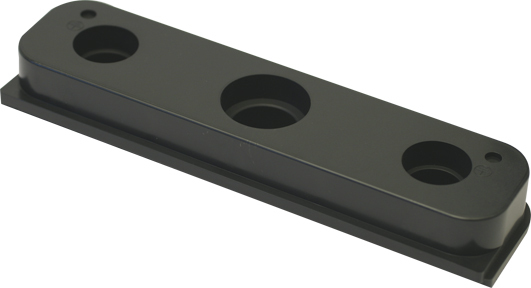

This is an Abb Hafonorm plastic input plate for cabinets or desks, with dimensions 20x160x40mm. It is designed with a tube form, breakout ports, and a straight type. It features 3 connector hole and is suitable for a threaded size metric/Pg 16 - 19. The surface protection is untreated. The input piece 160-01 has three holes, two are 16/19mm, and one is 19/25mm. The product code is 2008.006.Contains 2 pieces

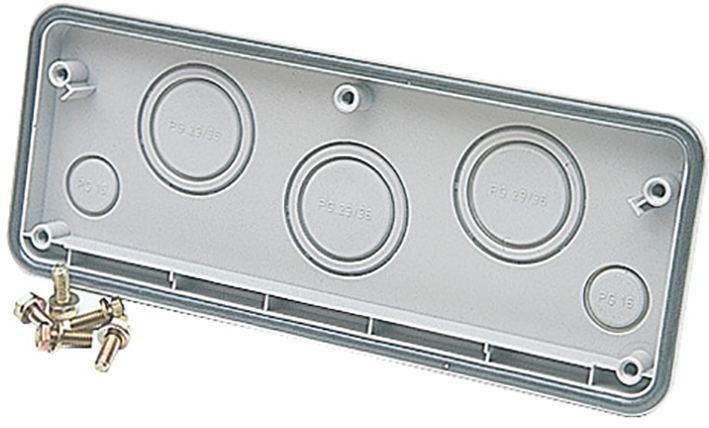

The ABB Hafonorm insert is a plastic panel designed for a desk or cabinet, with dimensions of 50x175x40mm. It features a cable gland design, knockout ports, and a straight style. Notably, it accommodates three connector holes and three metric cable gland inputs. It's designed for a gate opening of 175mm and suitable for a wire size metric/Pg 32. The surface is unprotected and untreated. This insert with a single packing gland M32 and expulsion openings is compatible for up to three inputs. Varieties of ABB Hafonorm inserts are available.

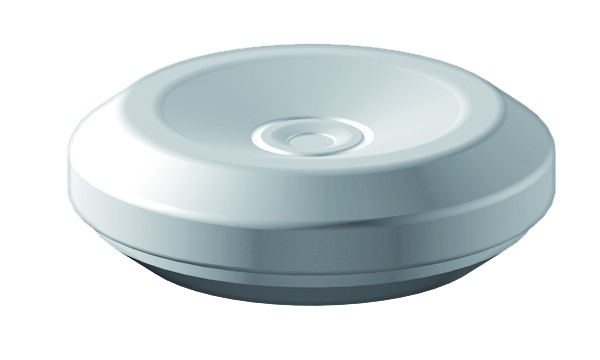

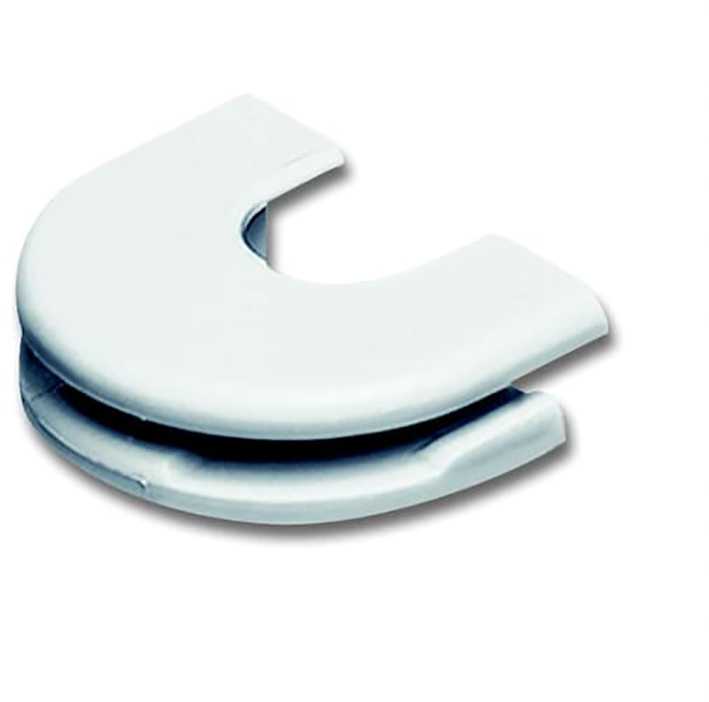

This is an Abb Busch-Jaeger Standard Surface Mounted Aplus Conduit Entry Accessory, made of white plastic. It features a cable-tube entry design and is suitable for a built-in surface-mounted box. The product is halogen-free and belongs to the high-quality Desmopan class. It has a RAL color number of 9010. In addition, it is compatible with surface housing 1701-...,1702-..., and 1703-..., and is available in Alpin White.Contains 10 pieces

The Abb Busch-Jaeger Future linear conduit entry fitting is made of plastic and comes in an anthracite finish, with the purpose of cable pipe entry. This fitting is specifically suitable for built-in installation boxes. It has a RAL number of 7021. Additionally, it is designed for the cable entry of surface-mounted housing 1701-…/1702-… and 1703-…, in an anthracite finish.Contains 10 pieces

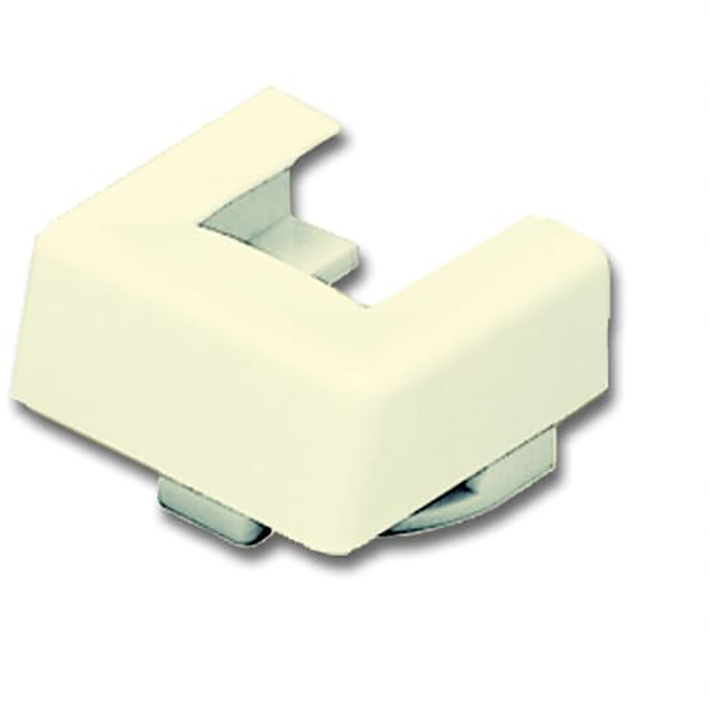

The Abb Busch-Jaeger Future linear conduit entry accessory is made of plastic, designed in white color, with a RAL number 1013. It features a conduit channel slide structure and is suitable for surface-mounted installation boxes. This conduit entry is specifically made for surface-mount housing 1701-…/1702… and 1703… with channel size: 15 x 15 mm or 19 x 19 mm and comes in ivory white.Contains 10 pieces

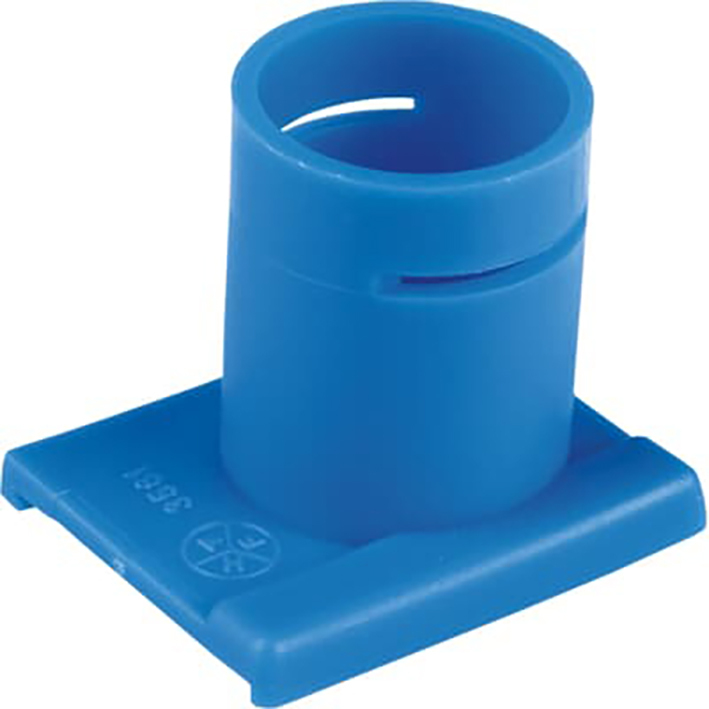

Single pipe entry insert designed for 19mm conduit installation in HW50, HW50-G, and H150 series installation boxes. Features integrated pipe locking capability for secure connections. Compatible with ABB HAF installation box systems.Contains 10 pieces

The item is an ABB APO input plate designed for a console or cabinet system. It features an APO flange with dimensional specifications of 185 4XM20/16 1XM32/25. Additionally, the input plate is confirmed to match the RAL7035 color standard. No additional information or specifications are provided about the design or specific functionality of the input plate, but given the technical nature of the description, it can be assumed that this component is designed to fit into specific configurations of ABB equipment.

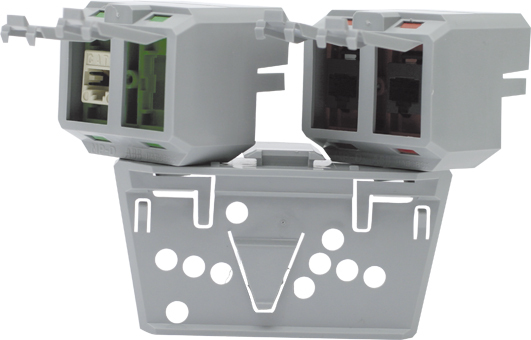

Professional data distribution mounting point designed for cable duct system installation using rivets. Features versatile mounting options allowing both straight and angled positioning on the mounting plate. Compatible with modular jacks (rings not included). Manufactured from recycled materials for environmental sustainability.

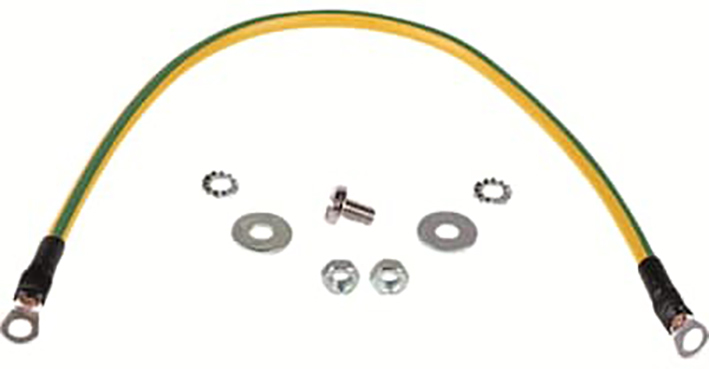

The Abb Triline connection cable measures 0.2m in length, and includes 1 stranded conductor with a nominal cross-section of 2.5mm². The cable has 2 lug connectors at both ends and is insulated with polyvinyl chloride (PVC). It can support a maximum current strength of 16A and a nominal voltage of 240V. The wire has green/yellow earthing and a 3mm external diameter. The set is suitable for grounding rear, side walls, and plates.

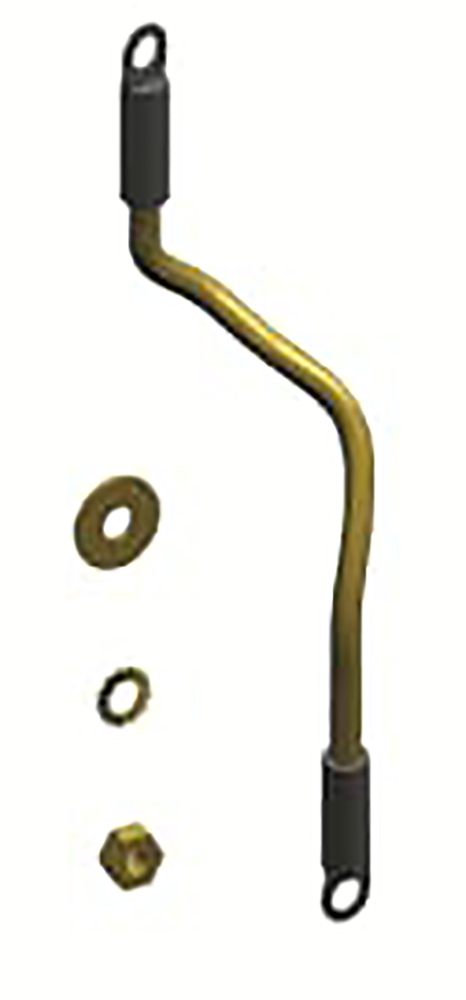

The ABB CombiLine is a flexible, class 5 conductor with a length of 30mm and a nominal cross-sectional area of 6mm². The conductor material is copper with a plain surface. It features drilled connection surfaces with an M6 hole diameter and an overall external diameter of 8mm. Additionally, it is a rounded conductor and comes with connection surfaces. The product is insulated and has an earth set for grounding purposes.

The Abb APO input plate is designed for integration into a casing or console, supporting a robust and efficient setup for technical operations. Its key features include an APO flange 300 that comes with different dimensional specifications: 2X3225, 3X2520, and 4X2016R7035. These precise measurements contribute to flexible deployment possibilities, allowing for versatile use within multiple technical environments. The product is crafted to provide ultimate functionality and durability.

The item is an ABB APO input plate with voids, suitable for cabinet or console mounting. It is a robust item designed for equipment integration, specifically for securing conduit and cable entries. This input plate features a flange 300, with dimensions including three M40/32 sizes and two M20/16 sizes. The durable construction is completed with an R7035 coating for added protection and longevity. It ensures efficient cabling and thus stands as a valuable part of a professional installation setup.
