Electrical Wires & Cables HENSEL

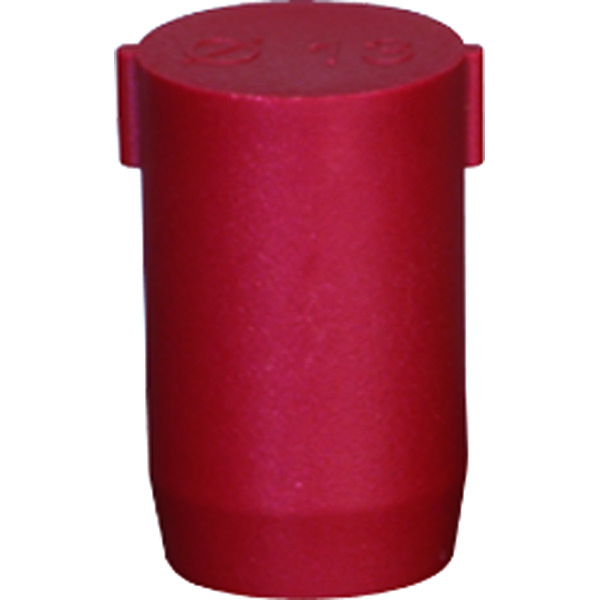

The Hensel sealing cap for cable entry is made of plastic with a metric thread type. It has a nominal thread size in NPT/inch for gas pipe and other applications, and a thread pitch of 32mm. The quality class is unspecified, and no surface protection is provided (untreated). The cap is halogen-free and impact-resistant, with a RAL color code of 3000. Additionally, there are caps with a diameter of 21mm, designed to seal unused combination ventilation glands.Contains 5 pieces

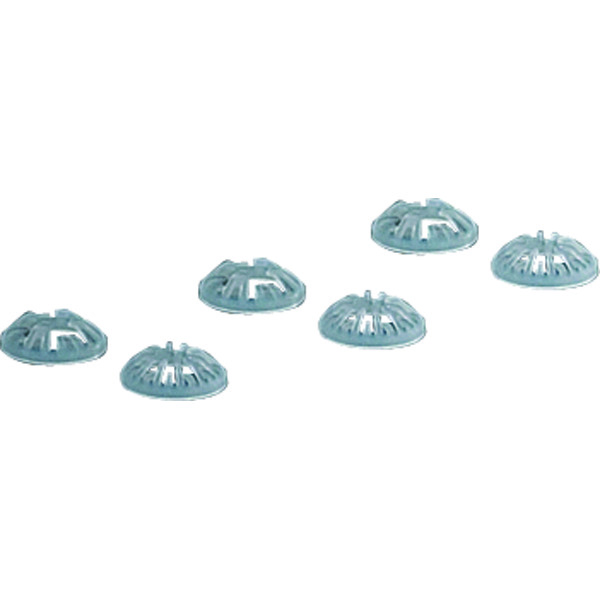

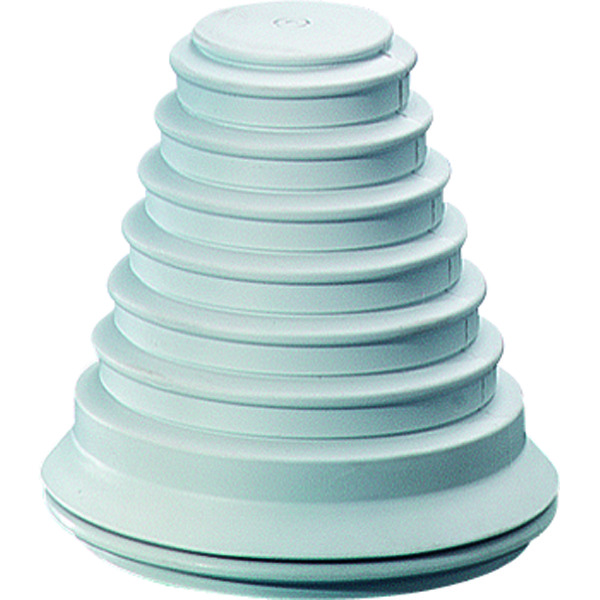

The Hensel cable entry accessory is a versatile gray product suitable for surface-mounted in-wall boxes with an RAL color number of 9018. It also includes cable support rings designed for cable diameters ranging from 30x10-14mm and 13-16mm.Contains 2 pieces

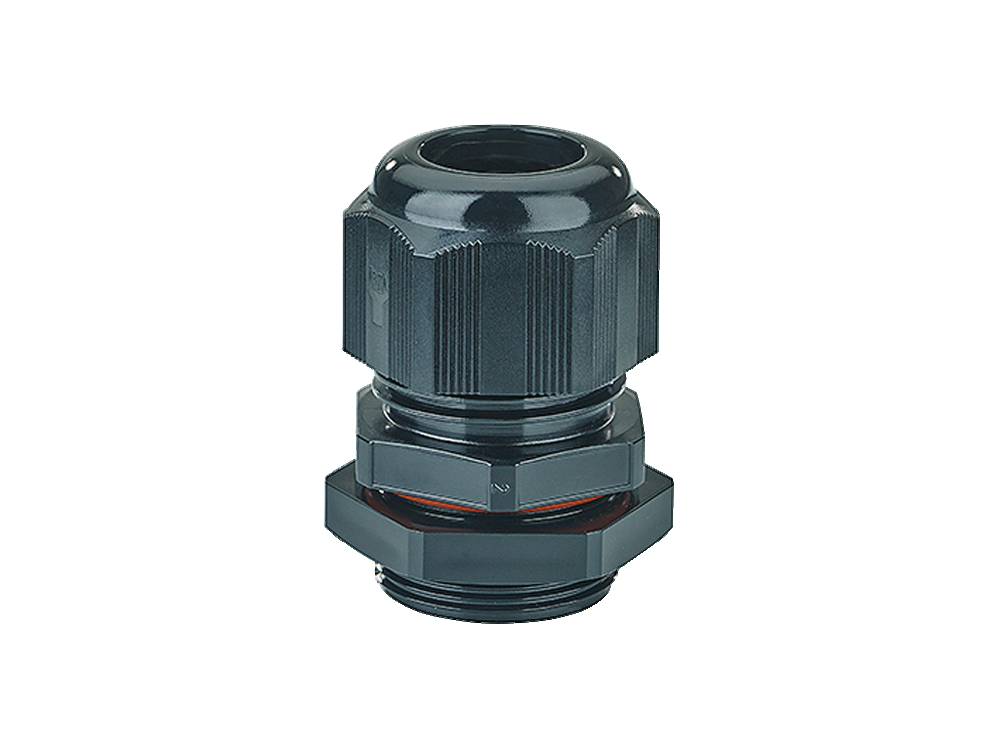

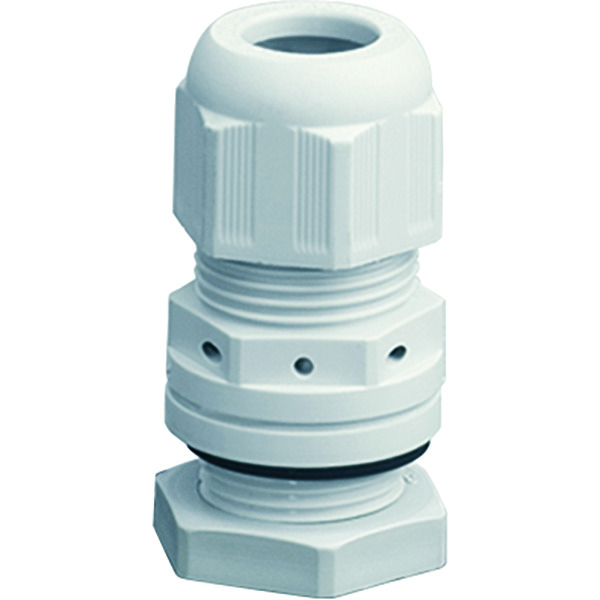

M25 explosion-proof cable gland designed for Ex zones 2 and 22, featuring IP66 protection rating. Sealing range Ø10-17mm with bore diameter Ø25.2mm and wall thickness up to 3mm. Includes strain relief and lock nut. Made of weather-resistant polycarbonate, tested at 960°C. Suitable for temperatures from -60°C to +85°C. Certified for explosive gas (II 3G Ex ec IIC Gc) and dust atmospheres (II 3D Ex tc IIIC Dc).

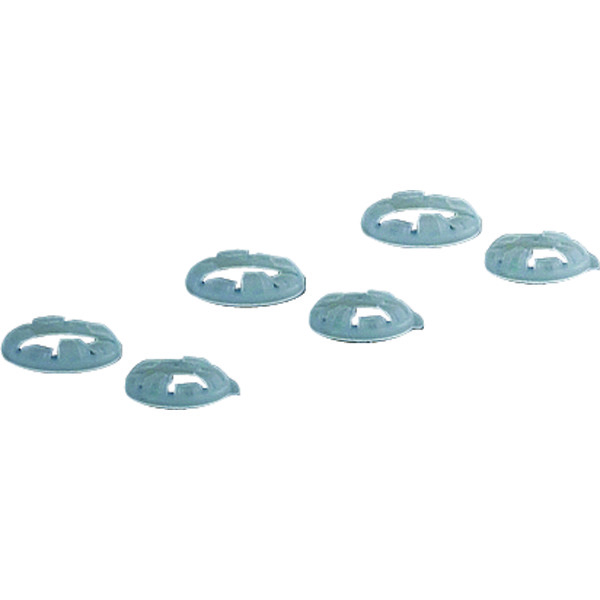

The product is a Hensel cable entry accessory in grey, specifically designed for flush-mounted boxes, identified by RAL number 9018. It includes ring supports for cable diameters ranging between 30 x 6.5-10 mm and 10-14 mm. The accessory is perfect for organizing and managing cables, providing an efficient solution for cable installations in both residential and commercial settings.Contains 2 pieces

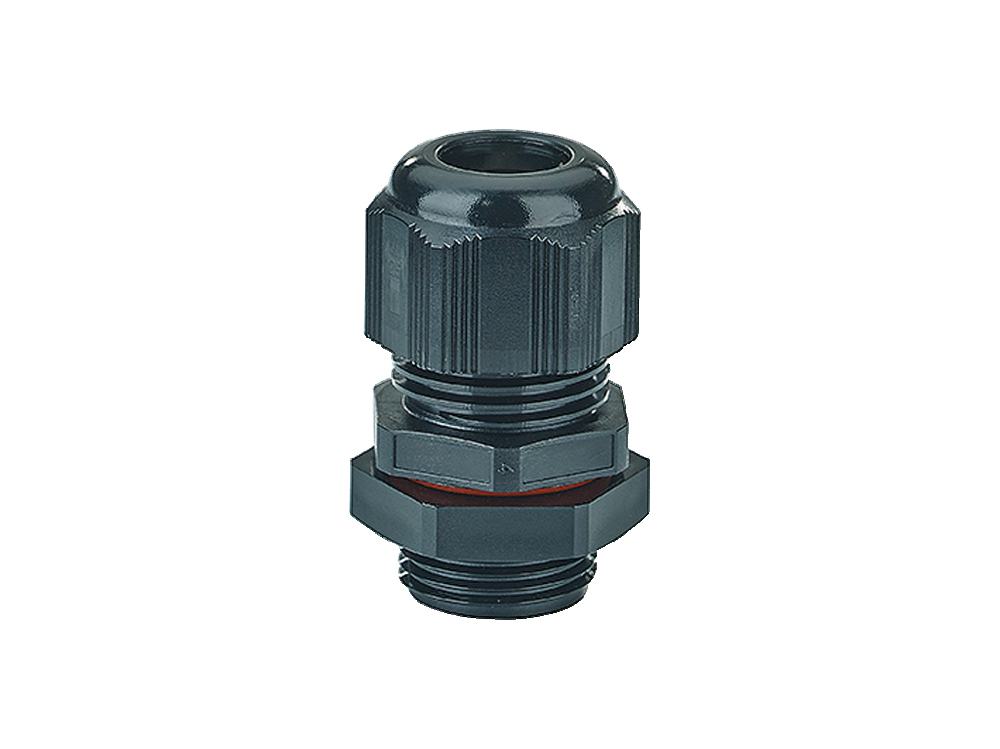

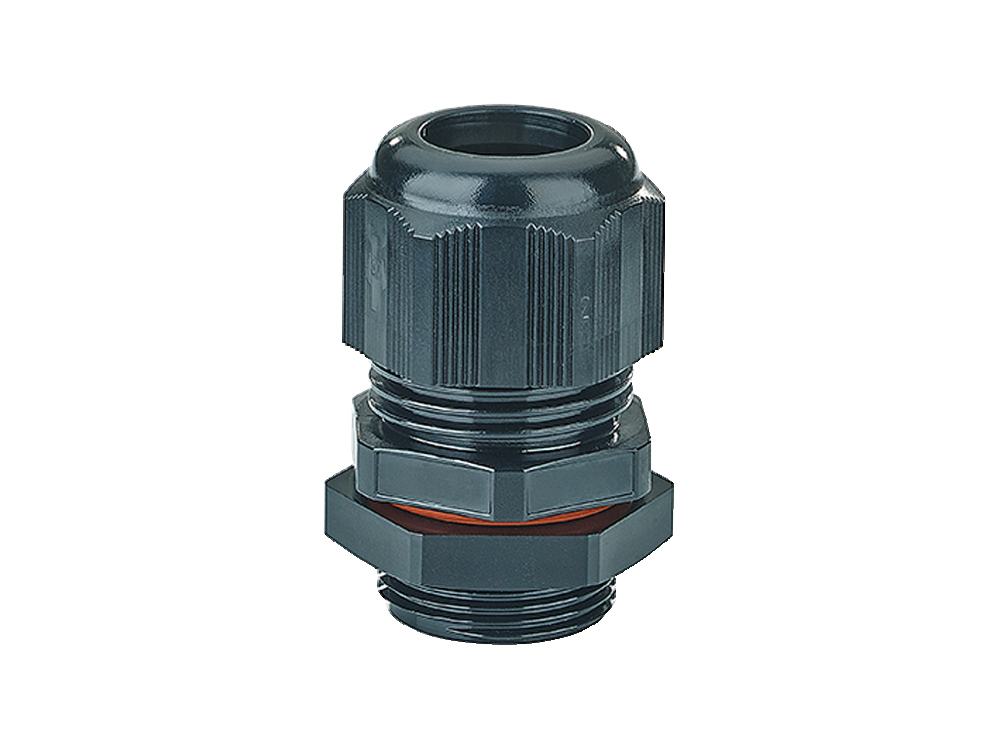

M20 explosion-proof cable gland designed for Zone 2 and 22 hazardous environments. Features 6.5-13.5mm sealing range, 20.2mm drilling diameter, and strain relief with counter nut. Rated IP66, suitable for indoor/outdoor use. Certified for explosive gas (II 3G Ex ec IIC Gc) and dust (II 3D Ex tc IIIC Dc) atmospheres. Operating temperature range -20°C to +40°C. Made from weather-resistant polycarbonate and polyamide.

Professional cable gland with IP65 protection rating, designed for cable diameters between 30-72mm. Features an 83mm drilling hole diameter and accommodates wall thicknesses up to 3mm. Rated for indoor and protected outdoor use with operating temperature range of -25°C to +35°C. Meets 750°C glow wire test requirements. Finished in RAL 7035 light gray.

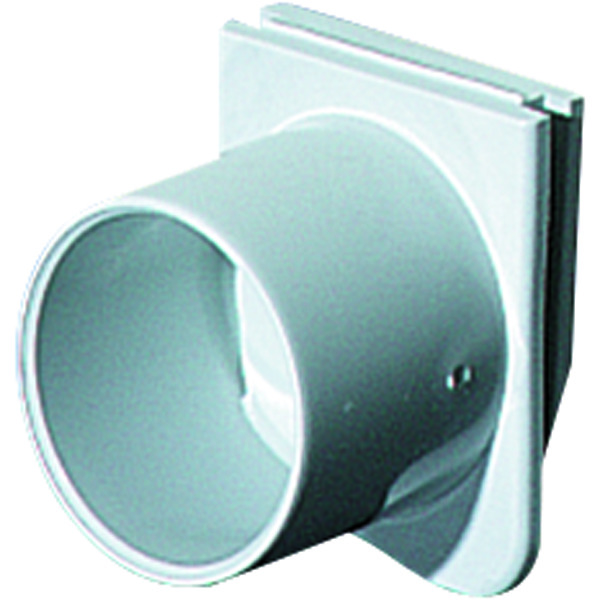

The Hensel conduit entry accessory is a tube enter piece for installation tubes M20 used for cable boxes DP 9020, DP 9220, DP 9025, DP 9221, DP 9222, DP 9026, and DP 9225. It has an IP 54 protection degree. This item provides a professional and secure connection for your cable management system, ensuring the optimum performance and long-term reliability for your installation.Contains 10 pieces

The Hensel cable entry accessory is designed for mini-channels up to 20mm. It is compatible with cable boxes DP 9020, DP 9220, DP 9025, DP 9221, DP 9222, DP 9026, and DP 9225. It provides a protection rating of IP 54, ensuring a secure and safe cable entry solution.Contains 10 pieces

The Hensel ENYSTAR entry plate is suited for cabinet or desk applications, made from plastic and measures 110x110x50mm (DxBxH). It is designed with cable gland, break-out ports, and no surface protection (untreated). It performs optimally with M20 to M63. In addition, the mounting flange comes with cable entries: 2xM20, 2xM25/32, 2xM32/40/50, and 1 x M40/50/63, specifically for a 270mm cabinet wall.

The Hensel ENYSTAR is a plastic input plate for cabinet/desk with dimensions of 110x110x50mm. It features a cable gland design and breakout ports. It does not have surface protection and comes untreated. The product includes 7xM16/25 and 13xM20/25 entries. A mounting flange with cable entries 7 x M 16/25, 13 x M 20/25, suitable for a cabinet wall 2 (270 mm) is also included.

The Hensel ENYSTAR is a plastic inlet plate for a cabinet or desk enclosure with dimensions of 110x110x50mm. It features a blind design, meaning it doesn't have any perforations or openings. The surface protection is none, so the item is untreated. The mounting flange, specifically designed without cable entries, is suitable for a cabinet size 2 measuring 270mm.

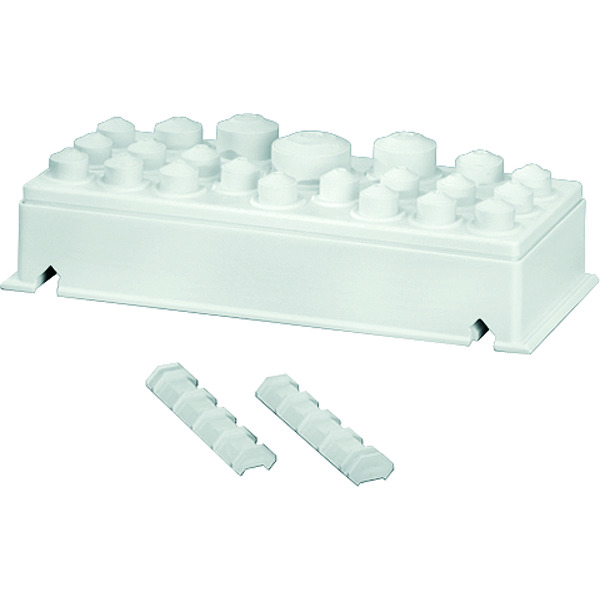

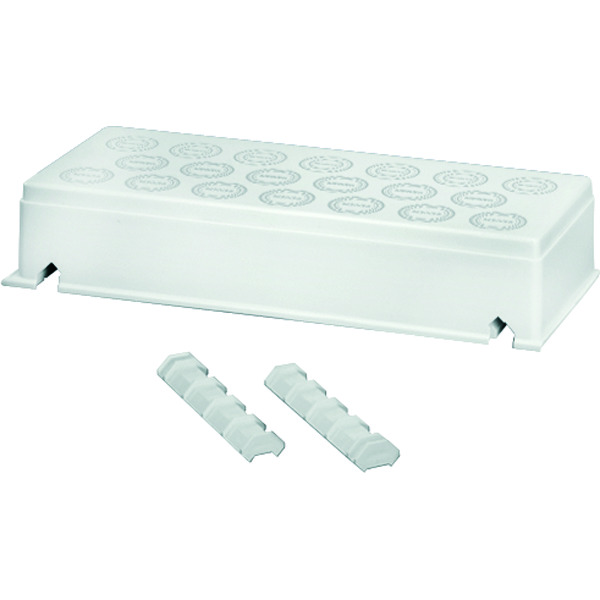

This is a Hensel Mi-distributor accessory input plate with a casing/podium design. Made from plastic, it measures 100x300x25mm and is equipped with a cable gland and knockout ports. The surface is untreated with no protective layer. It comes with 19 M16/25 entry points. The low-voltage switchgear combination is housed in a cabinet that complies with IEC 61439-2 for wall mounting. The cabinets are suitable for outdoor use with consideration for weather effects on equipment. They are made from impact-resistant polycarbonate that is both halogen and silicone-free. The color is RAL 7035 with a transparent lid that includes quick release for tool operation. Fire behavior meets DIN VDE 0471 Part 2 …

This is a Hensel Mi splitter accessory that includes an input plate with a cutout for a cabinet/lectern, made of plastic. The item size is 100x300x25mm and features a cable gland design and breakout ports. It does not have any surface protection finish. The product is an insulated low-voltage switchgear combination built in a cabinet format as per IEC 61439-2 designed for wall mounting. Please note that it should be suitable for outdoor installation considering the effect of weather conditions on the equipment. Cabinet parts and the lid are made of impact-resistant, halogen-free, and silicon-free polycarbonate in RAL 7035 color. The transparent lid has quick-release clasps for tool operation.…

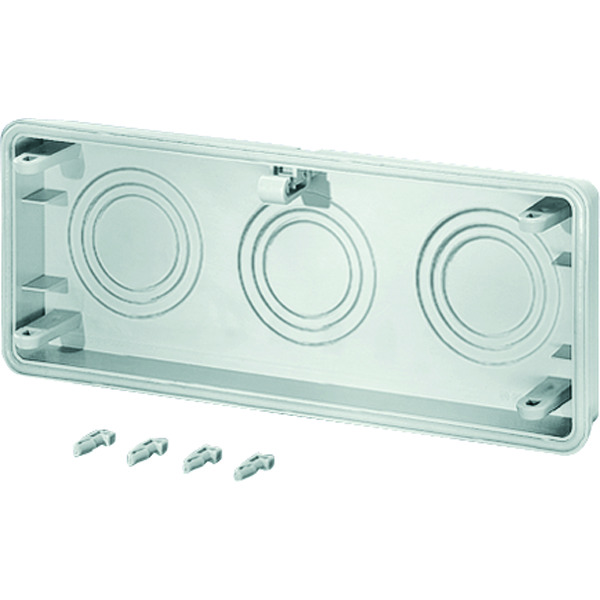

This accessory plate for Hensel Mi distributors is made of plastic and measures 100x300x25mm (dxbxh) and is designed for a cabinet/desk, featuring cable gland design and breakout ports. The surface protection is untreated. It comes with 8xM32/40 and 1xM25/32/40. Additionally, it offers an insulated low-voltage switchgear combination with a cabinet design that is compliant with IEC 61439-2 for wall mounting. The components and lid of the cabinet are made from sturdy polycarbonate that is halogen and silicone-free, featuring color RAL 7035. The cover is transparent and fitted with quick-release locks for tool operation. The cabinet's flame behavior fits DIN VDE 0471 Part 2, and it can withstand …

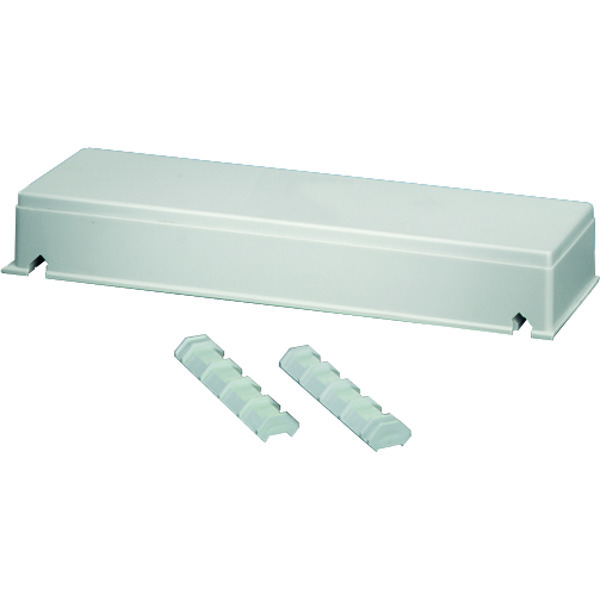

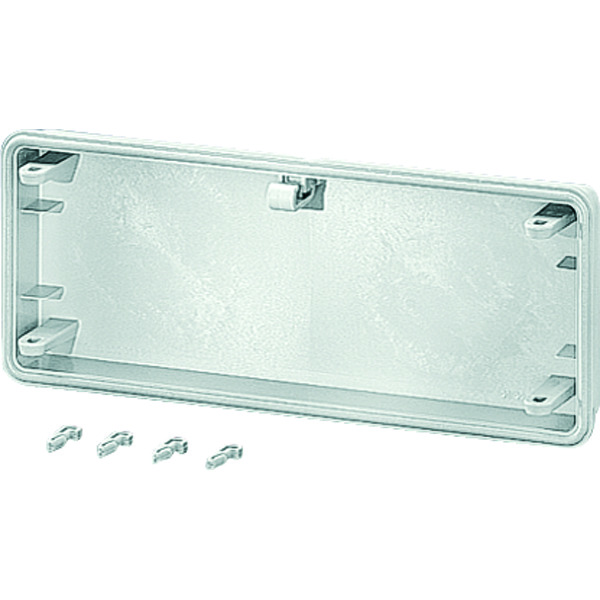

The Hensel Mi-distributor input plate is a blind miscut for a casing or desk, crafted from plastic and measures 100x300x25mm. It does not have any surface protection. The low-voltage switchgear combination is built according to IEC 61439-2 for wall mounting. Cabinets are suitable for outdoor installation and designed to withstand weather conditions. The components and lid of the cabinet are made from impact-resistant polycarbonate that is free from halogen and silicon. It's colored RAL 7035 with a transparent lid that features quick-release locks for tool operation. Conforming to DIN VDE 0471 Part 2, it passes the Glow-Wire Test at 960°C. The maximum water absorption is 10 mg according to DIN 5…

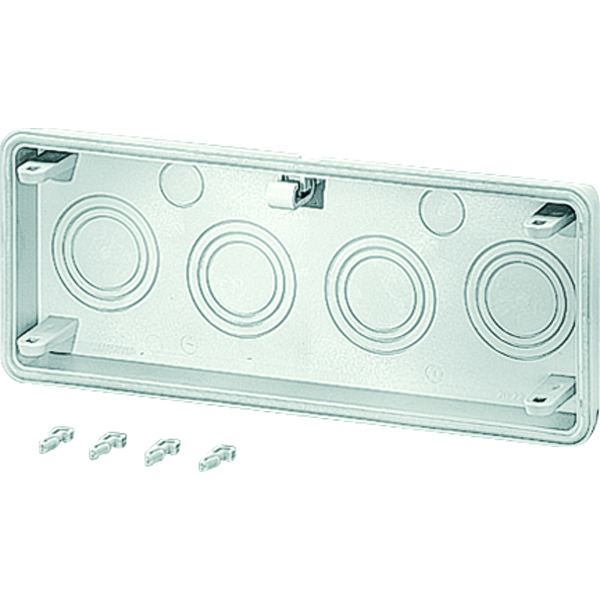

This Hensel Mi-distributor accessory is made of plastic, measuring 100x300x25mm, with a cable gland design and breakout ports. It has no surface protection (untreated) and features 2xM25/32. 5xM32/40. The combination of insulated low-voltage switchgear conforms to IEC 61439-2 and is suitable for wall mounting and outdoor placement, considering weather impact. It consists of impact-resistant polycarbonate parts and lid, free of halogens and silicones, colored RAL 7035, and a transparent lid with quick-release fastenings. It meets the glow-wire test criteria of DIN VDE 0471 Part 2 at 960°C and allows a maximum water absorption of 10 mg as per DIN 53473. The protection measure is double-insulated (…

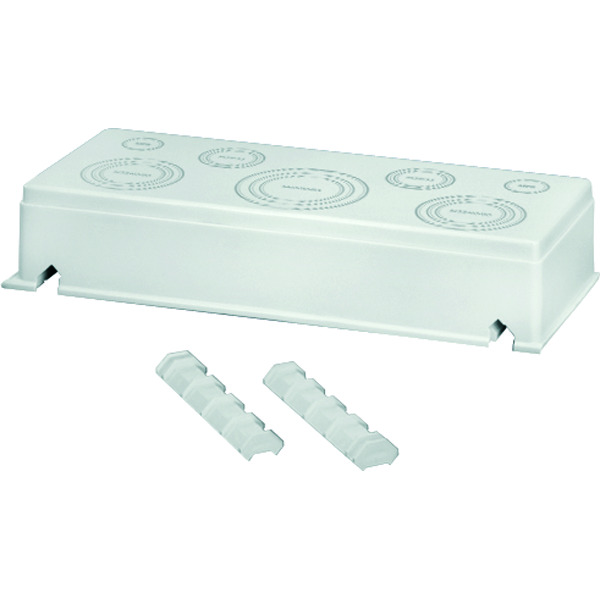

The Hensel Mi distributers are accompanied by accessories such as an input panel spare cabinet/lectern, plastic, dimensions (dxbxh) 100x300x25mm, design cable gland, breakout ports, surface protection none (untreated), 2xM20. 4xM32/40/50. This insulated low-voltage switchgear combination complies with IEC 61439-2 for wall assembly. Suitable for outdoor installation, it takes account of the effect of weather conditions on the operating resources. The cabinet parts and lid are made of impact-resistant polycarbonate, halogen and silicone-free, in RAL 7035 color, with a transparent lid featuring quick locks for tool operation. Its fire behavior is in line with DIN VDE 0471 Part 2 – Glow wire test 96…

The Hensel input plate is designed for cabinet/desk installation. It is a mounting flange that comes without cable entries, designed specifically for a cabinet size of 3 (360 mm). This makes it an ideal choice for technical setups requiring a compact, clean interface with minimal cable clutter. Please note that you will need to provide your own cable entry solution as this piece of hardware does not include any pre-existing cable inputs.

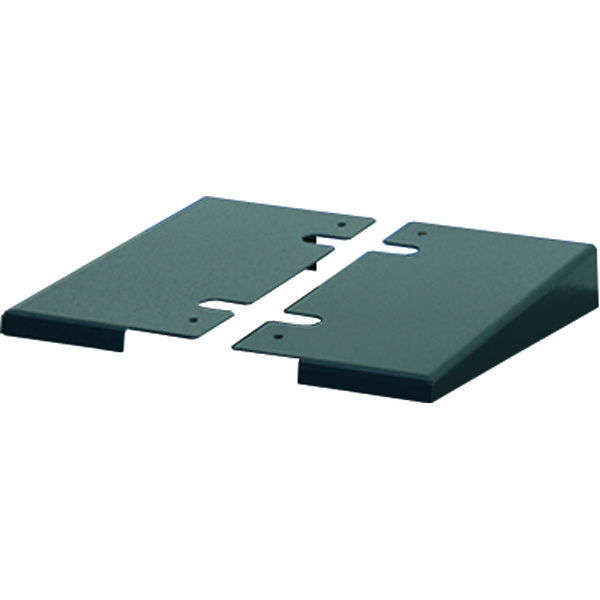

The Hensel Mi-distributors input plate cabinet/lectern is a steel-made, blind execution integrated with a powder coating surface protection. Its dimensions are 245x74x60mm. This insulated low-voltage switchgear combination comes in cabinet form as per IEC 61439-2, intended for wall mounting. These cabinets must be suitable for outdoor installation, taking into account the effects of weather conditions on the operating means. Cabinet components and lids are made from impact-resistant polycarbonate, halogen-free and silicon-free, colored RAL 7035, with a transparent lid equipped with quick-release fasteners for tool operation. It has flame behavior in compliance with DIN VDE 0471 Part 2 – Glow wi…

The Hensel ENYSTAR enclosure entry plate for cabinet/pedestal is made of plastic and measures 110x110x50mm (dxbxh). It has a unique configuration and does not include any surface protection, leaving it untreated. Able to accommodate a space of 6mm to 30mm. In addition, it features an attached flange with integrated cable entry seals for cable connection. These comprise 17 entries of Ø 6-13 mm, 2 entries of Ø 9-17 mm, 2 entries of Ø 8-23 mm, and 1 entry of Ø 11-30 mm, designed for cabinet wall 2 (270 mm).

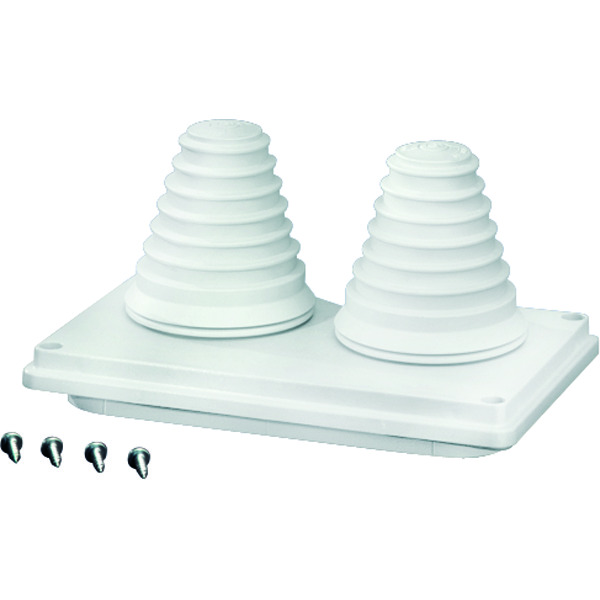

The Hensel Mi-distributor input plate is suitable for both cabinet and desk installations. It features a cable entry flange with a sealing range of Ø 30-72 mm. The flange is equipped with two entry grommets and mounting screws, ensuring a secure and reliable setup. Whether you're installing in a cabinet or a lectern, this input plate with its integral cable flange offers remarkable versatility and reliability.

This is an insulated low-voltage switchgear combination built for wall mounting according to IEC 61439-2, specially designed for outdoor installations considering weather conditions. The body components and lid are made from impact-resistant polycarbonate, free of halogens and silicones, and colored RAL 7035. It features a transparent lid with quick-release fasteners for tool operations. Its fire behavior complies with DIN VDE 0471 Part 2 – glow wire test 960 °C and has a maximum water absorption rate of 10 mg per DIN 53473. The product has double insulation (protection class II). The HENSEL Mi-distribution panel comes with a Mi FM 63 mounting flange, 3xM40/50/63, and an installation height of …

The HENSEL Mi Distributor is an insulated low-voltage switchgear combination abiding by the IEC 61439-2 standards. It is designed for wall mounting and is suitable for outdoor placement, taking into account weather conditions' impact on the operational assets. The cabinet components and cover are made of impact-resistant polycarbonate, halogen and silicone-free, colored RAL 7035 with a transparent cover featuring quick closures for tool operation. The equipment's fire behavior aligns with DIN VDE 0471 Part 2 – Glow wire test 960 °C, and it offers a maximum water absorption of 10 mg according to DIN 53473. It is double-insulated (protection class II) and features Mi FP 38 attachment flange wit…

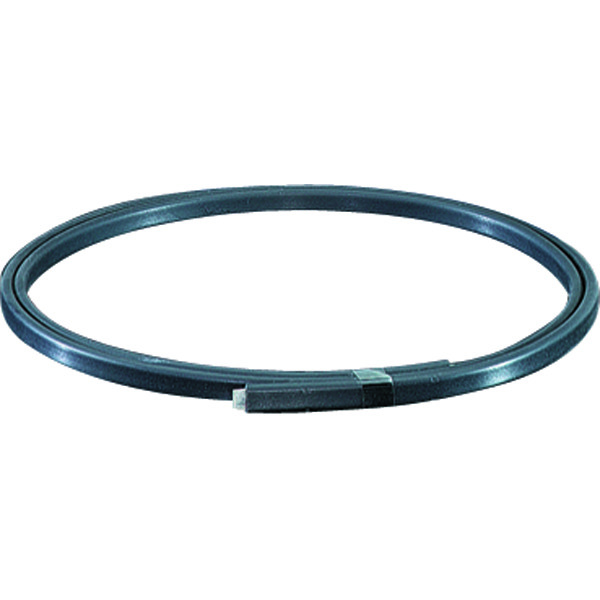

The Hensel Mi-distributor rail copper band is a flexible rail copper designed for electric connections of 100 Amperes between rail systems and built-in devices. It measures 9x2000mm (WxL) and is designed to handle a nominal operating current of 100 Amps. The rail copper features three lamellas with a thickness of 2.4mm and a lamella thickness of 0.8mm. It showcases a laminated design for added durability and efficiency.
