Drill Bits

Faithfull Standard masonry bits are for use in chucks up to 13mm capacity and are suitable for general purpose drilling including bricks, blocks and cement render when used in an impact or percussion drill. A roll formed and treated body with a heavy-duty Tungsten Carbide tip and fast spiral for quick waste removal.Size. 6.5 mm x 100 mm.Additional Information:• Diameter: 6.5mm• Overall Length: 100mm• Pack Qty.: 1

A long-standing product range in the Dormer catalogue, A100 jobber length drill bits are suitable use in the majority of general-purpose engineering applications, whether used in machines or handheld power tools. Features & Benefits • High Speed Steel • Steam Tempered • DIN 338 • 118° Point Angle

Made of excellent quality material
A practical and useful product
Complies with production rules
Ergonomic design

The Faithfull Brad Point Wood Drill Bits are the preferred cutting tip design for drilling wood, chipboard and MDF. This alloy steel drill has a steeper twist and a deeper flute than HSS bits for rapid clearance of waste. Ideal for use in dowelling jigs. This Faithfull Lip & Spur Wood Drill Bit has the following specification Diameter 3mm. Working Length 30mm. Overall Length 60mm.

Faithfull Metric jobber drills that are ideal for DIY and professional use in hand and power drills. Robust design gives less breakage, easier hole start and improved penetration. For drilling steel, iron and most metals. Manufactured to meet DIN 338 standard.Size. 5.0 mm Dia. Pack of 2Additional Information:• Tip Diameter: 5.0mm• Working Length: 52mm• Overall Length: 86mm• Pack Qty.: 2

Ideal for clean accurate drilling in metal, laminates, plastics and wood. Straight shank HSS jobber drill bit

The HSS Twist Drill Bit Ground is for drilling through metal with maximum precision. The bit's exposed 135-degree self-centring split-point tip combines active cutting and perfect centring without wandering, delivering maximum precision. The split-point tip also eliminates any need to pre-punch or pilot drill for up to 10 mm. This precision-ground bit made of HSS (high-speed steel) enables up to 40% faster drilling rate and up to 50% lower feed pressure than standard-ground HSS drill bits with chisel edges. This bit is designed for drilling holes in alloyed and non-alloyed steel, cast steel, cast iron, sintered iron, malleable cast iron, non-ferrous metals and hard plastics. The HSS Twist Drill …

Faithfull Standard masonry bits are for use in chucks up to 13mm capacity and are suitable for general purpose drilling including bricks, blocks and cement render when used in an impact or percussion drill. A roll formed and treated body with a heavy-duty Tungsten Carbide tip and fast spiral for quick waste removal.Size.7 mm x 100 mm.Additional Information:• Diameter: 7.0mm• Overall Length: 100mm• Pack Qty.: 1

A long-standing product range in the Dormer catalogue, A100 jobber length drill bits are suitable use in the majority of general-purpose engineering applications, whether used in machines or handheld power tools. Features & Benefits • High Speed Steel • Steam Tempered • DIN 338 • 118° Point Angle Specifications • Drilling Diameter: 1.99mm • Total Length: 49mm • Length of Cut: 24mm • Number: 47 • Pack Quantity: 1

The Irwin HSS Pro Drill Bit manufactured from high quality HSS steel. They have precision ground cutting edges for fast drilling and perfect finishing, a ground flute for maximum accuracy and fast chip removal and a universal 118º point shape for drilling a wide selection of materials. Manufactured to DIN 338 standards.Irwin HSS Pro Drill Bit. Size: 2.5 x 57mm.PVC Tube.Additional Information:• Tip Diameter: 2.5mm• Working Length: 30mm• Overall Length: 57mm• Pack Qty.: 3

Ideal for clean accurate drilling in metal, laminates, plastics and wood. Straight shank HSS jobber drill bit

These Faithfull Professional Cobalt Jobber Drill Bits are manufactured from M35 HSSE grade steel with a 5% cobalt content for increased heat resistance and cutting performance. All bits are fully ground and feature a 135° non-slip split point for precise centring and are produced in accordance to DIN 388 for high precision tolerances and geometric accuracy. Cobalt bits cut faster and last longer and are suitable for heavy-duty industrial work in: Alloy steels, carbon steels, cast iron, hardened alloy steels, stainless steels, high temperature alloys, Titanium alloy, high strength steel and carbon fibre composite materials.These Faithfull Professional Cobalt Jobber Drill Bits are supplied …

Ideal for clean accurate drilling in metal, laminates, plastics and wood. Straight shank HSS jobber drill bit

Ideal for clean accurate drilling in metal, laminates, plastics and wood. Straight shank HSS jobber drill bit

It has high hardness, good heat resistance, corrosion resistance and easy transportation
Compact design
It is not easy to break, it is sturdy and durable

A long-standing product range in the Dormer catalogue, A100 jobber length drill bits are suitable use in the majority of general-purpose engineering applications, whether used in machines or handheld power tools. Features & Benefits • High Speed Steel • Steam Tempered • DIN 338 • 118° Point Angle

• Model No. HSS10Technical Specification:Size: ø10 x 135mmDimensions: Length: 15mm x Height: 210mmWeight: 0.056KgWarranty: Consumable

• Ideal for general-purpose drilling into most masonry materials. For use in a 1/2" chuck with percussion. • Supplied in a plastic wallet.Ideal for general-purpose drilling into most masonry materials. For use in a 1/2" chuck with percussion. Supplied in a plastic wallet.Technical Specification:Size: ø10 x 200mmDimensions: Length: 1mm x Height: 280mmWeight: 0.076KgWarranty: Consumable

The Irwin IRW10502581 HSS Pro TiN Coated Drill Bit comes in the following:Size: 4.0 x 75mm Note: Image is for illustrative purposes only and may differ from the actual product

Premium HSS precision-ground right hand cutting drill bit. For drilling small holes in metal, rapid drilling, long life and excellent concentricity. Manufactured from High Speed Steel to DIN338.

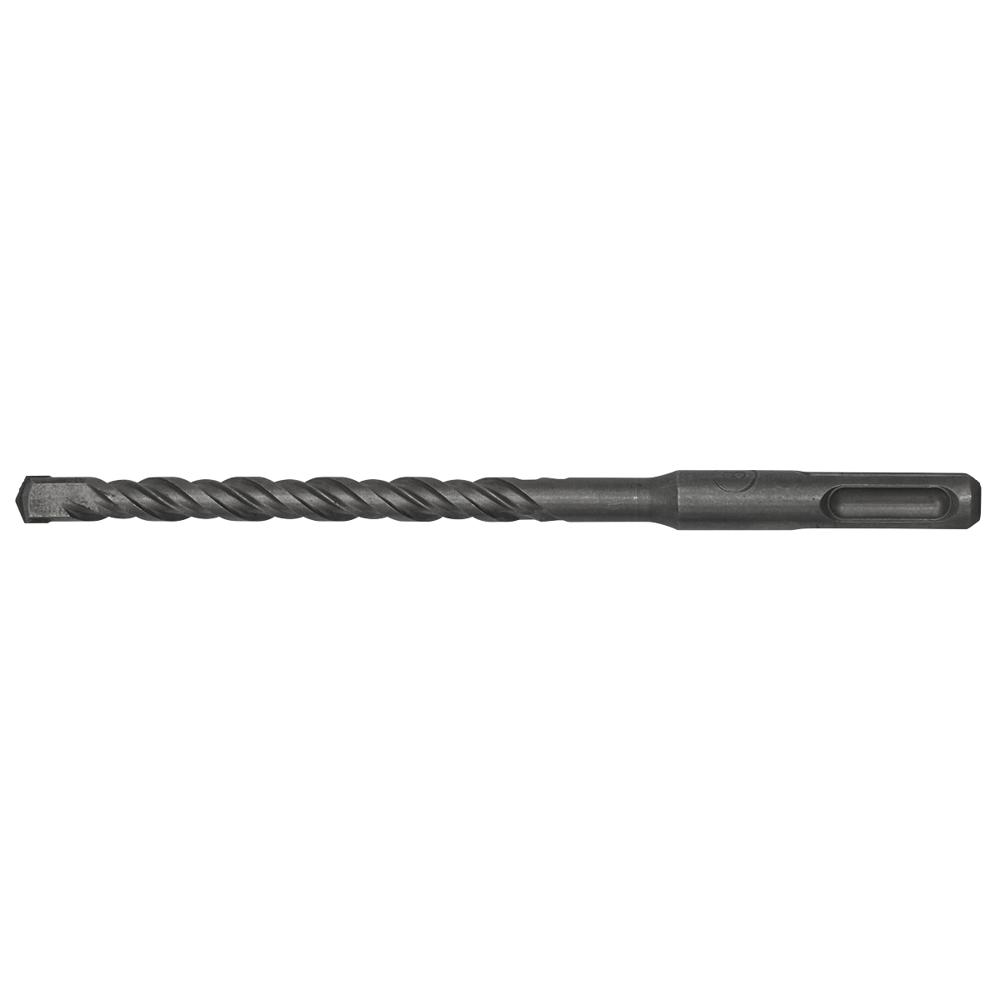

Bosch 2608831019 SDS plus-3 Drill Bit For Masonry 8.0 x 100 x 160mm The Bosch 2608831019 is a single SDS plus-3 drill bit with a diameter of 8.0mm and a working depth of 100mm. The drill bit is suited to drilling in masonry and concrete. It is extremely long-lasting and wear-resistant thanks to its high-alloy steel construction and feature a 4-flute dura design which provides effective dust removal for optimised drilling performance. For use with rotary hammers with SDS plus holders. Features:
- SDS plus-3 Drill Bit offers durability while drilling concrete
- 4-flute dura design provides effective dust removal for increased endurance
- High-alloy steel produced with optimised hardening …

The Irwin HSS Pro TiN drill bits are primarily designed for drilling metal and harder, tougher alloys. Compared to traditional HSS twist drill bits, speed can be increased by 40 -60% and feed by 10 -20% without reducing the life time of the drill bit significantly. TiN is also a poor conductor of heat, so the heat generated during the drilling process is diverted into the chips and coolant and less into the drill bit. These drills have a 135 split point grinding tip which ensures perfect centring and reduced drilling pressure. The drill bit body is manufactured from high quality HSS steel coated with 2.5 Titanium Nitride (TiN), the TiN coating has a hardness of app. 80 HRC and is very resistant …

The DEWALT HSS G Jobber Drill Bit is a precision ground twist drill bit for rapid drilling, long life and excellent concentricity. It has been manufactured from High Speed Steel that conforms to DIN338. The drill bit is ground from solid stock and has a right hand cutting, type N flute with a precision ground end at 118 point angle.

Bosch 2608596305 Brad Point Drill Bit For Wood 8mm x 117mm The Bosch 2608596305 drill bits are designed for precise drilling in soft and hard wood. They are extremely sharp with a brad point centring tip for exact positioning of the hole without tearing the wood. You can expect good material removal without clogging thanks to its two flutes. Features:
- Brad Point Drill Bit offers precise drilling in soft and hard wood
- Extremely sharp drill bit with centring tip allows for exact positioning of the hole
- High-quality shoulder cutters with precise edges that produce tear-free holes
- For exact results, two flutes prevent debris from clogging the hole and easily remove excess materials …
