Wi-Fi Equipment Vivolink

Vivolink VLHDMIMAT4X444-R AV extender AV receiver VLHDMIMAT4X444-R HDMI 2.0 receiver which is designed to receive 4K video from transmitter at distance up to 131 feet (40 meters) and 1080P video at distances up to 230 feet (70 meters) over a single CATx cable. It supports audio de-embedded and ARC. It also supports bidirectional IR and RS232 pass-through to control source or display device remotely. PoC feature allows the transmitter and the receiver can be powered from each other and only one power adapter is needed in system.

Vivolink VLHDMIEXTHDB2.0S AV extender AV transmitter & receiver Black Transmitter/Receiver HDMI 2.0 18Gbps /w Audio BreakoutSupports video resolution up-scaling. the 1080P input can be automatically upgraded to 4K output.Typical installation:It can be installed anywhere need to extend AV/IR/RS232 control signalsE.g. Meeting room or Residential or digital signage etc.Function:HDMI 2.0 extenderPoint to point.Tx to Rx for [email protected] 4K@60Hz 4:4:4

Vivolink VLHDMIEXTHDB2.0 AV extender AV transmitter & receiver Black Transmitter/Receiver HDMI 2.0 18Gbps.Bi-directional IR. RS232 and CEC. one PSU. HDMI 1.4 and HDCP2.2 compliantTypical installation:It can be installed anywhere need to extend AV/IR/RS232 control signalsE.g. Meeting room or Residential or digital signage etc.Function:HDMI 2.0 extenderPoint to point.Tx to Rx for [email protected] 4K@60Hz 4:4:4Key features:Full HDMI 2.0 compliant18 Gbps bandwidthSlim 4K HDBT extender.Two way POCSupport Bi-directional IR and RS232HDCP2.2 compliant

Vivolink VLHDMIEXTDGL50 AV extender AV transmitter Black Ultra cost efficient HDMI extention dongles using CAT6a cable up to 50m extention. Support power over network cable (PoC) from transmitter to receiver Typical installation:It can be installed anywhere to extend HDMI signal up to 50m using CAT6a CAT cableE.g. Private installation. Info screens in Shops or officesFunction:HDMI extenderPoint to point.Tx to Rx for 50m 1080P@60HzKey features:Super cost-effective HDMI extender over CAT cableUSB power cables included in the package

Vivolink VLHDMIEXTDGL100 AV extender AV transmitter & receiver Black HDMI over fiber dongle kitTypical installation:4K fiber extender dongles HDMI 1:1Single-mode fiber: HDMI signal without HDCP ≤ 2000mSingle-mode fiber: HDMI signal with HDCP ≤ 300mMulti-mode fiber: ≤ 300m It can be installed in building with existing fibernetworkLong distance 4K transmission to e.g. outdoor digital signageFunction:4K@60Hz signal expentionHDCP1.4In box:2 x HDMI fiber dongles2 x USB power cables1 x 0.5m fiber cable for test

Vivolink VLHDMIEXT60 AV extender AV transmitter & receiver Black The Vivolink VLHDMIEXT60 – is a signal extender solution designed for professional AV installations. ensuring seamless and high-quality 4K signal transmission (18Gbps) up to 60m. This super small HDMI extender is ideal for extending signals in meeting rooms. conference halls. and other professional settings.Key Features:Extended Transmission Distance: Capable of transmitting 4K2K or 1080P signals up to 60 meters via a single CAT5e/6 cable. making it perfect for large meeting rooms and professional AV setups.Power over Cable (PoC): Simplifies installation with PoC functionality. reducing the need for additional power sources and ca…

Vivolink VLHDMIEXT422 AV extender AV transmitter & receiver Black Transmitter/Receiver HDMI Two way PoC Bi-directional IR. RS232 and CEC. one PSU and HDCP2.2 compliantTypical installation:It can be installed anywhere need to extend AV/IR/RS232 control signalsE.g. Meeting room or Residential or digital signage etc.Function:HDMI extenderPoint to point Tx to Rx for [email protected]@4K

Vivolink VLHDMIEXT3-T AV extender AV transmitter Black Transmitter unit with IR transmitter Max resolution 1080P@60hz VLHDMIEXT3-T is transmitter for VLHDMIEXT3-RIt can extend video/audio/IR with a resolution of 1080P@60 Hz up to 150 meters via single network cable (Cat 6)Up to 253 receivers can be connected to one transmitter using Gbit switch.One receiver will occupy 18Mbit bandwith.Note that this product is not compatible with HDBaseT receivers Typical installation:It can be installed anywhere to extend HDMI signal up to 150m including AV/IR control signalsE.g. Private installation. Info screens in Shops or officesFunction:HDMI extenderPoint to point.Tx to Rx for 150m 1080P@60HzSignal can …

Vivolink VLHDMIEXT3-R AV extender AV transmitter Black Receiver unit with IR transmitter Max resolution 1080P@60hz VLHDMIEXT3-R is Receiver for VLHDMIEXT3-TIt can extend video/audio/IR with a resolution of 1080P@60 Hz up to 150 meters via single network cable (Cat 6)Up to 253 receivers can be connected to one transmitter using Gbit switch.One receiver will occupy 18Mbit bandwith.Note that this product is not compatible with HDBaseT receivers Typical installation:It can be installed anywhere to extend HDMI signal up to 150m including AV/IR control signalsE.g. Private installation. Info screens in Shops or officesFunction:HDMI extenderPoint to point.Tx to Rx for 150m 1080P@60HzSignal can be splitted …

Vivolink VLHDMIEXT1-TV2 AV extender AV transmitter Black Transmitter unit with IR transmitter Max resolution 1080P@60hz VLHDMIEXT1-TV2 is transmitter for VLHDMIEXT1-RV2 It can extend video/audio/IR with a resolution of 1080P@60 Hz up to 120 meters via single network cable (Cat 5e/6) Up to 253 receivers can be connected to one transmitter using Gbit switch. One receiver will occupy 18Mbit bandwith. Note that this product is not compatible with HDBaseT receivers Typical installation:It can be installed anywhere to extend HDMI signal up to 120m including AV/IR control signals E.g. Private installation. Info screens in Shops or offices Function:HDMI extenderPoint to point.Tx to Rx for 120m 1080P@60HzSignal …

Vivolink VLEXTA170 AV extender AV transmitter & receiver Black VLEXTA170 is an audio extender. including transmitter & receiver. It distributes audio signal via CATx cable at 100m with PoC function from Rx to Tx.It provides TOSLINK/COAX/STEREO audio inputs.

Vivolink VL120016R-PSU power adapter/inverter Black ONLY needed if sender unit does not support PoH48VReceiver unit is normally powered via CAT cable PoHIf sender unit does not support PoH 48V this AC adapter can be ordered as accessory.

Vivolink VL120016R AV extender AV receiver Black VL120016R is a mini-size HDBaseT Extender receiver. supporting 1080P/ 4K signal transmission up to 131ft (40m). 1080P signal up to 230ft (70m) over single CAT5e/6 cable. VL120016 supports CEC. bidirectional RS232 & IR control. and one way-directional PoH function.Note:Not compatable with HDBaseT splitter VLHDBSP1X4V2

Vivolink VL120016 AV extender AV transmitter & receiver Black VL120016 is a mini-size HDBaseT Extender set that consists of transmitter (VL120016T) and receiver (VL120016R). supporting 1080P/ 4K signal transmission up to 131ft (40m). 1080P signal up to 230ft (70m) over single CAT5e/6 cable. VL120016 supports CEC. bidirectional RS232 & IR control. and one way-directional PoH function.

Vivolink VL120016T AV extender AV transmitter Black VL120016T is a mini-size HDBaseT Extender transmitter. supporting 1080P/ 4K signal transmission up to 131ft (40m). 1080P signal up to 230ft (70m) over single CAT5e/6 cable. VL120016 supports CEC. bidirectional RS232 & IR control. and one way-directional PoH function.

VivoLink HDse rnsmier 70m 4K

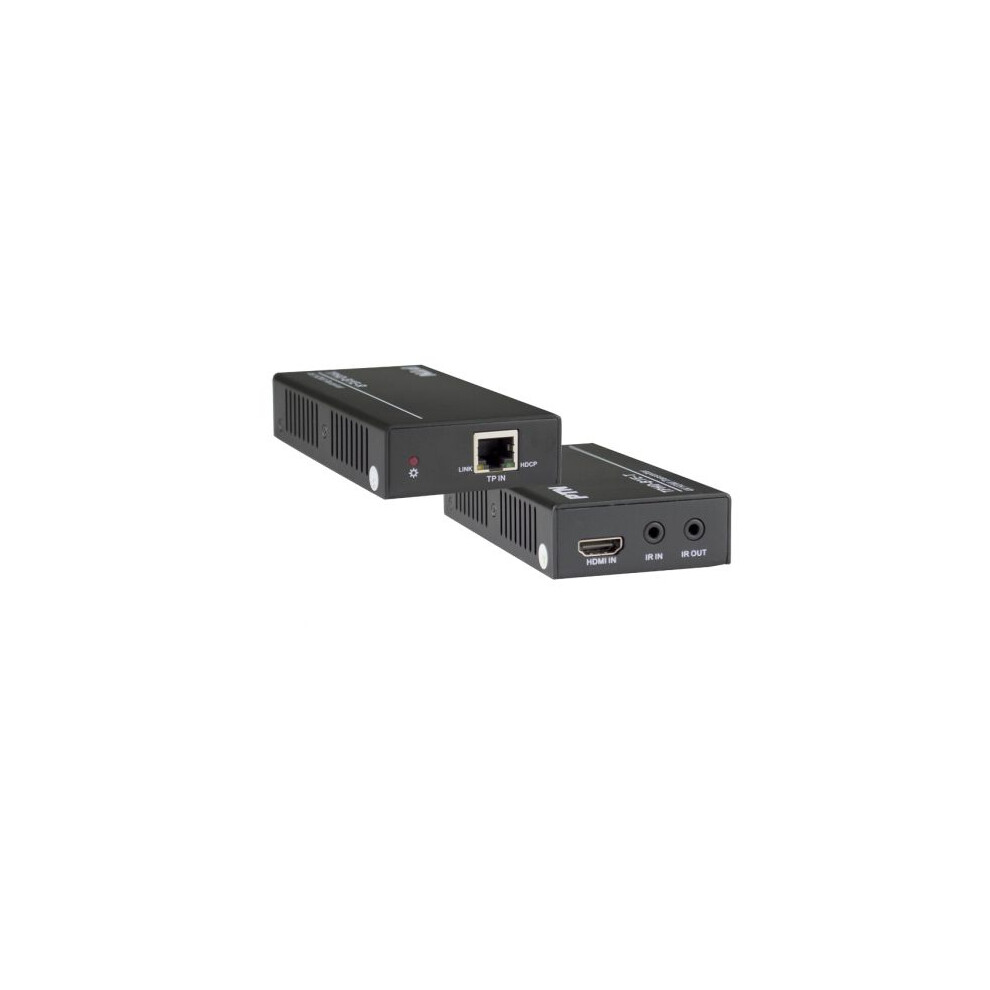

Vivolink VL120007 AV extender AV transmitter & receiver Black Transmitter and Receiver. VL120007 is a HDBaseT extender for HDMI and bi-directional IR signals. which contains a transmitter (VL120007T) and a receiver (VL120007R). It transmits 4K signal up to 131ft (40m). 1080P signal up to 230ft (70m) over single Cat5e/Cat6 cable. The extender set supports PoC function. meaning only one power supply is needed.HDMI over CAT6A

Vivolink VLHDMIEXT416 AV extender AV transmitter & receiver Black HDBaseT extender kit including relay for projector screen Rx unit and audio de-embed on Tx2 way PoC. IR. RS232. one PSU. HDMI 1.4 and HDCP2.2 compliantTypical installation:It can be installed anywhere need to extend AV/IR/RS232 control signalsE.g. Meeting room or Residential or digital signage etc.Function:HDMI extenderRelays output on receiver unit can control screen up/down via RS232 codes.Audio de-embed on transmitter unit for connection to audio systemPoint to point Tx to Rx for [email protected] 4K

Vivolink VLHDMIEXTHDB2.0-R AV extender AV transmitter & receiver Black Receiver HDMI 2.0 18Gbps.Bi-directional IR. RS232 and CEC. one PSU. HDMI 1.4 and HDCP2.2 compliantTypical installation:This receiver can be used for VLHDMIMAT4X431 and is alternative for VLHDMIMAT4X431-RFunction:HDMI 2.0 receiverPoint to point.Tx to Rx for [email protected] 4K@60Hz 4:4:4Key features:Full HDMI 2.0 compliant18 Gbps bandwidthSlim 4K HDBT extender.Two way POCSupport Bi-directional IR and RS232HDCP2.2 compliant
