The Moore & Wright 504 Spring Divider with 100mm (4in) capacity offers a versatile mid-range size suitable for general workshop and engineering applications. This popular size provides an excellent balance between reach and control, making it ideal for standard layout work, scribing operations, and transferring measurements across a wide variety of components. Constructed from polished tool steel with hardened points exceeding 550Hv, this divider delivers reliable performance in demanding environments. The bow spring design maintains uniform tension across the entire working range, ensuring consistent accuracy, whilst the centrally mounted adjustment screw enables precise fine-tuning. The 100mm …

The Moore & Wright Imperial Rule for Combination Set is a precision-engineered measuring tool designed specifically for use with Moore & Wright combination sets. This fully hardened and tempered rule features deeply etched graduations on both sides, ensuring clear readability and exceptional durability for demanding workshop environments. Measuring 600mm/24 inches, this rule is compatible with the MAWCSM300 and MAWCSME12 combination sets, making it an essential replacement or spare component for precision measuring tasks. The dual-sided graduations provide comprehensive measurement options, with metric graduations marked in 0.5mm increments and numbered every 10mm, whilst imperial graduations …

The Moore & Wright Traditional External Micrometer has a blue textured frame finish with tungsten carbide measuring faces and a tapered bow frame. The 'speeder' type ratchet locking lever and adjusting key make this micrometer easy to use. It has a 6.5mm spindle diameter. The micrometers are manufactured to BS870 DIN 863/1 ISO 361 standards. Supplied in plastic pocket case.The 1965 Traditional External Micrometer has the following specification: Micrometer Range: 0-1in. Measuring Faces: Flatness: 0.00005in Parallelism: 0.0001in Accuracy: 0.0001in.Resolution: 0.001in.PTDMAW1965

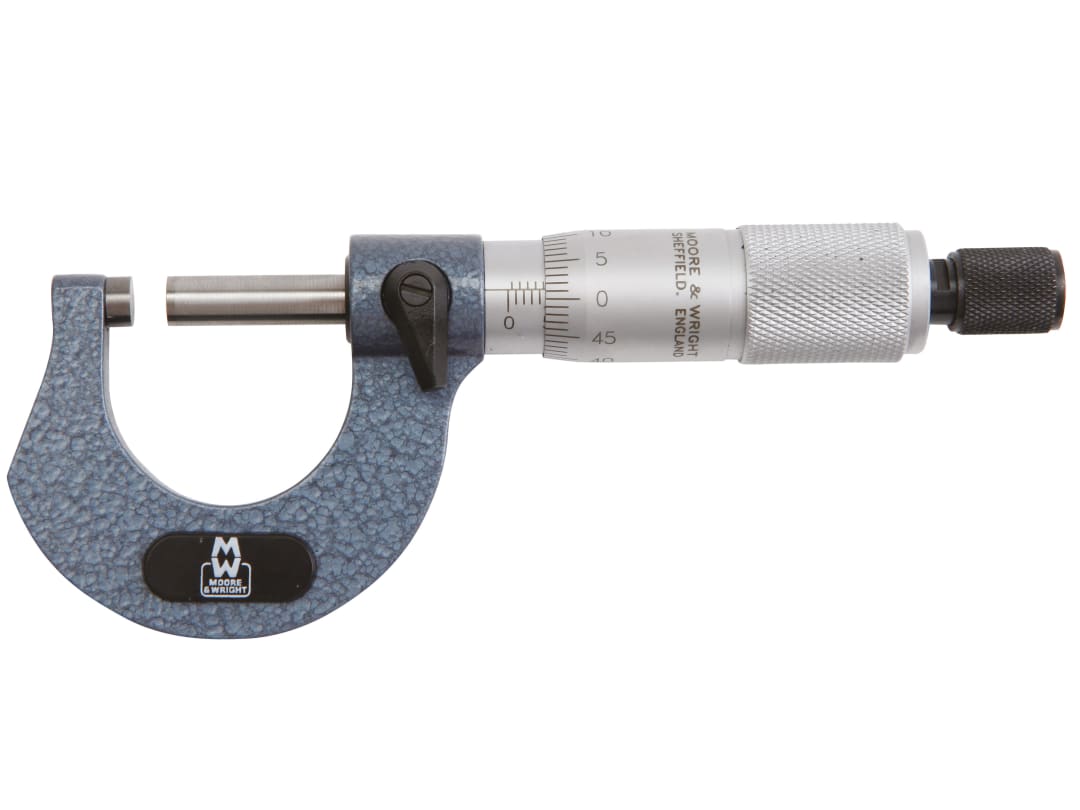

The Moore & Wright 1965M Traditional External Micrometer is a precision measuring instrument designed for accurate external measurements up to 25mm. Featuring a robust blue textured frame with tungsten carbide measuring faces, this micrometer delivers reliable performance for engineering, machining and quality control applications. The tapered bow frame design provides excellent access to workpieces whilst maintaining structural rigidity. Built to exacting standards, this micrometer conforms to BS870, DIN 863/1 and ISO 361 specifications, ensuring traceability and accuracy for professional workshop environments. The 6.5mm spindle diameter offers durability, whilst the tungsten carbide measuring …

The 1966M/50 Traditional External Micrometer has the following specification: Micrometer Range: 25-50mm.Measuring Faces: Flatness: 0.001mm, Parallelism: 0.003mm, Accuracy: 0.003mm.Resolution: 0.01mm.

The Moore & Wright Firm Joint Inside Caliper is a precision measuring instrument manufactured from polished tool steel for accurate internal dimension measurement. Designed for engineering, machining and metalworking applications, this caliper features a large headed nut and screw assembly that provides a firm and rigid friction joint with no play, ensuring consistent measurements. The effective leg length of 150mm (6in) refers to the measurement from the joint assembly, with the actual measuring capacity typically extending approximately 1/3 greater than this stated leg length. This firm joint design allows the caliper to hold its position securely once adjusted, making it ideal for transferring …

The Moore & Wright Firm Joint Outside Calipers are manufactured from polished tool steel and have a large headed nut and screw assembly providing a firm and rigid friction joint with no play. The sizes listed are the effective leg length which is measured from the joint assembly. The Firm Joint Outside Calipers are manufactured to BS3123 standards. Note: Firm joint caliper capacities are generally 1/3 greater than the effective leg length.1 x Moore & Wright 33118 Firm Joint Outside Calipers 450mm (18in)PTDMAW33118

The Moore & Wright Firm Joint Outside Calipers are manufactured from polished tool steel and have a large headed nut and screw assembly providing a firm and rigid friction joint with no play. The sizes listed are the effective leg length which is measured from the joint assembly. The Firm Joint Outside Calipers are manufactured to BS3123 standards. Note: Firm joint caliper capacities are generally 1/3 greater than the effective leg length.1 x Moore & Wright 33124 Firm Joint Outside Calipers 600mm (24in)PTDMAW33124

The Moore & Wright Firm Joint Outside Calipers are manufactured from polished tool steel and have a large headed nut and screw assembly providing a firm and rigid friction joint with no play. The sizes listed are the effective leg length which is measured from the joint assembly. The Firm Joint Outside Calipers are manufactured to BS3123 standards. Note: Firm joint caliper capacities are generally 1/3 greater than the effective leg length.1 x Moore & Wright 3316R Firm Joint Outside Calipers 150mm (6in) in Retail Packaging.PTDMAW3316R

The Moore & Wright Firm Joint Jenny Calipers are manufactured from polished tool steel and have a large headed nut and screw assembly that provides a firm and rigid friction joint with no play. The leg which holds the round adjustable hardened point is offset and model 341 has a locating spur on the straight leg. The sizes listed are the effective leg length which is measured from the joint assembly. Note: firm joint caliper capacities are generally 1/3 greater than the effective leg length.1 x Moore & Wright 336-6R Firm Joint Jenny Caliper 150mm (6in) in Retail Packaging.PTDMAW3366R

This 125mm (5in) Moore & Wright Firm Joint Jenny Caliper is the compact variant in the range, making it ideal for more intricate measuring work and applications where space is limited. The 125mm effective leg length provides excellent control and precision for smaller to medium-sized components. Model 341 features a distinctive locating spur on the straight leg, enhancing positioning accuracy and stability during measurements. Constructed from polished tool steel, this caliper incorporates a large headed nut and screw assembly that guarantees a firm and rigid friction joint with no play. The offset leg holds a round adjustable hardened point for versatile measuring capabilities. The effective …

The Moore & Wright 503 Spring Divider with 75mm (3in) capacity is the compact option in the range, ideal for precision work on smaller components and tight spaces. This versatile size makes it perfect for model making, fine engineering tasks, and detailed layout work where a smaller span is required. Manufactured from polished tool steel with points hardened to over 550Hv, this divider delivers professional accuracy and durability. The bow spring maintains uniform tension throughout the working range, whilst the centrally mounted adjustment screw allows for fine, controlled adjustments. The 75mm nominal size represents the distance between the centre of the roller and the working ends of the …

The Moore & Wright Spring Dividers are manufactured from polished tool steel and the points are hardened to over 550Hv. The bow spring ensures uniform tension over working range and they are fitted with a centrally mounted adjustment screw. These Spring Dividers comply with BS3123 standards. Note: The nominal size is the distance between the centre of the roller and the working ends of the legs.1 x Moore & Wright 506 Spring Divider 150mm (6in) in Retail Packaging.PTDMAW506R

The Moore & Wright Spring Joint Internal Calipers are manufactured from polished tool steel. Their bow spring ensures uniform tension over the working range. The adjustment screw is centrally mounted. These spring joint internal calipers conform to BS3123 standards.1 x Moore & Wright 514R Spring Joint Internal Caliper 100mm (4in) in Retail Packaging.PTDMAW514R

1 x Moore & Wright 516R Spring Joint Internal Caliper 150mm (6in) in Retail Packaging.

This 100mm (4in) Moore & Wright Spring Joint External Caliper is the compact option in the range, perfect for measuring smaller external dimensions with precision and ease. The 100mm capacity makes it particularly suitable for general workshop use, fitting work, and applications where portability and manoeuvrability are important. The bow spring mechanism ensures uniform tension across the full 100mm working range, while the centrally mounted adjustment screw allows for fine, controlled settings that are far more precise than firm joint type calipers. This combination of features makes it an excellent choice for accurate measurement of shafts, rods, and other external components. Manufactured …

The Moore & Wright Spring Joint External Calipers have a bow spring to ensure uniform tension over the working range. They have a centrally mounted adjustment screw offering a finer setting than firm joint type calipers. These spring joint external calipers conform to BS3123 standards.1 x Moore & Wright 526R Spring Joint External Calipers 150mm (6in) in Retail Packaging.PTDMAW526R

The Moore & Wright 891M Adjustable Depth Micrometer is a precision measuring instrument designed for accurate depth measurement in engineering and metalworking applications. This metric micrometer features a fixed depth rod with a 6.5mm diameter, providing reliable measurements from 0 to 25mm with 0.01mm graduation for exceptional accuracy in professional workshops and inspection environments. Built to conform to BS 6468:1984, this depth micrometer demonstrates adherence to recognised British Standards for quality and precision. The tool is fitted with a speeder-type ratchet mechanism that enables rapid positioning whilst maintaining consistent measuring pressure, ensuring repeatable results …

The Moore & Wright 900 Series Internal Micrometers comprise of a measuring head, a set of extension rods and a spacing collar to facilitate alternative measuring ranges. These models (901, 902 & 903) have detachable extension handles.All models supplied in a fitted case.These 900 Series Internal Micrometers conform to BS959 Standards.The Moore & Wright Internal Micrometer 902M Internal Micrometer has the following specification: Range: 50-210mm.Head Range: 10mm.

The Moore & Wright CSM Precision Sets are supplied with a rule (graduated both sides) Protractor head Square head and Centre head. The datum faces are fully hardened and ground to resist wear. There is a centrally mounted protractor vial allows unrestricted viewing and the protractor has full 360° scale plate graduated 0° - 180° - 0°. The protractor is also fitted with a satin chrome scale plate. The precision rules have been fully hardened and tempered with deeply etched graduations on both sides for ease of reading and long life. It has a unique rule clamp that allows positive location and clamping and a clipped corner on rule to maximise capability Square Head offers …

The Moore & Wright CSM Precision Sets are supplied with a rule (graduated both sides) Protractor head Square head and Centre head. The datum faces are fully hardened and ground to resist wear. There is a centrally mounted protractor vial allows unrestricted viewing and the protractor has full 360° scale plate graduated 0° - 180° - 0°. The protractor is also fitted with a satin chrome scale plate. The precision rules have been fully hardened and tempered with deeply etched graduations on both sides for ease of reading and long life. It has a unique rule clamp that allows positive location and clamping and a clipped corner on rule to maximise capability Square Head offers …

The Moore & Wright Engineer's Levels have a precision ground cast base with a V-groove for location on cylindrical work. Each level is fitted with a main cross and plumb vial and the main vial is protected by a rotating shroud. The solution in the vials maintains colour and fluidity under all workshop conditions and the main vial has a sensitivity of 1 minute.The Moore & Wright ELM Engineer's Levels has the following specification: Length: 300mm (12in).Width: 36mm (1.42in).Height: 58mm (2.28in).Resoultion: 0.3mm per metre (0.0035in per foot).PTDMAWELM

The Moore & Wright ELS Engineers Spirit Level is a precision measuring instrument designed for accurate levelling work in engineering and workshop environments. This compact 165mm (6.5in) level combines portability with the exacting standards required for professional engineering applications. Built with a precision ground cast base, this engineer's level features a V-groove that allows secure location on cylindrical workpieces and machinery components. The main vial delivers exceptional accuracy with a sensitivity of 1 minute, making it suitable for precision alignment tasks where standard spirit levels would be inadequate. A protective rotating shroud guards the main vial against workshop …

The Moore & Wright 200 Series Digital External Micrometer has a tapered design that provides easier access to difficult areas and a hammertone finished frame with a high quality insulated grip. It also has tungsten carbide measuring faces and a constant force ratchet on the thimble. The large LCD display allows for 4 types of measurement (mm/inch conversion and Absolute/Incremental reading) and a zero setting. The micrometers are manufactured to DIN 863 standards. Specification Range: 0-25mm/0-1in.Resolution: 0.001mm/.00005in.PTDMAW20001DBL
