The Moore & Wright 1965M Traditional External Micrometer is a precision measuring instrument designed for accurate external measurements up to 25mm. Featuring a robust blue textured frame with tungsten carbide measuring faces, this micrometer delivers reliable performance for engineering, machining and quality control applications. The tapered bow frame design provides excellent access to workpieces whilst maintaining structural rigidity. Built to exacting standards, this micrometer conforms to BS870, DIN 863/1 and ISO 361 specifications, ensuring traceability and accuracy for professional workshop environments. The 6.5mm spindle diameter offers durability, whilst the tungsten carbide measuring …

The Moore & Wright Traditional External Micrometer has a blue textured frame finish with tungsten carbide measuring faces and a tapered bow frame. The 'speeder' type ratchet locking lever and adjusting key make this micrometer easy to use. It has a 6.5mm spindle diameter. The micrometers are manufactured to BS870 DIN 863/1 ISO 361 standards. Supplied in plastic pocket case.The 1965 Traditional External Micrometer has the following specification: Micrometer Range: 0-1in. Measuring Faces: Flatness: 0.00005in Parallelism: 0.0001in Accuracy: 0.0001in.Resolution: 0.001in.PTDMAW1965

The Moore & Wright 1966/2 External Micrometer is a precision measuring instrument designed for accurate external measurements in imperial units. This traditional-style micrometer features a distinctive blue textured frame finish and tungsten carbide measuring faces for enhanced durability and wear resistance. The 6.5mm spindle diameter provides robust construction whilst the 'speeder' type ratchet enables quick adjustment and consistent measuring pressure. Manufactured to BS870, DIN 863/1 and ISO 361 standards, this micrometer delivers the reliability expected by professional machinists, toolmakers and quality control engineers. The locking lever allows measurements to be securely held for transfer …

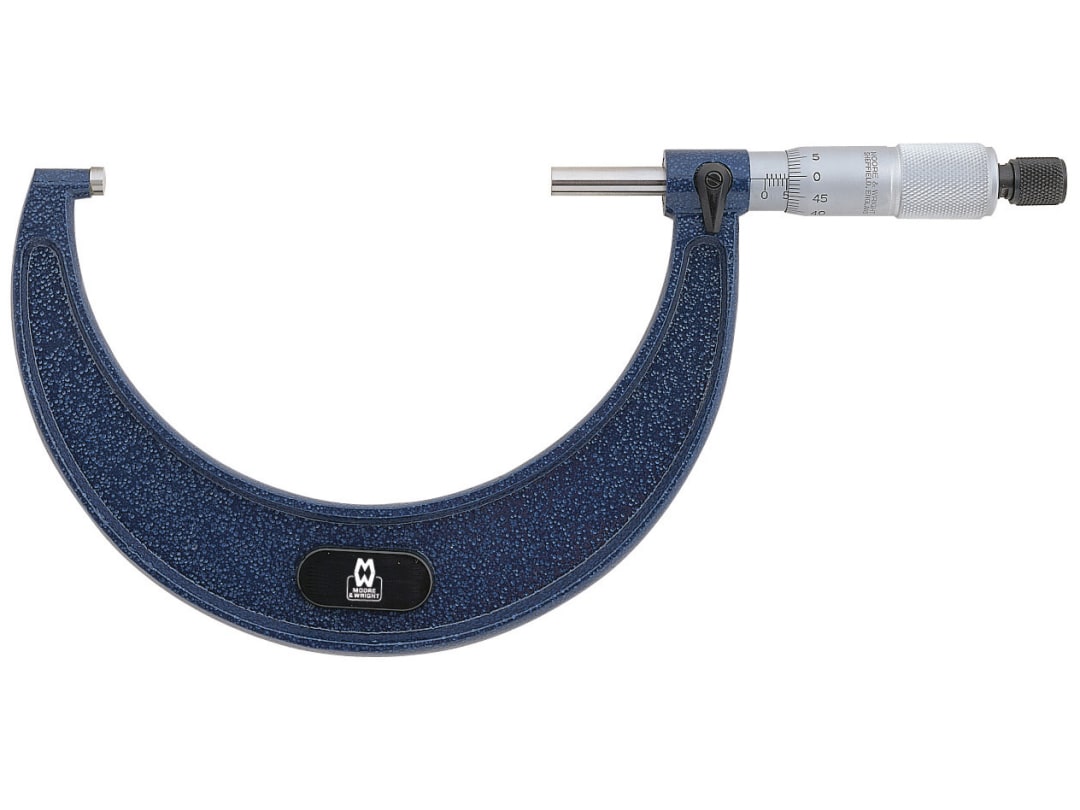

The 1966M/50 Traditional External Micrometer has the following specification: Micrometer Range: 25-50mm.Measuring Faces: Flatness: 0.001mm, Parallelism: 0.003mm, Accuracy: 0.003mm.Resolution: 0.01mm.

The Moore & Wright Firm Joint Inside Calipers are manufactured from polished tool steel and have a large headed nut and screw assembly to provide a firm and rigid friction joint with no play. The sizes listed are the effective leg length which is measured from the joint assembly. The Firm Joint Inside Calipers are manufactured to BS3123 standards. Note: Firm joint caliper capacities are generally 1/3 greater than the effective leg length.1 x Moore & Wright 3306R Firm Joint Inside Caliper 150mm (6in) in Retail Packaging.PTDMAW3306R

The Moore & Wright Firm Joint Outside Calipers are manufactured from polished tool steel and have a large headed nut and screw assembly providing a firm and rigid friction joint with no play. The sizes listed are the effective leg length which is measured from the joint assembly. The Firm Joint Outside Calipers are manufactured to BS3123 standards. Note: Firm joint caliper capacities are generally 1/3 greater than the effective leg length.1 x Moore & Wright 33118 Firm Joint Outside Calipers 450mm (18in)PTDMAW33118

The Moore & Wright Firm Joint Outside Calipers are manufactured from polished tool steel and have a large headed nut and screw assembly providing a firm and rigid friction joint with no play. The sizes listed are the effective leg length which is measured from the joint assembly. The Firm Joint Outside Calipers are manufactured to BS3123 standards. Note: Firm joint caliper capacities are generally 1/3 greater than the effective leg length.1 x Moore & Wright 33124 Firm Joint Outside Calipers 600mm (24in)PTDMAW33124

The Moore & Wright Firm Joint Outside Calipers are manufactured from polished tool steel and have a large headed nut and screw assembly providing a firm and rigid friction joint with no play. The sizes listed are the effective leg length which is measured from the joint assembly. The Firm Joint Outside Calipers are manufactured to BS3123 standards. Note: Firm joint caliper capacities are generally 1/3 greater than the effective leg length.1 x Moore & Wright 3316R Firm Joint Outside Calipers 150mm (6in) in Retail Packaging.PTDMAW3316R

The Moore & Wright Firm Joint Jenny Calipers are manufactured from polished tool steel and have a large headed nut and screw assembly that provides a firm and rigid friction joint with no play. The leg which holds the round adjustable hardened point is offset and model 341 has a locating spur on the straight leg. The sizes listed are the effective leg length which is measured from the joint assembly. Note: firm joint caliper capacities are generally 1/3 greater than the effective leg length.1 x Moore & Wright 336-6R Firm Joint Jenny Caliper 150mm (6in) in Retail Packaging.PTDMAW3366R

The Moore & Wright Firm Joint Jenny Calipers are manufactured from polished tool steel and have a large headed nut and screw assembly that provides a firm and rigid friction joint with no play. The leg which holds the round adjustable hardened point is offset and model 341 has a locating spur on the straight leg. The sizes listed are the effective leg length which is measured from the joint assembly. Note: firm joint caliper capacities are generally 1/3 greater than the effective leg length.1 x Moore & Wright 341R Firm Joint Jenny Caliper 125mm (5in) in Retail Packaging.PTDMAW341R

The Moore & Wright Spring Dividers are manufactured from polished tool steel and the points are hardened to over 550Hv. The bow spring ensures uniform tension over working range and they are fitted with a centrally mounted adjustment screw. These Spring Dividers comply with BS3123 standards. Note: The nominal size is the distance between the centre of the roller and the working ends of the legs.1 x Moore & Wright 503 Spring Divider 75mm (3in) in Retail Packaging.PTDMAW503R

The Moore & Wright Spring Dividers are manufactured from polished tool steel and the points are hardened to over 550Hv. The bow spring ensures uniform tension over working range and they are fitted with a centrally mounted adjustment screw. These Spring Dividers comply with BS3123 standards. Note: The nominal size is the distance between the centre of the roller and the working ends of the legs.1 x Moore & Wright 504 Spring Divider 100mm (4in) in Retail Packaging.PTDMAW504R

The Moore & Wright 506 Spring Divider with 150mm (6in) capacity is the largest model in the range, designed for applications requiring extended reach and greater working spans. This professional-sized divider is particularly suited to larger components, sheet metal work, and engineering tasks where wider circles and longer measurements need to be scribed or transferred. Manufactured from polished tool steel with points hardened to over 550Hv, this divider provides exceptional durability and maintains accuracy even with regular use. The bow spring ensures uniform tension throughout the extended working range, whilst the centrally mounted adjustment screw delivers precise control for fine adjustments.…

The Moore & Wright Spring Joint Internal Calipers are manufactured from polished tool steel. Their bow spring ensures uniform tension over the working range. The adjustment screw is centrally mounted. These spring joint internal calipers conform to BS3123 standards.1 x Moore & Wright 514R Spring Joint Internal Caliper 100mm (4in) in Retail Packaging.PTDMAW514R

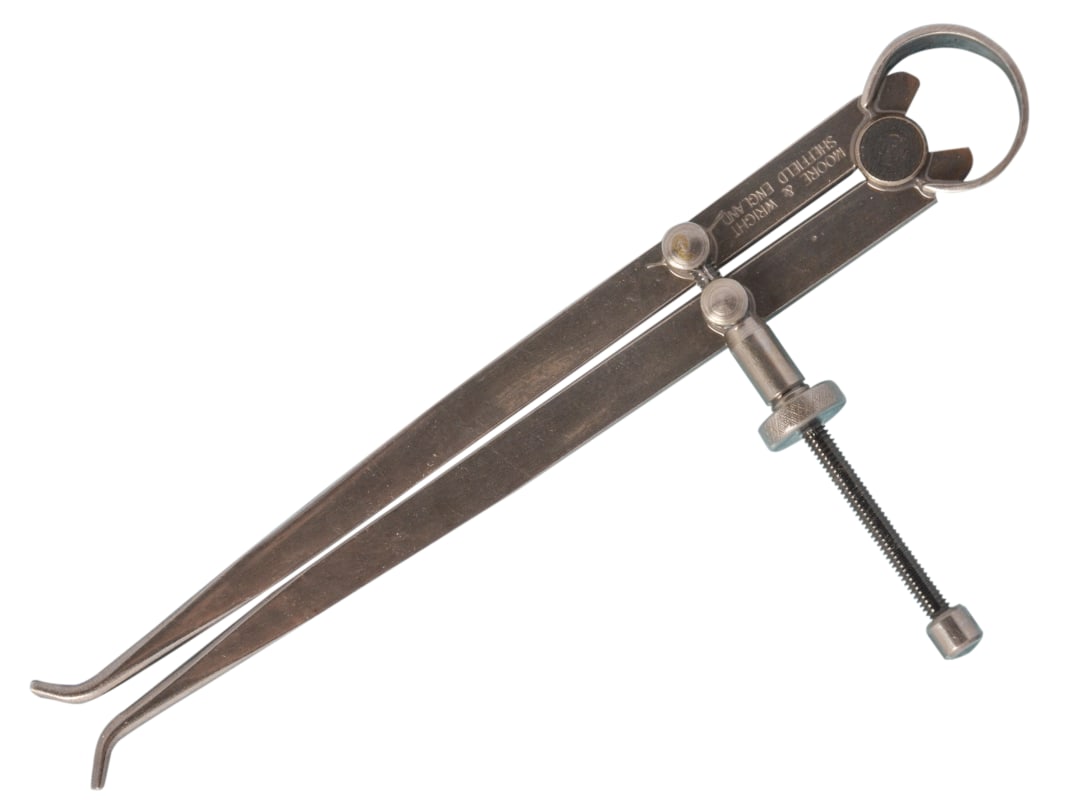

The Moore & Wright 516R Spring Joint Internal Caliper with 150mm (6in) capacity is the larger option, providing extended reach for measuring bigger internal dimensions. This size is ideal for applications requiring measurement of larger bore diameters, internal slots, and recesses commonly found in heavy engineering, automotive work, and industrial maintenance. Constructed from polished tool steel, this 150mm caliper incorporates a bow spring that delivers uniform tension across its full working range, maintaining measurement accuracy throughout. The centrally mounted adjustment screw allows for fine, controlled adjustments even at maximum extension. Meeting BS3123 standards, it offers professional-grade …

The Moore & Wright Spring Joint External Calipers have a bow spring to ensure uniform tension over the working range. They have a centrally mounted adjustment screw offering a finer setting than firm joint type calipers. These spring joint external calipers conform to BS3123 standards.1 x Moore & Wright 524R Spring Joint External Calipers 100mm (4in) in Retail Packaging.PTDMAW524R

The Moore & Wright Spring Joint External Calipers have a bow spring to ensure uniform tension over the working range. They have a centrally mounted adjustment screw offering a finer setting than firm joint type calipers. These spring joint external calipers conform to BS3123 standards.1 x Moore & Wright 526R Spring Joint External Calipers 150mm (6in) in Retail Packaging.PTDMAW526R

The Moore & Wright 890M Fixed Type Depth Micrometer has a fixed depth rod with a 6.5mm diameter. It is fitted with a 'speeder' type ratchet and a lock screw for added user convenience. Conforms to BS 6468:1984. Specification: Base Length: 63.5mm (2.1/2in)Range: 0-25mmResolution: 0.01mm

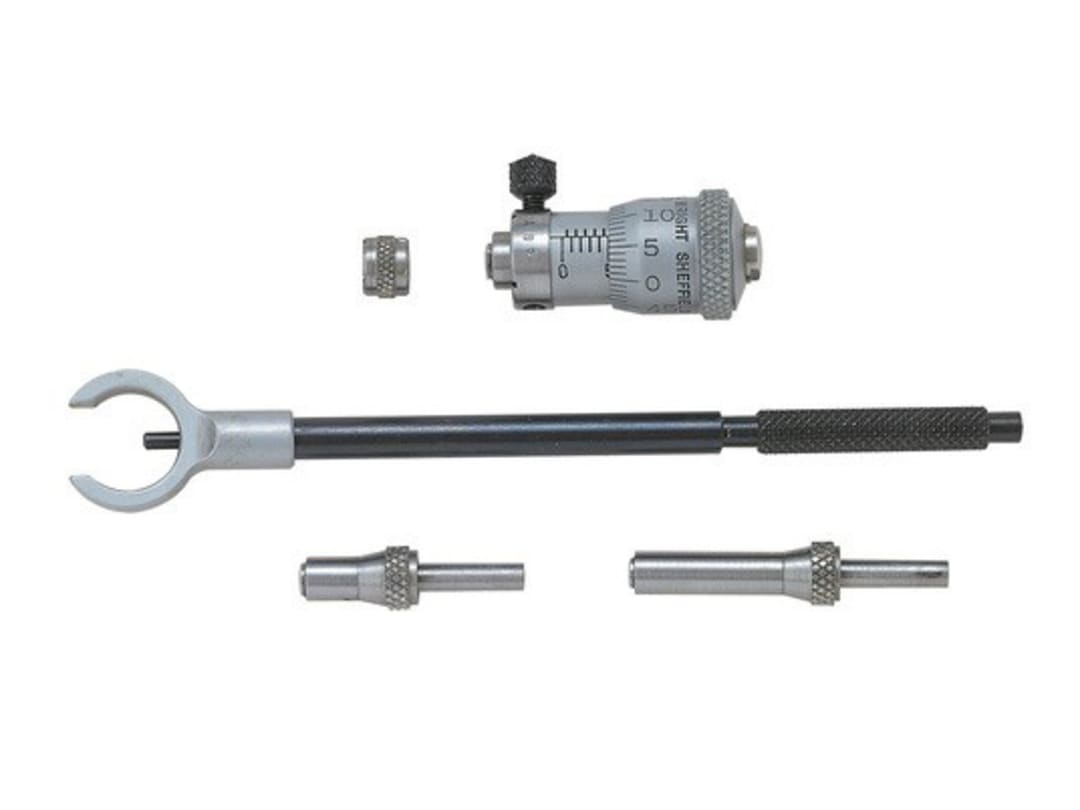

The Moore & Wright 900 Series Internal Micrometers comprise of a measuring head, a set of extension rods and a spacing collar to facilitate alternative measuring ranges. These models (901, 902 & 903) have detachable extension handles.All models supplied in a fitted case.These 900 Series Internal Micrometers conform to BS959 Standards.The Moore & Wright Internal Micrometer 902M Internal Micrometer has the following specification: Range: 50-210mm.Head Range: 10mm.

The Moore & Wright Metric Precision Combination Set is a professional measuring tool designed for accurate metalworking, engineering and precision fabrication tasks. This complete set includes a 300mm hardened and tempered rule with dual-sided graduations, protractor head, square head and centre head, providing tradespeople with versatile measurement capabilities in a single comprehensive package. The precision rule features deeply etched graduations on both sides for excellent visibility and long-term durability, with measurements in mm and 0.5mm increments numbered every 10mm. A unique rule clamp ensures positive location and secure clamping, whilst the clipped corner design maximises the …

The Moore & Wright CSM Precision Sets are supplied with a rule (graduated both sides) Protractor head Square head and Centre head. The datum faces are fully hardened and ground to resist wear. There is a centrally mounted protractor vial allows unrestricted viewing and the protractor has full 360° scale plate graduated 0° - 180° - 0°. The protractor is also fitted with a satin chrome scale plate. The precision rules have been fully hardened and tempered with deeply etched graduations on both sides for ease of reading and long life. It has a unique rule clamp that allows positive location and clamping and a clipped corner on rule to maximise capability Square Head offers …

The Moore & Wright Metric Rule for Combination Set is a precision measuring tool designed specifically for use with Moore & Wright combination sets. This fully hardened and tempered rule delivers professional-grade accuracy for engineers, machinists and metalworkers requiring reliable measurement solutions. Featuring deeply etched graduations on both sides, this 600mm rule ensures clarity and longevity even with regular workshop use. The dual-sided metric graduations provide measurements in mm and 0.5mm increments, with numbering every 10mm for quick reference during layout and measurement tasks. This precision rule is engineered for compatibility with the MAWCSM300 and MAWCSME12 combination …

The Moore & Wright CSM Precision Rules are fully hardened and tempered precision rules with deeply etched graduations on both sides for ease of reading and long life. Theseare rules specifically designed for use with the Combination Sets (MAWCSM300 & MAWCSME12).The Moore & Wright CSRME24 is a 600mm/24in rule is perfect for use with the combination sets and is graduated on both sides. Measurements: Metric Graduations: in 0.5mm numbered every 10mm. Imperial Graduations: 32nds and 64ths numbered every 1/8in. PLEASE NOTE This is ONLY the Rule.PTDMAWCSRME24

The Moore & Wright Engineer's Levels have a precision ground cast base with a V-groove for location on cylindrical work. Each level is fitted with a main cross and plumb vial and the main vial is protected by a rotating shroud. The solution in the vials maintains colour and fluidity under all workshop conditions and the main vial has a sensitivity of 1 minute.The Moore & Wright ELM Engineer's Levels has the following specification: Length: 300mm (12in).Width: 36mm (1.42in).Height: 58mm (2.28in).Resoultion: 0.3mm per metre (0.0035in per foot).PTDMAWELM
