Other Hand Tools Monument

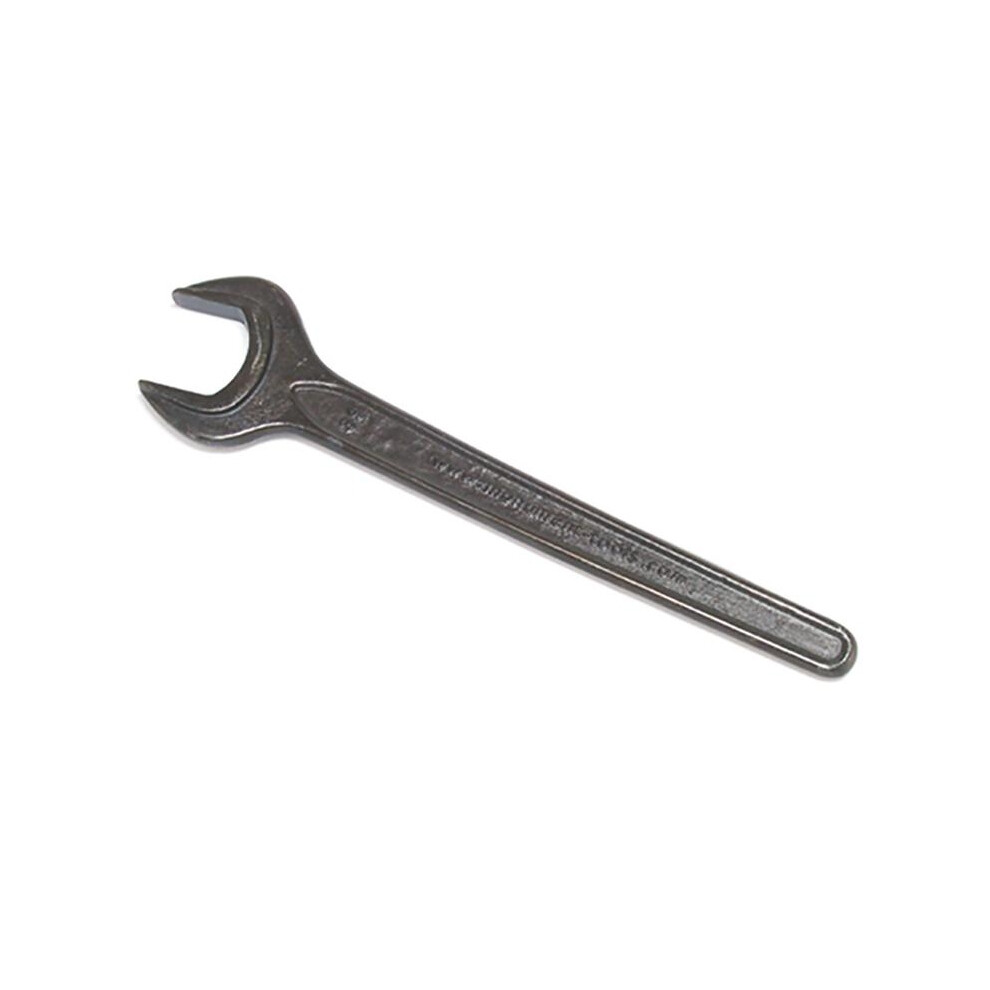

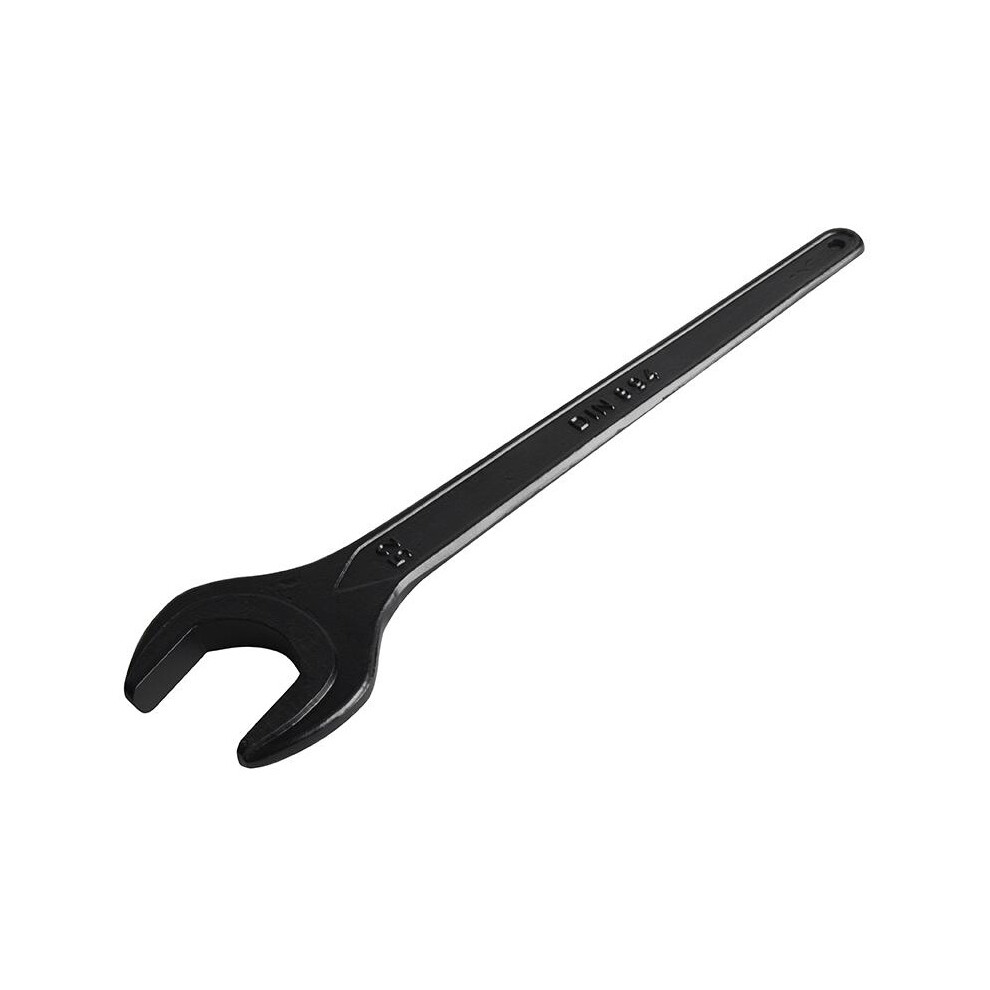

Compression nut spanner single ended drop forged. 28mm (39mm AF) to suit most 28mm compression nuts. Overall length: 290mm.

Monument 173 has been especially designed for removing stiff backnuts from awkward placed taps and to make tap installation a more rapid process, this tool is for 1/2-inch. BSP and 3/4-inch. BSP taps. The Monument 170 tool stays in position on the tap tail so can be used with one hand and uses mechanical advantage of the thread of the tap tail to remove stiff nuts. Ideal for 1/2-inch and 3/4-inch BSP 25 mm 27 mm nuts 29 mm ribbed 32 mm nuts. The MON173 is complete with 3/8-inch cordless drill adaptor, 1/2-inch square drive, extension tube and full user instructions. For removing stiff backnuts and rapid tap installation for 1/2-inCH. BSP and 3/4-inch. BSP Taps.Tool stays in position on the tap …

This Monument 1277s is a replacement hose to fit gas test gauges. It has an internal diameter of 7/32 in (5.5mm). They are black nitrile for standard and are 1m in length (Coil). NOTE Do not use this hose for LPG (low pressure gas).

Monument 1279 Black replacement hose to fit gas test gauges, are 1m in length, and have an internal diameter of 7/32 in (5.5mm). Note: Do not use this hose for LPG (Liquified Petroleum Gas).Additional Information:• Tool Type: Tubing• Size (mm): 1000• Size (in): 39

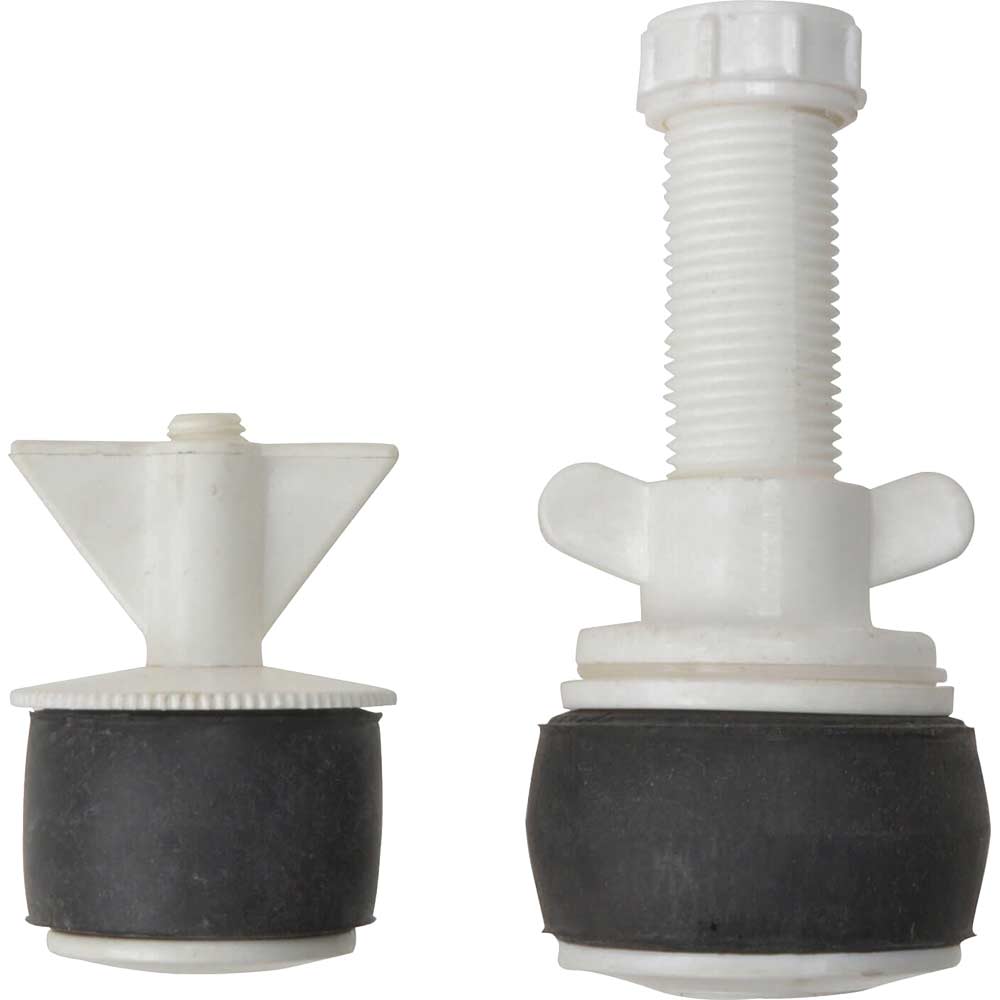

The Monument MON1368 1368U 2 Piece Test Plug Set is used for blocking off small pipes such as copper pipes for dry testing prior to commissioning. They cannot be used for air testing purposes by themselves. 2 Plugs supplied: 1 x 1370B 15mm Test Plug. 1 x 1371E 22mm Test Plug.Additional Information:• Tool Type: Test Plug

This Monument set of 6 Test Plugs contains the following small bore test plugs: 2 x 1370B 15mm Test Plugs.2 x 1371E 22mm Test Plugs.2 x 1372H 28mm Test Plugs. The plugs are used for blocking off small pipes such as copper pipes for dry testing prior to commissioning, however they cannot be used for air testing purposes by themselves.Additional Information:• Tool Type: Test Plug

Monument socket forming tools (copper pipe jointers) are ideal for joining 2 pieces of copper pipe of equal diameter together without using fittings. The loose former allows easier withdrawal of tool after use. The resulting capillary joint that is left can be soft or hard soldered to finish the joint. Available in a variety of sizes: 15, 22, 28 and 15 & 22mm.This Monument 138R Copper Pipe Jointer has the following specification: Pipe Diameters: 15mm and 22mmPipe Thickness: 0.7mm and 0.9mm

The Monument MON1445 1445F spare hose for connecting testing equipment comes in the following: Length: 1m.Internal Diameter: 10mm.Additional Information:• Tool Type: Tubing

The Monument 1470F Smoke Emitter Pellets give off a dense white low-toxic smoke when ignited. They have a burn time of 60 seconds and have an approximate volume of 15m³.They are used for testing flues, chimneys, fans etc and come supplied in a pack of 10. Specification: Smoke Colour: White.Pack Quantity: 10.Additional Information:• Tester Type: Smoke Pellets• Colour: White

The Monument 1515U Water Flow Weir Gauge is designed to measure water flow rates in order to determine if suitable flow is available in a building prior to the plumbing installation of washing machines, boilers, showers etc. This type of water flow gauge is also used for diagnosing if a combi boiler or water heater may need de-scaling. The water flow gauge is made from durable plastic with a stainless steel mesh strainer to avoid turbulence. It features a dual scale to measure flow rates of 2 to 25 litres and 1 to 5 gallons per minute.Additional Information:• Tool Type: Flow Tester

This Monument spare rubber hose is for use with U gauges. They have a coil length of 2m and an internal diameter of 7/32in (5.5mm). Specifications: Colour: Black.Length: 2m (78in) (coil). Additional Information:• Tool Type: Tubing• Size (mm): 2000• Size (in): 78

The Monument 1730X Orange Hose for Gas Test Gauges. Rubber Hose ID: 5.5mm food quality, Length: 2m. Colour: OrangeAdditional Information:• Tool Type: Tubing• Size (mm): 2000• Size (in): 78

Test Nipples screw into gas meters to enable connection to a gas test gauge. The hexagon screw shuts off supply to the gauge.1/8in. BSP thread.Additional Information:• Tool Type: Test Nipple

Monument Air Testing U-Gauge Kit containing all the items (except testing plugs) needed to carry out an air test to 100mm (4in) water gauge pressure on any size of drain or pipe. The kit is housed in a display box with full instructions. Contains: 1 x U-Gauge1 x Hand Bellows Pump1 x 1/2in BSP Nipple Cap1 x 1in BSP Nipple Cap1 x Y-Piece3 x 600mm lengths of Rubber HoseAdditional Information:• Tool Type: Test Kit

The Monument 175C U-Gauge (also known as a Manometer) should be used to test for leaks after installation or repair of any drain or pipeline system. Made from unbreakable parts, it will test up to 100mm (4in) water gauge pressure irrespective of pipe diameter. The hinged lid of the gauge folds back so that it forms a base behind the gauge for added stability.Additional Information:• Tool Type: U-Gauge

The Monument MON180 180S Nipple Cap are for attachment to drain test plug outlets to enable connection of rubber hose to the U Gauge. It is made from plastic with a washer. Specification: Size: 1/2in BSP.Additional Information:• Tool Type: Nipple Cap

This Monument Tee Piece for U Gauges connects three pieces of rubber hose together for convenient connection to U Gauge, bellows and nipple cap.

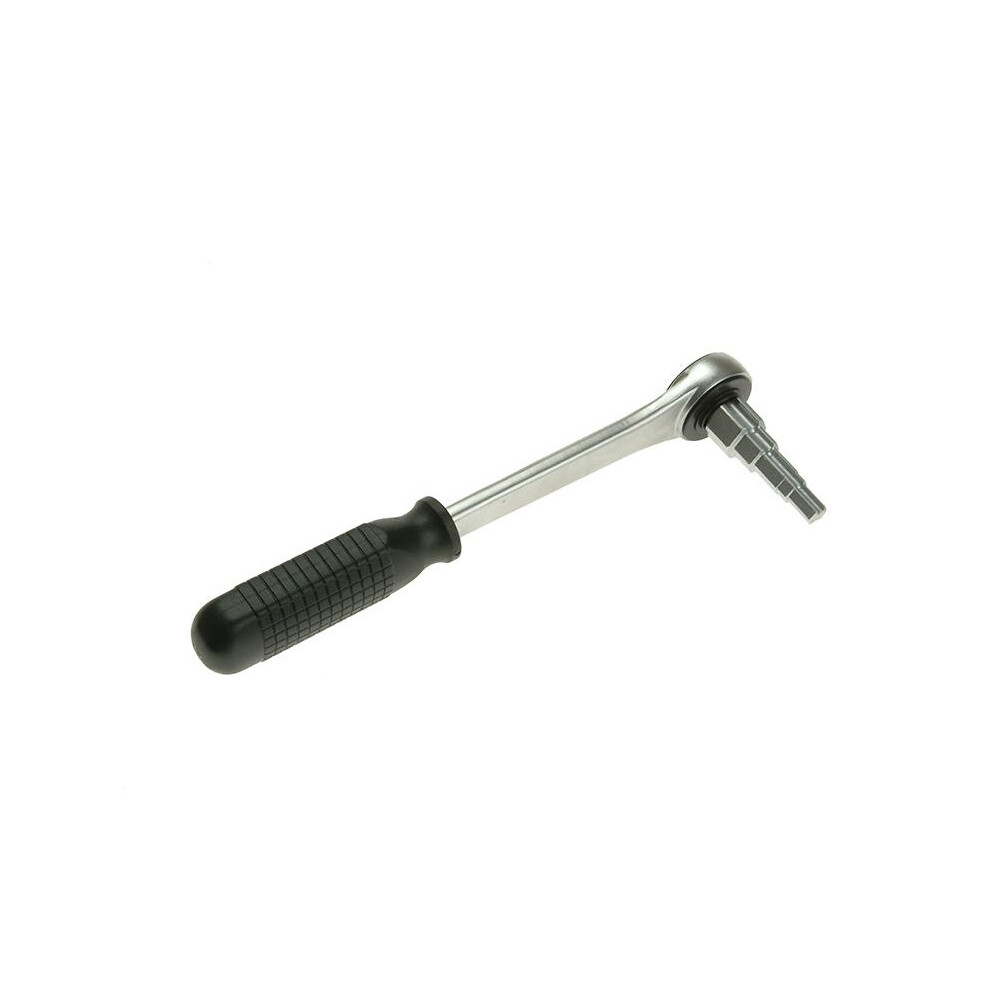

This Monument Radiator Stepped Wrench & Ratchet handle is suitable for use on most radiator valves, nipples, plugs, tank connectors etc. It has the following step sizes 10, 12, 12.7, 17 & 22mm.Additional Information:• Key Type: Spanner

The Monument 2050L Gas Meter & Radiator Bleed Key is used for releasing air which can appear in a radiator, and for opening gas meter cupboards.Made in Britain from engineering plastic.Additional Information:• Key Type: Key

This Monument Universal Radiator & Valve Key has tapered ends and are therefore self-restricting. The three profiles make the tool universal, catering for 3/8 in and 10 mm square section radiator vent plugs and bleed screws.Bayonet or internal lug type radiator valves allow for variations in size, shape, and position. The 12 mm to 14 mm internal hexagon valves are tapered allowing for variations in size.Additional Information:• Key Type: Key

This Monument Steel Radiator Spanner is used on 3/8 in and 10 mm square section radiator vent plugs and bleed screws.It has a Zinc plated finish with a slightly offset handle.Additional Information:• Key Type: Spanner

The Monument Radiator Spanner Air Release Key, 2054X, made from steel, a zinc plated valve spanner and an air release key, with a slightly offset handle. Specification: Size: 12mm (Double Ended).Additional Information:• Key Type: Spanner

This Monument Three-Legged Radiator Valve Key is used for 1/2in, 3/4in and 1in radiator valve's. It has 7, 8 and 9mm square profiles.The key is made from brass pressing.Additional Information:• Key Type: Key

The Monument 2059M Multi-Purpose Four-Way Key is used for gas, water and electric meter cupboards, air conditioning units, stop valves, mains consoles etc, as well as central heating pump cocks, some radiator and drain off valves.Additional Information:• Key Type: Key
