SFP Transceivers

10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty.The PLUS-LR-ST is a Palo Alto Networks PLUS-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Palo Alto Networks brand switches and routers.It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 0 km (6.2 mi).Technical Specifications: - Wavelength:1310. - Maximum Data Transfer Rate:10 Gbps. - Type:Single Mode Fiber. - Connection Type:LC Connector. - Maximum Transfer Distance:0 km (6.2 mi). - MTBF:1,386,624,697 hours. - Power Consumption: - Digital Diagnostics Monitoring (DDM):Yes.This SFP+ fiber module …

DIGITUS SFP+ 10G Direct Attach Cable (DN-8122) - 2m | High-Speed Cisco Compatible ConnectivityElevate your network´s performance with the DIGITUS SFP+ Direct Attach Cable (DAC), model DN-8122. This 2-meter high-speed cable is the ultimate solution for establishing robust, low-latency connections within your data center, server room, or enterprise network. Designed as a highly efficient and cost-effective alternative to traditional optical transceivers, this cable provides a direct, passive copper link between two SFP+ ports, simplifying your infrastructure and reducing total cost of ownership. It is the ideal choice for short-distance, high-bandwidth applications, such as connecting switches t…

Delivering the same high Service levels. Lifetime Warranty. and Technical Support as Hypertec Memory and SSDs. Hypertec Transceivers provide a cost-effective equivalent to over 1.300 market-leading OEM part codes. Hypertec Transceiver- 1G SFP LC SX 500m MMF XCVR HP Aruba Compatible

Meraki now Cisco® MA-CBL-TA-3M compatible 10GBase-CU SFP+ to SFP+ direct attach cable (Passive Copper. 3m). A 100% Meraki now Cisco® compatible 10GBase-CU SFP+ to SFP+ twinax direct attached cable that operates over passive copper. with a maximum reach of 3.00m (9.84ft). This Meraki now Cisco® compatible twinax cable has been programmed. uniquely serialized. and data-traffic and application tested to ensure it is 100% compliant and functional. Our direct attached cable will initialize and perform identically to Meraki now Cisco's cable and is built to meet or exceed Meraki now Cisco's specifications. and comply with MSA (Multi-Source Agreement) standards. The actual part shipped may have a d…

Palo Alto Networks® PAN-SFP-PLUS-CU-3M compatible 10GBase-CU SFP+ transceiver (twinax DAC. 3m. passive). A 100% Palo Alto Networks® compatible 10GBase-CU SFP+ to SFP+ twinax direct attached cable that opperates over passive copper. with a maximum reach of 3.00m (9.84ft). This Palo Alto Networks® twinax cable is 100% compliant with its designed networking application. and is factory programed with Palo Alto Networks® specific configuration data required for seamless networking integration. This passive twinax cable will initialize and perform identically to Palo Alto Networks' cable and is built to meet or exceed Palo Alto Networks' specifications. and comply with MSA (Multi-Source Agreement) stan…

The plug and play fiber connection- The Plug & Play fiber optic link enables quick installation- Sends data in high quality and additionally provides excellent reliability- Distance up to 20 km at a maximum data rate of 1.25Gbps- Operating temperature: 0 °C ~ 70 °CThe DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch. converter to switch. converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers. Digitus mini GBIC (SFP) Module. 1.2…

Specifications:Performance:- Sfp Transceiver Type:Fiber Optic.- Maximum Data Transfer Rate:1250 Mbit/S.- Interface Type:Sfp.- Multi-Mode Fiber (Mmf) Supported:Yes.- Fiber Cable Diameters Supported (Core/Cladding):50/125 µm.- Maximum Transfer Distance:300 M.- Wavelength:850 Nm.- Networking Standards:Ieee 802.3ae.- Power (Input Voltage):3.3 V.- Operational Conditions:- Operating Temperature (T-T):0.- 70 °C.- Storage Temperature (T-T):-40.- 85 °C.

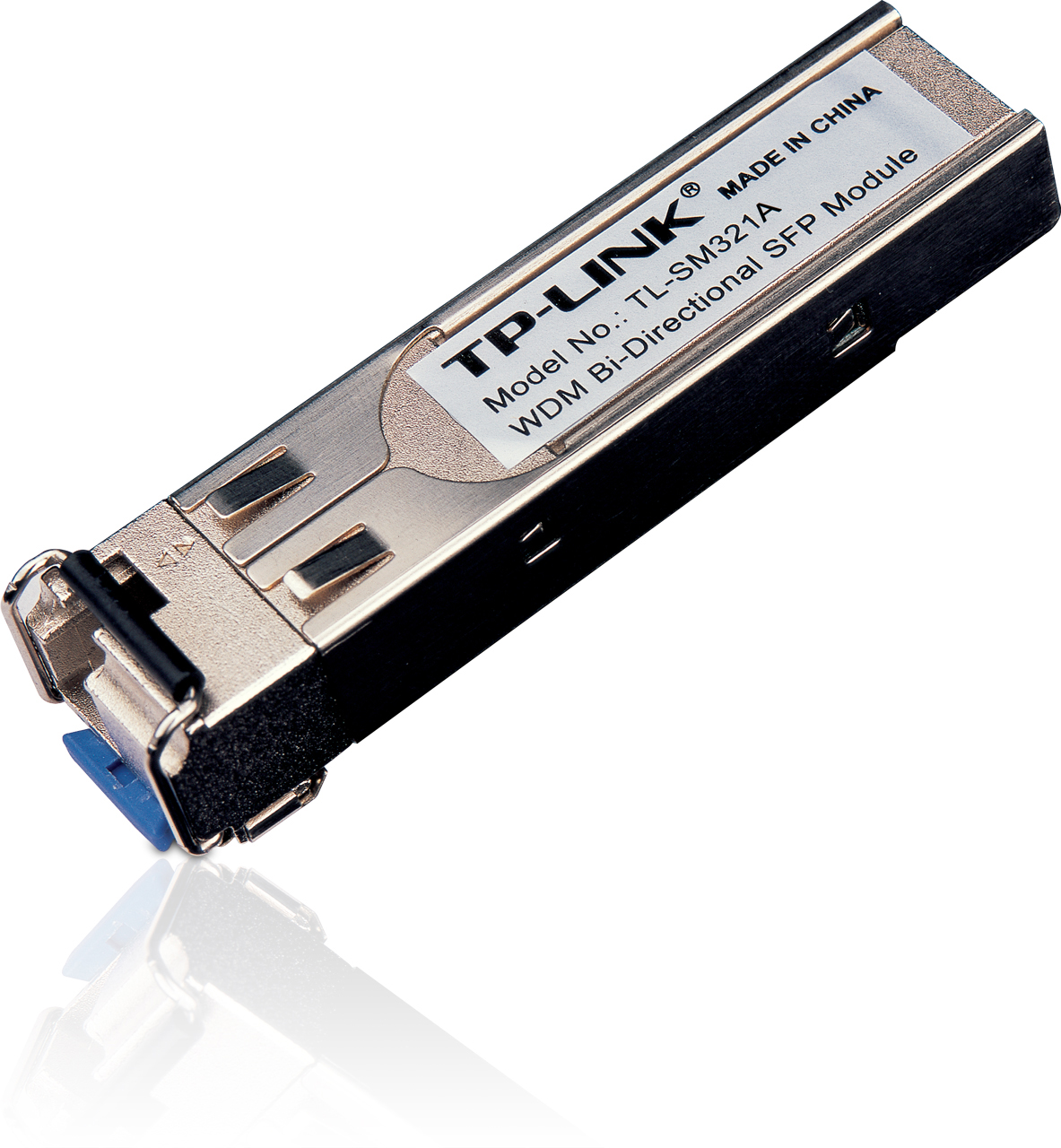

TP-Link´s TL-SM321A adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km with TP-Link´s Routers, Switches, Media Converters to provide high speed and stability.

TP-Link´s SM321A(TL-SM321A) adopts the latest standard 1000Base-BX, transmitting over a single strand of fiber with one different wavelength going in each direction.You can extend the network distance up to 20Km with TP-Link´s routers, switches and media converters to provide high speed and stability. TP-Link Omada SFP 1000BASE-Sm MiniGBIC BX10D.SFP transceiver type:Fiber optic, Maximum data transfer rate:1250 Mbit/s, Interface type:SFP.Product colour:Silver.Input voltage:3.3 V.Certification:FCC, CE.Width:55.4 mm, Depth:14.6 mm, Height:12.9 mm.WDM Bi-Directional SFP Module Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving.

Our Copper Small Form Pluggable (SFP) transceivers are high-performance cost-effective modules compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE802.3-2002 and IEEE802.3ab supporting 1000Mbps data-rate up to 100 metres over unshielded twisted-pair category 5 cable.

The module supports 1000Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair.

The module provides standard serial ID information compliant with SFP MSA which can be accessed with address of A0h via the 2 wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2 wire serial …

This 1310nm DFB 10Gbps SFP+ transceiver is designed to transmit and receive optical data over singlemode optical fibre for a link length of 10km.

The SFP+ 10km module electrical interface is compliant with SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled.

The module provides differential termination and reduces differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200mm of improved FR4 material or up to 150mm of standard FR4 with one connector

If you´re passionate about.IT and electronics.like being up to date on technology and don´t miss even the slightest details, buy.MonoMode SFP Fibre Module Mikrotik S-31DLC20D 20 km.at an unbeatable price.Type:MonoMode SFP Fibre Module.Cabling.Connections:SFP.USB.Speed:1 Gbps.Material:Paper.Year:2015.Shape:Rectangular.Circular.Operating System:RouterOS.Colour:Black/White.

Unleash Seamless Network Connectivity with the LEVEL ONE TransceiverExperience unparalleled network performance and reliability with the LEVEL ONE Transceiver, a high-performance solution designed to optimize your network infrastructure. This transceiver seamlessly integrates into your existing network, delivering exceptional speed and efficiency for demanding data transmission needs. Built for Performance and Versatility:The LEVEL ONE Transceiver is engineered to meet the rigorous demands of modern networks. It supports data rates, ensuring lightning-fast data transfer speeds for bandwidth-intensive applications. Whether you´re running a small business network or a large data center, this t…

This 1310nm DFB 10Gbps SFP+ transceiver is designed to transmit and receive optical data over singlemode optical fibre for a link length of 10km.

The SFP+ 10km module electrical interface is compliant with SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential.

Data lines are internally AC coupled. The module provides differential termination and reduces differential to common mode conversion for quality signal termination and low EMI.

SFI typically operates over 200mm of improved FR4 material or up to 150mm of standard FR4 with one connector.

SFP transceiver that supports 1G connections up to 550 m using multi-mode fiber with a duplex LC UPC connector. Ubiquiti UACC-OM-MM-1G-D network transceiver module Fiber optic 1000 Mbit/s SFP

Delivering the same high Service levels. Lifetime Warranty. and Technical Support as Hypertec Memory and SSDs. Hypertec Transceivers provide a cost-effective equivalent to over 1.300 market-leading OEM part codes. Hypertec Transceiver- 1000BASE-LX SFP SMF E-Temp DOM Cisco Compatible

Delivering the same high Service levels. Lifetime Warranty. and Technical Support as Hypertec Memory and SSDs. Hypertec Transceivers provide a cost-effective equivalent to over 1.300 market-leading OEM part codes. Hypertec Transceiver- 1G SFP LC LX 10km SMF XCVR HP Aruba Compatible

Delivering the same high Service levels. Lifetime Warranty. and Technical Support as Hypertec Memory and SSDs. Hypertec Transceivers provide a cost-effective equivalent to over 1.300 market-leading OEM part codes. Hypertec DAC-10GBASE-CU Passive SFP+ Cable Cisco Compatible- 1.5M

LevelOne SFP-3211 is a high performance and cost-effective single-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 1.25 Gbps bidirectional data transfer rate on a single duplex fiber core. For use with 9 micron fiber cables, it can reach a distance of up to 10km. The SFP-3211 transceiver operates using a wavelength of 1310nm with a FP Laser Diode light source and has a LC connector.Features:- 1310nm FPLD- Data Rate: 1.25Gbps, NRZ- Single +3.3V Power Supply- RoHS Compliant and Lead-free- AC/DC Differential Electrical Interface- Compliant with Multi-Source Agreement (MSA)- Duplex LC Connector- Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25Gbps- …

The 10 Gbps Direct Attach Cable is an SFP+ compatible cable capable of sustaining 10 Gbps throughput. Available in 3 lengths this cable is perfect for creating short links between switches that deliver 10 Gbps speed throughout your network.

Product information "1.25 Gbps SFP Transceiver Module SM 20 km LC" from LogiLink ProfessionalLogiLink's mini-GBIC (SFP) transceiver family offers the highest quality and reliability. Whether for switch-to-switch. converter-to-switch. converter-to-converter. the wide range of LogiLink modules allow flexible use of fiber optic technology. Compliance with the MSA (Multi-Source Agreement) standard ensures compatibility with third-party products. LogiLink SFP002 network transceiver module Fiber optic 1250 Mbit/s mini-GBIC/SFP 1310 nm

Product information "1.25 Gbps SFP Transceiver Module MM 550 m LC" from LogiLink ProfessionalLogiLink's mini-GBIC (SFP) transceiver family offers the highest quality and reliability. Whether for switch-to-switch. converter-to-switch. converter-to-converter. the wide range of LogiLink modules allow flexible use of fiber optic technology. Compliance with the MSA (Multi-SourceAgreement) standard ensures compatibility with third-party products. LogiLink SFP001 network transceiver module Fiber optic 1250 Mbit/s mini-GBIC/SFP 850 nm

If you´re passionate about IT and electronics, like being up to date on technology and don´t miss even the slightest details, buy MultiMode SFP Fibre Module Digitus by Assmann DN-81004-01 at an unbeatable price.Range: 20 kmSpeed: 1.25 GbpsType: TransceiverMaterial: PlasticDIGITUS DN-81004-01 SFP Transceiver Module | 1.25 Gbps, 20km Single-Mode Fiber ConnectivityElevate your network´s performance and reach with the DIGITUS DN-81004-01 Mini GBIC (SFP) transceiver module. This high-performance, cost-effective module is expertly engineered to provide a reliable, high-speed fiber optic link for your networking infrastructure. It is the ideal solution for connecting switches, routers, and other net…

Key Features . Pack of two (2) transceivers (one blue and one yellow).1.25 Gbps throughput.Simplex LC connector.Supports connections up to 3 km.Supported media SM fibre (cable not included).1 Gbps Bi-directional Single-mode Optical Module. The Ubiquiti UACC-OM-SM-1G-S Gigabit Singlemode Fibre SFP Module is a simplex transceiver that delivers up to 1.25 Gbps speed over distances up to 3 kilometres..
