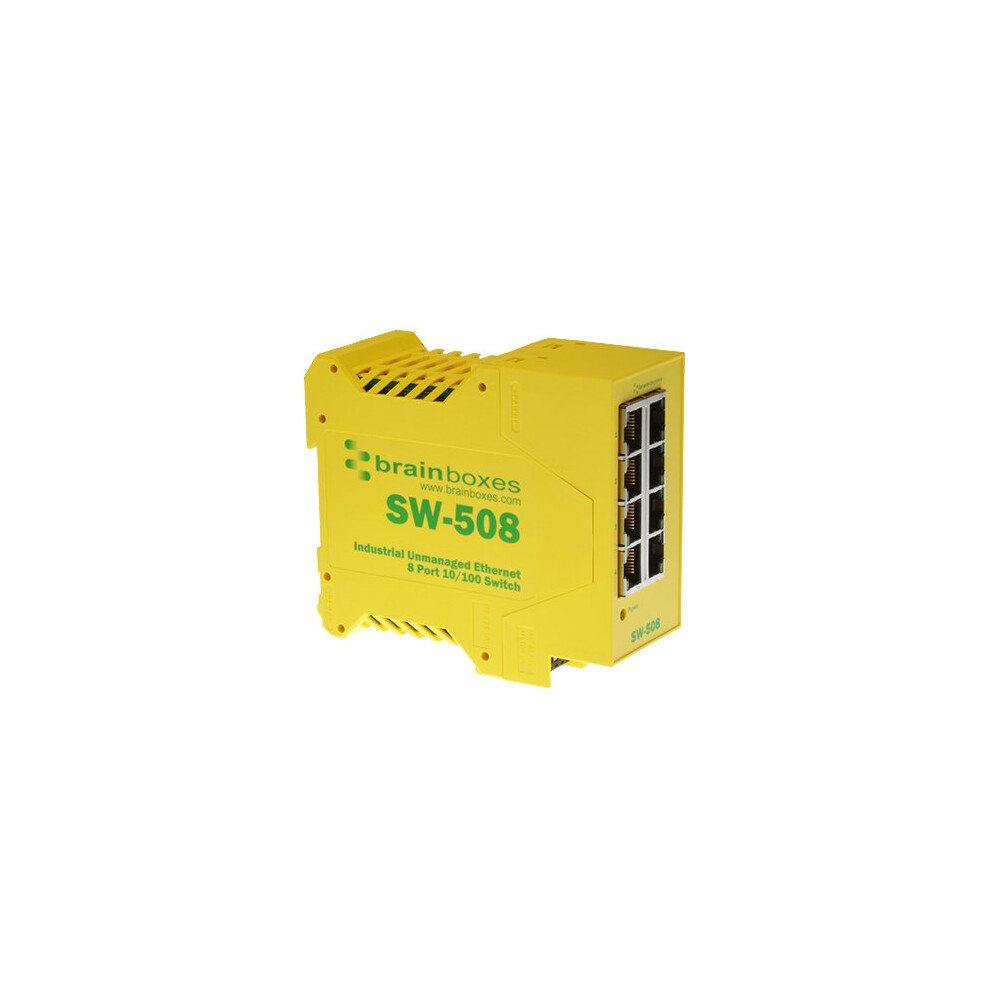

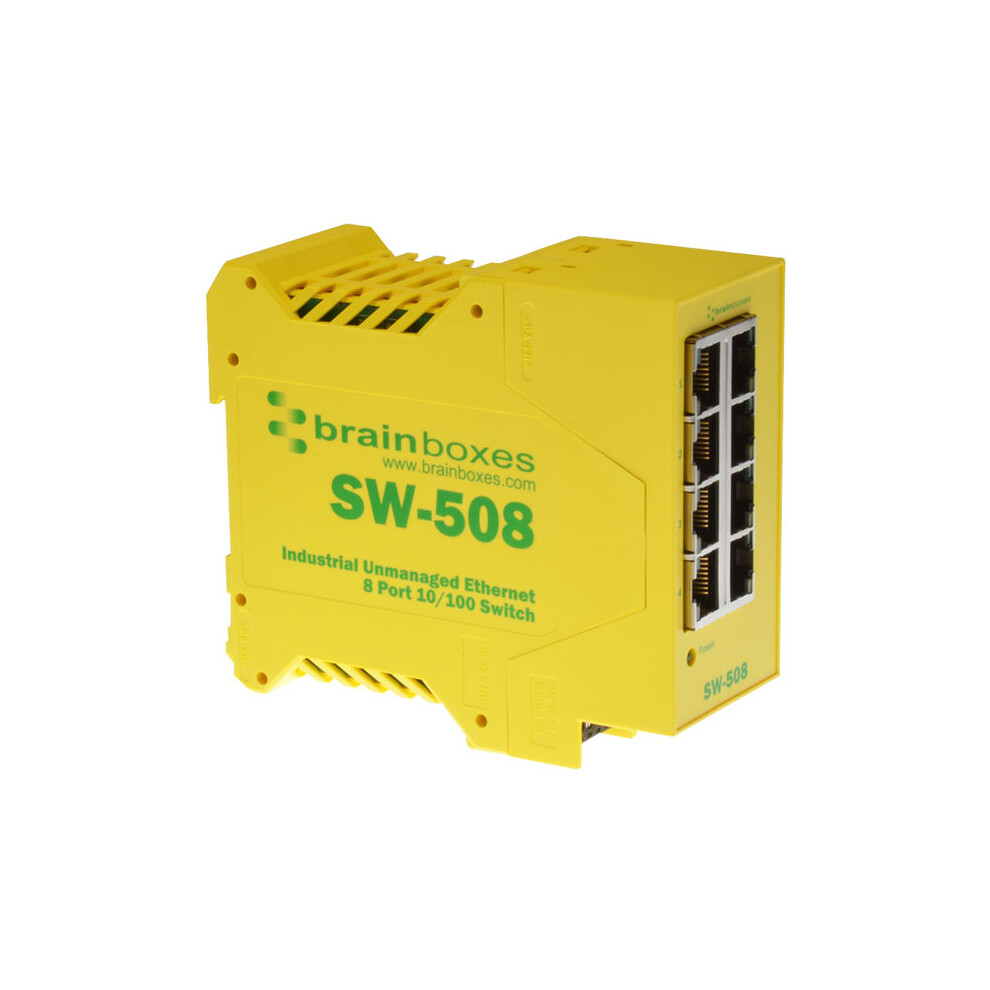

DescriptionN/AN/ALight Industrial/Commercial Ethernet 8 Port unmanaged switch. Galvanically Isolated Ports. Power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor in vehicle and marine applications. Wall mountable using mounting screw holes optional DIN Rail mount accessory available (see MK-048).

Light Industrial/Commercial Ethernet 5 Port unmanaged switch. Galvanically Isolated Ports. Power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor in vehicle and marine applications. Wall mountable using mounting screw holes optional DIN Rail mount accessory available (see MK-048).

- No software needed: Simply plug in any ethernet cable.
- All Ethernet ports are Auto MDI/MDIX supporting straight through or crossover Ethernet cables
- Automatic detection of data transmission speed: …

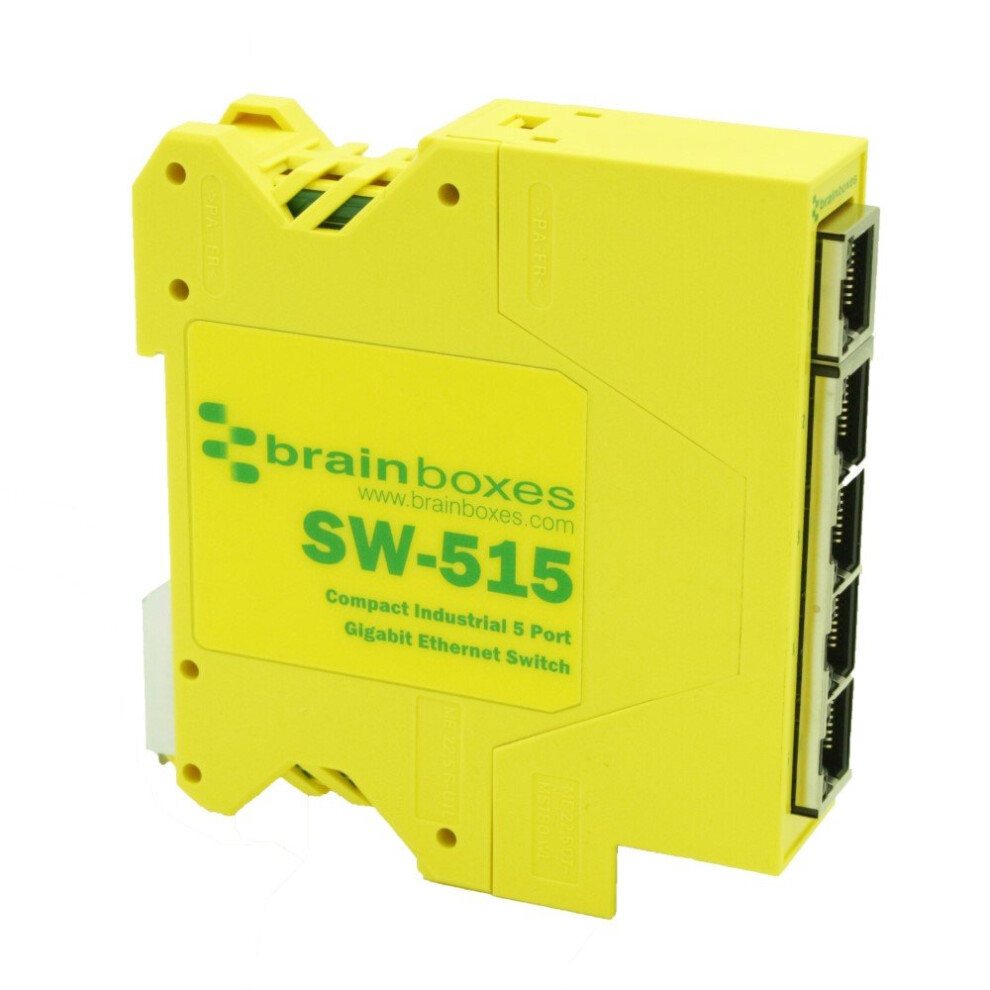

DescriptionN/AN/ACompact industrial 5 Port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100/1000 Mbps. Industrial temperature range of -40C to +80C (-40F to 176F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 29mm wide and 95mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor in vehicle and marine applications.

Compact 5 port Gigabit Ethernet unmanaged switch.

With data transmission at 1000 Mbs per second; the Gigabit standard provides simultaneous sending and receiving of data at a speed 10 times faster than Fast Ethernet.

Backwards compatible; the SW-015 can plug into older networks and connect to devices that are 10Mbs Fast Ethernet (100Mbs) or Gigabit whilst detecting the highest common speed between both ends of the connection.

As with all Ethernet Switches in the SW range - the SW-015 can be powered from +5VDC to +30VDC and has a wide operating temperature range (-10C to +60C /-14F to +140F)

Connection monitoring automatically powers down devices when not in use for optimum energy …
