The most aesthetic blank panels available with a black brushed and anodized finish. Complements RSH4A custom rackshelves and other anodized accessories. • Aluminum construction • Flanged Panel

• Flanged 16-gauge aluminum construction is easy to machine
• Black brushed and anodized finish
- Features
- Type Blank Panel
- Style Flanged
- Rack Space 1RU
- Finish Aluminium

• Ready-to-assemble design allows for flat shipment via UPS
• Easily assembled with included hardware
• Includes 10-32 threaded front rackrail
- Features
- Rack Type BRK
- Rack Size 10RU
- Rack Height 18.98
- Depth 18
- Width () 20.4
- Finish Black Wood

CFR series low profile design maximizes usable rackspace in entertainment systems cabinets and similar spaces. Strong welded steel frame construction allows for pre-loading equipment and transportation to the installation site.

GENERAL INFO

Finish: Black Powder Coat
UL Standards Tested: UL1678

LISTING AGENCIES/THIRD PARTY CERTIFICATIONS

RoHS: Yes
Greenguard: Yes
UL Listing No: E173107

DIMENSIONS

Usable Depth: 23
Usable Height: 26.25
Depth (US): 23
Height (US): 27.19
Width (US): 19.25
Rack Units: 15

TECHNICAL INFORMATION

Rackrail Type: 10-32
UL Load Capacity: 250
Material: Steel
Mounting: Horizontal

Please Note - RACKS DO NOT COME WITH SCREWS THESE WILL NEED …

EIA compliant 19 cabinet frame rack shall be Middle Atlantic Products model #CFR-10-18. Overall dimensions shall be 19.25 W x 18.44 H with a useable depth of 18. Rack shall have a weight capacity of 250 lbs. Rack shall have 10 rackspaces. Rack shall be constructed of the following materials: top and bottom shall be 16-gauge steel rackrail shall be constructed of 11-gauge steel with tapped 10-32 mounting holes in universal EIA spacing. Rack shall be finished in a durable black powdercoat. Rack shall include two adjustable side mounted horizontal lacing bars for enhanced cable management. Cabinet frame rack shall be UL listed in the US and Canada. Cabinet frame rack shall be GREENGUARD Indoor …

Steel with black finish plexi door with lock can be hinged right or left

- Plexi door with key lock and flush pull
- Can be hinged right or left
- Note: in multi-bay configurations a cable chase is required for clearance

Economical steel panels finished in a durable flat black powder coat finish • Sturdy steel construction • Flanged Panel

• Flanged steel construction
• Black powder coat finish
- Features
- Type Blank Panel
- Style Flanged
- Rack Space 2RU
- Finish Steel

EVT Series vent panels provide an economical solution with a vertical slotted design. • Sturdy steel construction • Flanged Panel • 17% open area • Flat black powder coat

• Economical vented panel with a vertical punched pattern
• Flanged steel construction
• Black powder coat finish

GENERAL INFO

Finish: Black Powder Coat

ASSEMBLY/INSTALLATION INFORMATION

Mounting Points: 2

LISTING AGENCIES/THIRD PARTY CERTIFICATIONS

RoHS: Yes
Greenguard: Yes

DIMENSIONS

Panel Width: 19
Depth (US): 0.51
Height (US): 1.75
Width (US): 19
Rack Units: 1

TECHNICAL INFORMATION

Material: Steel…

1RU Steel Blank Panel Black
1RU Steel Blank Panel Black

Economical flat steel panels with flat black powder coat finish

FEATURES & BENEFITS

Economical steel panels finished in a durable flat black powder coat finish • Sturdy steel construction
• Flat Panel
• Flat steel construction
• Black powder coat finish

SPECIFICATIONS

GENERAL INFO

Finish: Black Powder Coat

ASSEMBLY/INSTALLATION INFORMATION

Mounting Points: 2
LISTING AGENCIES/THIRD PARTY CERTIFICATIONS
RoHS: Yes
Greenguard: Yes

DIMENSIONS

Panel Width: 19
Depth (US): 0.08
Height (US): 1.75
Width (US): 19
Rack Units: 1

TECHNICAL INFORMATION

Material: Steel…

Standard 3/4” long rack screws with 10-32 threads feature self-guiding pilot points. HP Series truss head screws provide a clean modern appearance and fit under optional trim strips (see pg. 147) for the most attractive finish. Includes factory-installed nylon washer.

• Standard black matte rack screws
• Truss-head style 10-32 threaded ?” long
• Pre-installed washers and self-guiding pilot points
• Sold in reusable plastic jar of 500 pieces
- Features
- Type Screws
- Style Truss Head
- Finish Black Matte

HPM-8-915 HPM Series Rack - 8U - 15 Deep
Our Hinged Panel Mounts provide simple and straightforward wall mounting of components and can also be rackmounted to any 19” open frame rack. Hinges open to provide rear access to mounted components. Rugged steel construction; rack screws and hook and loop fasteners are included.

• Simple adjustable depth accommodates components from 9” – 15”
• Sturdy steel construction
• Hinged to provide rear access to mounted components
• Universal keyhole mounting for left or right swing
• Standard 10-32 threaded rackrail
• Includes rack screws

GENERAL INFO

Finish: Black Powder Coat

LISTING AGENCIES/THIRD …

Standard 3/4” long rack screws with 10-32 threads feature self-guiding pilot points. HP Series truss head screws provide a clean modern appearance and fit under optional trim strips (see pg. 147) for the most attractive finish. Includes factory-installed nylon washer.

• Standard black matte rack screws
• Truss-head style 10-32 threaded ?” long
• Pre-installed washers and self-guiding pilot points
• Sold in pack of 100 pieces
- Features
- Type Screws
- Style Truss Head
- Finish Black Matte

Engineered and rigorously tested to provide years of trouble-free service these racks feature premium bolt-through casters and rigid construction for reliability. This cost-effective furniture rack includes advanced features for reliability. Ships fully assembled.

• Cost-effective furniture rack
• Bolt-through casters (3”) and internal steel bracing for strength
• Designed for passive cooling; optional fan kit is available
• Optional flat screen mount holds most monitors up to 32”
• Includes 10-32 threaded adjustable front rail
• Locking Plexi Glas? front door is standard
• Ships fully assembled

Please Note - RACKS DO NOT COME WITH SCREWS …

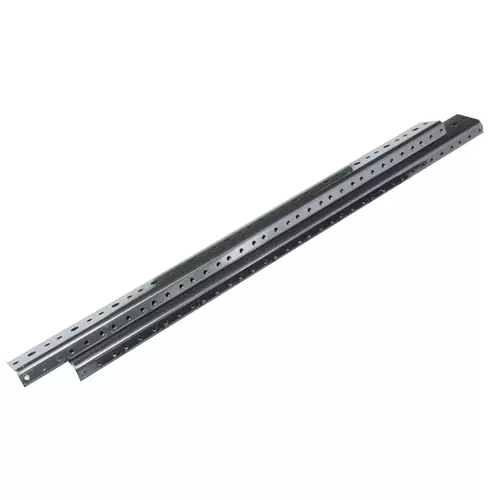

16 RU Rackrail 10-32 for RFR Series
Heavy gauge 10-32 threaded rear rackrail sold as a pair. Includes mounting hardware.

SRSR Series Slide Out Rotating Rail System Rack - SRSR-X-14
Specify an SRSR for easy rear access to equipment connections in millwork cabinets and flush in-wall installations. Available with a 19” or 23” useable depth the SRSR system extends and rotates 90? in either direction making it ideal for smaller systems.

Features:

- Removable rack frame allows in-shop integration and on-site installation of equipment

- Locks in the extended position for simplified equipment integration

- Rotating equipment bay locks in place at 0? 60? and 90? for easy installation and servicing

- Self-centering mounting base makes it simple to align system within cabinet opening

- Rear …

SRSR Series 19" Rotating Sliding Rail System. Specify an SRSR for rear access to equipment connections in millwork and cabinets. Available with a 19" or 23" useable depth the SRSR system extends and rotates 90(0) in either direction making it ideal for smaller millwork and in-wall installations.

- Pulls out and rotates for equipment servicing
- NEW Removable rack frame allows in-shop integration and on-site installation of equipment saving time in the field
- Simplifies equipment installation in cabinet
- Shortens installation & service time
- Available in 19" and 23" useable depths
- Available from 12 space (21") to 24 space (42")
- Integral cable management system provided
- Locks …

Srsr-4-12 Srsr Series 4 Slide Rack - 12U - 19.25 Deep X 24 HighSpecify An Srsr For Easy Rear Access To Equipment Connections In Millwork Cabinets And Flush In-Wall Installations. Available With A 19” Or 23” Useable Depth The Srsr System Extends And Rotates 90? In Either Direction Making It Ideal For Smaller Systems.• Removable Rack Frame Allows In-Shop Integration And On-Site Installation Of Equipment• Locks In The Extended Position For Simplified Equipment Integration• Rotating Equipment Bay Locks In Place At 0? 60? And 90? For Easy Installation And Servicing• Self-Centering Mounting Base Makes It Simple To Align System Within Cabinet Opening• Rear Cable …

Srsr-4-14 Srsr Series 4 Slide Rack - 14U - 19.25 Deep X 27.5 HighSpecify An Srsr For Easy Rear Access To Equipment Connections In Millwork Cabinets And Flush In-Wall Installations. Available With A 19” Or 23” Useable Depth The Srsr System Extends And Rotates 90? In Either Direction Making It Ideal For Smaller Systems.• Removable Rack Frame Allows In-Shop Integration And On-Site Installation Of Equipment• Locks In The Extended Position For Simplified Equipment Integration• Rotating Equipment Bay Locks In Place At 0? 60? And 90? For Easy Installation And Servicing• Self-Centering Mounting Base Makes It Simple To Align System Within Cabinet Opening• Rear Cable …

Srsr-4-16 Srsr Series 4 Slide Rack - 16U - 19.25 Deep X 31 HighSpecify An Srsr For Easy Rear Access To Equipment Connections In Millwork Cabinets And Flush In-Wall Installations. Available With A 19” Or 23” Useable Depth The Srsr System Extends And Rotates 90? In Either Direction Making It Ideal For Smaller Systems.• Removable Rack Frame Allows In-Shop Integration And On-Site Installation Of Equipment• Locks In The Extended Position For Simplified Equipment Integration• Rotating Equipment Bay Locks In Place At 0? 60? And 90? For Easy Installation And Servicing• Self-Centering Mounting Base Makes It Simple To Align System Within Cabinet Opening• Rear Cable …

U1 Utility Rackshelf - 1RU - 10.75 Deep
In 12 piece packs

• Steel construction with black powder coat finish
• Each piece is individually boxed
- Features
- Type Rack Shelf
- Rack Space 1RU
- Depth 10.75

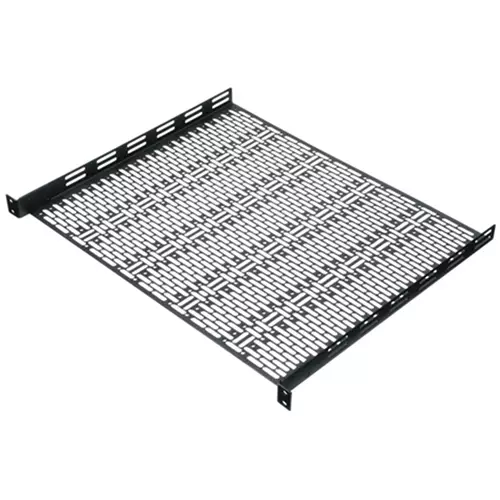

• Fully vented bottom and sides for heat dissipation
• Accepts optional clamping bars to secure components
• Accepts mounting of PD-815SC-PBSH power strip
• Welded steel construction with black powder coat finish
- Features
- Type Rack Shelf - Vented
- Rack Space 1RU
- Depth 10.75

Steel construction black powder coat finish

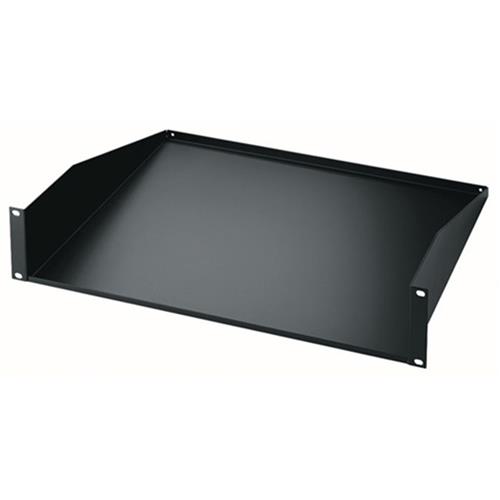

Accommodate components up to 17-3/8” wide • Made from 16-gauge steel • Finished in a durable black powder coat • Individually boxed

• Steel construction with black powder coat finish
• Each piece is individually boxed

GENERAL INFO
Finish: Black Powder Coat
UL Standards Tested: 1678

ASSEMBLY/INSTALLATION INFORMATION
Mounting Points: 2

LISTING AGENCIES/THIRD PARTY CERTIFICATIONS
RoHS: Yes
Greenguard: Yes

DIMENSIONS
Usable Depth: 14.43
Capacity Weight (US): 50
Depth (US): 14.5
Height (US): 3.5
Width (US): 19
Rack Units: 2

TECHNICAL INFORMATION
Static Load Capacity: 35
Material: …

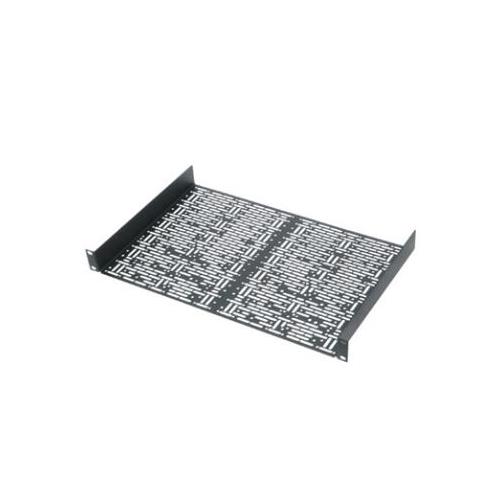

“Universal Face-After” shelves designed to mount small items conveniently in the front or rear of a rack while providing outstanding cable management and small device tie down points. These shelves feature the unique ability to mount a faceplate after the shelf is installed and populated providing an attractive and secure covering.

• Universal Face-After design holds small items in front or rear of rack
• Accepts mounting of a covering faceplate after installation and population
• Steel construction with black powder coat finish
• Note: must be installed using standard 10-32 or 6mm rack screws into rackrail
- Features
- Type Rack Shelf
- Rack Space …

EIA/TIA compliant 19 half / third rack shelf with 10" depth shall be Middle Atlantic Products model # UTR1. Weight capacity shall be 25 lbs. UTR1 shall include two 2 x 10 hook & loop strips for component mounting and a generous vent pattern for superior air circulation. Contractor packs shall be available with twelve UTR1 rackshelves and shall be model # UTR1-RP12. UTR1 shall be GREENGUARD Indoor Air Quality Certified for Children and Schools. UTR1 shall be RoHS EU Directive 2002/95/EC compliant. UTR1 shall be manufactured by an ISO 9001 and ISO 14001 registered company. UTR1 shall be warrantied to be free from defects in material or workmanship under normal use and conditions for the lifetime …

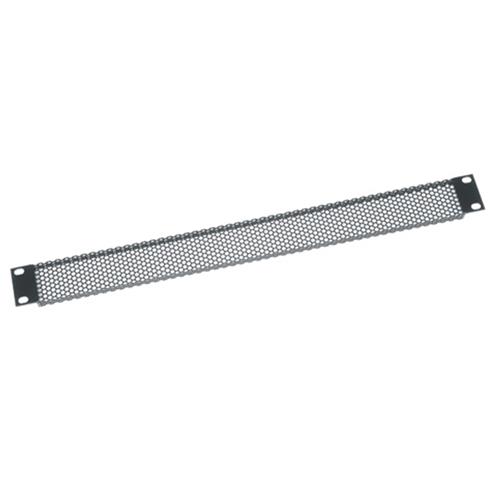

Perforated steel flanged panel 25% open area flat black powder coat

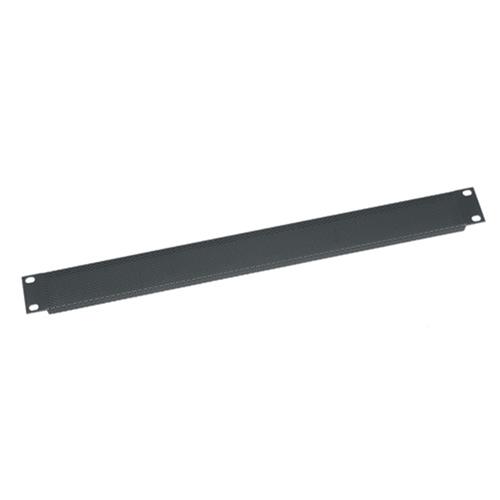

VTF Series fine perforated series panels limits viewing for aesthetics. • Sturdy steel construction • Flanged Panel • 25% open area • Flat black powder coat

• Vented panel with tight perforation to limit visibility
• Flanged steel construction
• Black powder coat finish
