Server Components

WM Series Open Frame Wall Rack
Mount virtually any data or telecommunications component on this self-squaring Wall Mount rack. Self-aligning design makes this open frame rack quick and easy to assemble. Ideal for wall mounting fiber-optic equipment its fixed design prevents kinking or breaking of glass fibers. Rugged steel construction; includes rack screws.

• Rugged steel construction
• Ready-to-assemble design allows for flat shipment via UPS
• Self-aligning design for fast assembly
• 10-32 threaded rackrail
• Includes rack screws
- Features
- Rack Type Wall Rack
- Rack Height 30
- Depth 18
- Width () 19.78
- Max Weight Capacity 68.04 kg…

Middle Atlantic RK6
Features & Benefits
• Ready-to-assemble design allows for flat shipment via UPS.
• Easily assembled with included hardware.
• Includes 10-32 threaded front rackrail.

Specifications
General Information
• Finish: Black Wood Grain Melamine

Assembly /Installation Information
• Assembly Required: Yes

Listing Agencies/Third Party Certifications
• RoHS: Yes
• Greenguard: Yes

Dimensions
• Usable Depth: 15.41
• Usable Height: 10.5
• Capacity Weight (US): 200
• Depth (US): 15.91
• Height (US): 11.98
• Width (US): 20.4
• Rack Units: 6

Technical Information
• Rackrail Type: 10-32 …

EIA/TIA compliant low profile sliding shelf shall be Middle Atlantic Products model # SSL. SSL shall be constructed of the following materials: shelf shall be made with an attractive black laminate material and rear-mounting brackets shall be 16-gauge steel. Full-extension nylon roller slides shall extend 10. Shelf area shall be 16 W x 13-3/4 D. Maximum weight capacity shall be 35 lbs. SSL shall be UL Listed in the US and Canada. Low profile sliding shelf shall be GREENGUARD Indoor Air Quality Certified for Children and Schools. Low profile sliding shelf shall be RoHS EU Directive 2002/95/EC compliant. Low profile sliding shelf shall be manufactured by an ISO 9001 and ISO 14001 registered company.…

1 RU UFA Rackshelf 14.5 Inches Deep - 4 Piece
“Universal Face-After” shelves designed to mount small items conveniently in the front or rear of a rack while providing outstanding cable management and small device tie down points. These shelves feature the unique ability to mount a faceplate after the shelf is installed and populated providing an attractive and secure covering.

Universal Face-After design holds small items in front or rear of rack
Accepts mounting of a covering faceplate after installation and population
Steel construction with black powder coat finish
Note: must be installed using standard 10-32 or 6mm rack screws into rackrail
Sold as a pack of 4 pieces …

Universal mounting pattern holds Extron? and other small devices

• Universal mounting pattern holds small items in front or rear of rack
• Includes counter-sunk holes to match popular Extron? devices
• Steel construction with black powder coat finish
• Includes 3/16 length flat head screws 16 qty #4 and 4 qty #6 for the purpose of securing components to the shelf

GENERAL INFO

Finish: Black

ASSEMBLY/INSTALLATION INFORMATION

Mounting Points: 2

LISTING AGENCIES/THIRD PARTY CERTIFICATIONS

RoHS: Yes
Greenguard: Yes

DIMENSIONS

Capacity Weight (US): 25
Depth (US): 11.5
Height (US): 1.75
Width (US): 19
Rack Units: 1

TECHNICAL INFORMATION

Static …

The economical and effective way to manage cable horizontally. New models are constructed from 1/4" diameter rod with flattened end (LBP-1.5R90 LBP-4R90 LBP-6R90 and LBP-10R90) and feature a 90 bend to provide clearance around components that extend past the rear rackrail. Made from 1/4" diameter rod with flattened ends (model LBP-1R LBP-1.5 and LBP-1R4) or 3/16" thick aluminum (model LBP-1S) and finished in a black powder coat. Model LBP-1R4 features a 4" offset and model LBP-1.5 features a 1/2" offset for easy viewing of cable identification. Model LBP-1A LBP-2A LBP-4A and LBP-6A feature a formed " L" shape generous cable tie slots a special coating to protect cable and are offered in straight …

- Features
- Type Accessories

Wall Mount Kit
- Features
- Type Mounts

Product Features
- 2-piece Accessory Collar for use with ?60mm poles
- Can be retro fitted to existing installations
- Split design allows collar to clamp tightly to poles without marking them
- One collar supplied
- Available in black
- Features
- Bracket Type Accessory Collar
- Compatible VESA Sizes 100 x 100 mm
- Colour Black

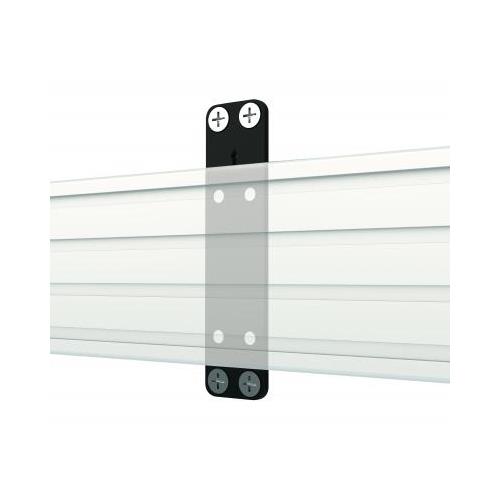

The BT8390-WFK1 is a bracket designed to fix BT8390 mounting rails onto walls for the installation of menu boards and other multi-screen configurations. The slim yet sturdy 5mm thick plate is designed for installations using fixed or tilting interface arms from the System X range and keeps the profile of finished installations to a minimum.

• Designed to allow BT8390 horizontal rails to be mounted to the wall
• Ideal for close-to-the-wall installations mounting rails only 5mm from the wall
• Countersunk screws sit flush with the plate for a neat installation
• All mounting hardware included
- Features
- Colour Black

Rack Shelf for Studio Converter ATEM HyperDeck Studio Web Presenter Teranex Mini and UltraStudio products
• Rack Shelf for Studio Converter ATEM HyperDeck Studio Web Presenter Teranex Mini and UltraStudio products
• Build a custom 1RU solution with Blackmagic Universal Rack Shelf
• Mix and match 1/3 and 1/2 rack width

Rack mount 2 HyperDeck Extreme 8K HDR or HyperDeck Extreme Control units side by side with this lightweight kit thats perfect for road cases or equipment racks.

Studio Fiber Rack Kit
FEATURES

• Rack mount up to 2 Blackmagic Studio Fiber Converters side by side with this lightweight kit that’s perfect for road cases or equipment racks
- Features
- Type Rackmount kits

Our range of 450mm and 600mm deep Flat pack Wall Cabinets is the perfect solution for installing data security and AV equipment.

These cabinets have been designed for speed of assembly and installation. Assembly can be completed n as little as 25 minutes.

The wall cabinets have a removable back panel for mounting on uneven walls and a Quickfit hanging bracket for ease of installation.

With modern functional aesthetics these cabinets will perform functionally in any application.

All screws and fixings to assemble the cabinet are supplied and they also come supplied with 20 cage nuts and screws.

Tools required: Philips Screwdrivers and Allen keys.…

Our range of 450mm and 600mm deep Flat pack Wall Cabinets is the perfect solution for installing data security and AV equipment.

These cabinets have been designed for speed of assembly and installation. Assembly can be completed n as little as 25 minutes.

The wall cabinets have a removable back panel for mounting on uneven walls and a Quickfit hanging bracket for ease of installation.

With modern functional aesthetics these cabinets will perform functionally in any application.

All screws and fixings to assemble the cabinet are supplied and they also come supplied with 20 cage nuts and screws.

Tools required: Philips Screwdrivers and Allen keys.…

Our range of 450mm and 600mm deep Flat pack Wall Cabinets is the perfect solution for installing data security and AV equipment.

These cabinets have been designed for speed of assembly and installation. Assembly can be completed n as little as 25 minutes.

The wall cabinets have a removable back panel for mounting on uneven walls and a Quickfit hanging bracket for ease of installation.

With modern functional aesthetics these cabinets will perform functionally in any application.

All screws and fixings to assemble the cabinet are supplied and they also come supplied with 20 cage nuts and screws.

Tools required: Philips Screwdrivers and Allen keys.…

Our range of 450mm and 600mm deep Flat pack Wall Cabinets is the perfect solution for installing data security and AV equipment.

These cabinets have been designed for speed of assembly and installation. Assembly can be completed n as little as 25 minutes.

The wall cabinets have a removable back panel for mounting on uneven walls and a Quickfit hanging bracket for ease of installation.

With modern functional aesthetics these cabinets will perform functionally in any application.

All screws and fixings to assemble the cabinet are supplied and they also come supplied with 20 cage nuts and screws.

Tools required: Philips Screwdrivers and Allen keys.…

Our range of 450mm and 600mm deep Flat pack Wall Cabinets is the perfect solution for installing data security and AV equipment.

These cabinets have been designed for speed of assembly and installation. Assembly can be completed n as little as 25 minutes.

The wall cabinets have a removable back panel for mounting on uneven walls and a Quickfit hanging bracket for ease of installation.

With modern functional aesthetics these cabinets will perform functionally in any application.

All screws and fixings to assemble the cabinet are supplied and they also come supplied with 20 cage nuts and screws.

Tools required: Philips Screwdrivers and Allen keys.…

Our range of 450mm and 600mm deep Flat pack Wall Cabinets is the perfect solution for installing data security and AV equipment.

These cabinets have been designed for speed of assembly and installation. Assembly can be completed n as little as 25 minutes.

The wall cabinets have a removable back panel for mounting on uneven walls and a Quickfit hanging bracket for ease of installation.

With modern functional aesthetics these cabinets will perform functionally in any application.

All screws and fixings to assemble the cabinet are supplied and they also come supplied with 20 cage nuts and screws.

Tools required: Philips Screwdrivers and Allen keys.…

Our range of 450mm and 600mm deep Flat pack Wall Cabinets is the perfect solution for installing data security and AV equipment.

These cabinets have been designed for speed of assembly and installation. Assembly can be completed n as little as 25 minutes.

The wall cabinets have a removable back panel for mounting on uneven walls and a Quickfit hanging bracket for ease of installation.

With modern functional aesthetics these cabinets will perform functionally in any application.

All screws and fixings to assemble the cabinet are supplied and they also come supplied with 20 cage nuts and screws.

Tools required: Philips Screwdrivers and Allen keys.…

Rack mount blanking plate suitable for use where you would like to tidy up the front of the server rack. Made out of a solid metal and finished in high quality fine textured black.

- 19" Rack mount blanking plate
- 2u in size
- 1.6mm thick solid metal
- High quality black finish

Rack mount brush type cable management panel suitable for use where patch cables are used to connect to the front of network switches to allow cabling to be passed through and to keep dust out. Made out of a solid metal frame with integrated brushes in the center and finished in high quality fine textured black.

Height-Adjustable Accessory Shelf – for LPE/LFE Series
• Quick installation and height adjustment
• Ships fully assembled
• Hook and loop strap included to attach component
- Features
- Colour Black
- Max Weight 11.34 KG

Proximity? PAC527L Extra-Large In-Wall Storage Box with Lever Lock™
Proximity in-wall boxes feature multi-level multi-sectioned Lever Lock plates making it easier to arrange components in all three dimensions of the storage space. Installers can hide power bricks behind the backplane with equipment mounted to the front. This also helps work around difficult port locations on AV equipment.

The new PAC527L now includes two large tool-free Lever Lock™ plates for quick installation of AV equipment and efficient servicing of the system. Lever Lock™ plates can be mounted on four different levels to easily organize and layer components within the in-wall box.

Lever Lock™ …
