Throttle controllers for RC models for

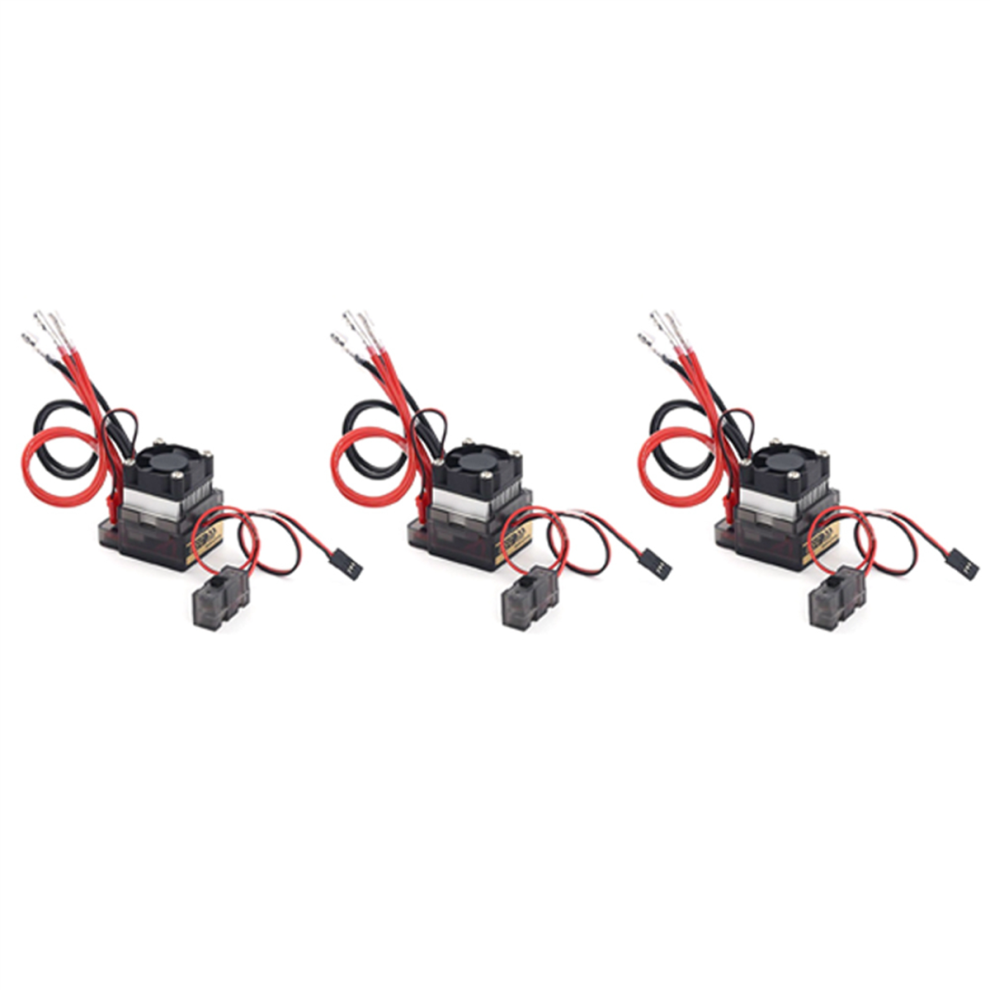

Throttle controllers

— travel controllers are electronic modules used in RC models to control the thrust of electric motors. In addition to a simple change in power, such a module provides switching to reverse (if such a function is available), and can also be responsible for more specific functions: start mode (for a smooth increase in speed), engine braking, automatic shutdown when the battery is discharged (including smooth, which gives time to react to the situation and return the model “home”), etc.

In addition to the most obvious cases — replacing a failed module, installing a more advanced module, assembling a model from scratch or from a minimum configuration — buying a new ESC may also be required when replacing an engine. The fact is that collector and brushless electric motors differ in the requirements for control electronics, and when replacing one type of motor with another, you will also have to change the speed controller. It should be noted that the collector scheme of operation allows you to use several motors simultaneously on one control module, while each brushless motor will require its own regulator.

throttle controllers

clear

Show

with photos

Motor Speed Controller Switch Kit (5A 12VDC PWM)

Refer: Diyode Magazine March 2018 This kit is a bare bones motor speed controller for fairly low current, low voltage applications. It is ideal, for example, to control small robotic motors or pump motors. It costs about one third of the more sophisticated PWM (Pulse-Width-Modulated) controller kits shown elsewhere in this section (although these kits are higher current capacity). Kit Form : Short Form (circuit only) Kit Group : General Projects Difficulty : Simple Estimated Construction Time : 30.0min Instructions Included : true PCB Width : 36.0mm PCB Length : 61.0mm
