The rittal sv om support is for mounting of switchgear with external power supply. It is a 3-pole configuration with height 208 mm and width 45 mm. Chassis ral 7035. For busbar systems with centre-to- more→centre spacing 60 mm. To fit busbars with cross-section height 5, 10 mm. Weight/pack 0.22 kg. Packs of 1 pcs.

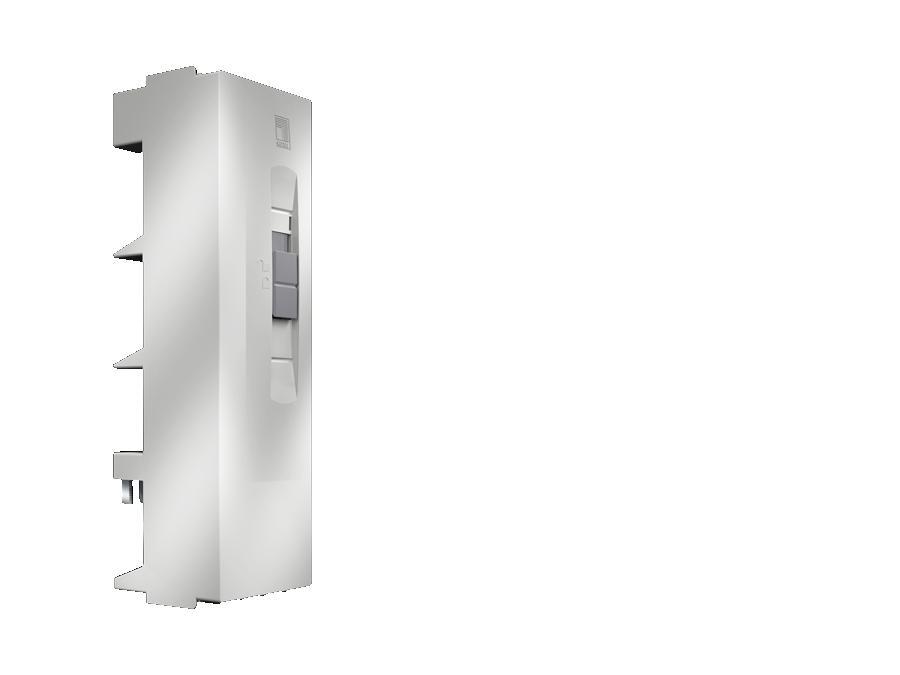

The rittal connection adaptor is for connecting round conductors or laminated copper bars and bar systems with 60 mm centre-to-centre spacing. Colour ral 7035. Rated current maximum 63 a. Rated operat more→ing voltage 690 v. Cable outlet bottom. For busbar systems with centre-to-centre spacing 60 mm. Note. The technical data may vary for ul applications ul approval only applies in conjunction with ac application the rated operating voltage for DC applications depends on the busbar arrangement in the busbar supports 9340.050/9341.050/9342.050.

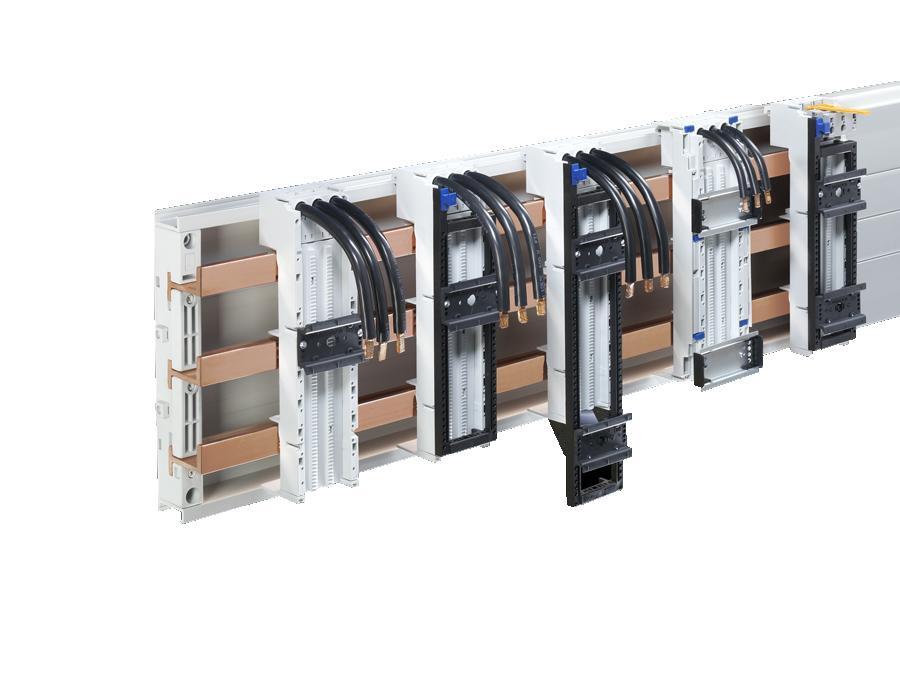

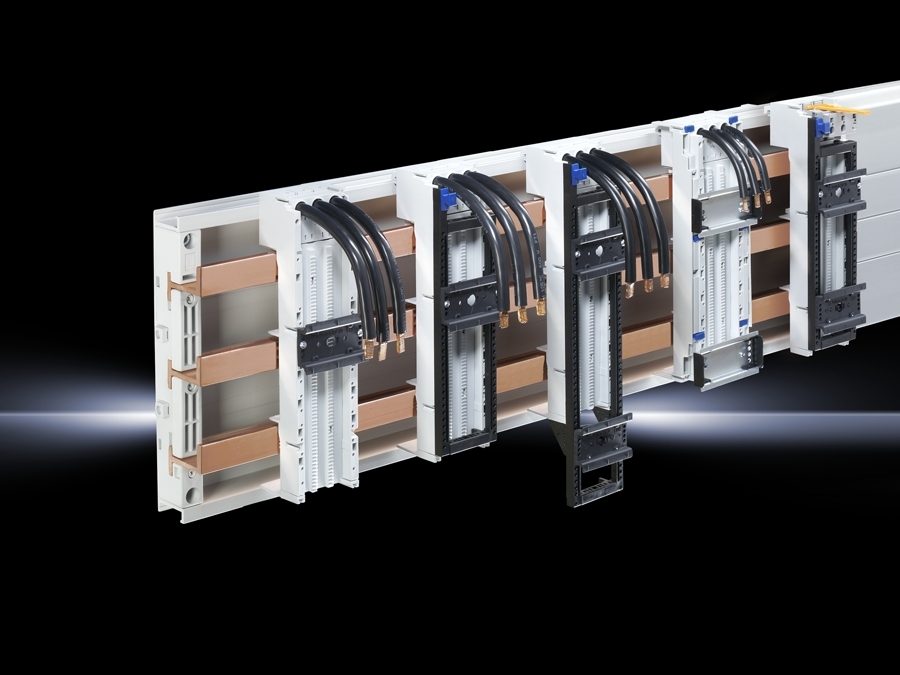

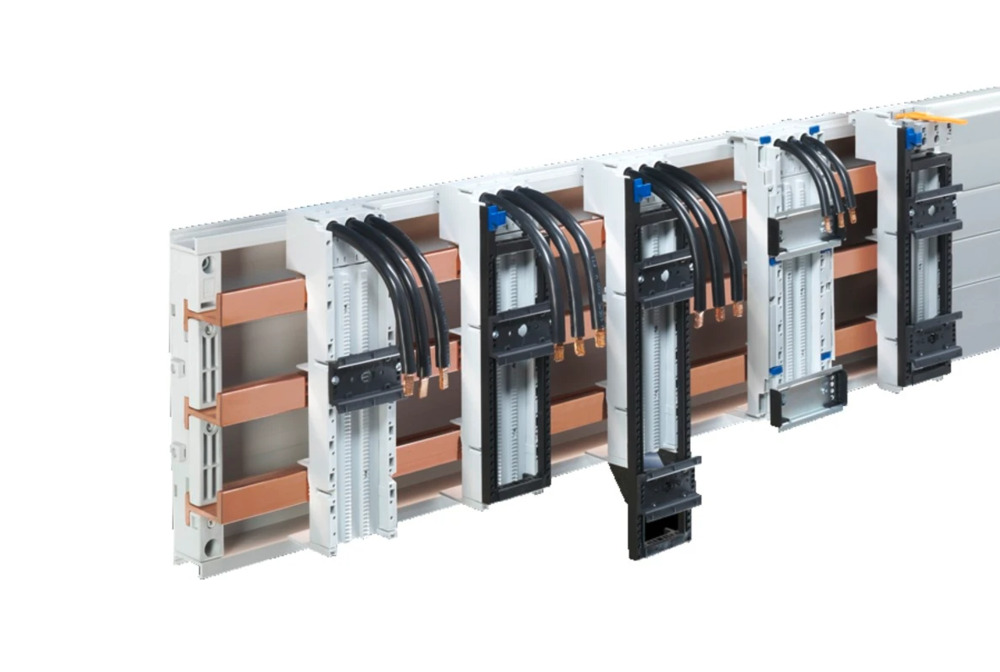

SV OM adaptor, 32 A, 690 V, 3-pole, tension spring clamp 1,5-6 mm², WH: 45x208 mm, support rail TS 45C.

SV OM adaptor, 32 A, 690 V, 3-pole, tension spring clamp 1,5-6 mm², WH: 45x208 mm, support frame, PinBlock, support rail TS 45C.

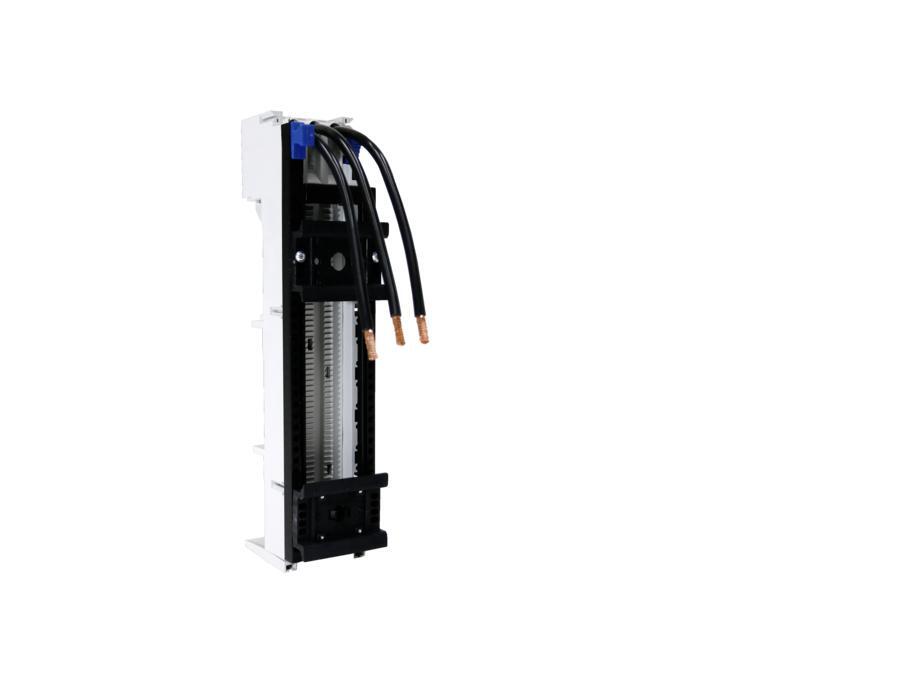

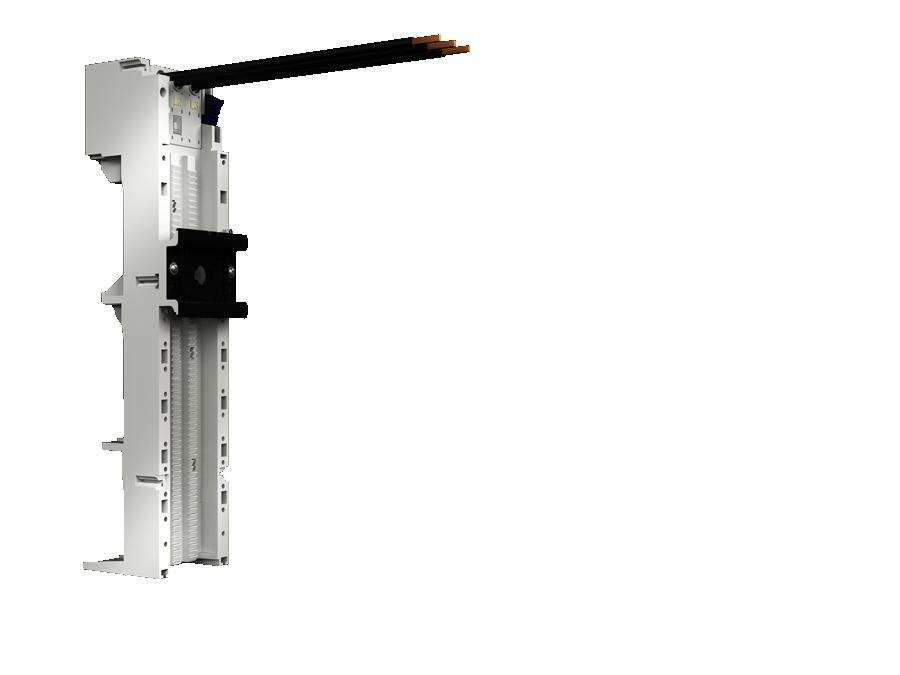

SV OM adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 45x208 mm, support rail TS 45C.

Rittal SV busbar adapter, rail copper mini-pls rail 250A connection, electrical connection version other, adapter width 54mm, rail center distance 60mm, nom. (measuring) current In 25A, 2 mounting rai more→l 7.5mm, device adapter .

SV OM adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 45x208 mm, support rail 2xTS 45D.

SV OM adaptor, 25 A, 690 V, 3-pole, connection cable AWG 12, WH: 45x208 mm, support frame, support rail TS 45C.

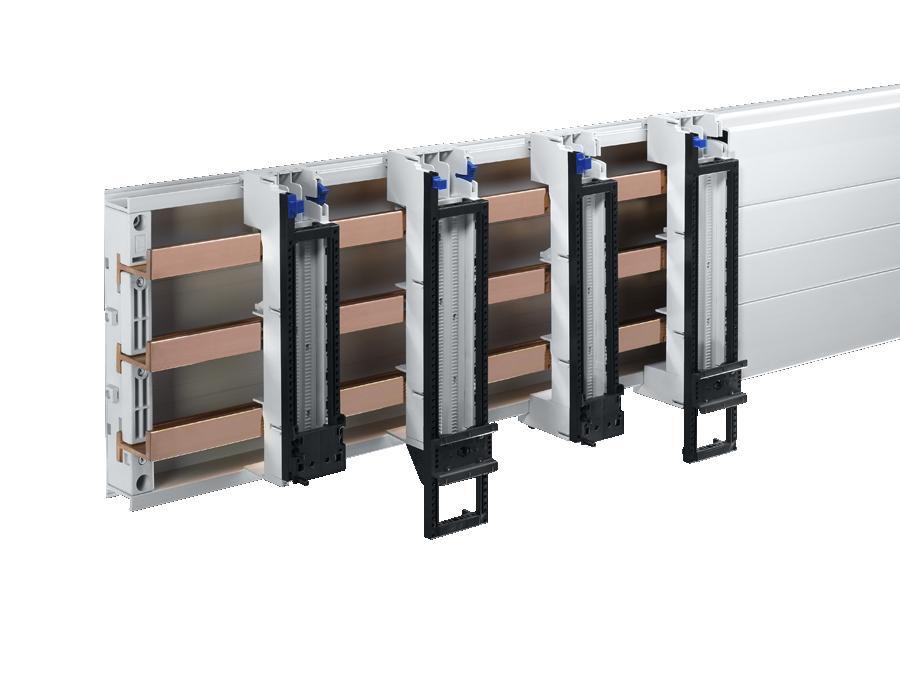

SV OM adaptor, 65 A, 690 V, 3-pole, tension spring clamp 2,5-16 mm², WH: 55x208 mm, support frame, support rail TS 55E.

The rittal sv om adaptor, 32 a, 690 v, 3-pole, connection cable awg 10, wh: 55x208 mm, support frame, support rail ts 55d. To fit busbars: with cross-section height: 5 mm, with cross-section height: 1 more→0 mm. Number of poles: 3-pole. For bar systems with centre-to-centre spacing: 60 mm. Width: 55 mm. Height: 208 mm.

The rittal om adaptors with spring terminals is made up of polyamide material. It has 3 pole configuration with height 272 mm and width 55 mm. It fit busbars with cross-section height: 5, 10 mm. Colou more→r chassis ral 7035. Rated current maximum 65 a. Rated operating voltage 690 v. For busbar systems with centre-to-centre spacing 60 mm.

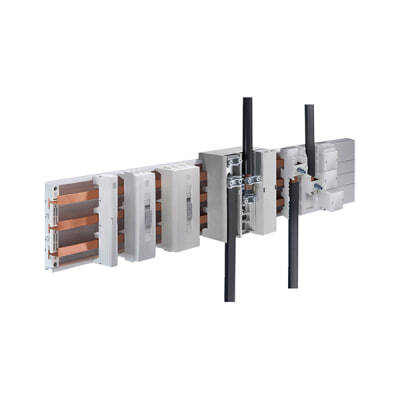

SV Connection adaptor, 125 A, 690 V, 3-pole, cable outet top/bottom, round conductor connection 10-35 mm², clamping area WH: 10x7,8 mm.

Rittal SV current rail adapter, busbar copper connection PLS rail 800A, version electrical connection other, adapter width 55mm, width rail 55mm, diameter connection terminal 1.5 - 16mm, center distan more→ce rail 60mm, max. Current rail thickness 10mm, min. Current rail thickness 5mm, nom. (measuring) current In 65A.

SV OM adaptor, 32 A, 690 V, 3-pole, connection cable AWG 10, WH: 45x208 mm, support frame, support rail TS 45D, TS45D-V.

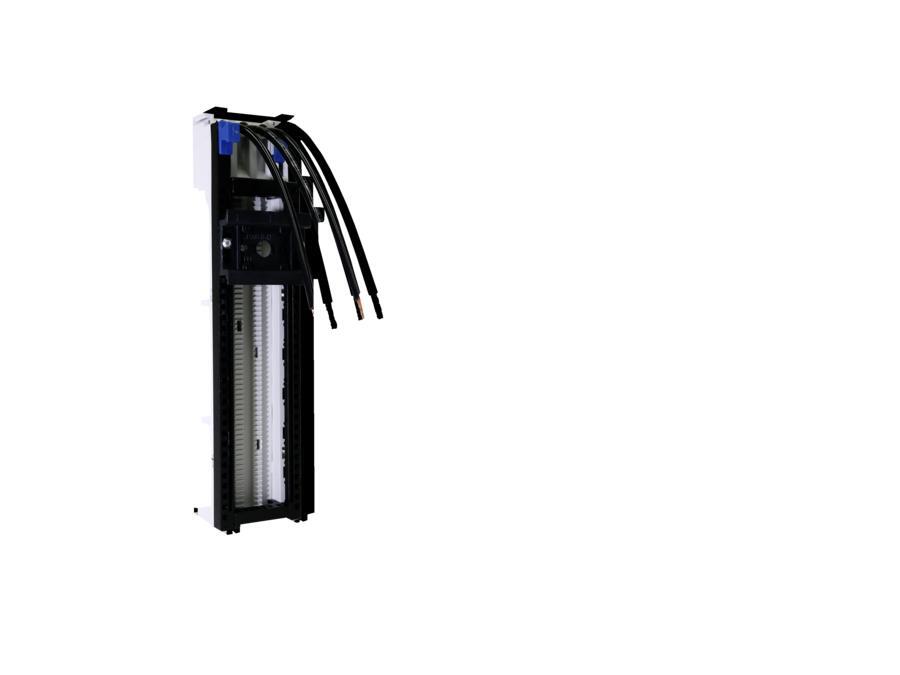

SV OM adaptor, 65 A, 690 V, 3-pole, connection cable AWG 6, WH: 75x208 mm, 2 insert strips, metal support rail.

SV OM adaptor, 65 A, 690 V, 3-pole, connection cable AWG 6, WH: 55x272 mm, support frame, support rail TS 55E, TS 55D-V.

SV Mini-PLS busbar connection adaptor, 63 A, 690 V, 3-pole, round conductor connection 1,5-35 mm², clamping area WH: 10x8 mm.

For mounting the NH fuse-switch disconnector, size 000 (model no. 3431.000) on Mini-PLS busbar systems.

SV Circuit-breaker component adaptor, 100 A, 690 V, 3-pole, cable outlet top, round conductor connection 10-35 mm², clamping area WH: 10x7,8 mm.

SV Connection adaptor, 125 A, 690 V, 4-pole, cable outet top/bottom, round conductor connection 10-35 mm², clamping area WH: 10x7,8 mm.

SV Connection adaptor, 250 A, 690 V, 3-pole, cable outet bottom, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm.

SV Mini-PLS component adaptor, 100 A, 690 V, 3-pole, connection cable 35 mm², WH: 90x160 mm.

SV Circuit-breaker component adaptor, 160 A, 690 V, 3-pole, cable outlet bottom, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm.

SV Connection adaptor, 250 A, 690 V, 3-pole, cable outet top/bottom, round conductor connection 35-120 mm², clamping area WH: 18,5x15,5 mm.
