Circuit Breakers

This easy-to-use PLN circuit breaker features window and elevator terminals top and bottom 1-pole + zero in 1TE allows for space-saving mounting. Thanks to contact position indicators (CPI), you alway more→s know the status of the contacts. The 3-position DIN-rail clip allows removal from existing busbar. Eaton Moeller PLN circuit breakers are available in several variants.

Compact miniature circuit breaker designed for residential and commercial applications. Features a C-characteristic tripping curve, rated current of 40 amperes, and 6kA breaking capacity according to more→IEC/EN 60898-1 standards. Single pole plus neutral configuration in 18mm width for efficient space utilization in distribution boards.

This easy-to-use PLN circuit breaker features window and elevator terminals top and bottom 1-pole + zero in 1TE allows for space-saving mounting. Thanks to contact position indicators (CPI), you alway more→s know the status of the contacts. The 3-position DIN-rail clip allows removal from existing busbar. Eaton Moeller PLN circuit breakers are available in several variants.

This Halyester power rail coupler is suitable for 3- and 4-pole switchgear with a current rating of 250 amps, where the branch strip is placed under the main rails. This coupler comes in the PEN or N more→variant and measures 20 by 4 millimeters.

Wohner EQUES power rail adapter, busbar copper connection standardized busbar copper, carrier rail equipment 1carrier rail, connection round cable cores 10mm², execution electrical connection other, a more→dapter width 72mm, width rail 10mm, diameter terminal 10mm, center distance rail 60mm.

The schneider electric c60n series have mcb having 10 amp rated operating current and its used for the distribution application. This mcb have thermal magnetic trip unit technology with c curve code. more→This mcb have toggle control type with din rail mounting. Ip degree of protection is ip20 and ip40. Ambient air temperature for operation is -30 to 70 °c.

Gb2 thermal magnetic circuit breakers. Din rail mounted, mechanically reset protection devices. Short circuit and overload protection for control circuits and associated industrial equipment, e.g. sol more→enoid valves, electric brakes and transformers, etc. Rated operational voltage of 415v. 74mm high; depth 67mm (1p) 70mm (2p). Standards. Iec947-2.

Gb2 thermal magnetic circuit breakers. Din rail mounted, mechanically reset protection devices. Short circuit and overload protection for control circuits and associated industrial equipment, e.g. sol more→enoid valves, electric brakes and transformers, etc. Rated operational voltage of 415v. 74mm high; depth 67mm (1p) 70mm (2p). Standards. Iec947-2.

Gb2 thermal magnetic circuit breakers. Din rail mounted, mechanically reset protection devices. Short circuit and overload protection for control circuits and associated industrial equipment, e.g. sol more→enoid valves, electric brakes and transformers, etc. Rated operational voltage of 415v. 74mm high; depth 67mm (1p) 70mm (2p). Standards. Iec947-2.

Gb2 thermal magnetic circuit breakers. Din rail mounted, mechanically reset protection devices. Short circuit and overload protection for control circuits and associated industrial equipment, e.g. sol more→enoid valves, electric brakes and transformers, etc. Rated operational voltage of 415v. 74mm high; depth 67mm (1p) 70mm (2p). Standards. Iec947-2.

Eaton Industries circuit breaker, tripping characteristic C, nom. (measuring) current 2A, voltage type AC, 1 poles (total), width in module units 1, ancillary device possible, connectable conductor cr more→oss-section duck 1 - 25mm², 1 protected poles, nom. (measuring) voltage 240V.

Single-pole plus neutral miniature circuit breaker from the 90 MCB series, designed for circuit protection in residential, commercial, and industrial applications. Features C-curve characteristics, 10 more→A rated current, and 6kA breaking capacity in a space-saving 1-module compact design. Provides reliable protection against both overload and short circuit conditions.

SV Connection adaptor, 125 A, 690 V, 3-pole, cable outet top/bottom, round conductor connection 10-35 mm², clamping area WH: 10x7,8 mm.

The schneider electric ic60a miniature circuit breaker is multi-standard circuit breaker which combine circuit protection against short-circuit current and circuit protection against overload current. more→It has 1p+n pole and has 6 a of current. Its width siz. Ambient air temperature for operation -25 to 70 °c. Degree of protection ip20.

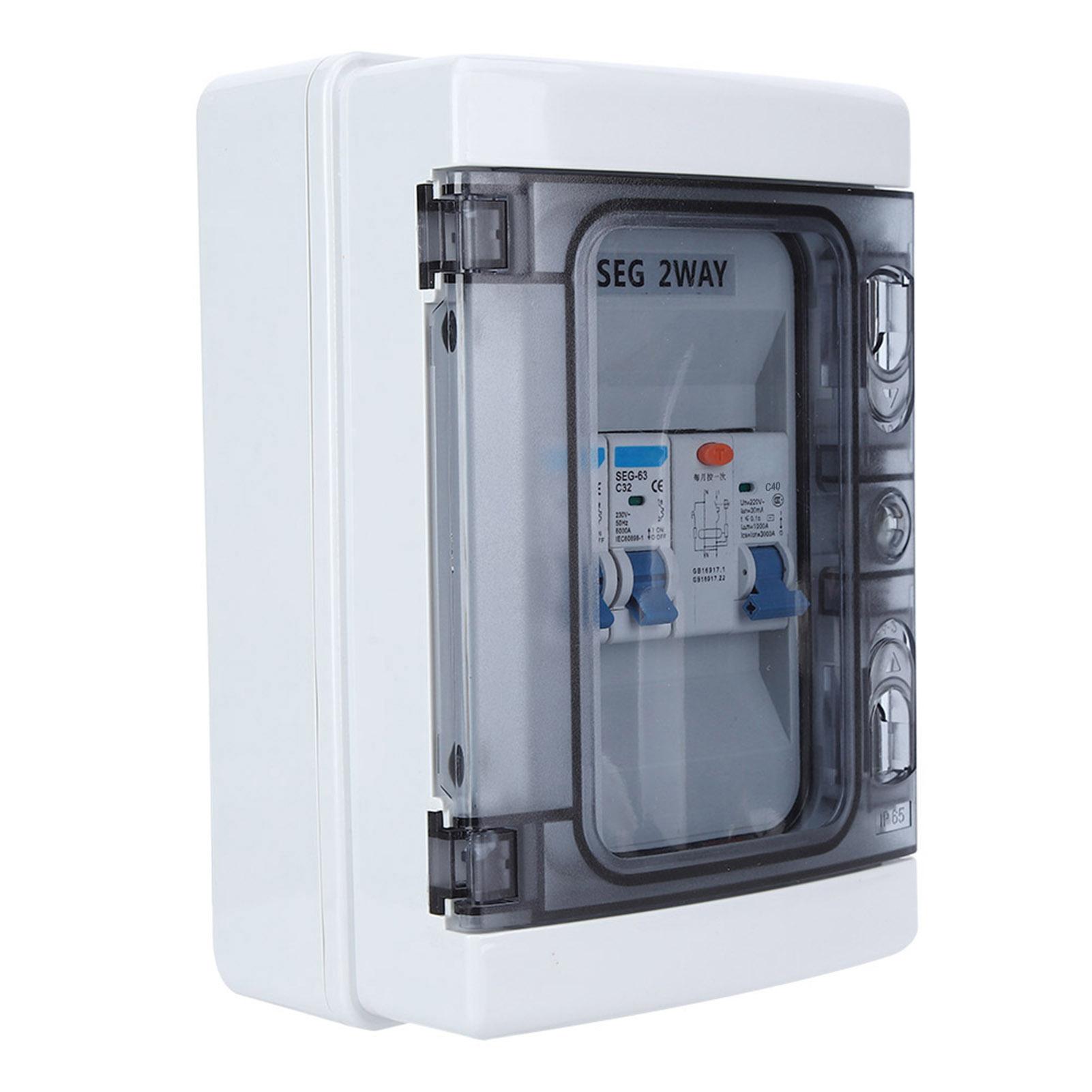

Feature: 1. This product adopts IP65 protective shell, good waterproof effect, with lock latch. It is suitable for wet environment. 2. Ideal equipment for installation in a remote garage, outdoor or s more→hed. 3. This product adopts PC material, high temperature and corrosion resistance. 4. Leakage protector can prevent electric shock caused by leakage of electrical equipment and electrical lines. 5. Leakage protector installation size is 15.5x6.6cm, can be easily installed on the wall. Specification: Item Type: Miniature Circuit BreakerLeakage Switch: 40A 30mA RCD + 2MCB Air Switch: 1 x 6A+1 x 32A Waterproof Level: IP65 Electric Box Size: Approx. 20 x 13 x 9.5cm 7.9 x 5.1 x 3.7in Installation …

Feature: 1. Seamless Power Switching: The double power electrical selector switch enables efficient testing of both the primary and backup power sources, switching within

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electrome more→chanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications.

The schneider electric ic60a miniature circuit breaker is multi-standard circuit breaker which combine circuit protection against short-circuit current and circuit protection against overload current. more→It has 1p+n pole and has 10 a of current. Its width si. Ambient air temperature for operation -25 to 70 °c. Degree of protection ip20.

Schneider Electric Acti 9 IC40 circuit breaker, tripping characteristic C, co-switching neutral, nom. (measuring) current 2A, voltage type AC, 2 poles (total), width in module units 1, secondary devic more→e possible, connectable conductor cross-section duck 1 - 16mm², 1 protected poles.

Rittal SV current rail adapter, busbar copper connection PLS rail 800A, version electrical connection other, adapter width 55mm, width rail 55mm, diameter connection terminal 1.5 - 16mm, center distan more→ce rail 60mm, max. Current rail thickness 10mm, min. Current rail thickness 5mm, nom. (measuring) current In 65A.

Eaton Halyester LV systems LV switchgear. Branch strip SVH125/160 N, bottom 3p+N.

Feature: 1. Scope of Application: DC switch is used to switch off all poles of the solar module. It is installed on the string line between the module and the grid inverter or charge controller. 2. Po more→werful Function: Depending on the configuration, this switch can switch the switching current up to 32A at a voltage up to 1500V, and it has a load breaking up to 8 times the rated current, making it ideal for motor isolation. 3. PC Material: Made of PC material, this switch is flame retardant, possesses premium insulation, heat resistance, acid and alkali resistance, ensuring a long life span. 4. Equipped with Password Lock: When manually turned back and closed, pull out the pull bolt to lock it,…

Wohner EQUES power rail adapter, busbar copper connection standardized busbar copper, carrier rail equipment 1carrier rail, connection round cable cores 10mm², execution electrical connection other, a more→dapter width 54mm, width rail 10mm, diameter terminal 10mm, center distance rail 60mm.
