Circuit Breakers

Schneider Electric circuit breaker, tripping characteristic C, nom. (measuring) current 4A, voltage type DC, 2 poles (total), width in module units 2, ancillary device possible, connectable conductor more→cross-section duck 1 - 25mm², 2 protected poles, nom. (measuring) voltage 440V.

Compact SIRIUS 3RV2 circuit breaker for motor protection, size S00 with CLASS 10 protection. Features 0.45-0.63A A-release and 8.2A N-release with screw terminals. Provides reliable short-circuit shut more→down, overload protection, and system isolation. Optimized for load feeders and IE3/IE4 motors with low heat loss. Includes worldwide certifications for standard and hazardous area applications.

Automatic cut-out, 5sy4 series, 10 ka, b, c and d characteristic. Miniature circuit breakers from siemens, offer the highest quality and reliability. The excellent technical properties of the devices more→mean you are always on the safe side. Apart from that you benefit from the innovative mounting options which enable quick and easy installation. The miniature circuit breakers from siemens can be combined as required with a wide range of supplementary components e.g.

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electrome more→chanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications.

This iC60H circuit breaker has a visi-trip window. This signaling of shutdown due to a fault by a red mechanical status indicator is on the front of the automaton. The green strip on the switch of the more→Acti 9 iC60 circuit breaker ensures that the contacts are physically open and that work can be performed on the downstream circuit in complete safety. In addition, this Schneider Electric circuit breaker features a double clip for disassembly while the comb rail is still in place.

This iC60H circuit breaker has a visi-trip window. This signaling of shutdown due to a fault by a red mechanical status indicator is on the front of the automaton. The green strip on the switch of the more→Acti 9 iC60 circuit breaker ensures that the contacts are physically open and that work can be performed on the downstream circuit in complete safety. In addition, this Schneider Electric circuit breaker features a double clip for disassembly while the comb rail is still in place.

Acti9 iC60H multistandard low-voltage circuit breaker featuring dual tunnel terminals and 2-pole protection. Rated at 1A with C-curve tripping characteristic. Breaking capacity of 10000A at 400VAC (EN more→/IEC 60898-1) and 70kA at 220-240VAC (EN/IEC 60947-2). Includes VisiTrip indicator for quick trip identification and VisiSafe green marking for contact position confirmation.

Feature: 1. Multifunctional: This WIFI energy meter protector is multifunctional, which allows you to easily monitor 3 phase voltage, current, power factor, frequency and other important parameters, w more→hich is very convenient. 2. Secure And Reliable: This WiFi 2 way energy meter can provide a series of conservation functions such as surge guard, under voltage guard, overload guard, under current guard, time delay guard, voltage imbalance guard, current imbalance guard, phase loss guard, phase loss guard, etc., which are secure and reliable. 3. Quick Response: This WiFi smart circuit breaker guards against overvoltage, undervoltage or overcurrent conditions by immediately interrupting the power …

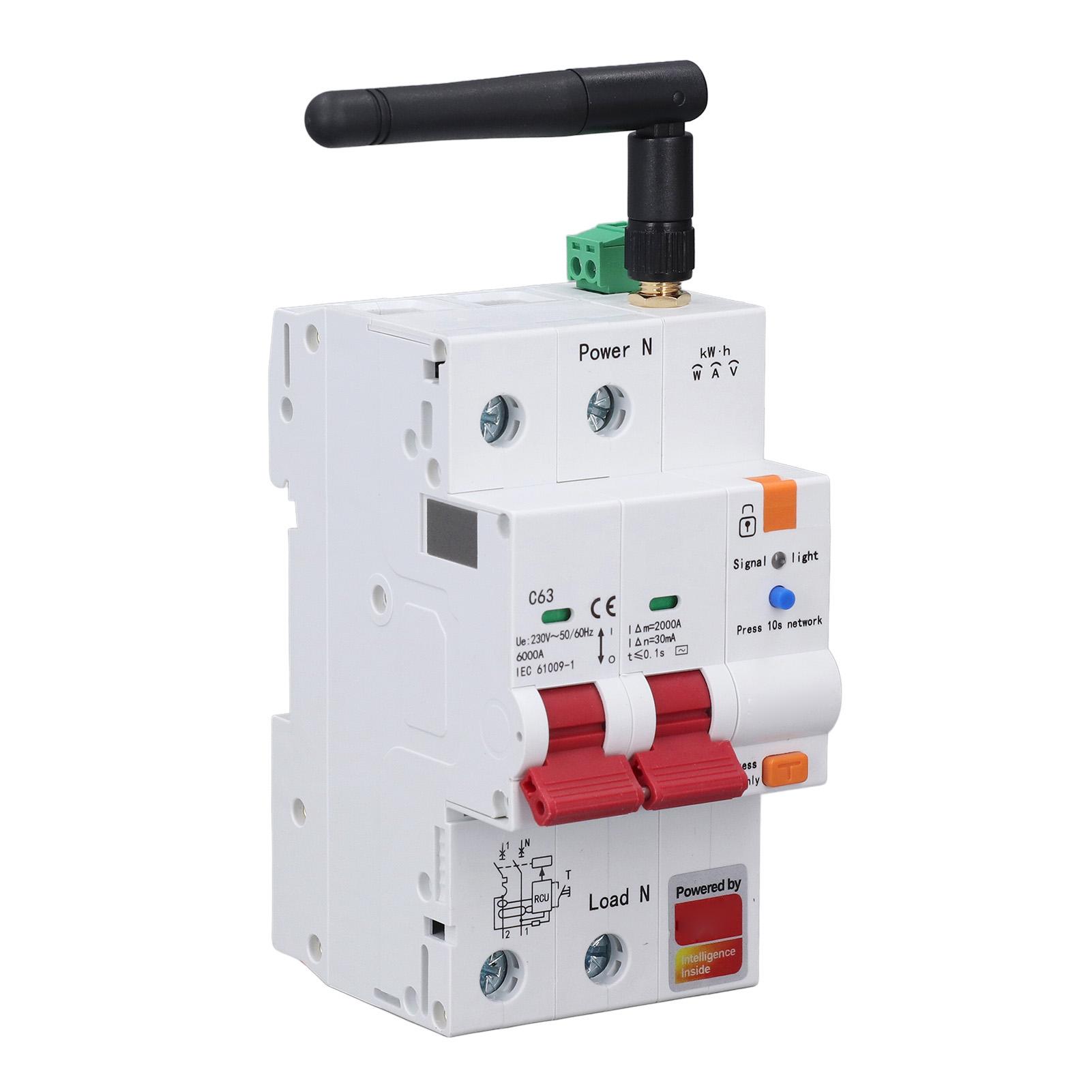

Feature: 1. Remote Control Anytime, Anywhere: The WiFi smart circuit breaker enables seamless remote control of your home s electrical systems through the intuitive for Tuya app, regardless of your lo more→cation. 2. Powerful Leakage Safety: Engineered with a unique isolation design and dampness resistant technology, this circuit breaker swiftly cuts off power within 0.04 seconds, ensuring maximum safety against electrical hazards. 3. Real Time Data Monitoring: Stay informed with real time updates on voltage, current, power thresholds, and electrical parameters. This smart breaker empowers you to manage your home s energy efficiently. 4. Built in Safety Lock: Featuring a manual safety lock, this circuit …

The green strip on the switch of the C60H-DC circuit breaker ensures that the contacts are physically open and that work can be performed on the downstream circuit in complete safety. In the event of more→a short circuit, the rapid opening of the contacts prevents loads from being destroyed.

Schneider Electric circuit breaker, tripping characteristic C, nom. (measuring) current 2A, voltage type DC, 2 poles (total), width in module units 2, ancillary device possible, connectable conductor more→cross-section duck 1 - 25mm², 2 protected poles, nom. (measuring) voltage 440V.

The Eaton Industries Xpole is a motor-protective circuit-breaker, designed for switching and protecting three-phase motors up to 15 kW (380/400 V), or handling other loads with currents up to 40 A. Wi more→th a thermal overload release and magnetic short-circuit release, it can also function as a main switch. It exhibits isolating characteristics compliant with IEC/EN 60947 and features a contact position display in red and green.

Compact 3-pole+neutral miniature circuit breaker with 20A nominal current and B-curve tripping characteristic. Features 6kA short-circuit breaking capacity at 400VAC, compliant with EN/IEC 60898-1. De more→signed for residential installations with 10,000 electrical and 20,000 mechanical operation cycles. DIN rail mountable with 54mm width, offering IP20 protection rating.

Feature: 1. REMOTE CONTROL: For tuya APP and metering for Zigbee intelligent circuit breaker, change the traditional remote control, unlimited distance can be controlled anytime and anywhere, intellig more→ent remote control APP control, remote control switch, anytime and anywhere can control the switch at home 2. TIMING SWITCH: Support most Al smart speakers on the market, so that you can experience the intelligent life of lying down can control electrical appliances, Circuit breaker has timing switch function, plan life, electrical timing, anytime and anywhere to relax yourself after a busy day, convenient life can bring you a happy mood 3. MOBILE PHONE REAL TIME DISPLAY DATA: Smart circuit breaker …

Compact 3P+N circuit breaker with B-characteristic and 25A nominal current. Features 6000A short-circuit capacity at 400 VAC, compliant with EN/IEC 60898-1 standards. Designed for residential installa more→tions with 3 protected poles, offering up to 10,000 electrical and 20,000 mechanical operation cycles. DIN rail mountable with 54mm width and IP20/IP40 protection rating.

Three-pole magnetic circuit breaker with 4A/690V rated operational current, designed for 3-phase motor applications up to 1.1-1.5kW at 400V. Features 13xIn trip level and 100kA breaking capacity at 40 more→0V. Includes screw terminal connections and rotary handle control rated for 100,000 AC-3 cycles. Compatible with LRD08 thermal overload relay for complete motor protection. Multi-standard certified with Green Premium ecolabel compliance.

The schneider electrics product multi9 c60bp is a low voltage miniature circuit breaker (mcb). it is a 2p circuit breaker with 2 protected poles, 4a rated current and c tripping curve. The rated short more→circuit breaking capacity goes up to 10ka at 415vac conforming to en/iec 60947-2 standard and 10ka at 415vac conforming to en/iec 60947-2 standard. This product complies with both industrial standard en/iec 60898-1 and residential standard en/iec 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats.

The double cage terminals of the SN201 installation circuit breaker allow for easy mounting of the circuit breaker. The SN201 circuit breaker achieves maximum safety through the wide opening of the ei more→der. Here, an insulated screwdriver can be used to tighten the screws of both wire terminals. Thanks to the contact position indicators (CPI) on the circuit breaker rocker switch, you will always know the status of the contacts. ABB SN circuit breakers are available in different variants.

Siemens type c mcb, 10a current rating, 10ka breaking capacity - sentron series - 5sy4210-7. This miniature circuit breaker from siemens is designed to protect your equipment from current surges. It w more→orks by cutting off power to the electrical circuits, preventing system damage through overloads. As it's a type c mcb, it trips if it detects between 5 and 10 times its rated current load. This makes it suitable for use in heavy-duty systems such as lighting fixtures and electric motors. It features toggle switches on its body so you can easily reset it.

Schneider Electric comb rail.

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electrome more→chanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications.

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electrome more→chanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications.
