Circuit Breakers

SIRIUS 3RV2 circuit breaker designed for reliable motor protection with 18-25A A-release and 325A N-release ratings. Features screw terminals, standard switching capacity, and Class 10 protection. Ope more→rating at 690 VAC max, it provides overload and short-circuit protection with phase-failure sensitivity. Suitable for IE3/IE4 motors with operating temperature range -20°C to 60°C.

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electrome more→chanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications.

Three-pole motor circuit breaker designed for 3-phase motor applications up to 15kW at 400V. Features magnetic protection with 13xIn trip level and high breaking capacity Icu 50kA at 400V. Equipped wi more→th screw terminal connections and rotary handle operation rated for 100,000 AC-3 cycles. Includes IP20 protection rating and complies with multiple standards including IEC, CCC, EAC, and Marine certifications.

Schneider Electric circuit breaker, tripping characteristic B, nom. (measuring) current 63A, voltage type AC/DC, 3 poles (total), width in module units 3, secondary device possible, connectable conduc more→tor cross-section duck 1 - 35mm², 3 protected poles, nom. (measuring) voltage 400V.

The Legrand TX3 circuit breaker can be connected with either pin or fork terminal rails. In addition, this Legrand circuit breaker can be equipped with DX3 auxiliary contacts. The TX3 circuit breaker more→cannot be equipped with ground fault elements. Legrand Lexic TX3 circuit breakers are available in different variants.

This comb rail PS 4/60/16 from ABB's System Pro M series is for the purpose of circuit breakers. The collector rail can accommodate 15 devices. Furthermore, the comb rail has a cross section of 16mm² more→and a rated continuous current of 80A.

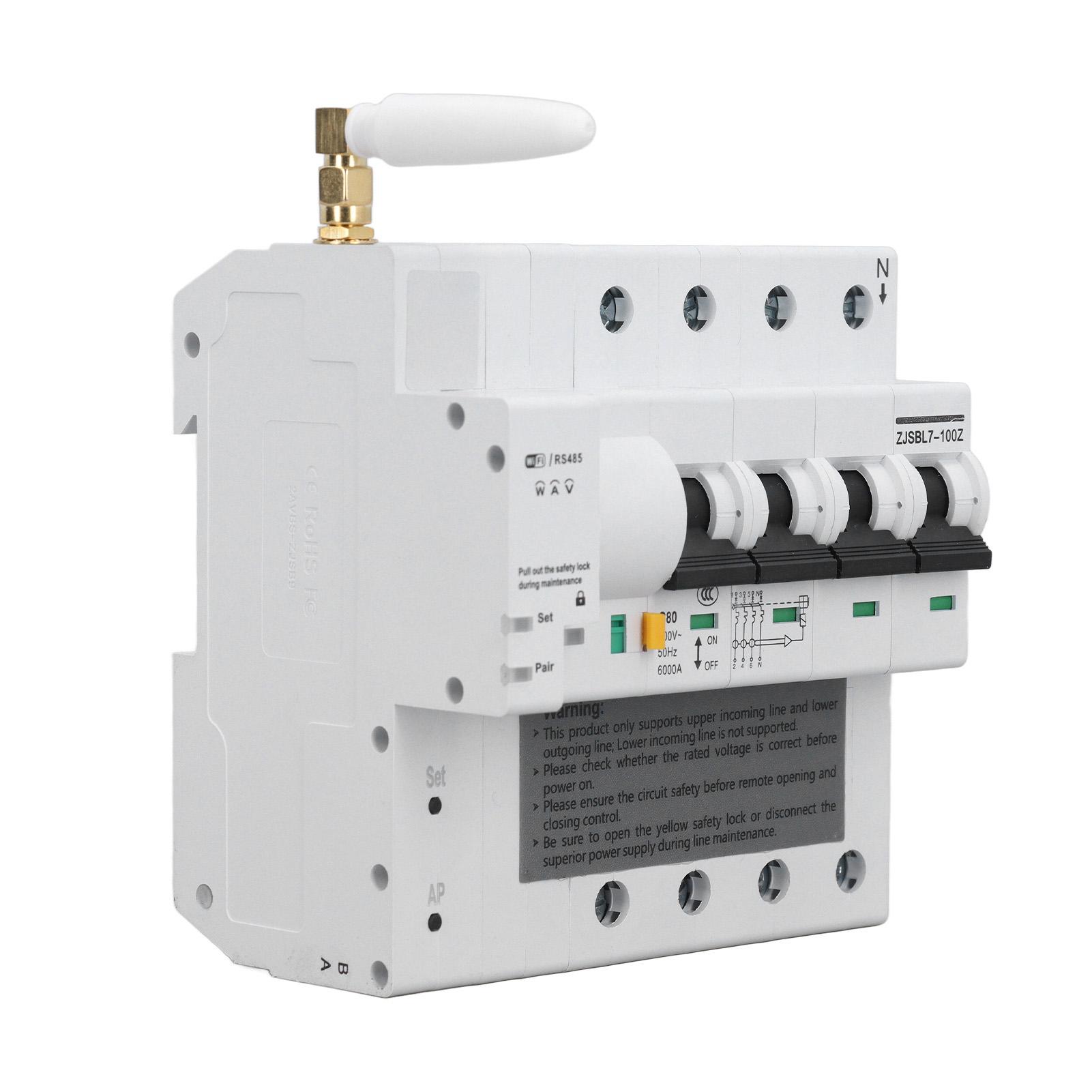

Feature: 1. INSULATION SAFETY: Made of flame retardant PA66 DSM material, the circuit breaker ensures secure and safe insulation for peace of mind. 2. ERGONOMIC DESIGN: Rigorous ergonomic design of th more→e remote control switch for a comfortable user experience, enhancing ease of use. 3. MOBILE APP MONITORING: Monitor current, voltage, power, energy usage, schedule settings, and more using the mobile app. Enjoy the convenience of this smart circuit breaker. 4. MULTIFUNCTIONAL: Functions include auto power off, remote data monitoring, timer settings, power metering, energy usage tracking, and leakage current adjustment. 5. COMPREHENSIVE PROTECTION: This circuit breaker provides protection against …

Eaton Industries FAZ C circuit breaker, tripping characteristic C, nom. (measuring) current 10A, voltage type DC, 2 poles (total), width in module units 2, ancillary device possible, connectable condu more→ctor cross-section duck 1 - 25mm², 2 protected poles, nom. (measuring) voltage 250V.

Schneider electric acti9 i60n mcbs 4 pole. Acti 9 ic60n series multi-standard circuit breakers combine circuit protection against short circuit currents and circuit protection against overload current more→s it also protects people against indirect contact with tn and it neutral systems. Fully compliant with standards iec/en 60898 and iec/en 60947-2. Acti 9 is fully tested, approved and certified by national and international third parties.

This comb rail PS 4/58/16N from ABB's System Pro M series is for the purpose of circuit breakers. The collector rail can accommodate 29 devices. Furthermore, the comb rail has a cross section of 16mm² more→and a rated continuous current of 80A.

The siemens sentron series miniature circuit breaker has a 3+n pole and has a current breaking capacity of 6ka. In the event of an overload or short-circuit this miniature circuit breakers safely cut more→off the connected circuit and reliably protect electrical installations and equipment from damage. The device have a uniform design and, with the appropriate accessories, can be expanded by many additional functions. Type c tripping characteristic. Simple to mount and install.

This easy-to-use PLS6 circuit breaker features top and bottom window and elevator terminals. Thanks to contact position indicators (CPI), you always know the status of the contacts. The 3-position DIN more→-rail clip allows removal from existing busbar. Eaton Moeller PLS circuit breakers are available in several variants.

Eaton Industries circuit breaker, tripping characteristic C, nom. (measuring) current 32A, voltage type AC, 3 poles (total), width in module units 3, ancillary device possible, connectable conductor c more→ross-section duck 0.002 - 0.039mm², 3 protected poles, nom. (measuring) voltage 415V.

SMISSLINE TP S400M are a current limiting miniature circuit breakers. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechani more→c tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K), configurations (1P,1P+N,2P,3P,3P+N), breaking capacities (up to 10 kA at 240/415 V AC ) and rated currents (up to 63A). MCBs of the product range S400M are comply with IEC/EN 60898-1 for B,C and D characteristic and IEC/EN 60947-2 for C and K characteristic.

Abb System pro M compact PS comb rail, diameter 16mm², length 1024mm, rated continuous current Iu 80A, suitable for devices with zero yellow, for the purpose of series(s) S200 WITH Auxiliary contact, more→electrical connection design pin, 4 phases, suitable for number of devices 13, space for auxiliary contact, 52 poles.

Socket rail fork 3-pole 16 mm² 57 modules. In combination with quickbusbar components, the installation-friendly quickbusbar rails (KDN) provide a quick, secure and screwless connection. This Quickbus more→bar connection rail is for the purpose of earth leakage switches 4p. The Hager Quickbusbar comb rails are available in different variants.

Eaton Industries power rail connector.

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electrome more→chanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications.

System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electrom more→echanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications.

This easy-to-use PLSM installation circuit breaker features top and bottom window and elevator terminals. Thanks to contact position indicators (CPI), you always know the status of the contacts. The 3 more→-position DIN-rail clip allows removal from existing busbar. Eaton Moeller PLS circuit breakers are available in several variants.

The Legrand DX3 circuit breaker can be connected with either pin or fork terminal rails. Short circuit breaking capacity according to IEC 60947-2 - 16kA. In addition, this Legrand circuit breaker can more→be equipped with DX3 auxiliary contacts. The DX3 circuit breaker cannot be fitted with ground fault elements. Legrand Lexic DX3 circuit breakers are available in different variants.

Schneider Electric circuit breaker, tripping characteristic C, nom. (measuring) current 32A, voltage type AC/DC, 3 poles (total), width in module units 3, secondary device possible, connectable conduc more→tor cross-section duck 1 - 35mm², 3 protected poles, nom. (measuring) voltage 400V.

Schneider electric acti9 i60n mcbs 4 pole. Acti 9 ic60n series multi-standard circuit breakers combine circuit protection against short circuit currents and circuit protection against overload current more→s it also protects people against indirect contact with tn and it neutral systems. Fully compliant with standards iec/en 60898 and iec/en 60947-2. Acti 9 is fully tested, approved and certified by national and international third parties.
