Batteries 319

319

— the "300" series includes miniature 1.5 V "coin" batteries — analogues of the LR series alkaline cells, made using more advanced silver oxide technology. This technology is more expensive, but allows to achieve greater capacity, more stable voltage and resistance to high discharge currents (although the nominal currents can be relatively low).

Note that the most popular designation for silver oxide batteries is SR with two numbers (the same as in LR cells of the same size. However, our catalog uses a purely digital three-digit designation as a basis. It is more accurate, since it takes into account not only physical dimensions , but also the discharge current — high (HD) or low (LD); and it significantly affects the specifics of using the battery. For example, it is impossible to determine the discharge current by marking SR69; but according to the rules of the "three hundredth" series, such elements of the HD discharge format will be designated as 370, LD as 371.

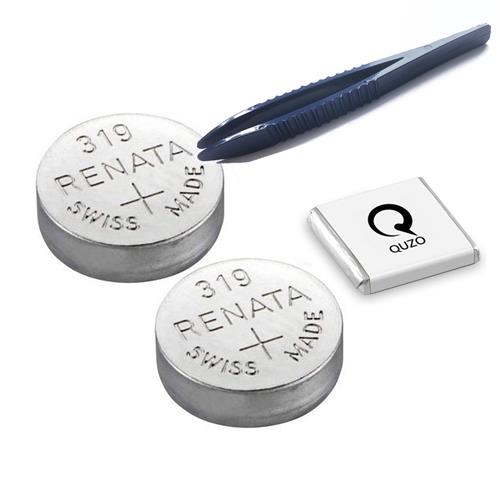

Specifically, size 319 is a low current discharge (LD) version of the SR64 and is similar to the LR64. The diameter of such elements is 5.8 mm, the thickness is 2.7 mm.
